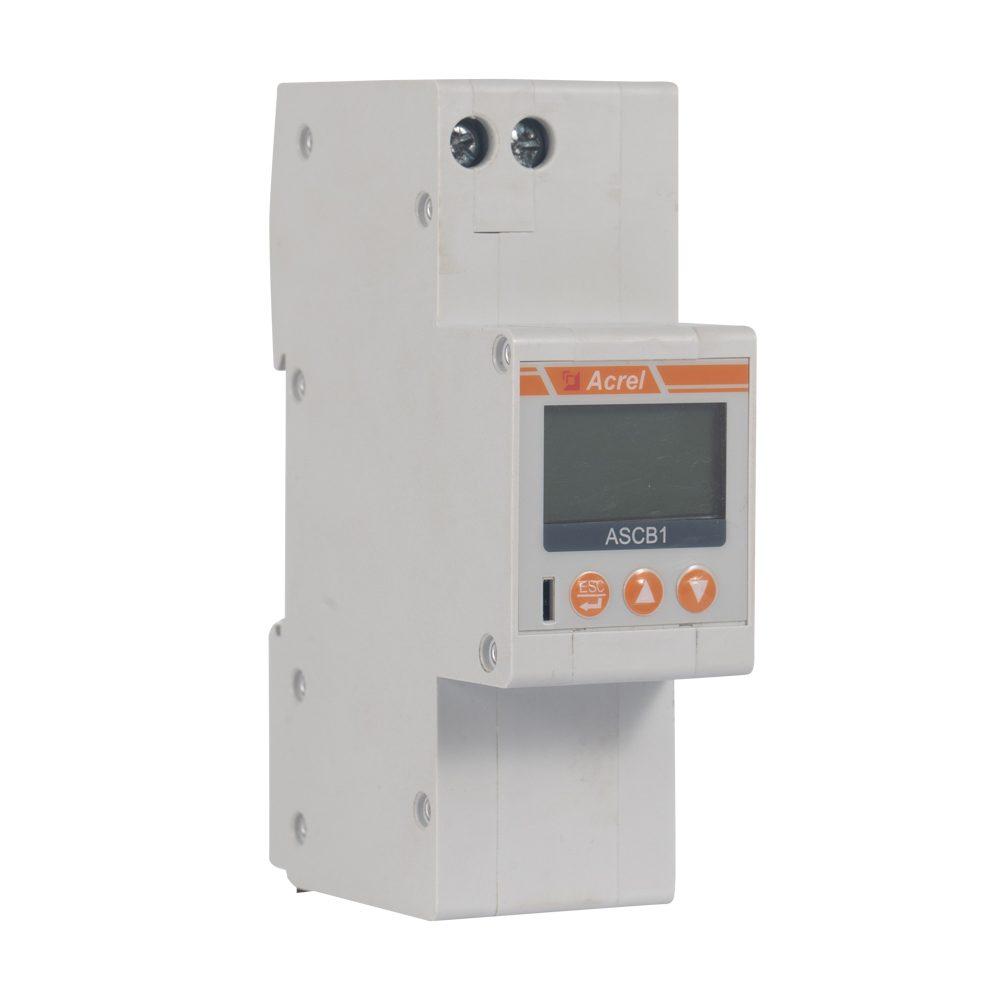

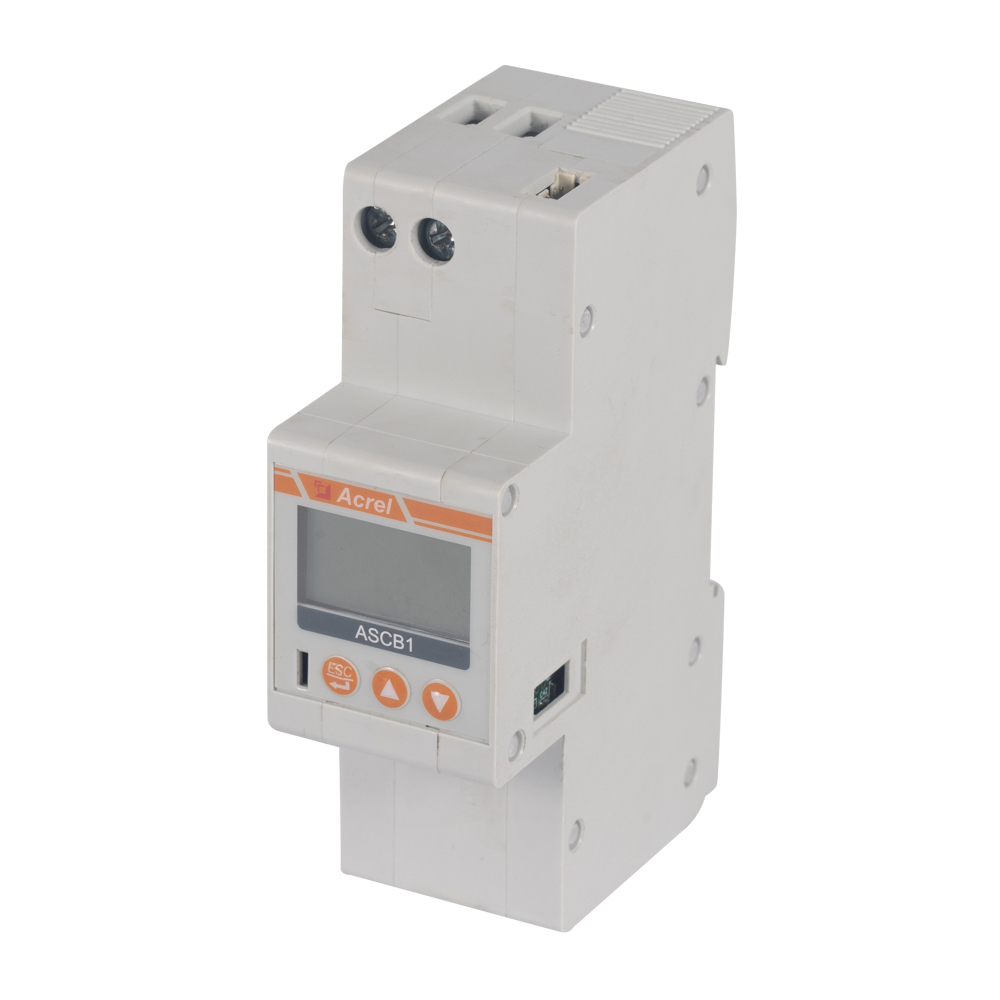

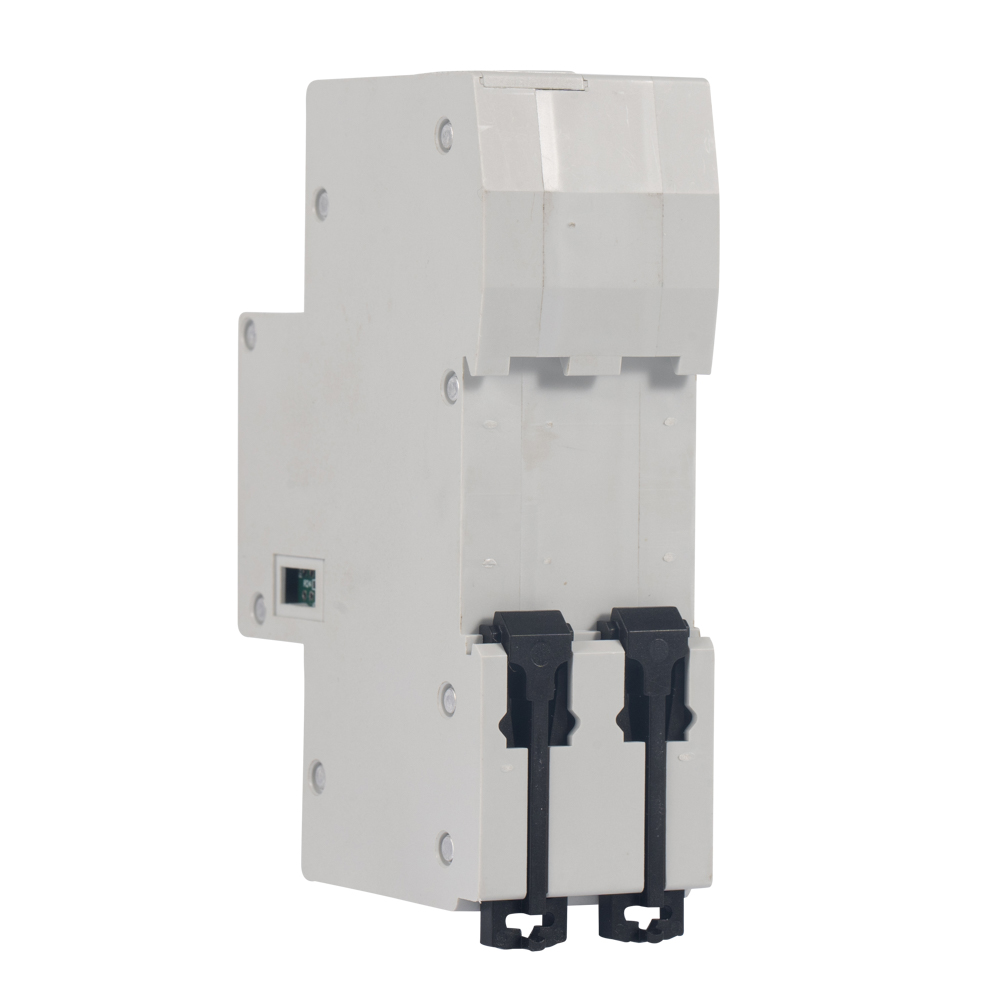

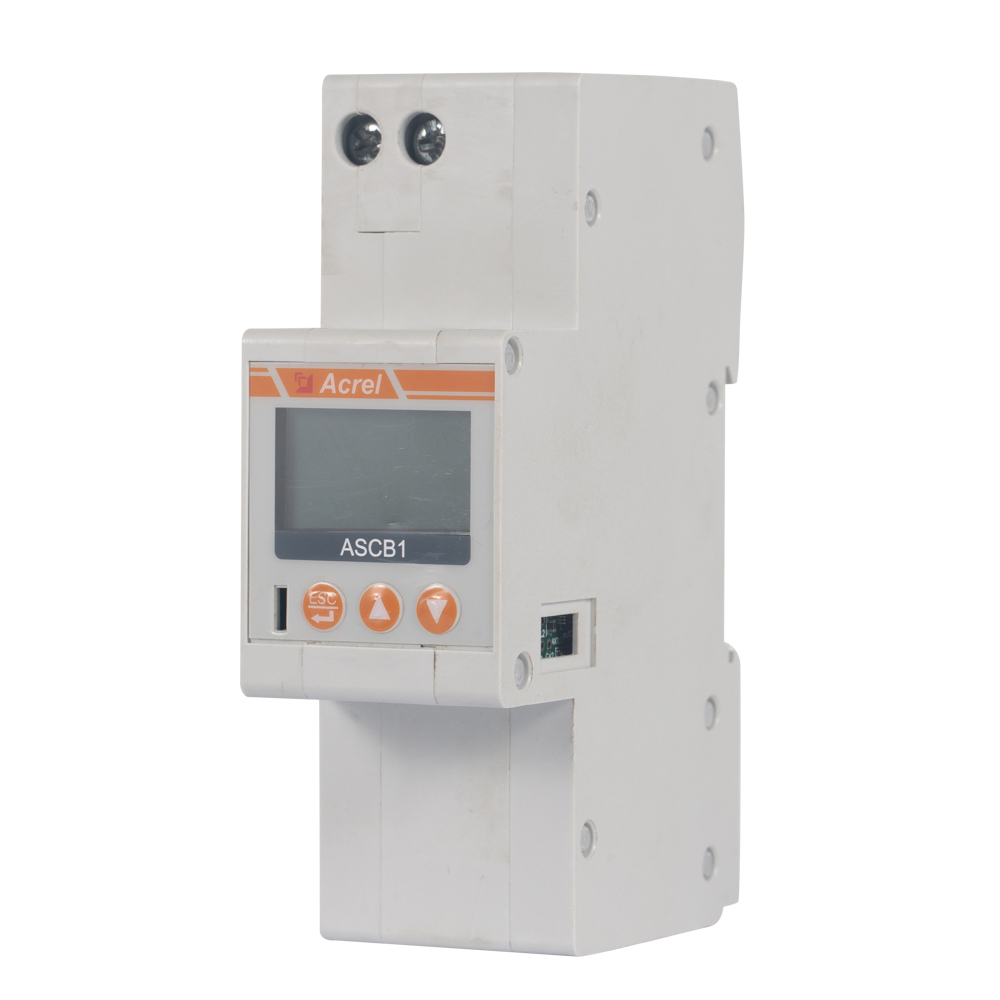

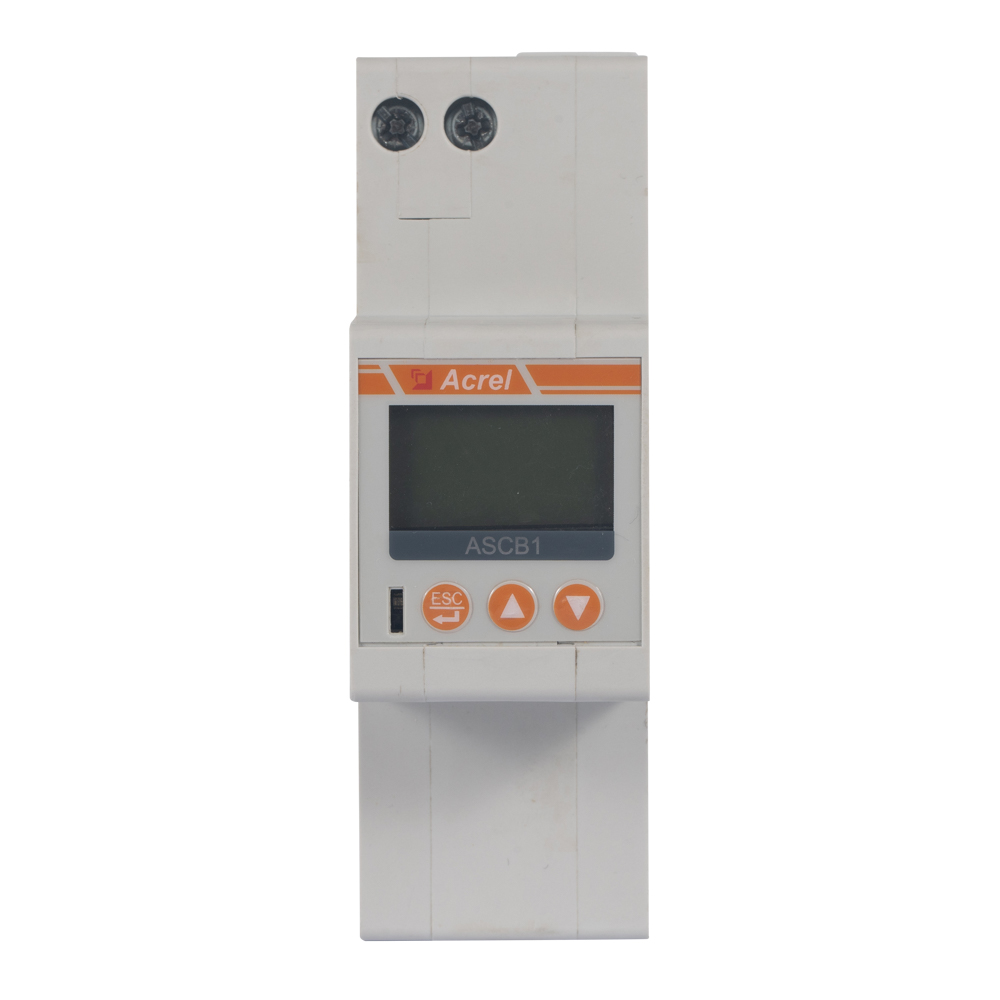

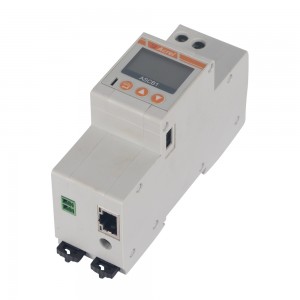

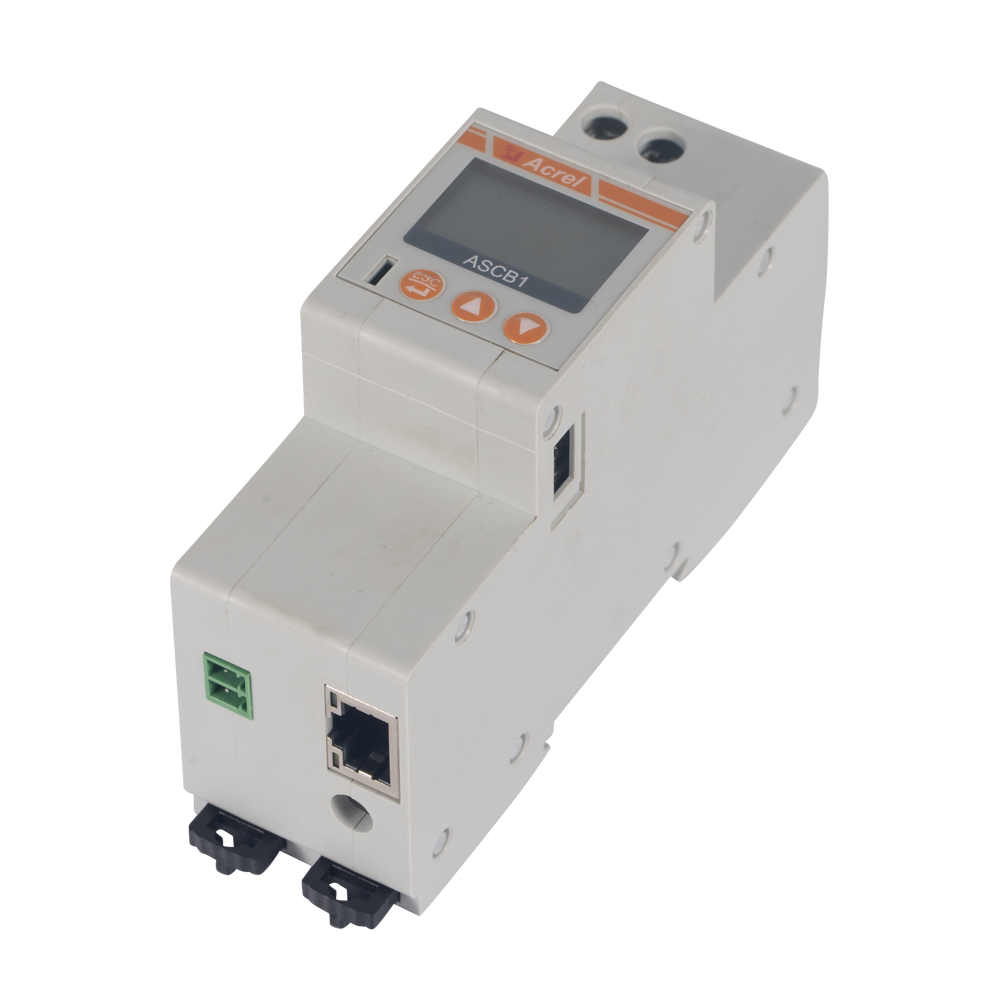

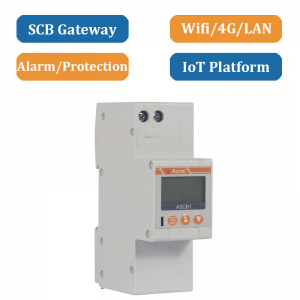

Smart Circuit Breaker (Gateway)
Characteristic
ASCB1 series intelligent miniature circuit breakers (hereinafter referred to as intelligent miniature circuit breakers) are used in low-voltage terminal power distribution networks in industrial, commercial, civil buildings and infrastructures in indoor buildings and similar places. The intelligent miniature circuit breaker is used in conjunction with the intelligent gateway to conduct real-time monitoring of the key electrical parameters of the power line, such as voltage, current, power, temperature, leakage, energy consumption, etc. , fault location and other functions.
This series of products can choose single pole, 2 pole, 3 pole and 4 pole .
Parameter
Working power: 220VAC
Communication method: 4G/Wifi/Ethernet
Protocol: Modbus, MQTT, etc.
Record: Alarm, fault and action records up to 20 records each
Storage temperature: -20℃ ~ 70℃
Protection class: IP20
Dimension(L*W*H): 108*36*75mm
Installation method: Standard 35mm rail installation
Main Function

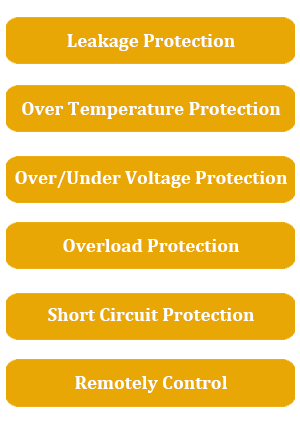

Protection
Measure

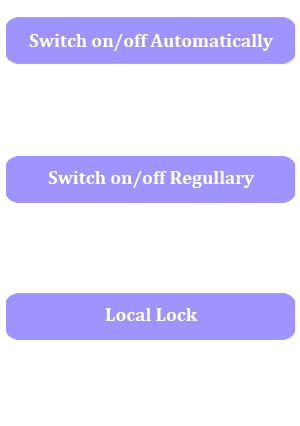

Control

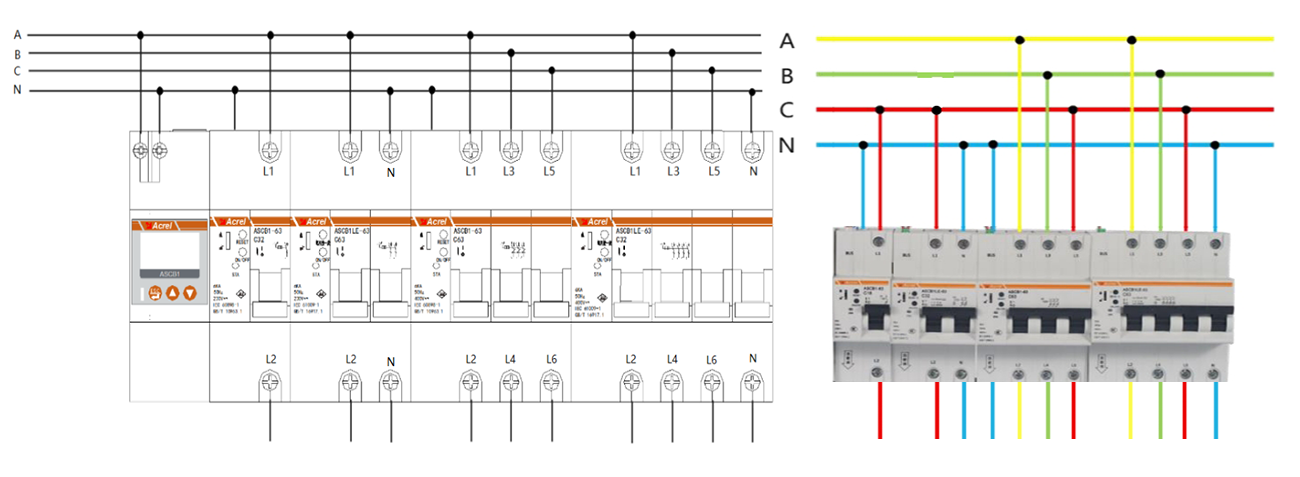

Wiring Method

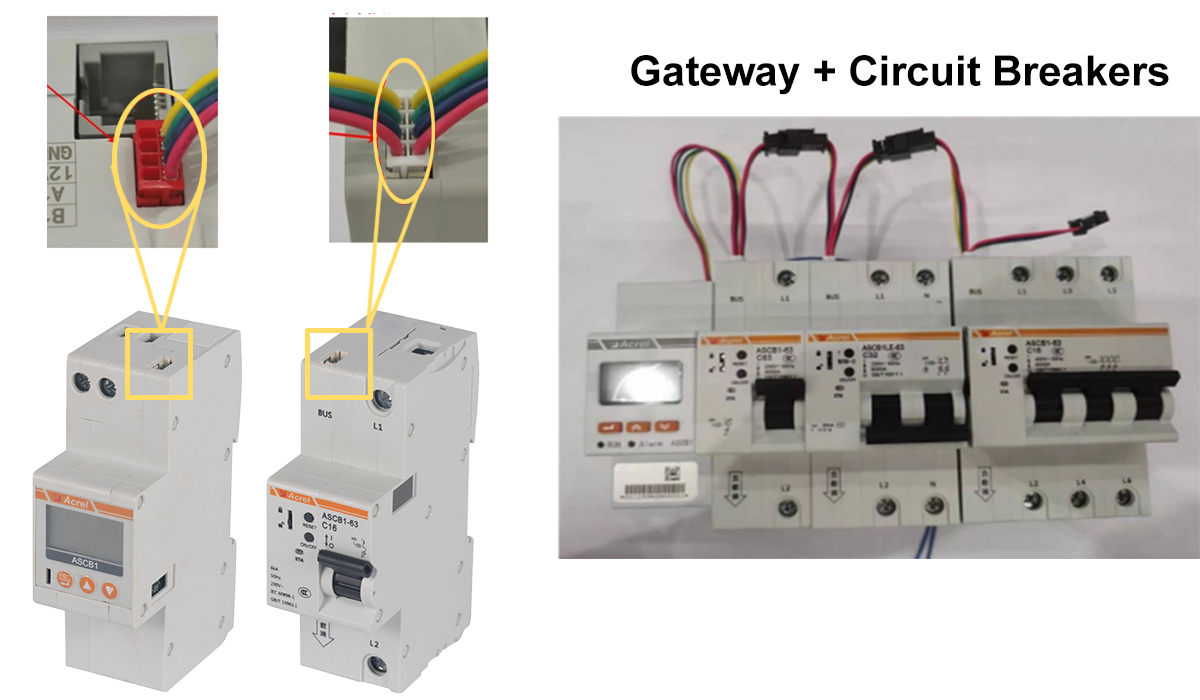

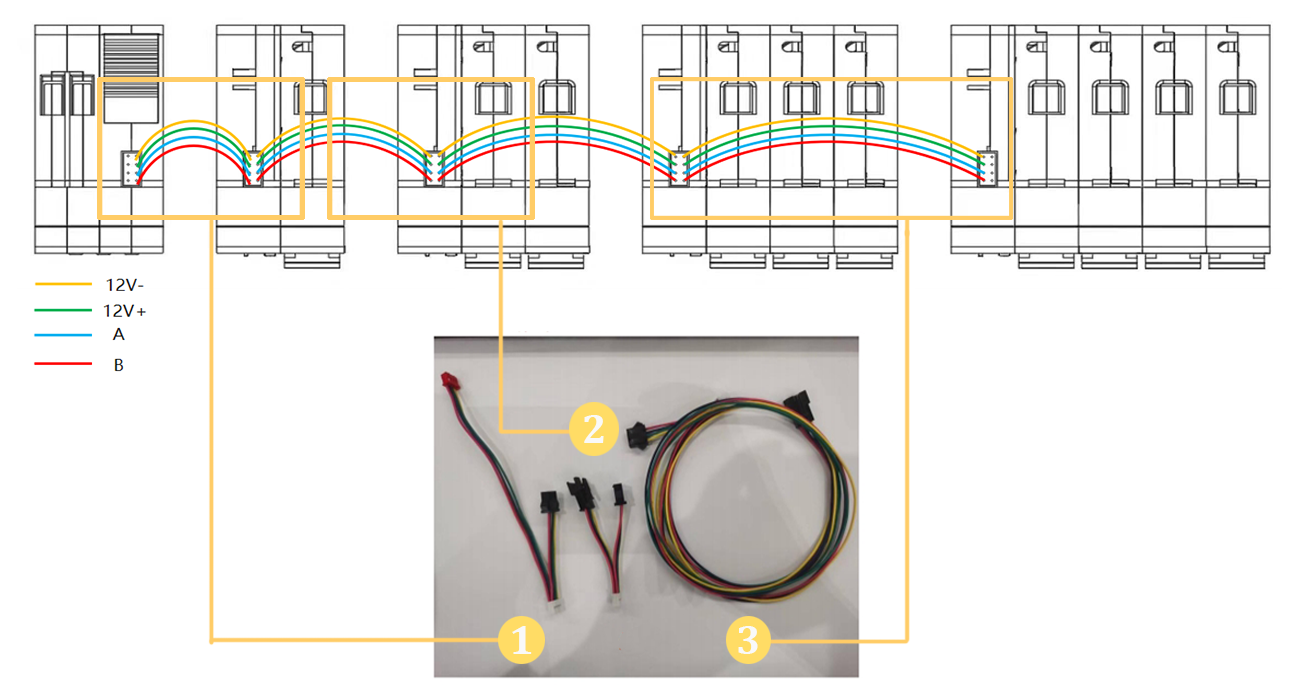

Connector & Wire

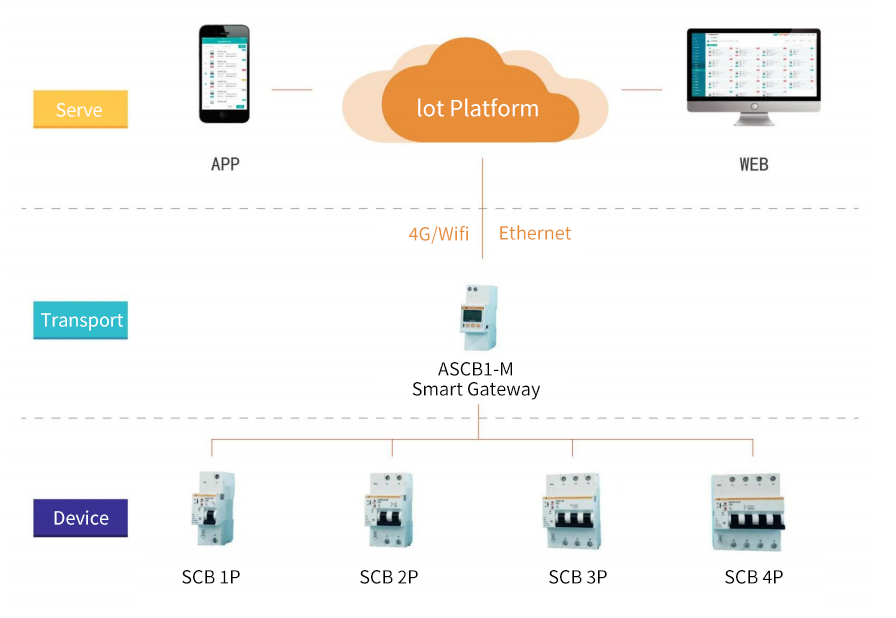

Network Diagram
1.Technical parameter
1.1 Electrical performance
| Product number | ASCB1-M-4G | ASCB1-M-CE |
| Working power | AC 220V | |
| Power consumption | ≤30W | |
| communication method | 4G | Ethernet |
| Display method | LCD dot matrix liquid crystal display | |
| Record | Alarm, fault and action records up to 20 records each | |
| Protocol | Modbus, MQTT, etc. | |
| Altitude requirements | 2000m | |
| Ambient temperature | -10℃- 55 ℃, 24h average temperature not higher than 40 ℃ | |
| Environmental requirements | No explosion hazard, no conductive dust, no enough to corrode metal and destroy insulation, no significant vibration | |
| Relative humidity | At +40°C, the relative humidity of the air is 50%, and it can have a higher relative humidity at lower temperatures | |
| Storage temperature | -20℃-70℃ | |
| Protection class | IP20 | |
| Installation method | Standard 35mm rail installation | |
