Acrel-2000ES Energy Storage Management System
General
The Acrel-2000ES Energy Storage Management System has comprehensive energy storage monitoring and managementfunctions, covering detailed information of energy storage system equipment (Pcs, BMS, meters, fire protection, airconditioning, etc., achieving data acquisition, data processing, data storage, data query and analysis, visual monitoringalarm management, and statistical reporting. In advanced applications, it supports energy dispatching, with controlfunctions such as planned curves, peak shaving and valley filing, demand control, and backup power. it can be used forboth energy storage integrated cabinets and energy storage containers, serving as a dedicated software system platform forequipment management.
Structure

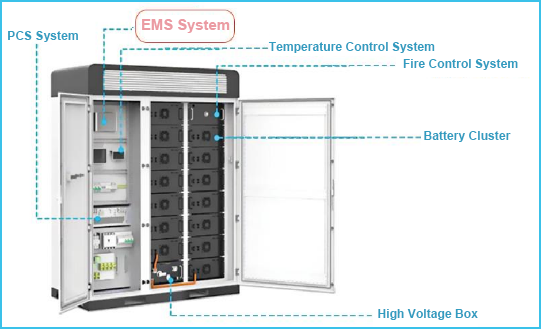

Integrated Energy Storage Cabinet
The Acrel-2000ES builde in HMI, there are multi communication interface, including 4×RS485, 4×USB3.0, 2×LAN, 1×HDMI, 8×DI, 8×DO. It could monitor most devices in energy storage cabinet and control them. So you could check the statues of th cabinet. It could monitor most devices in energy storage cabinet and control them.

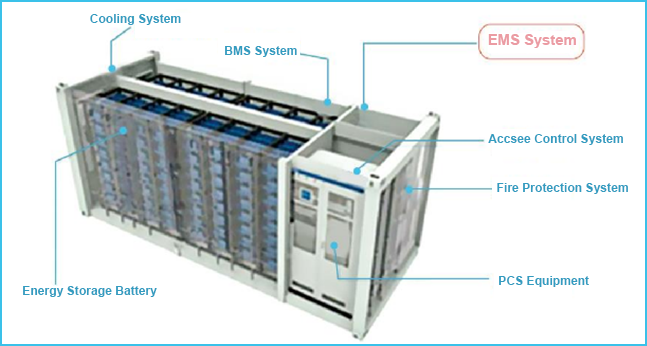

Industrial and Commercial Energy Storage Container
√ Charge and discharge control
√ Fault diagnosis
√ Prevention of Unintentional Islanding
√ Anti-reflux
Function

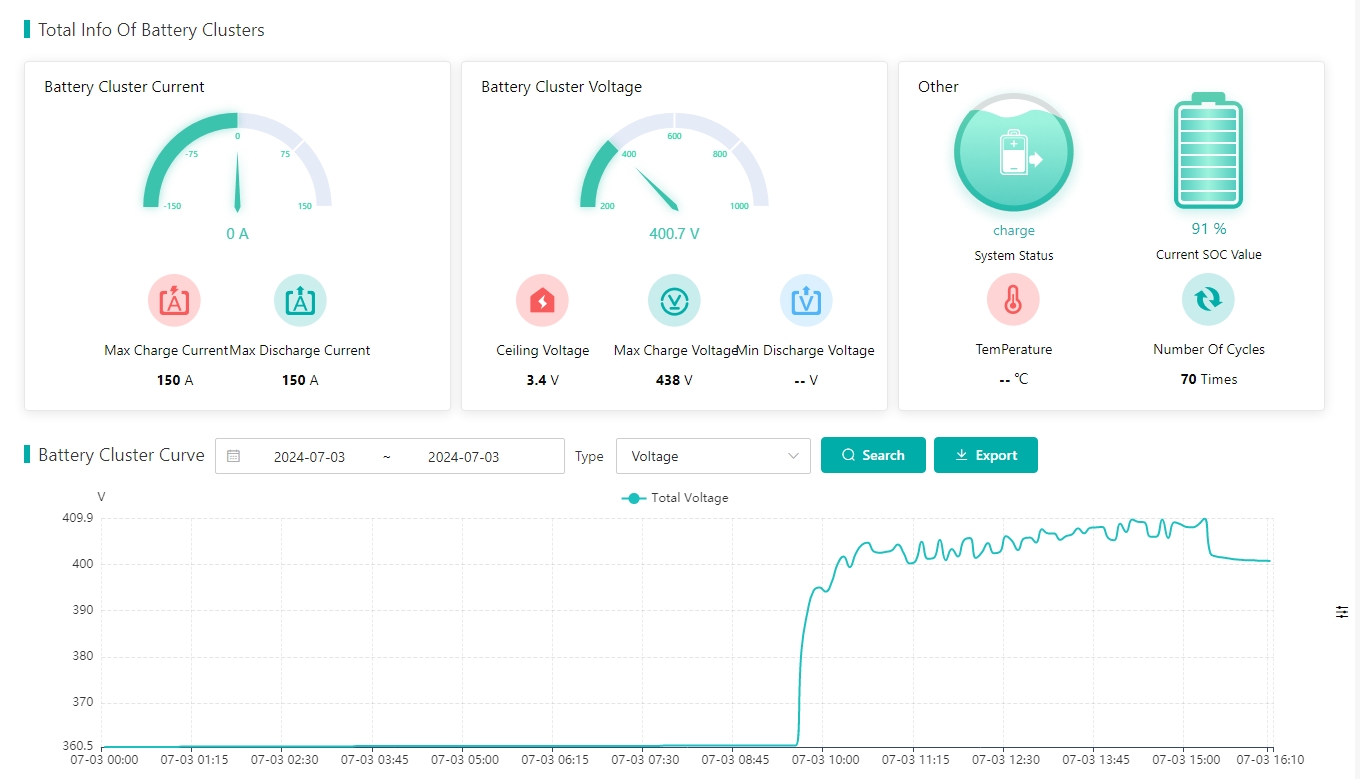

BMS Monitoring
Manage the status and data of energy storagebattery stacks/clusters/cells, monitoring thehighest or lowest voltage, temperature, current,and related channel positions.

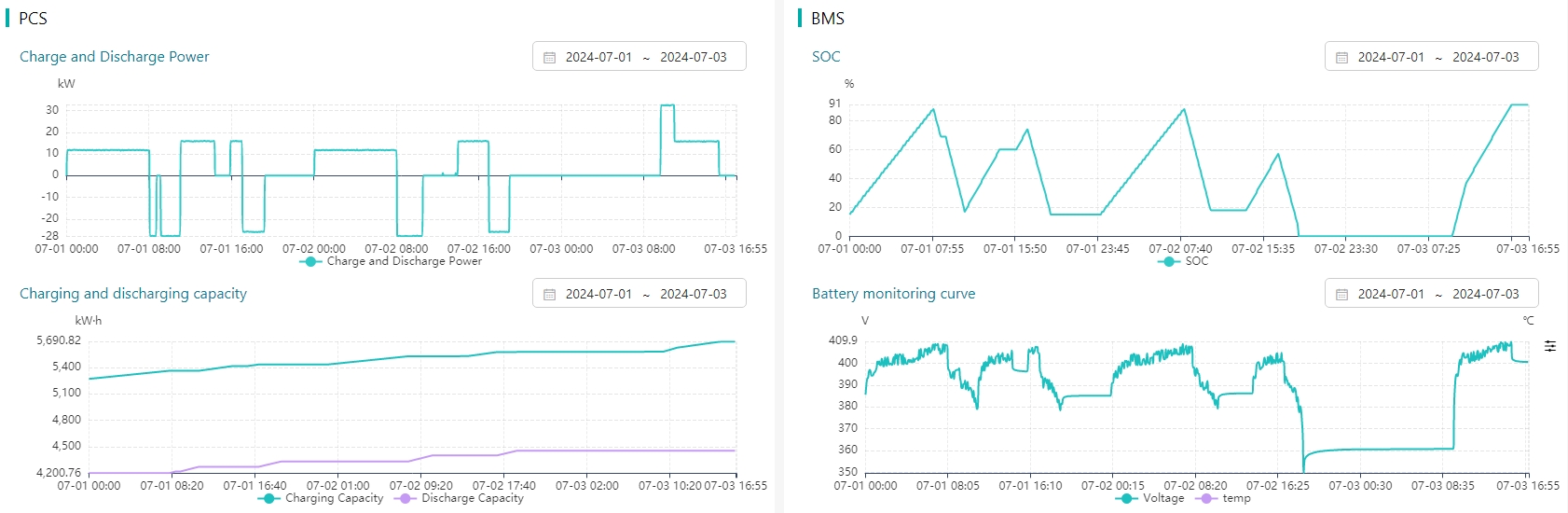

Curve Report

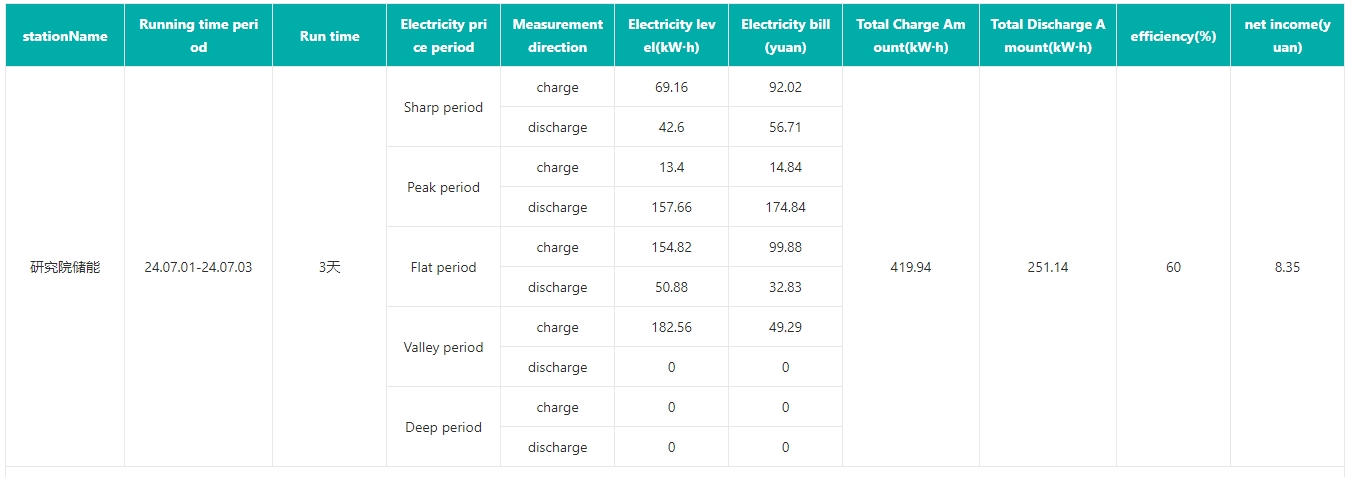

Display charge/discharge power curves, SOC changecurves based on energy storage operating status,support for customized business curves. Supportsstatistical reports on battery temperature, voltage,and power with different granularities, revenuereports, and supports custom queries, export,andprinting
System Configuration
Supports manual strategies for PCS start/stopgrid-connected and off-grid operations, andcharge/discharge operations. Supports presetstrategies: peak shaving and valley filling, reversepower protection, demand control, etc. Supportsintelligent strategy dynamic planning ofcharge/discharge strategies
Advantange
IPC & HMI
√ Device monitoring & Parameter setting
√ Energy storage optimization scheduling
√ Communication management & Real-time alarms
√ Other localized management functions
Data Collection
√ Energy storage inverter
√ Battery management system
√ Metering meter
√ Temperature control system
√ Fire protection system
System Function
√ Support remote set up and control, emergency start & stop
√ Supports both local and remote modes
√ Support strategies such as peak shaving and valley filling, demand control, reverse power protection, and plan tracking
√ Support IEC101, IEC104, Modbus RTU, Modbus TCP, CDT, etc.

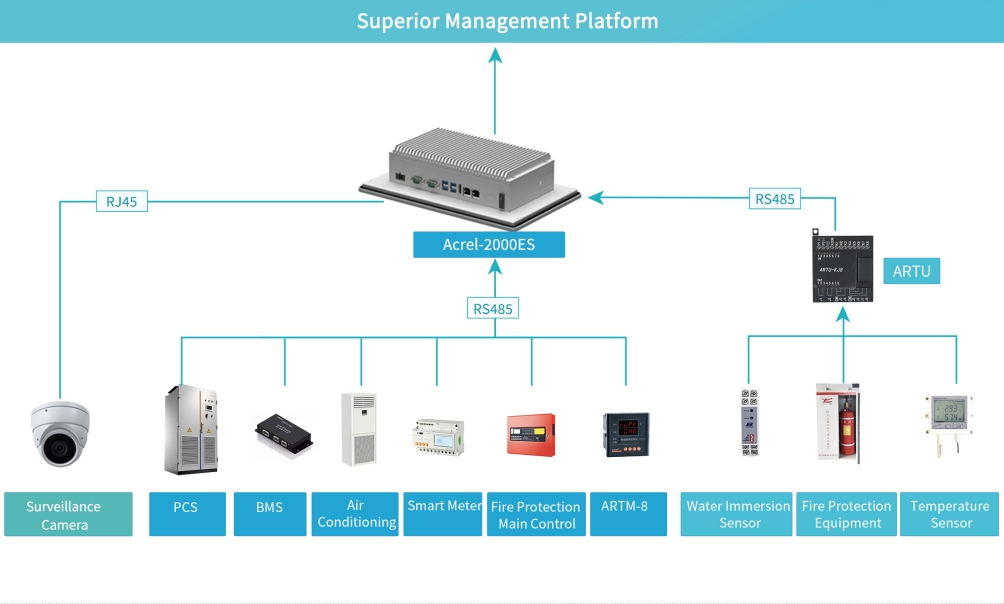

Typical Diagram

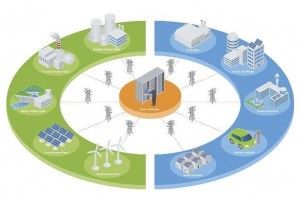

Application Scene
