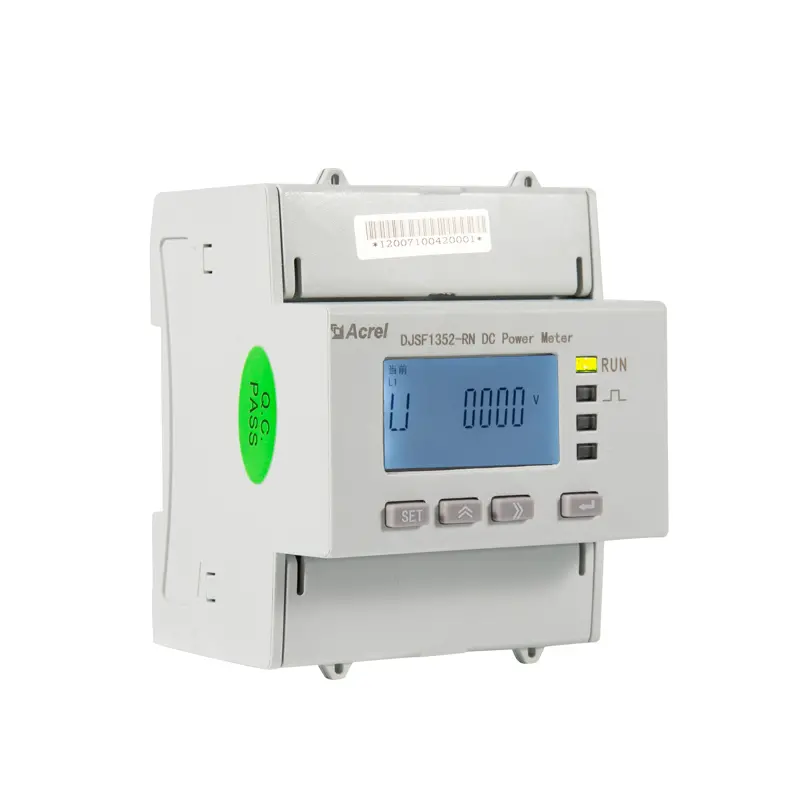

DJSF1352-RN Din-rail DC Smart Energy Meter
Characteristic
DJSF1352-RN rail-mounted DC power meter with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system.
The meter can have infrared communication interface and RS-485 communication interface, and supports Modbus-RTU protocol and DLT645-97 (07) protocol at the same time.The meter can have relay alarm output and digital input function;You can set the ratio, alarm, and communication through the meter panel keys according to different requirements.The meter can have event recording of switch (Modbus protocol), programming and event setting records (645 protocol), instantaneous and timing freeze function of data (645 protocol), maximum and minimum value recording function of voltage and current power.

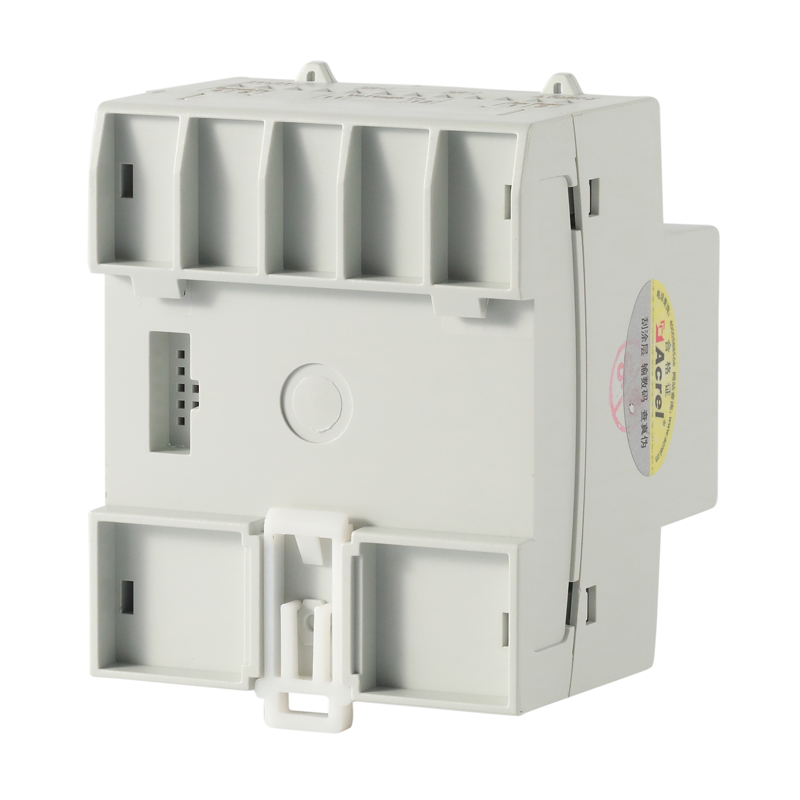

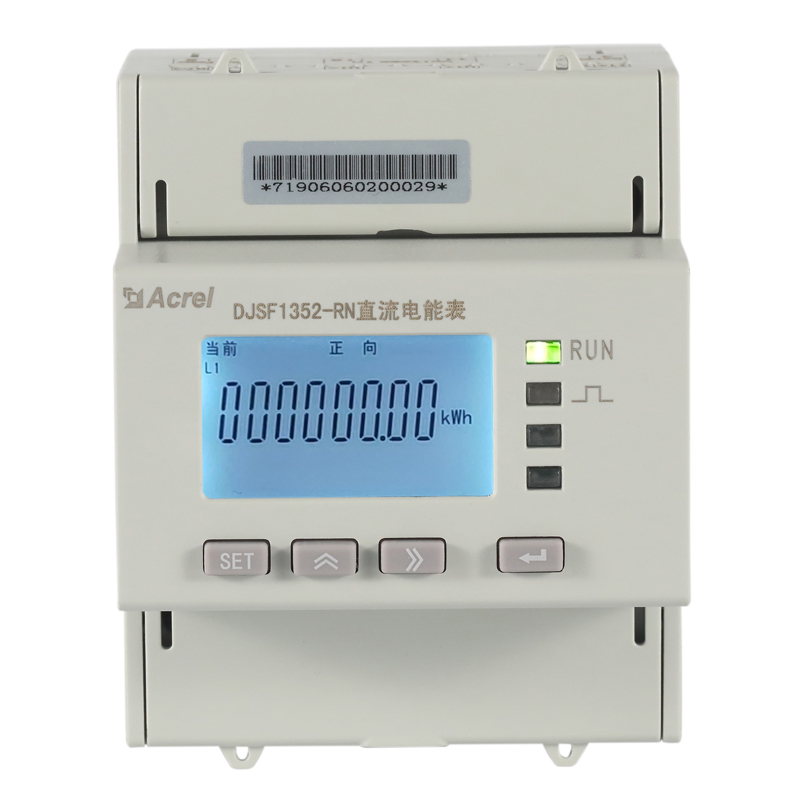

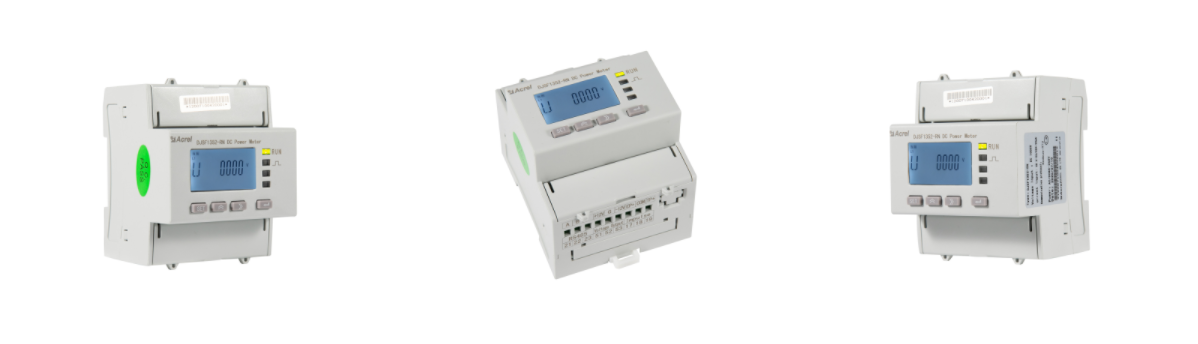

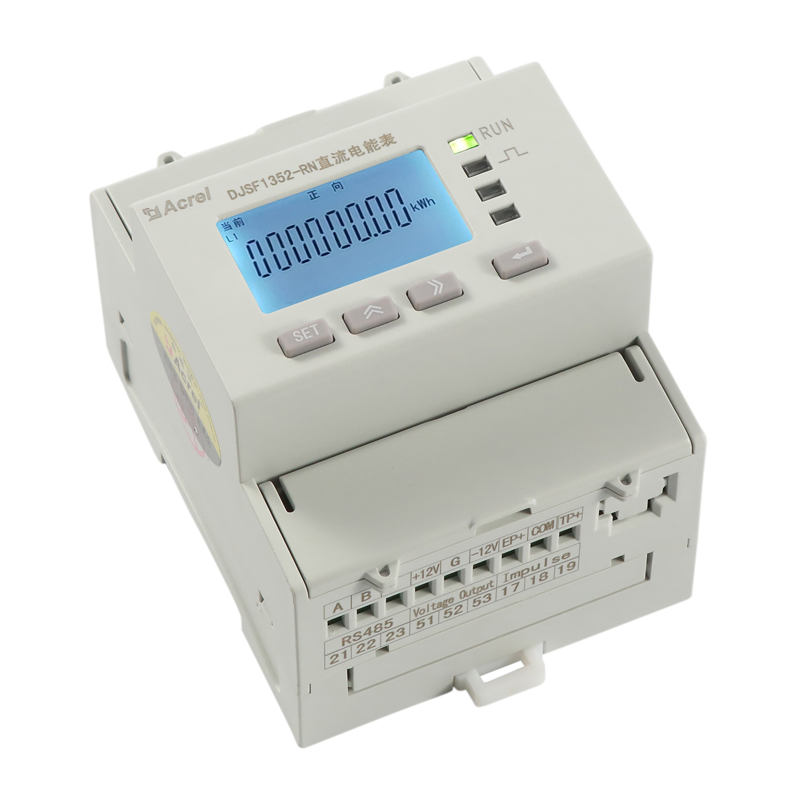

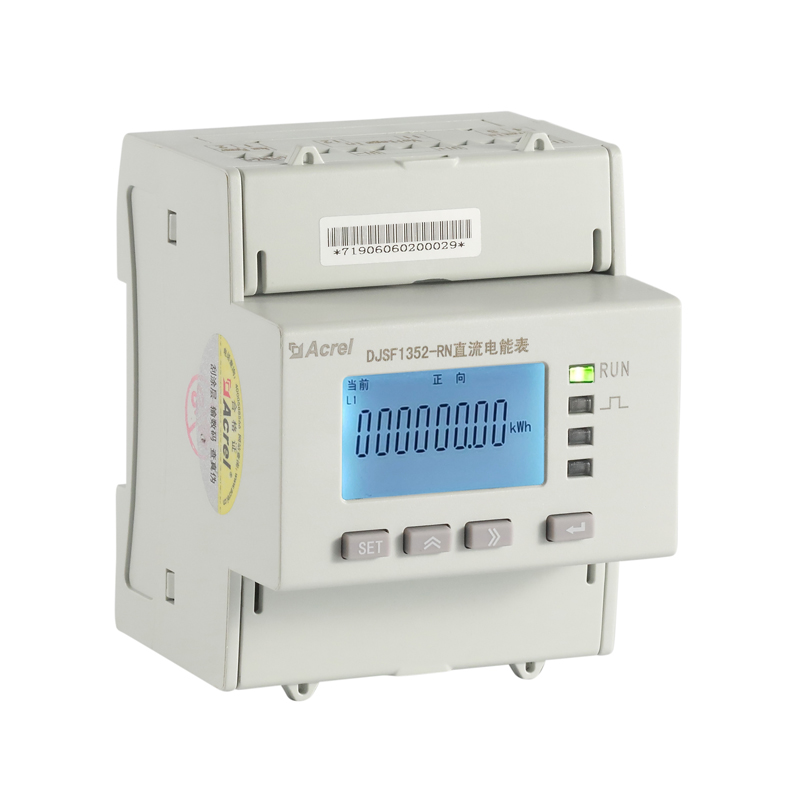

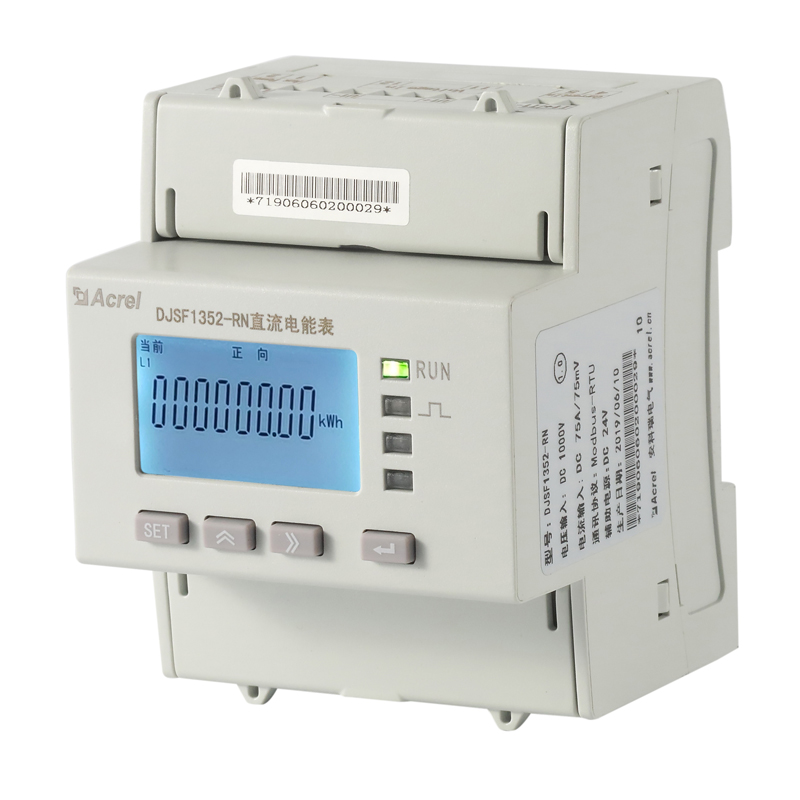

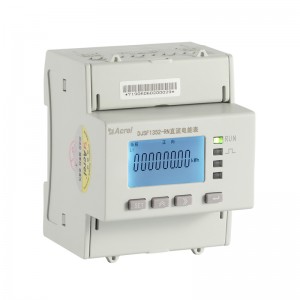

Appearance

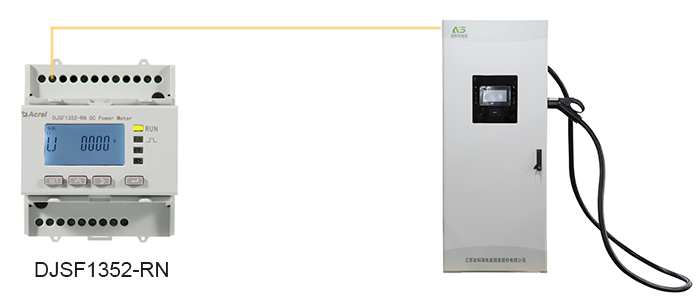

Application in Charging Station
DJSF1352-RN-P1 for EV Charger
✔ Voltage Input: 0-1000V
✔ Current Input: 0-75mV (shunt)
✔ Current Input: 0-20mA, 4-20mA, 0-5V, 0-10V, 100mA (Hall Sensor)
✔ Power Supply: 24-48V DC
✔ Channel: 1 DC measuring channel for EV charger

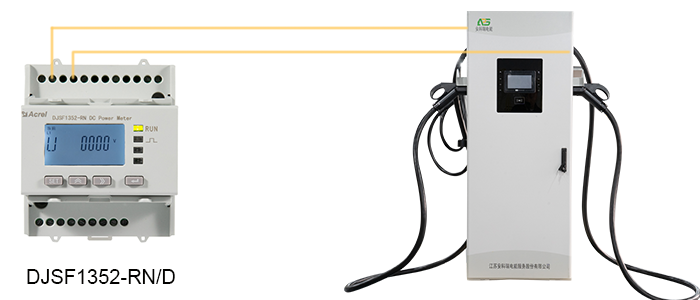

DJSF1352-RN-P2 for EV Charger
✔ Voltage Input: 0-1000V
✔ Current Input: 0-75mV (shunt)
✔ Power Supply: 12V DC
✔ Channel: 2 DC measuring channels for double guns EV charger
Optional Function

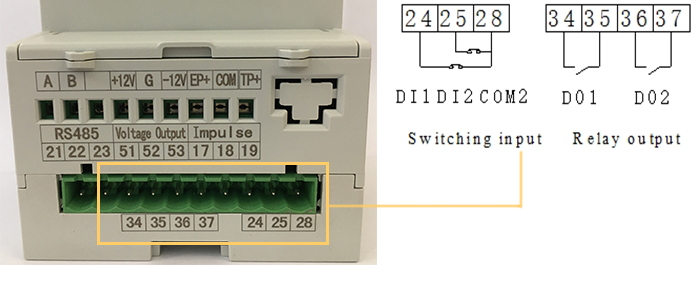

DI/DO Function
✔ DO: 2 Relay outputs, 2A/30VDC or 2A/250VAC
✔ DI: 2 dry contact inputs

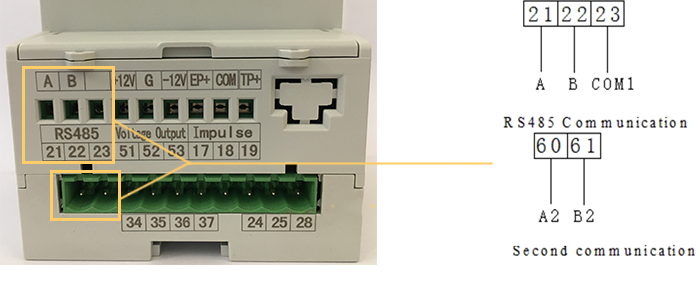

2 Channels of Communication
✔ Interface: RS485
✔ Protocol: Modbus-RTU

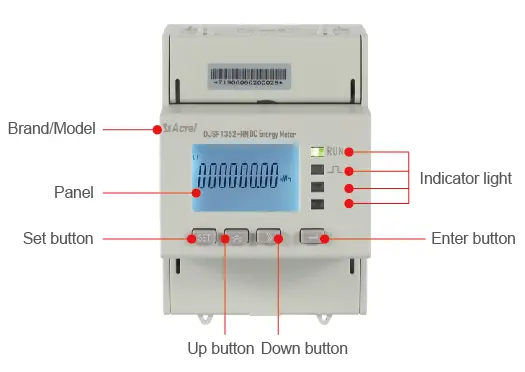

Panel Overview
Typical connection
Installation
1.Technical parameter
1.1 Electrical performance
|
Technical parameters |
Index |
||
|
Input |
Nominal value |
Voltage input range |
Current input |
|
DC 0-1000V |
Shunt：0-75mV |
||
|
Hall sensor：0-20mA,4-20mA,0-5V,0-10V,100mA and so on. |
|||
|
Overload |
1.2 times rated (continuous); 2 times rated/1 second; |
||
|
Power consumption |
≤0.1VAVoltage: ≤0.2VA, current ≤0.1VA |
||
|
Accuracy class |
Class 1 or Class 0.5 |
||
|
Power Supply |
Voltage range |
AC/DC 85-265V or DC12V(±10%)or DC24V(±10%) or DC48V(±10%) |
|
|
Power consumption |
≤ 3W |
||
|
Power frequency withstand voltage |
Power supply // Signal input / / Other circuits: 3kV/1min Other circuits not connected to each other except power supply and signal input 2kV/1min |
||
|
Impulse withstand voltage |
±6KV |
||
|
Insulation resistance |
≥ 40M Ω |
||
|
Average barrier-free working hours |
≥50000h |
||
1.2 Work environment
|
Environment |
Temperature |
Normal operating temperature: -25 °C ~ +65 °C; Limit working temperature: -40 °C ~ +70 °C; Storage temperature: -40℃～+80℃ |
|
Humidity |
≤93%RH, no condensation, no corrosive gas |
|
|
Altitude |
≤2500m |
2. Functional Characteristic
|
Function |
Function Description |
|
|
Display |
8-bit segment LCD screen (LCD) |
|
|
Communication Interface |
RS485（two options） |
|
|
Communication protocol |
Modbus-RTU，DL/T 645-2007，DLT698 |
|
|
Switch |
Output |
2A/30VDC2A/250VAC2 Relay outputs, 2A/30VDC or 2A/250VAC |
|
Input |
2 dry contact inputs |
|
|
Pulse output |
A second pulse output, a energy pulse output |
|
|
See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH |
||
