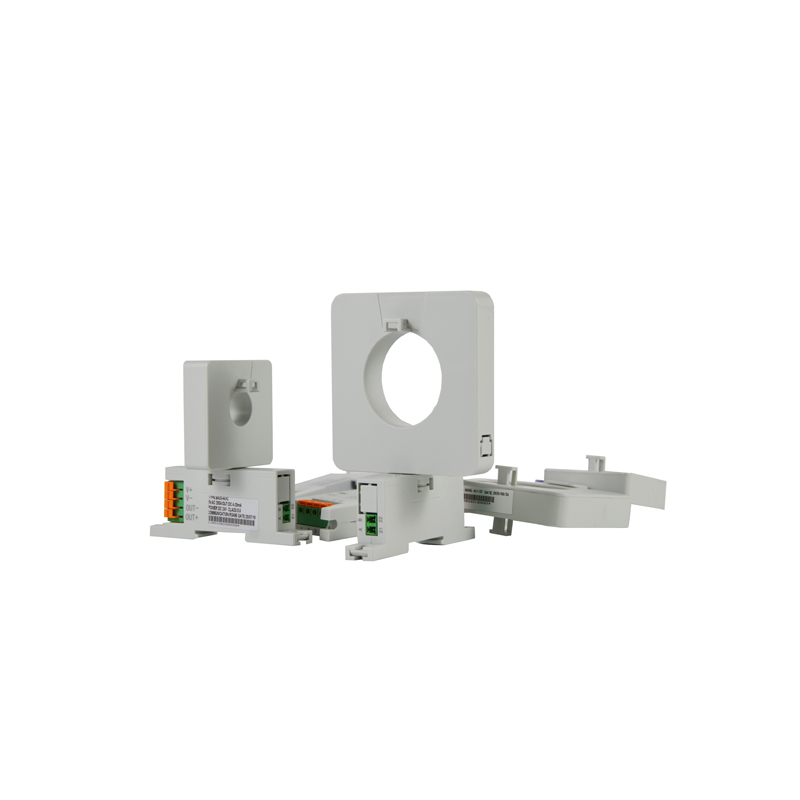

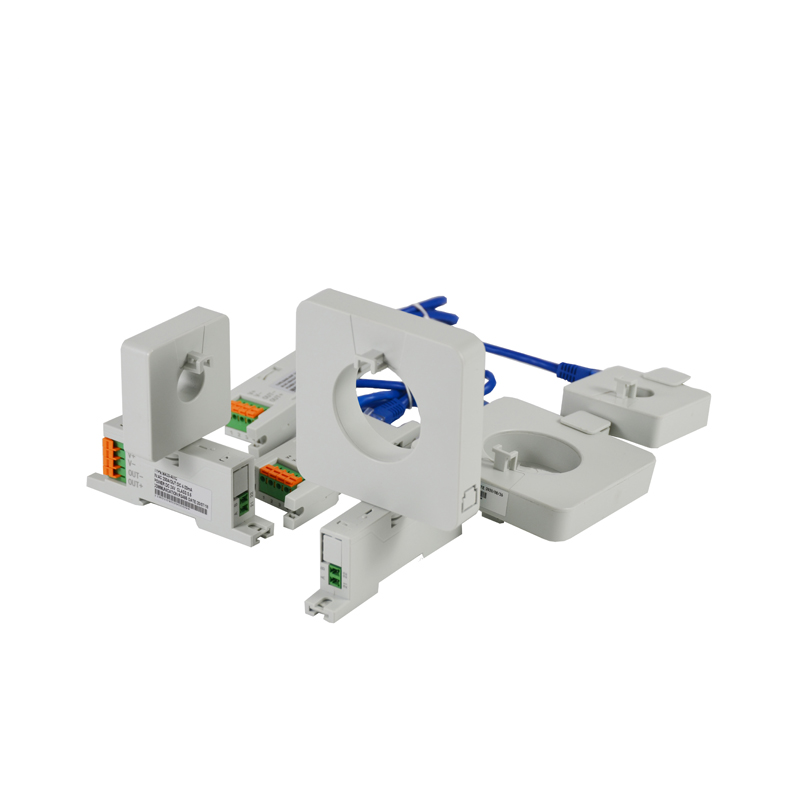

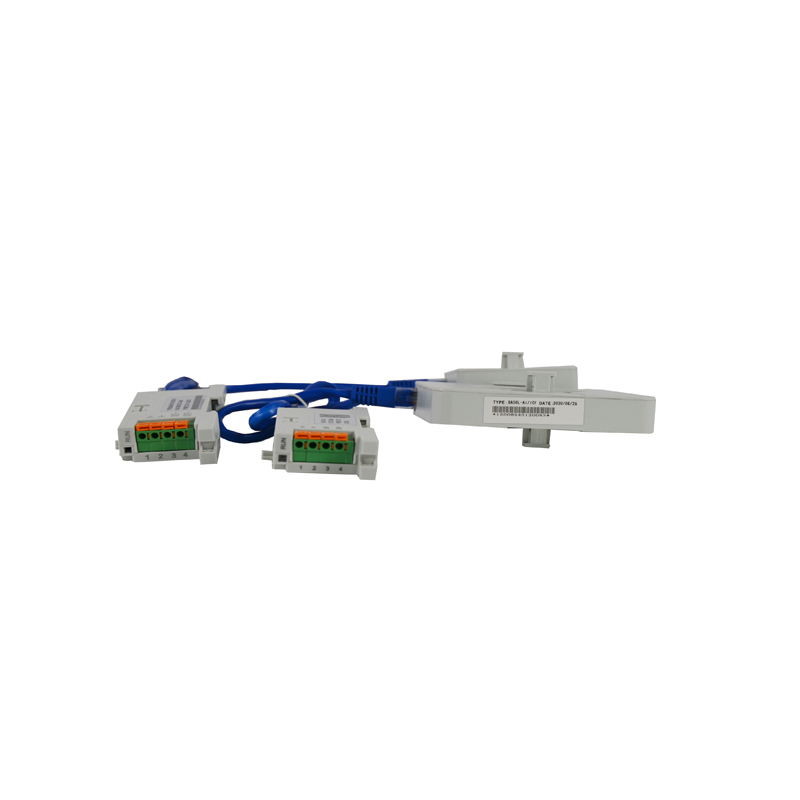

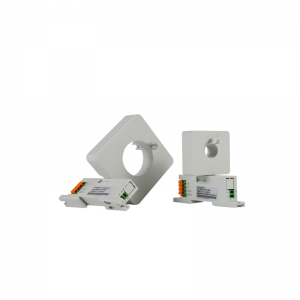

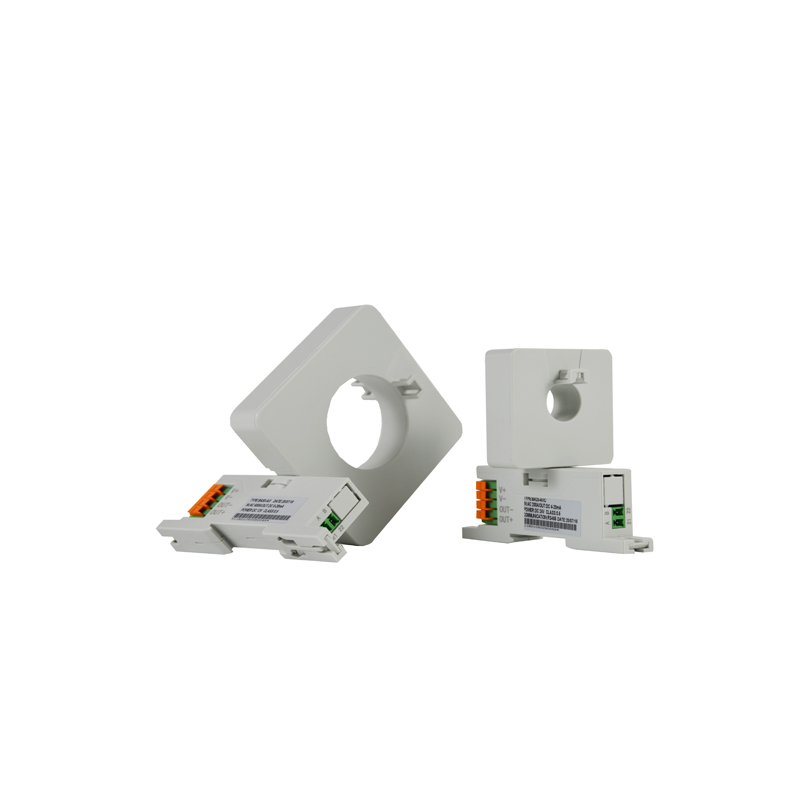

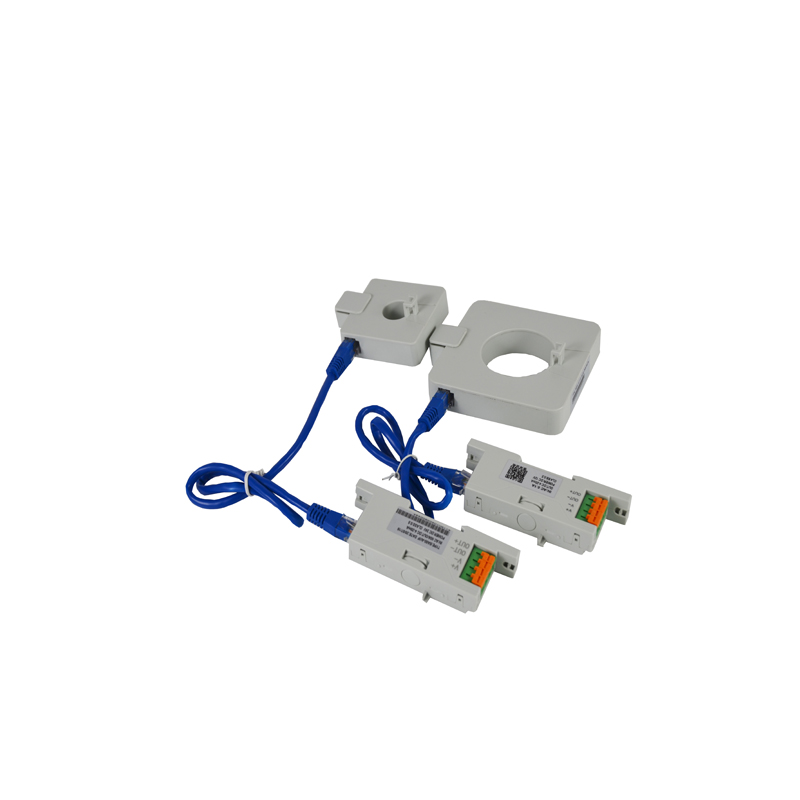

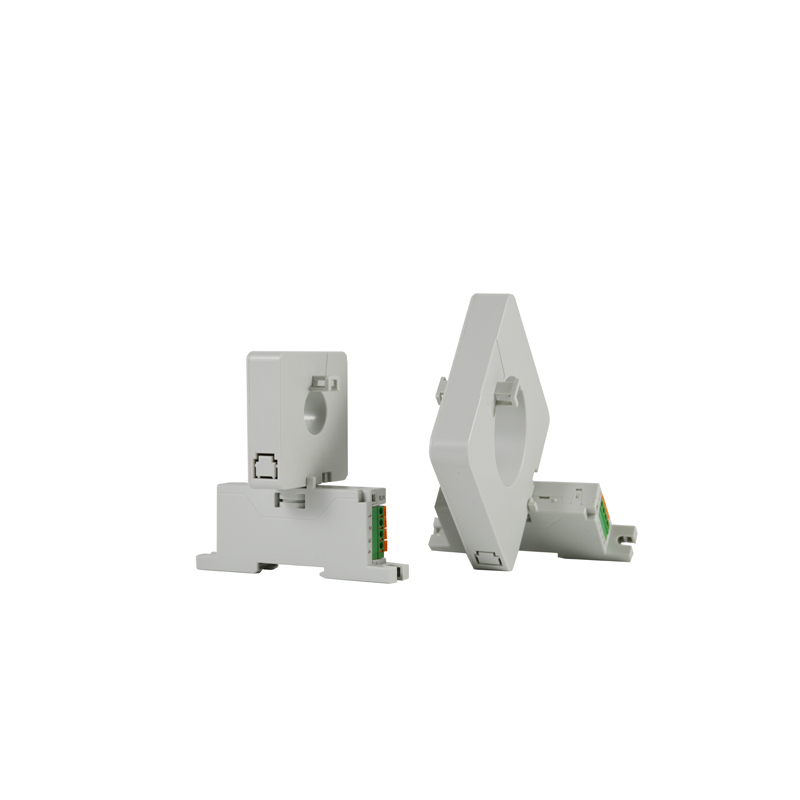

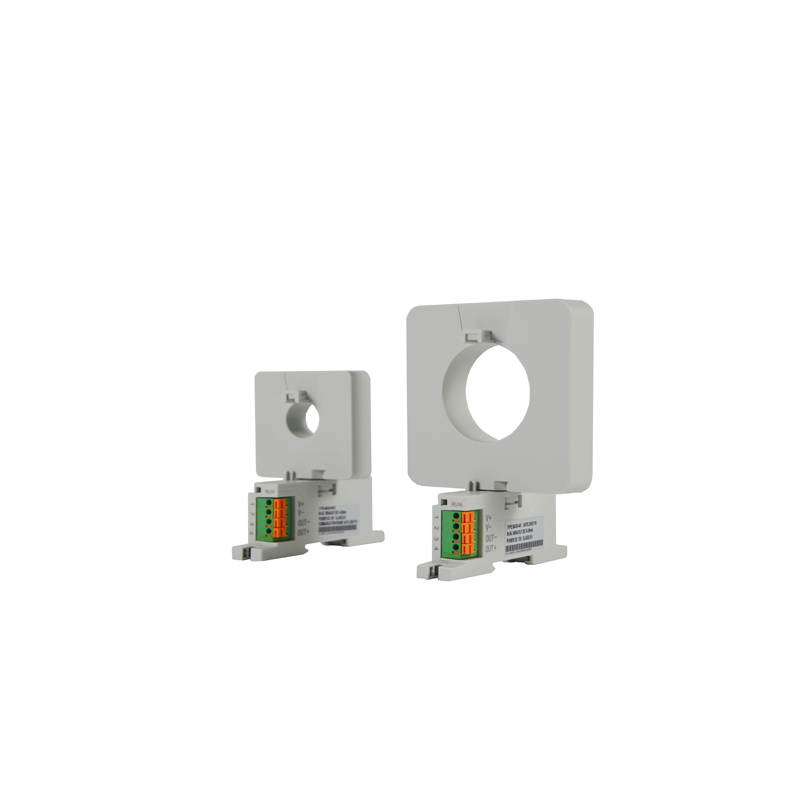

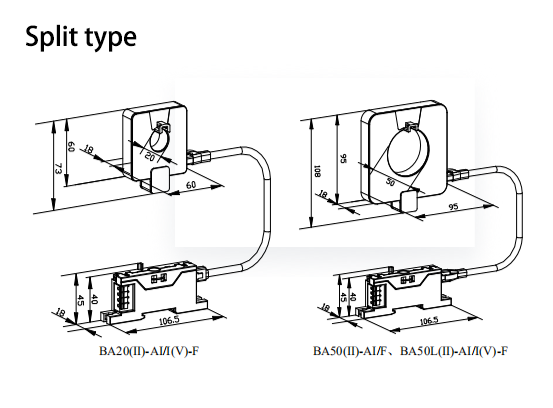

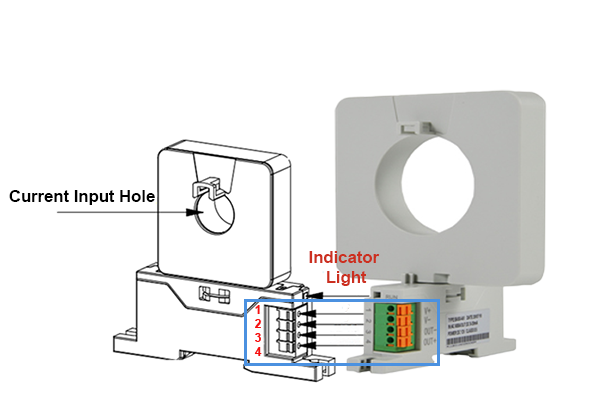

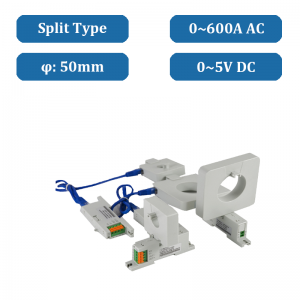

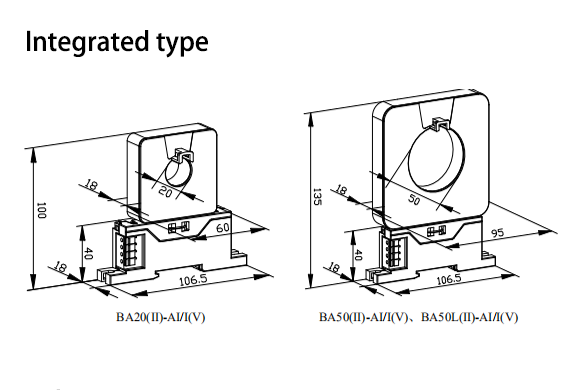

BA50(Ⅱ)-AI/I AC Intelligent Split-type current transducer

Technical parameter

Index

Accuracy class

0.5 Class 0.5

Input

Nominal value

BA20(Ⅱ)-AI

Current AC 0.5A, 50A, 200A, etc. AC 0～(0.5～200)A

BA50(Ⅱ)-AI

Current AC 60A, 300A, 600A, etc. AC 0～(60～600)A

BA50L(Ⅱ)-AI

Current AC 0.1A, 1A, etc. AC 0～(0.1～1)A

Overload

Continuous 1.2 times, instantaneous current 10 times/1S

Absorbed power

≤1VA

Frequency response

25Hz～800Hz, especially suitable for industrial frequency occasions

Output

Nominal value

 DC4～20mA, or 0～20mA, 0～5V, 0～10V etc.

Load Resistance

When DC12V power supply, current output is ≤250ΩWhen DC24V power supply, current output is ≤500Ω,When voltage output is ≥1KΩ

Communication

RS485 interface/Modbus-RTU

Response time

≤400ms

Power supply

Voltage

DC 12V or 24V

Power consumption

≤1W

Insulation resistance

＞100MΩ

Compressive strength

Between input/output and power supply 2.0KV/1min,

Temperature coefficient

-10℃～+55 ℃, ≤400ppm/℃

Installation method

TS35 rail, or use screws to fix the

Environment

Temperature

Work: -10℃～+55℃

Storage: -25℃～+70 ℃

Humidity

≤93%RH, no condensation, no corrosive gas place

Altitude

≤2000m
