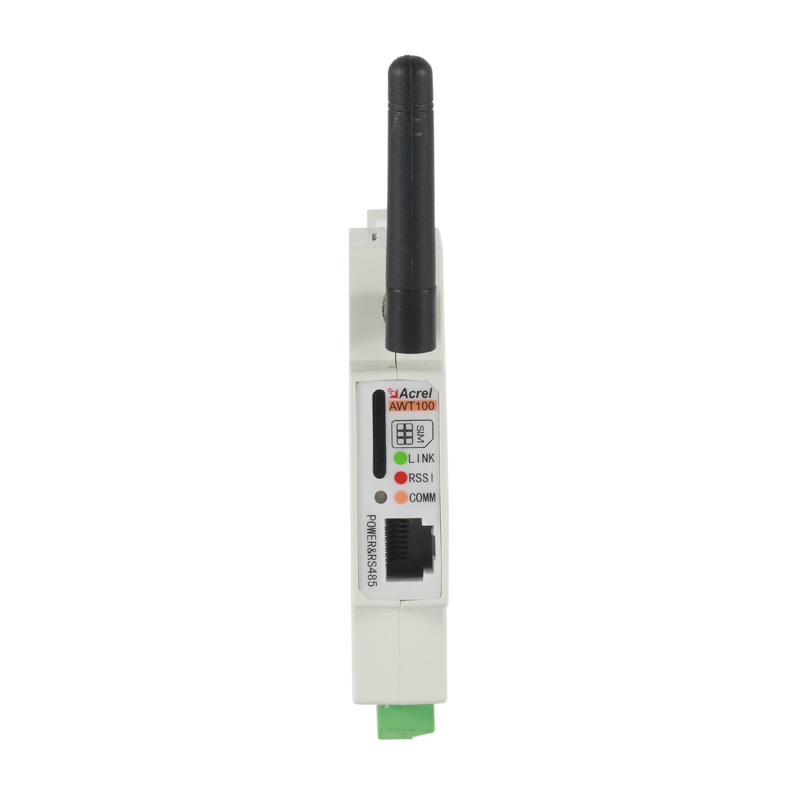

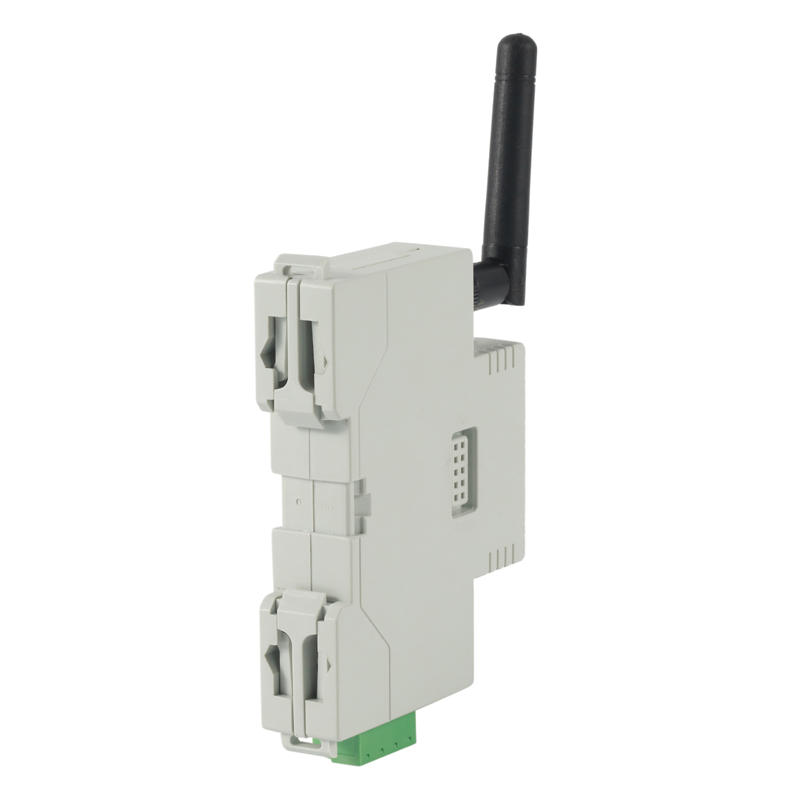

AWT100-LW LoRaWAN wireless Communication module

● LoRa Mode: Terminal Mode&Relay Mode

● Upstream (Terminal Mode): RS485 (MODBUS-RTU)

● Downstream (Terminal Mode): LoRa

● Upstream (Relay Mode): LoRa

● Downstream (Relay Mode): RS485 (MODBUS-RTU)

● Power Supply: 24Vdc (default); 85~265Vac/Vdc (via AWT100-POW Module)

● Standard&Certificate: CE-RED; IEC; EMC; LVD

Information

Parameter

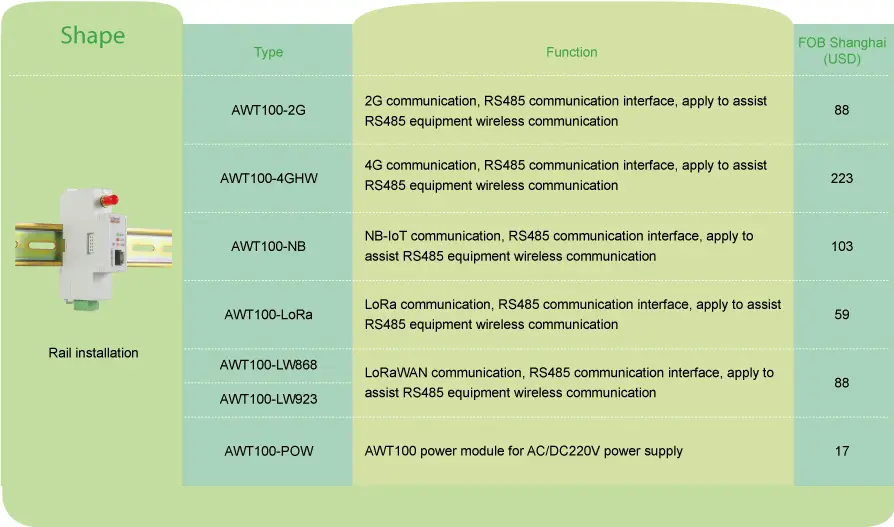

Quotation

Download

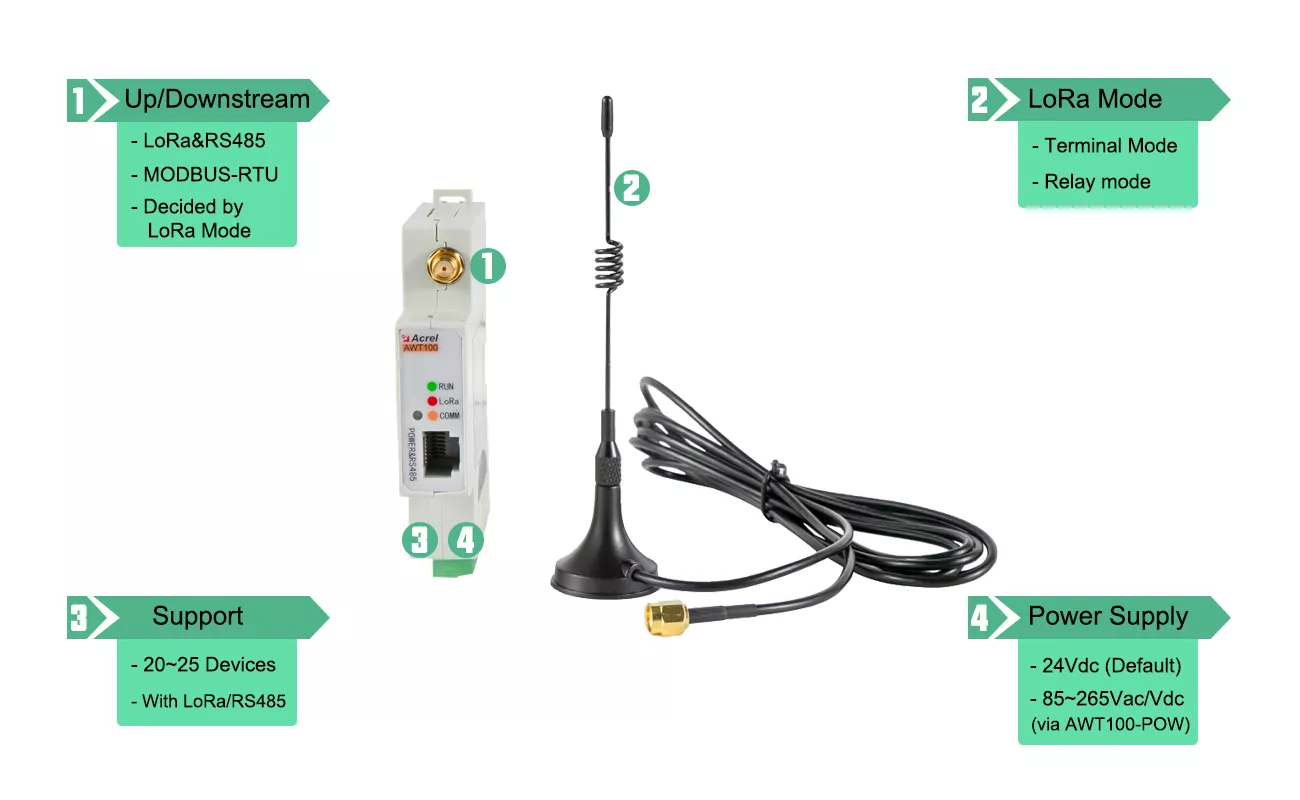

Communication Features

1

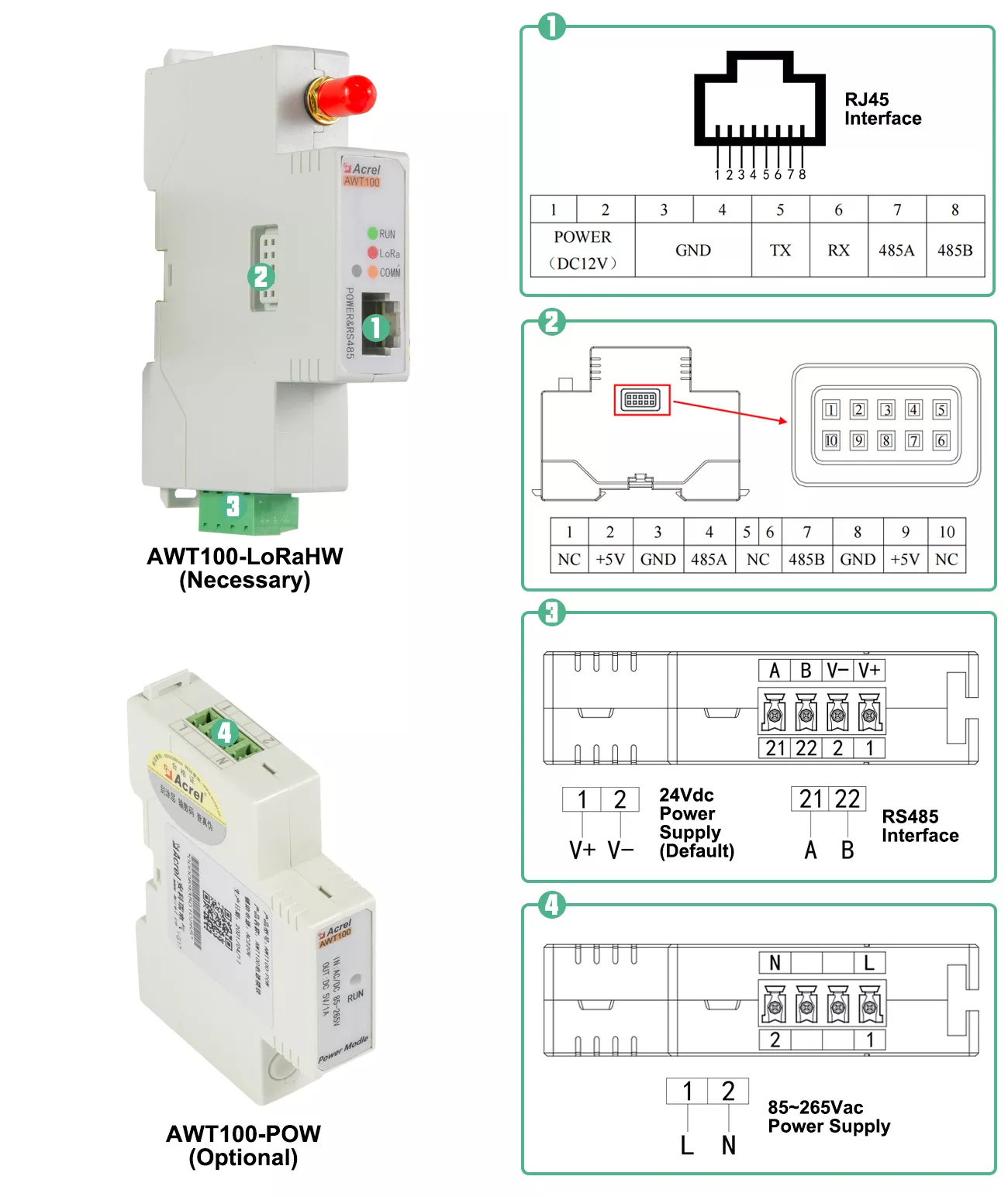

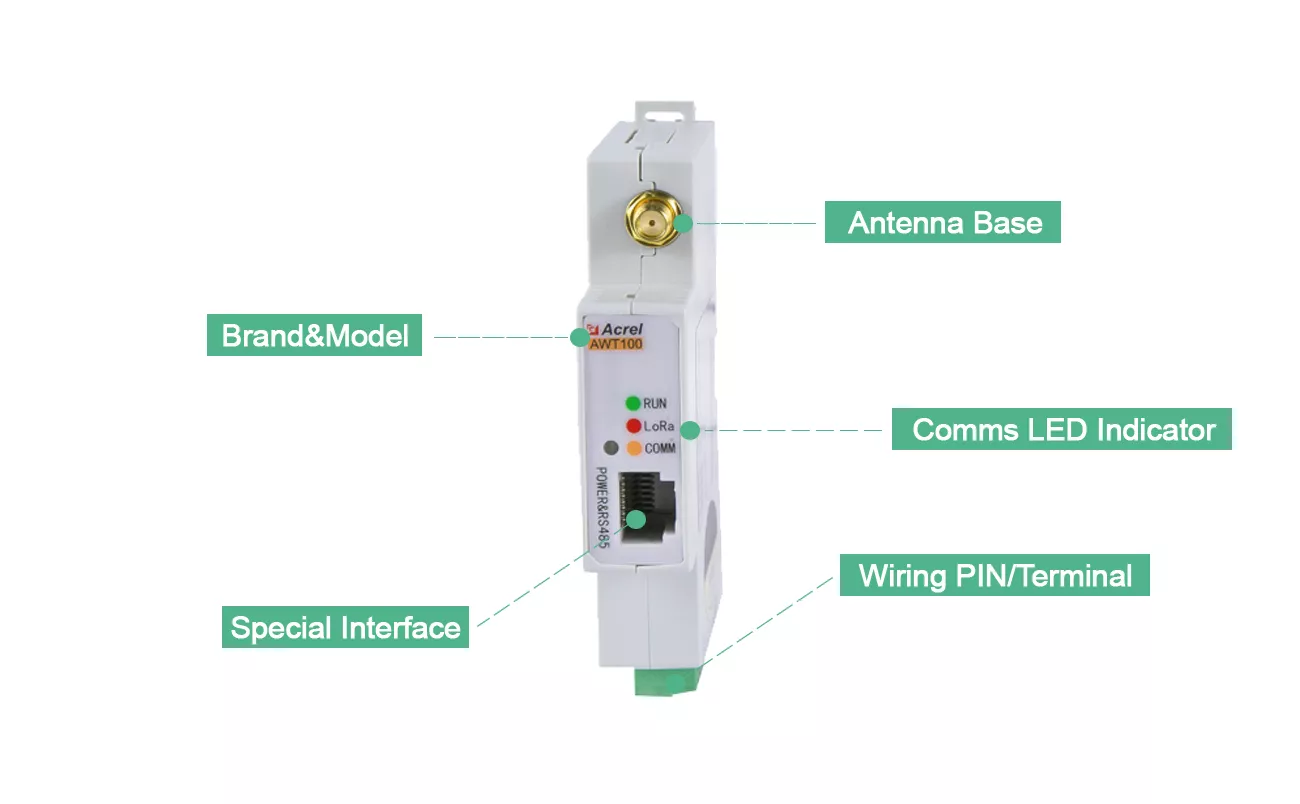

Panel Overview

2

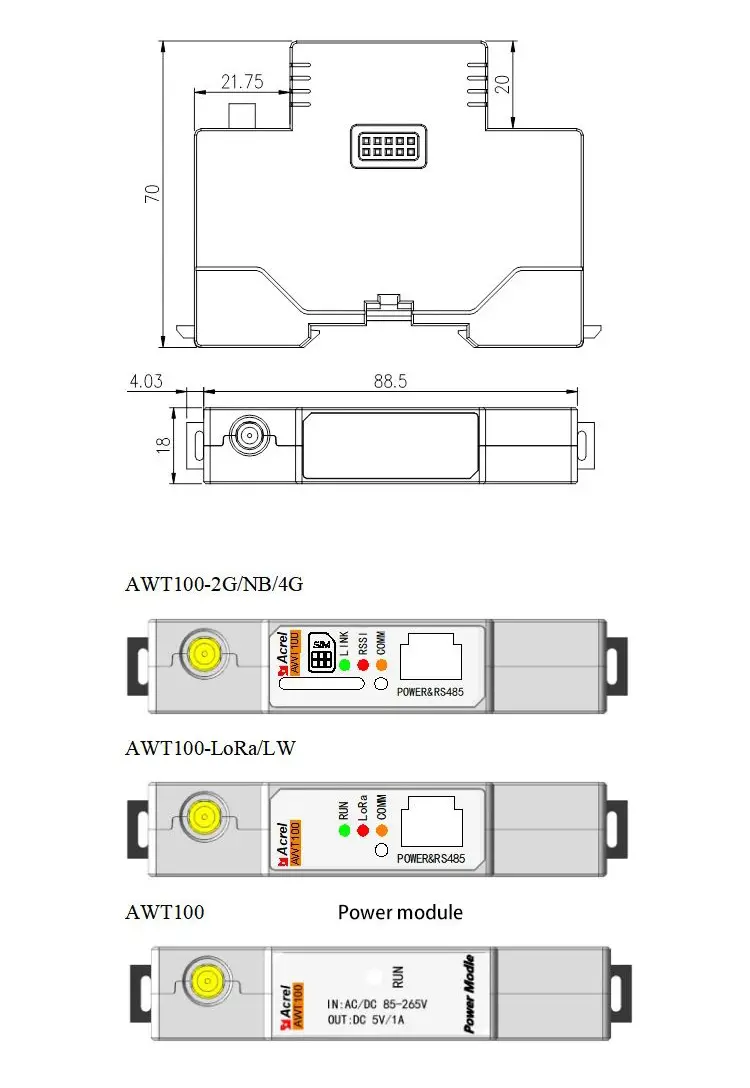

Dimension

3

DIN rail 35mm mounting

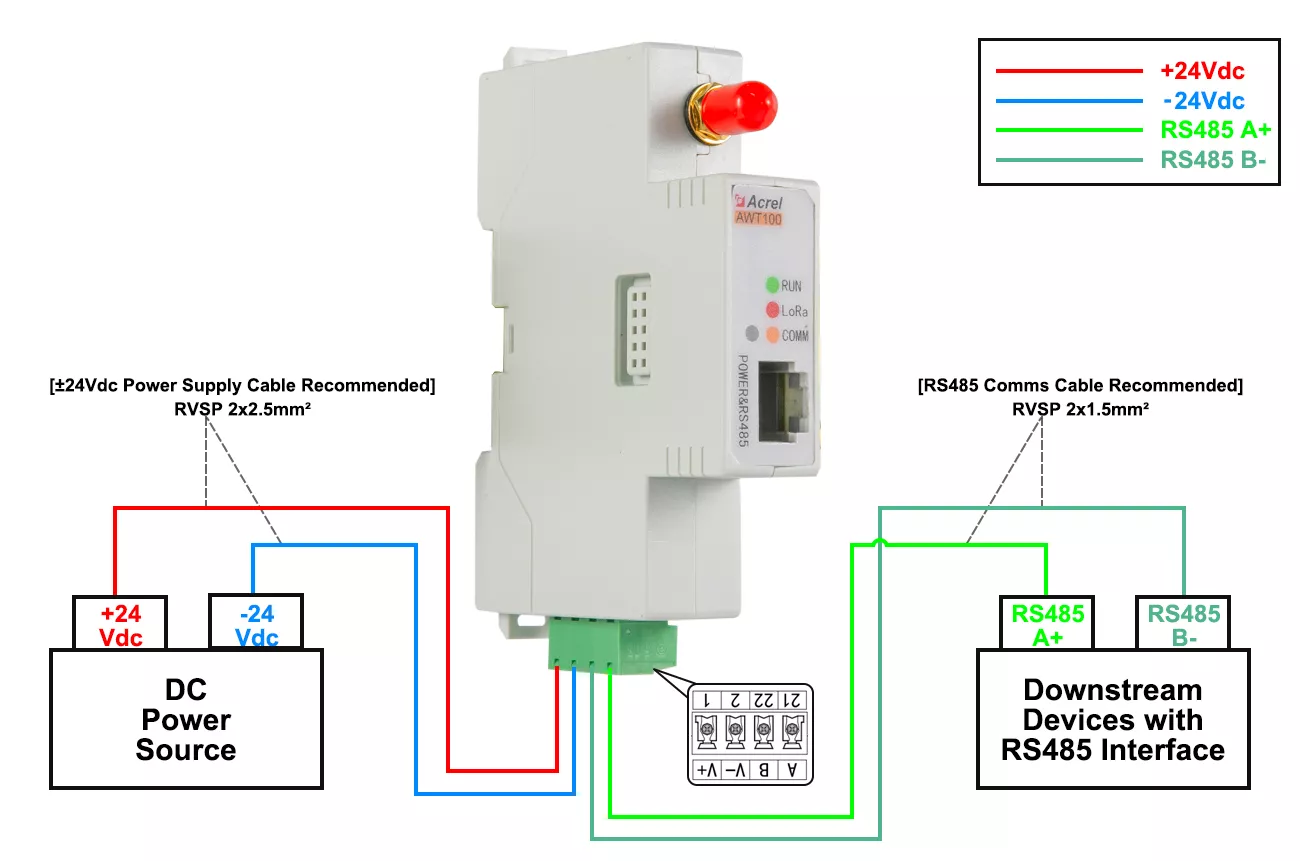

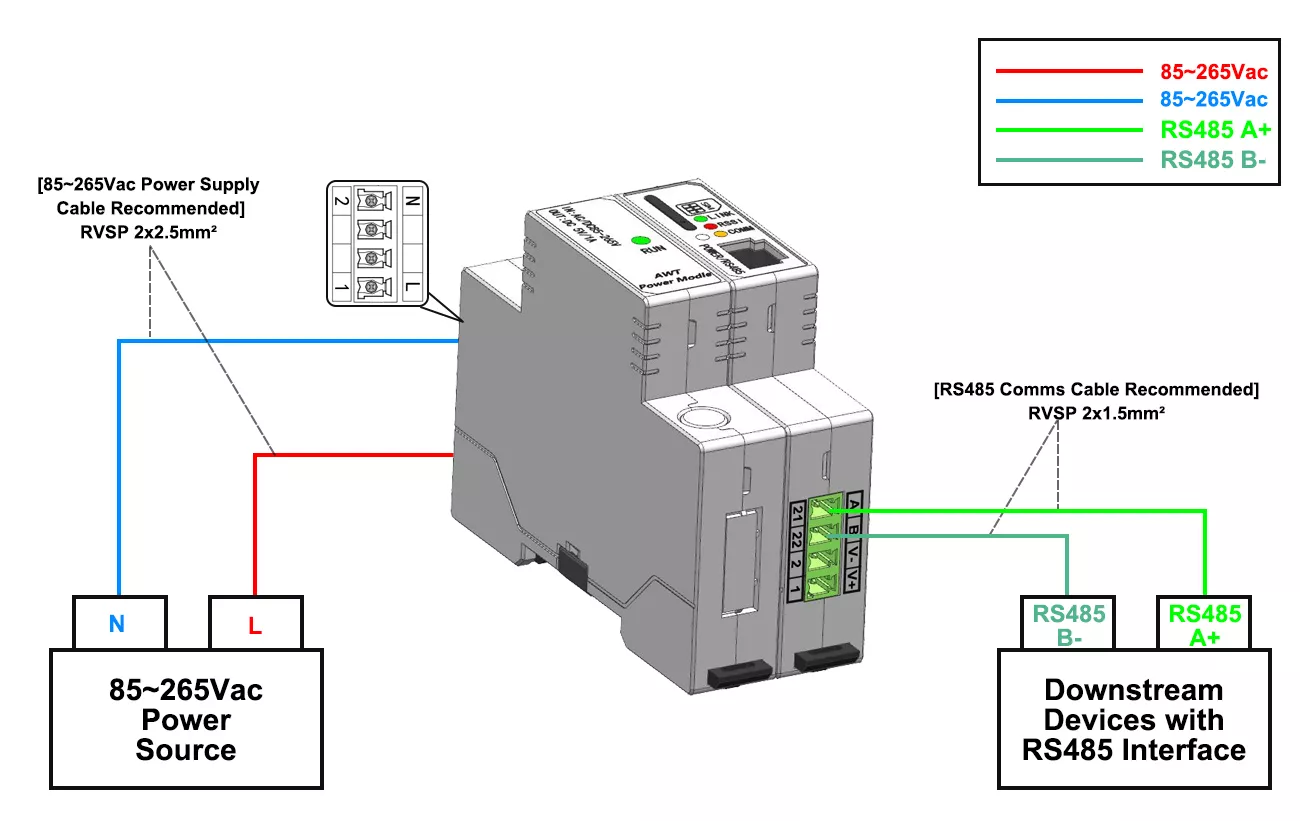

Wiring

5
6
11

For power supply AC 85-265V

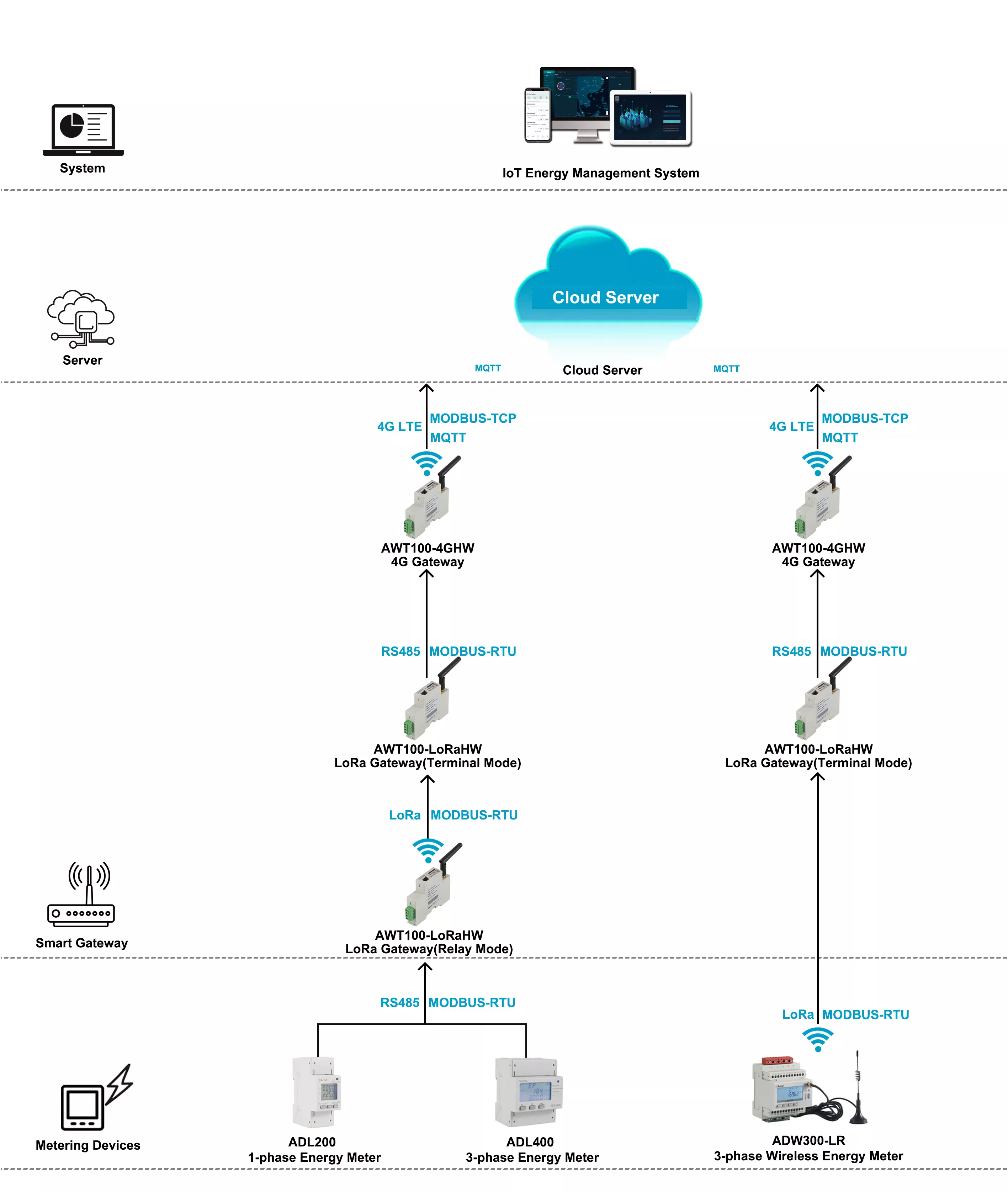

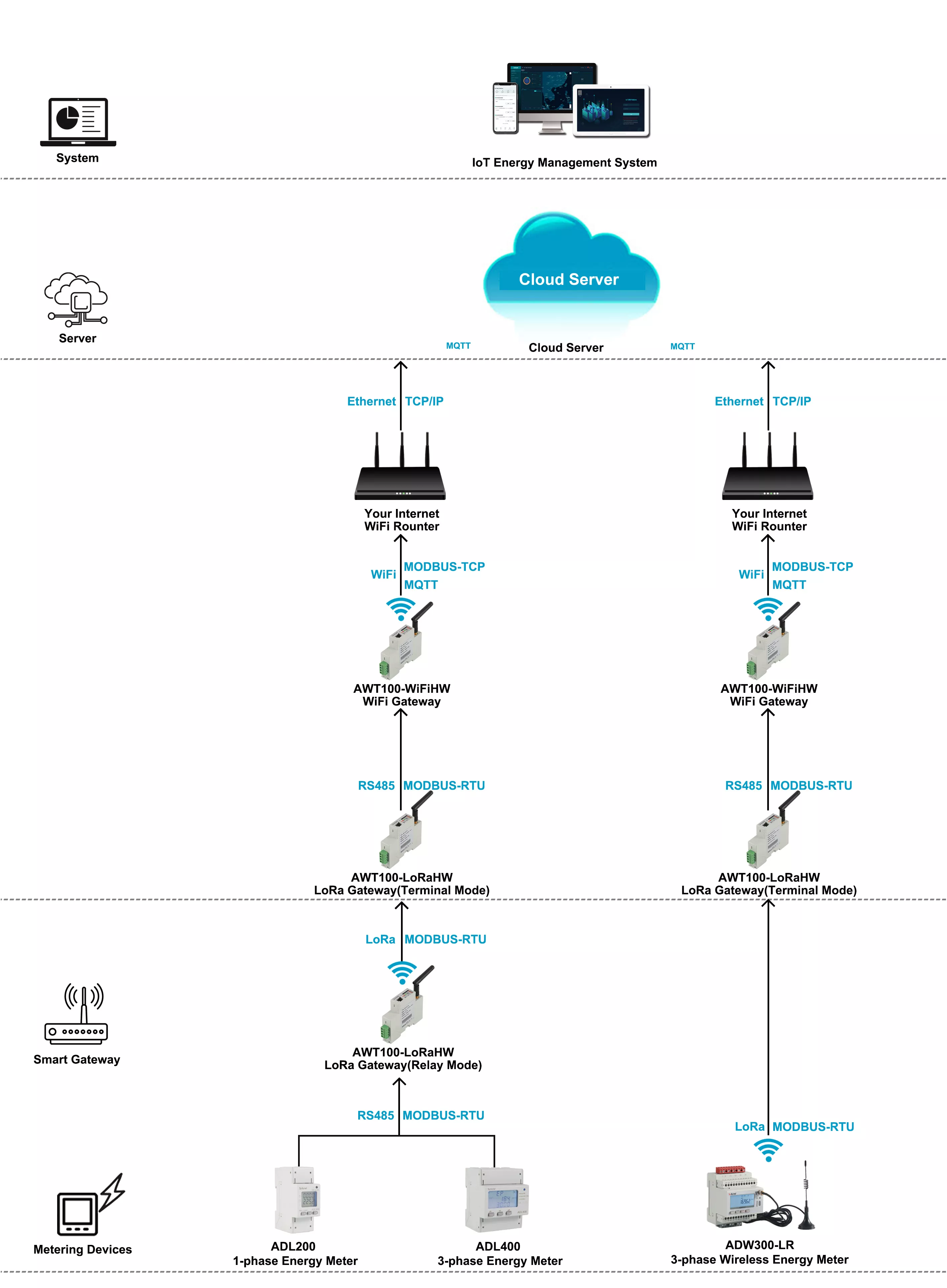

InstallationTypical Topology

8
9
