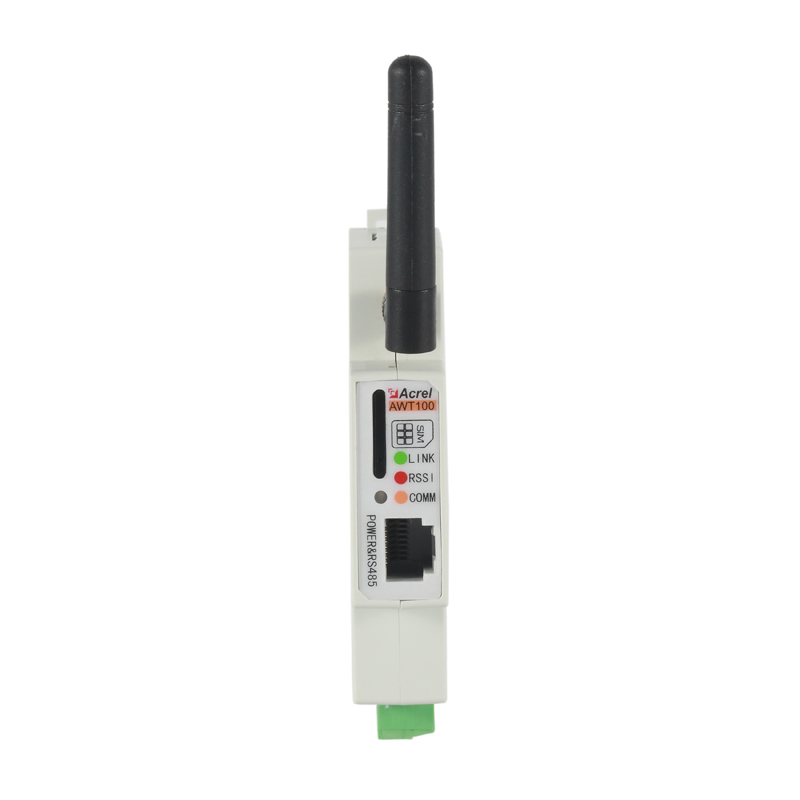

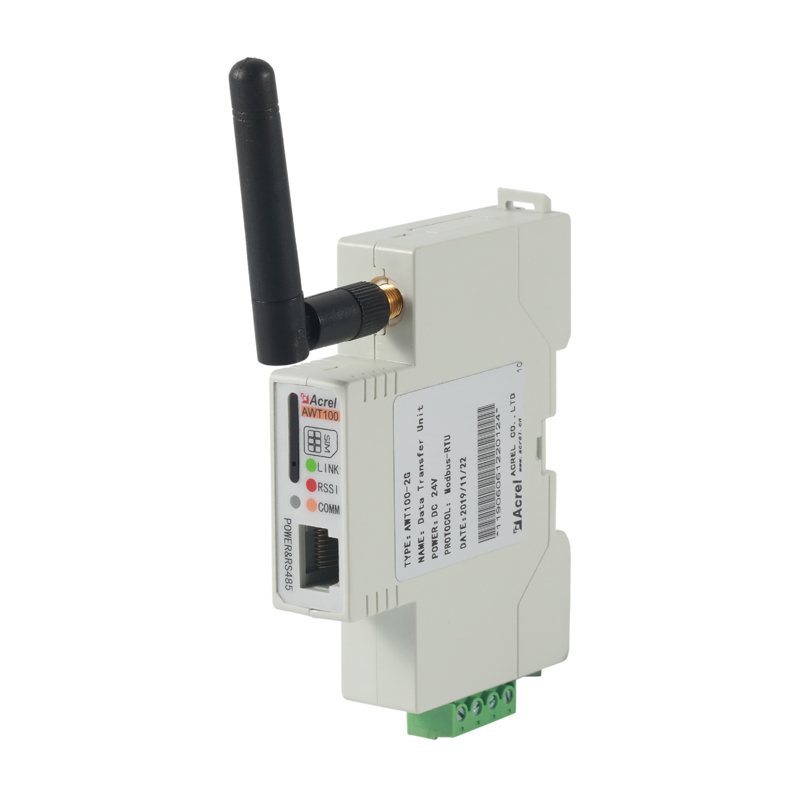

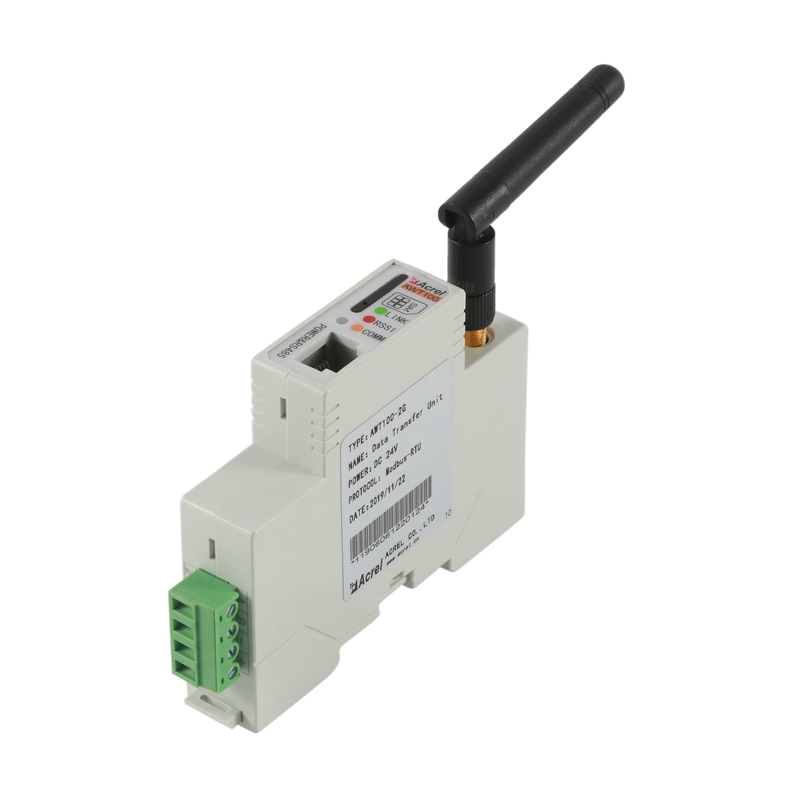

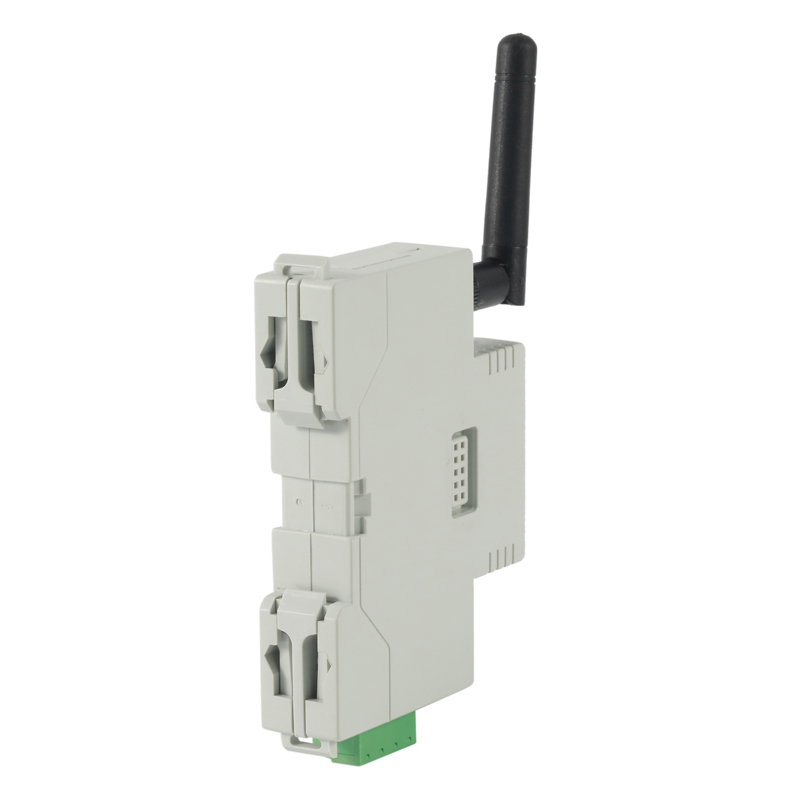

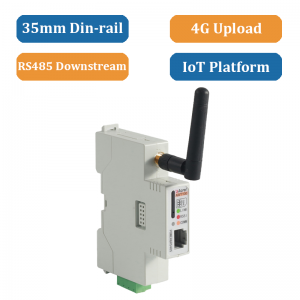

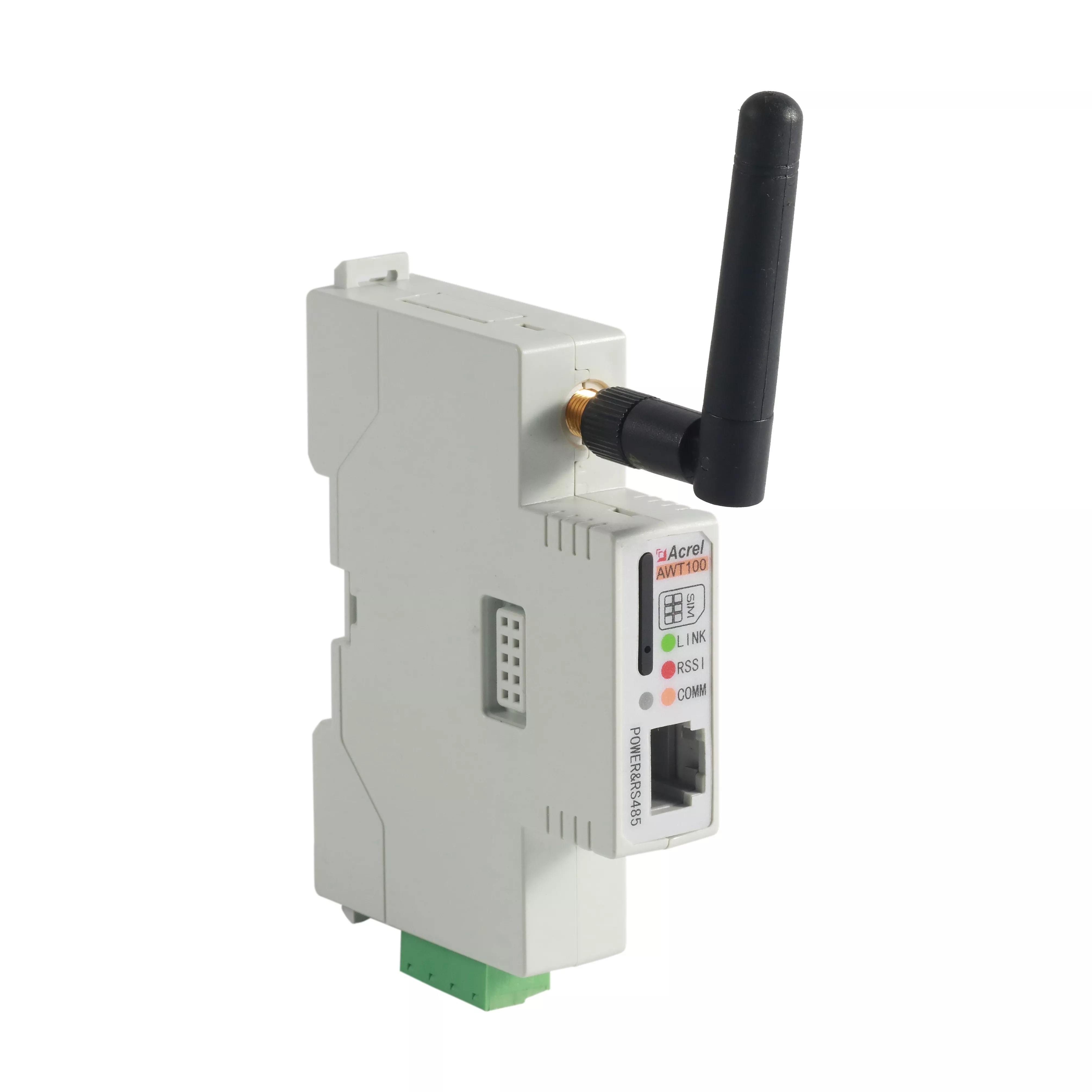

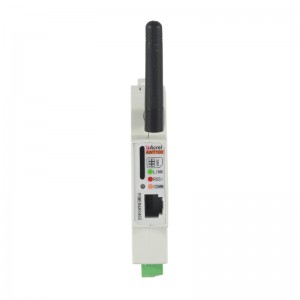

AWT100-4GHW 4G Communication module RS485/4G

● Upstream Methods: 4G LTE (Support Global Frequency Bands)

● Upstream Protocol: MODBUS-TCP, MQTT

● Downstream Methods: RS485 Interface

● Downstream Protocol: MODBUS-RTU

● Support: Up to 20~25 Acrel Devices with RS485 (MODBUS-RTU)

● Power Supply: 24Vdc (default); 85~265Vac/Vdc (via AWT100-POW Module)

● Standard&Certificate: CE-RED; IEC; LVD; EMC

Information

Parameter

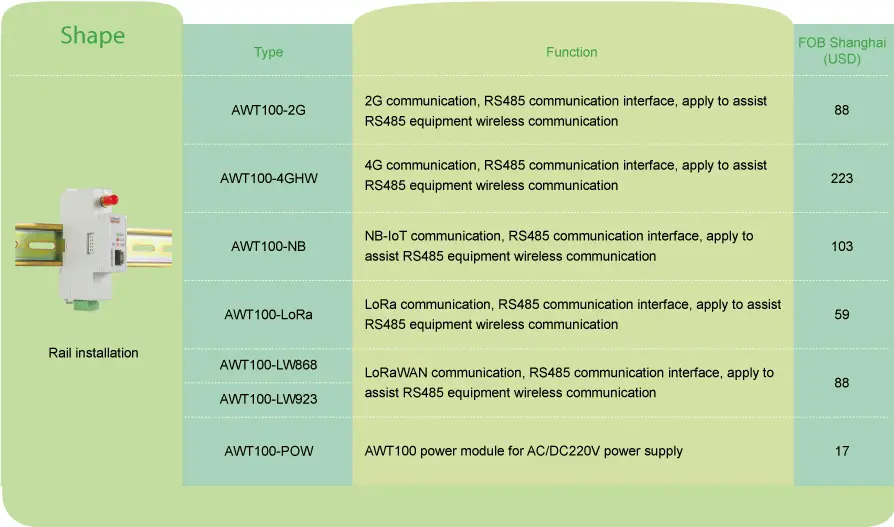

Quotation

Download

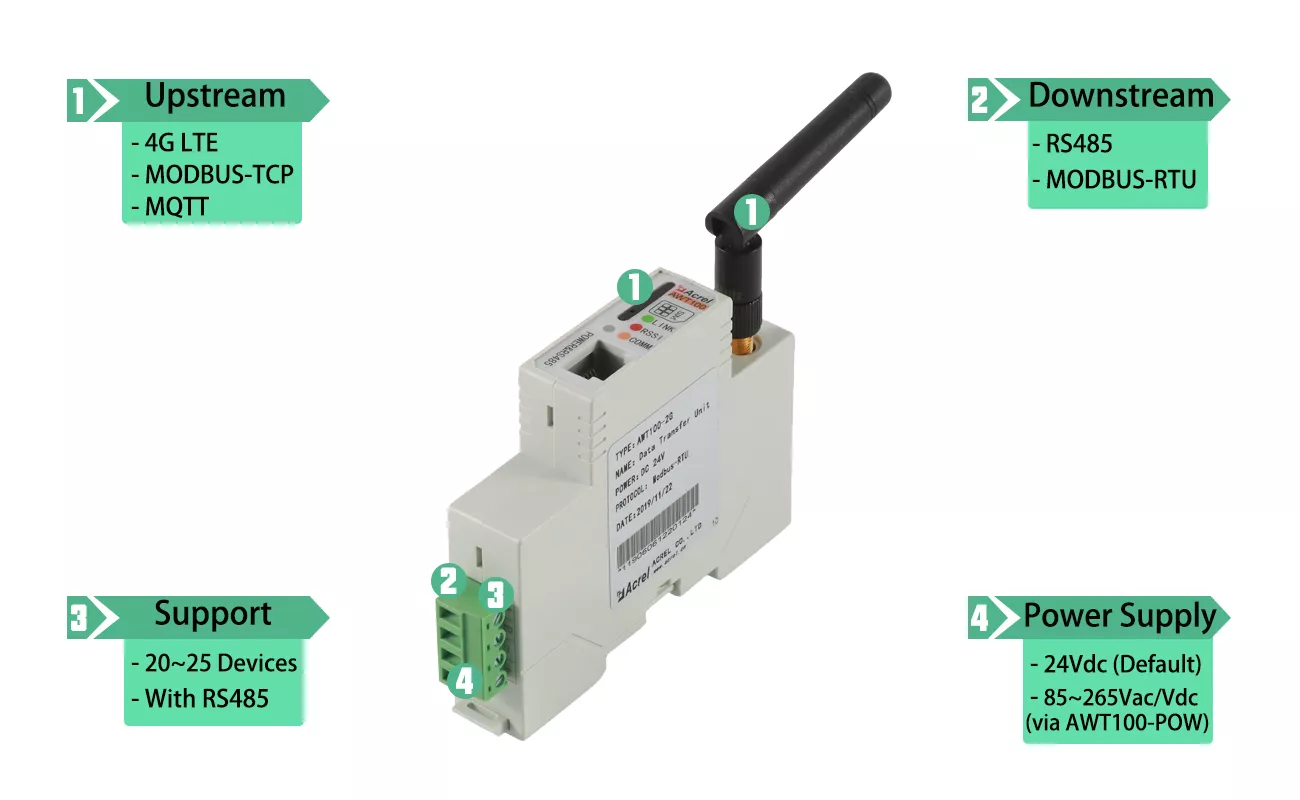

Communication Features

1

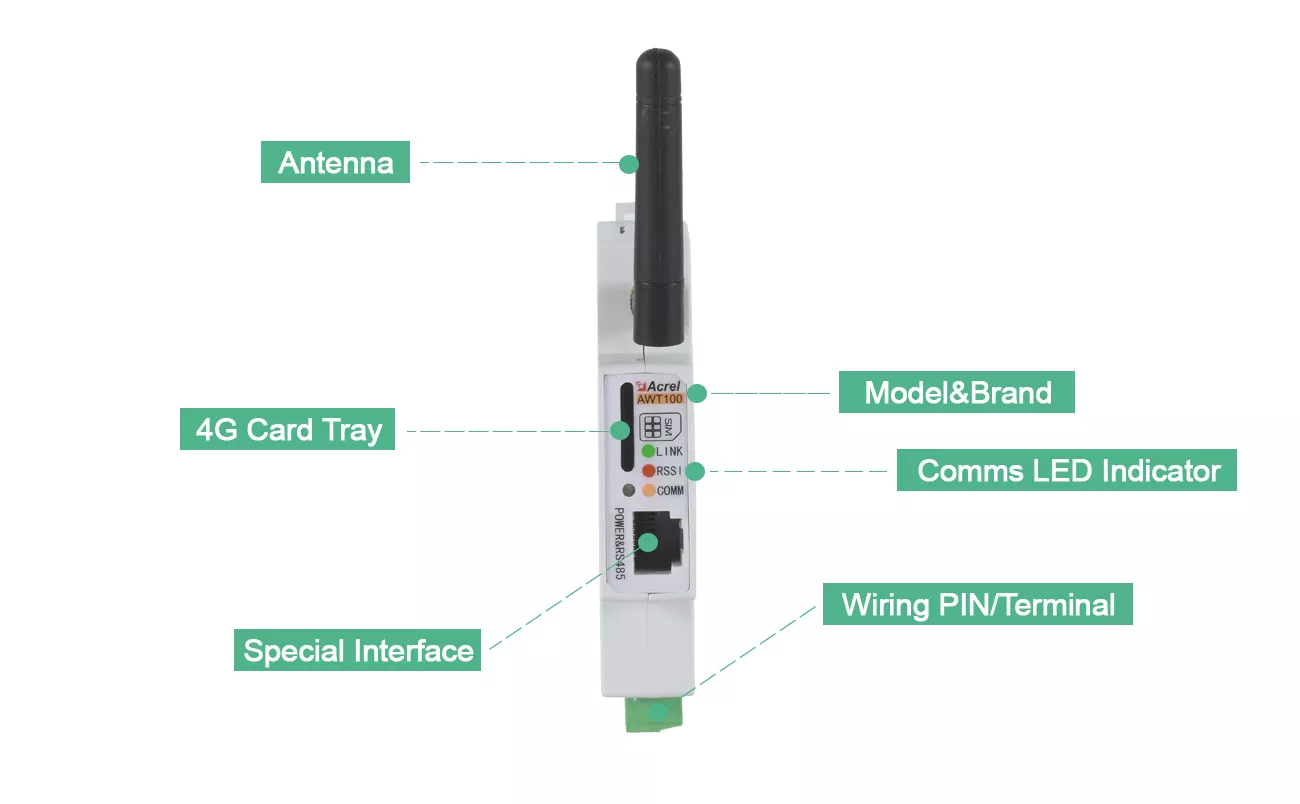

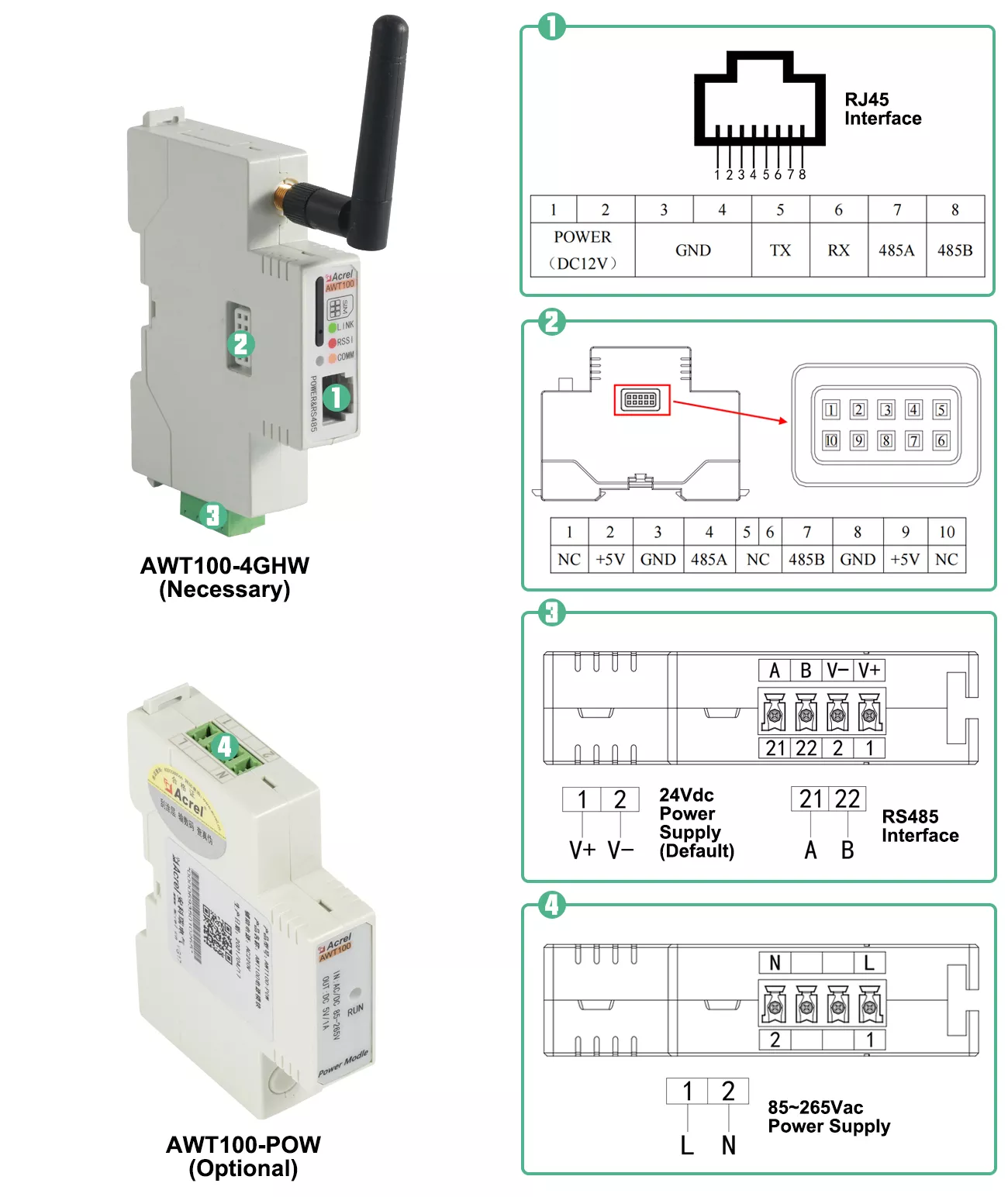

Panel Overview

2

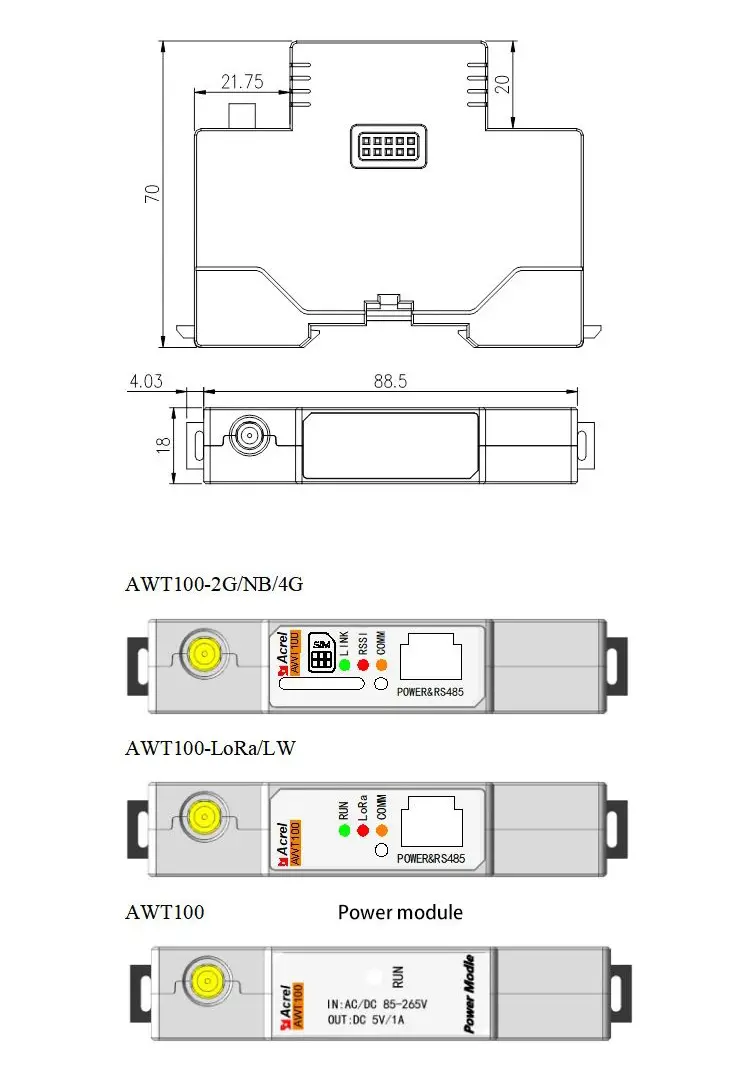

Dimension

3
4

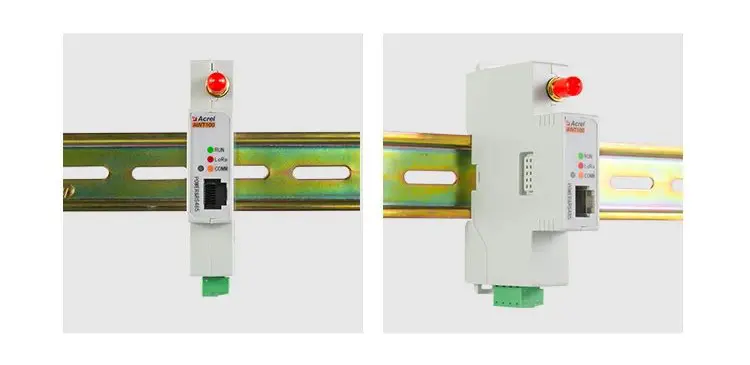

DIN rail 35mm mounting

Wiring

5
6

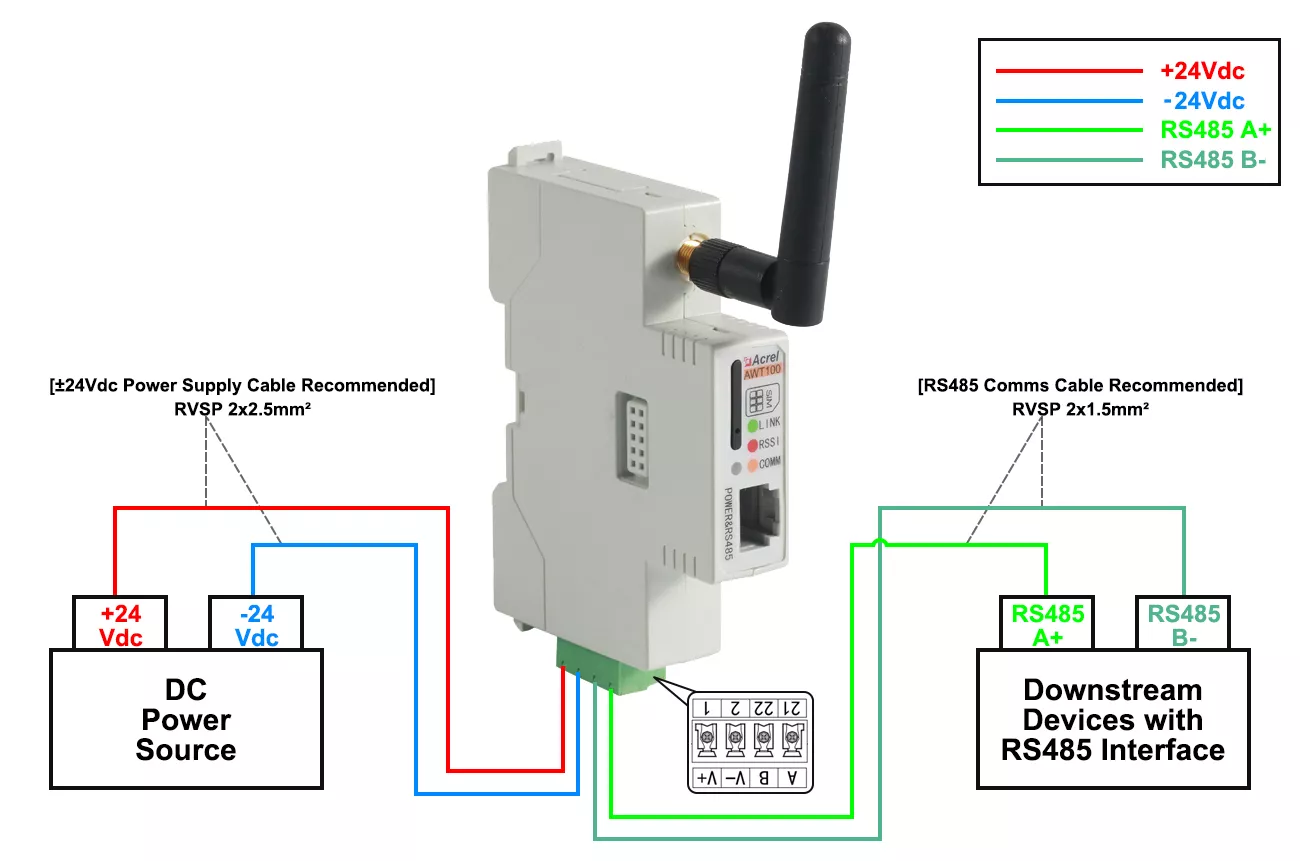

For power supply DC 24V

7

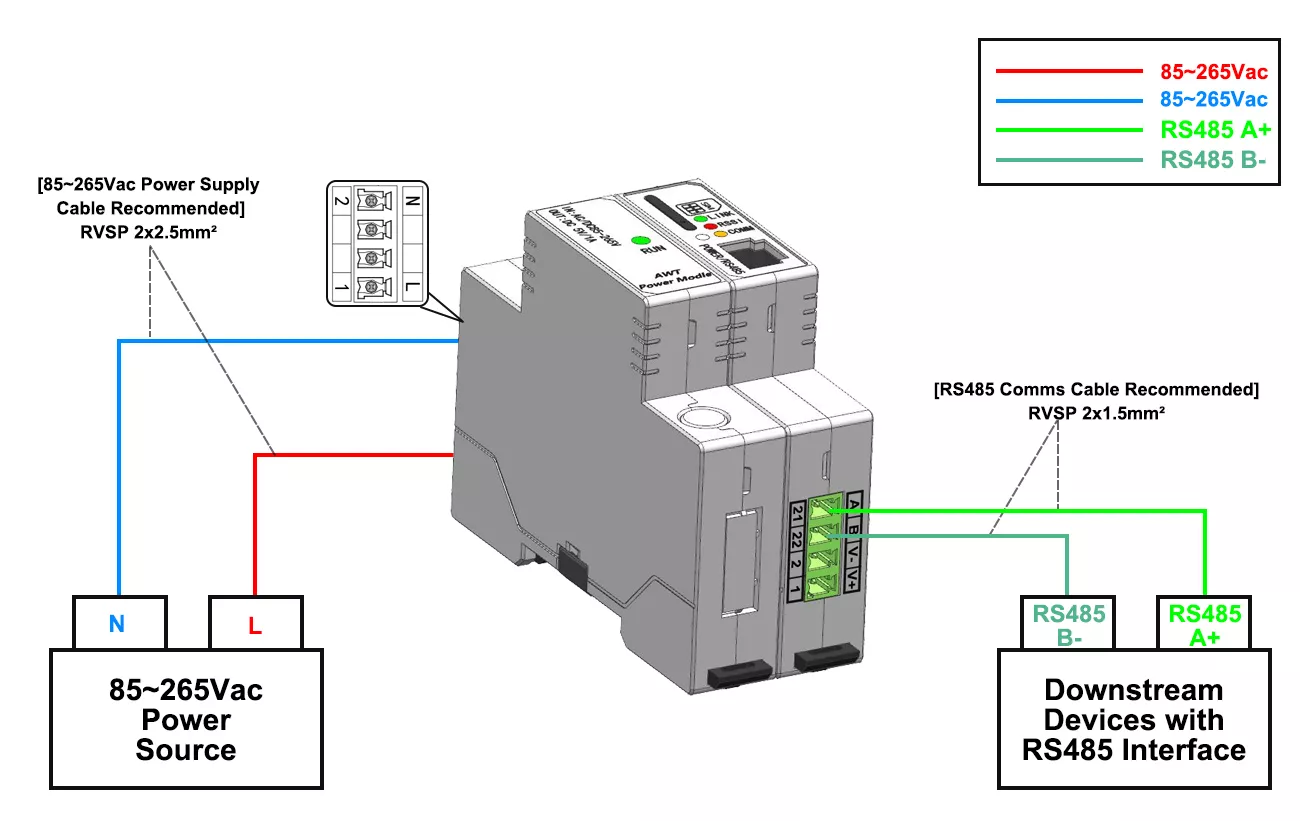

For power supply AC 85-265V

Typical Topology

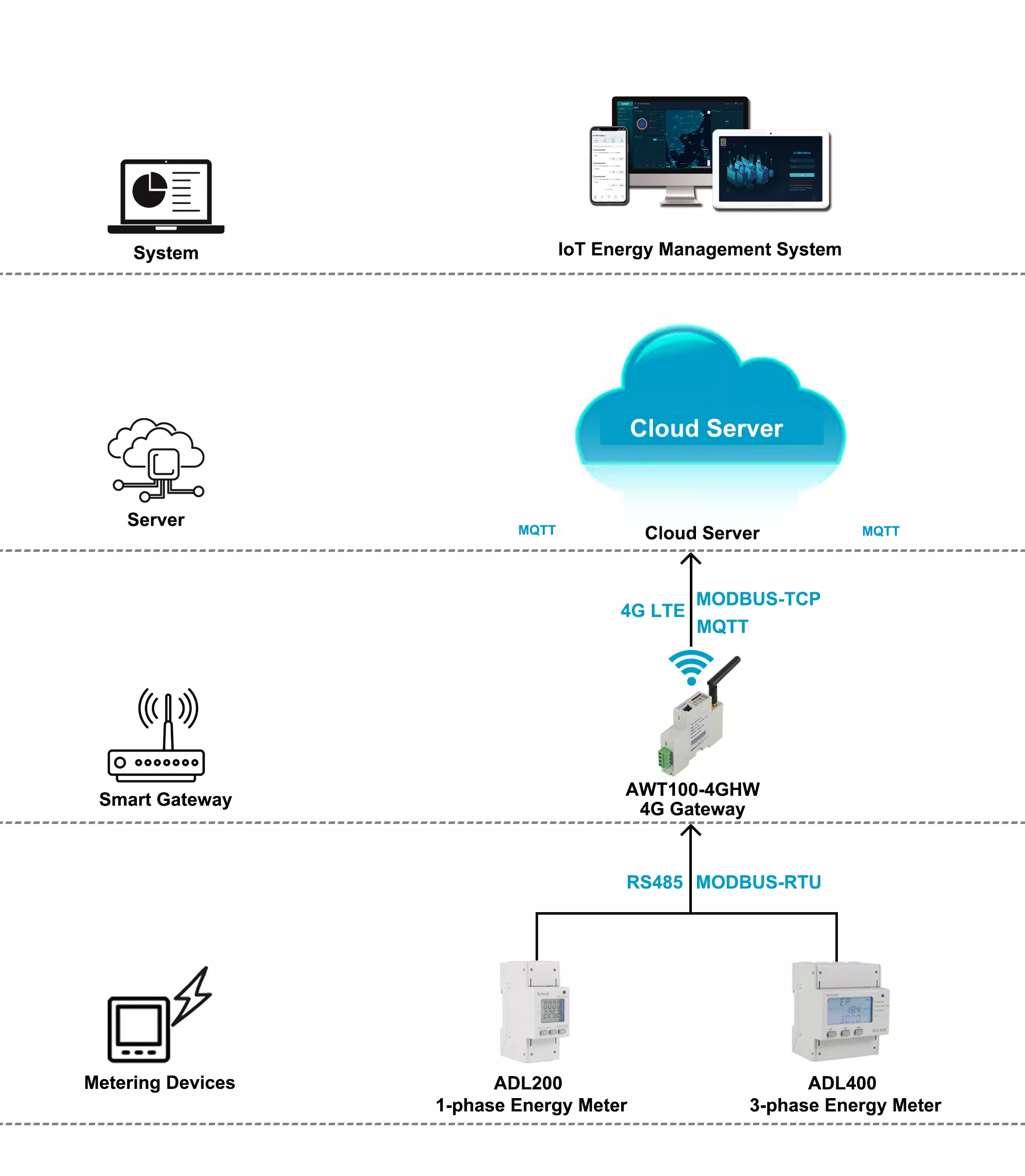

RS485 to 4G Solution Structure

8

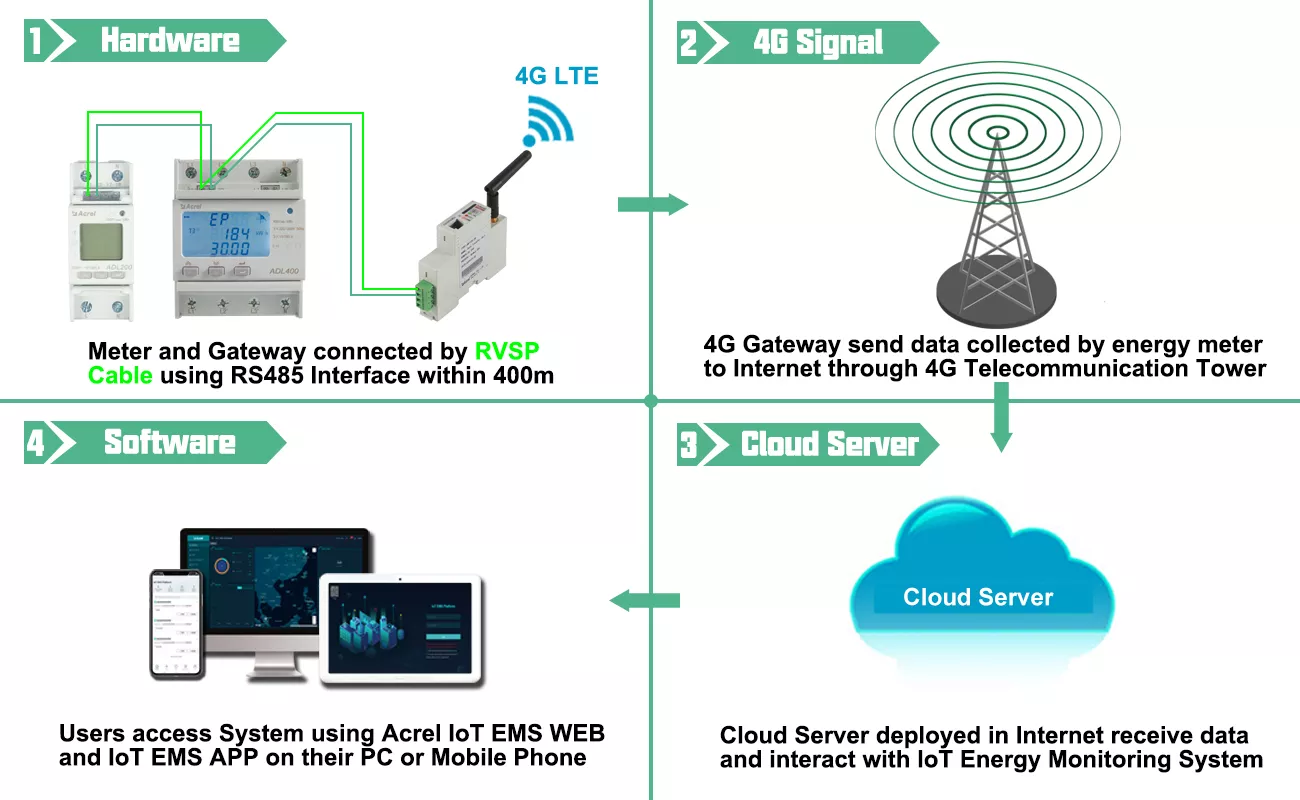

RS485 to 4G Solution Illustration

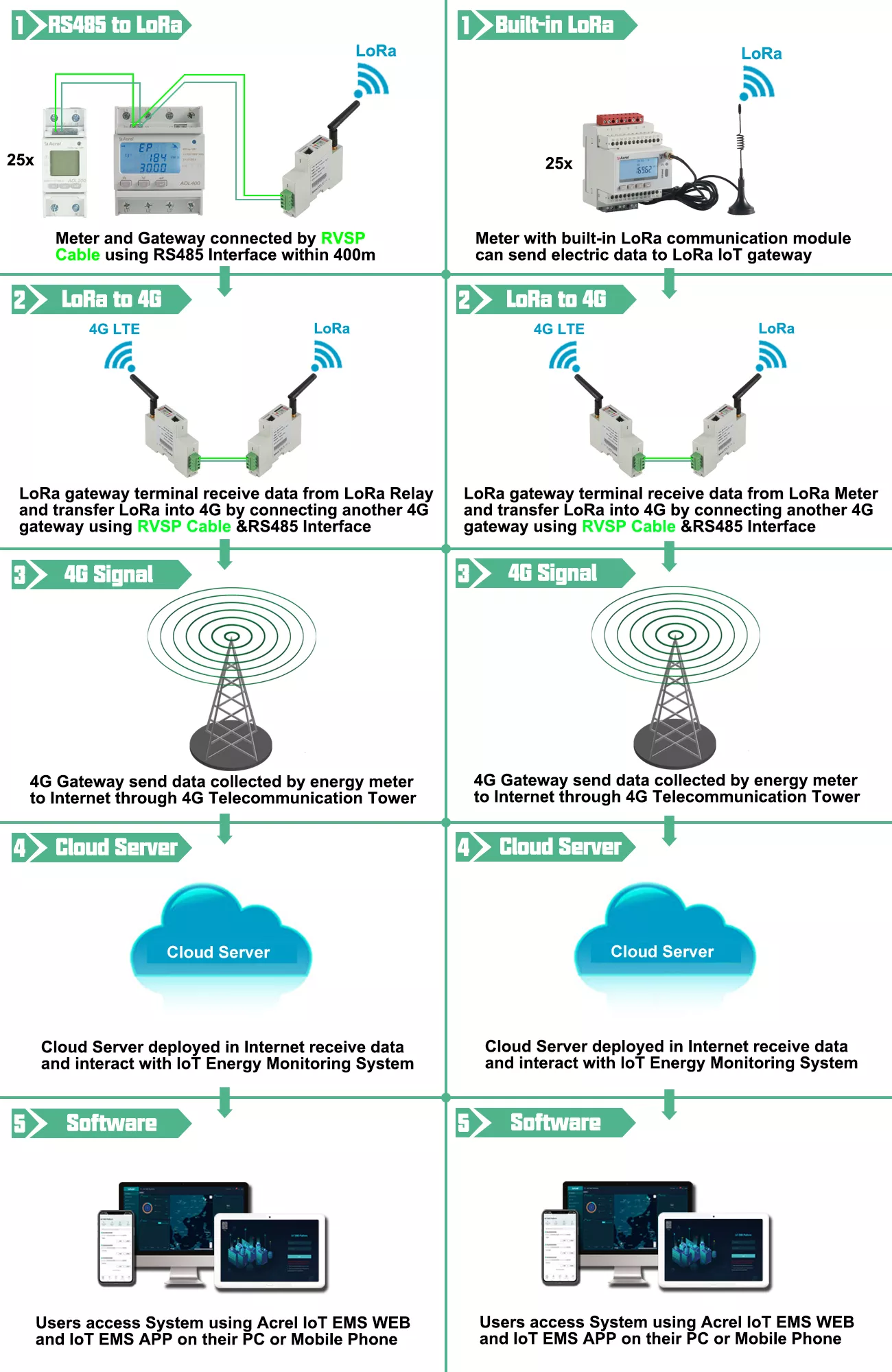

Lora to 4G Solution Structure

9

Lora to 4G Solution Illustration

11
