ATE Series Wireless Temperature Monitoring System(Sensor)

● Wireless transmit: 433-510 MHz;

● Wireless transmission distance: 500m in open area;

● Power source: AC/DC 85~265V;

● Widely temperature measuring range: -40℃~+140℃.

Send email to us

Information

Parameter

Download

General

ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3~35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data. In addition, it can be transmitted to display device or remote intelligent monitoring system.

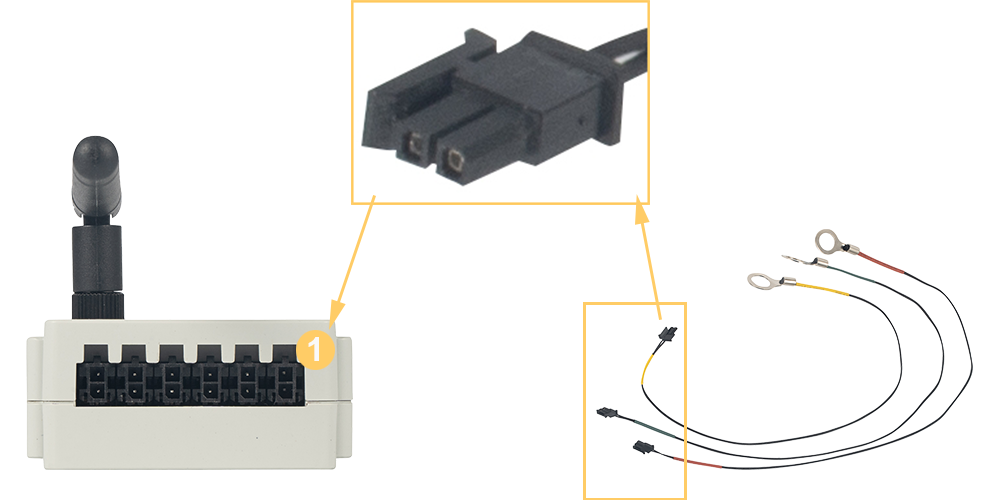

ATE300M multi circuit temperature sensor is applicable to various occasions such as electrical connectors in low-voltage cabinet. It could connect with 1 ~ 6 NTC temperature sensors.

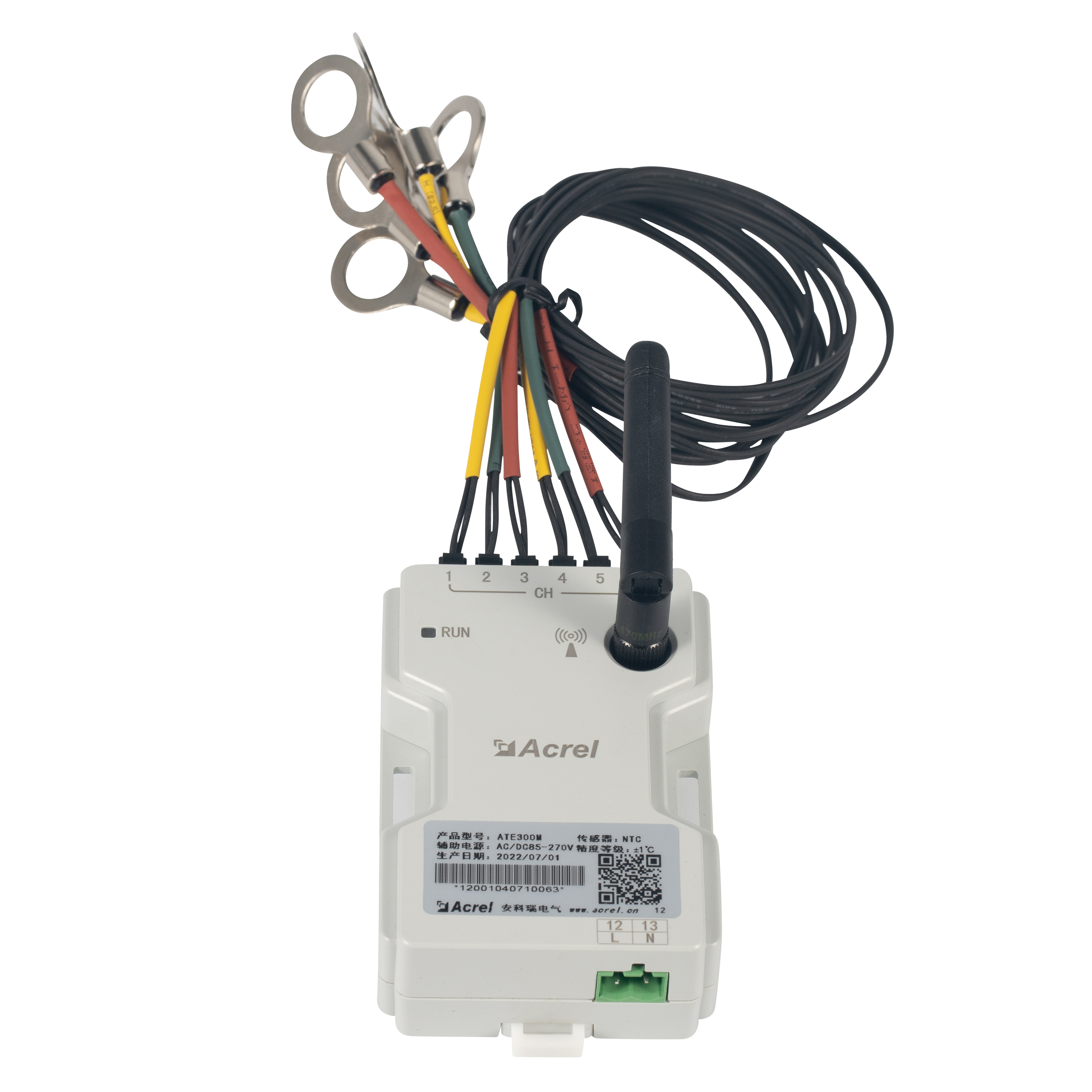

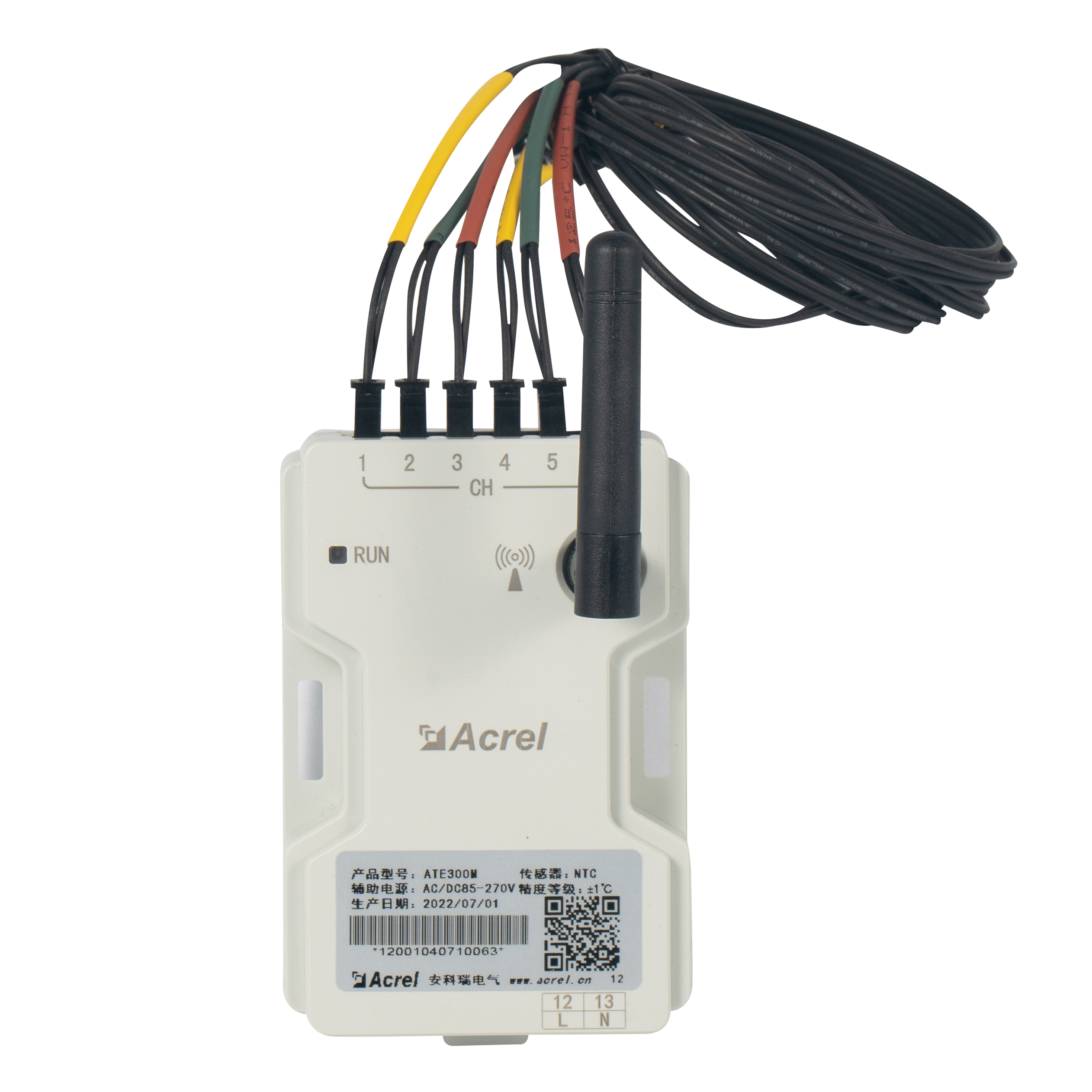

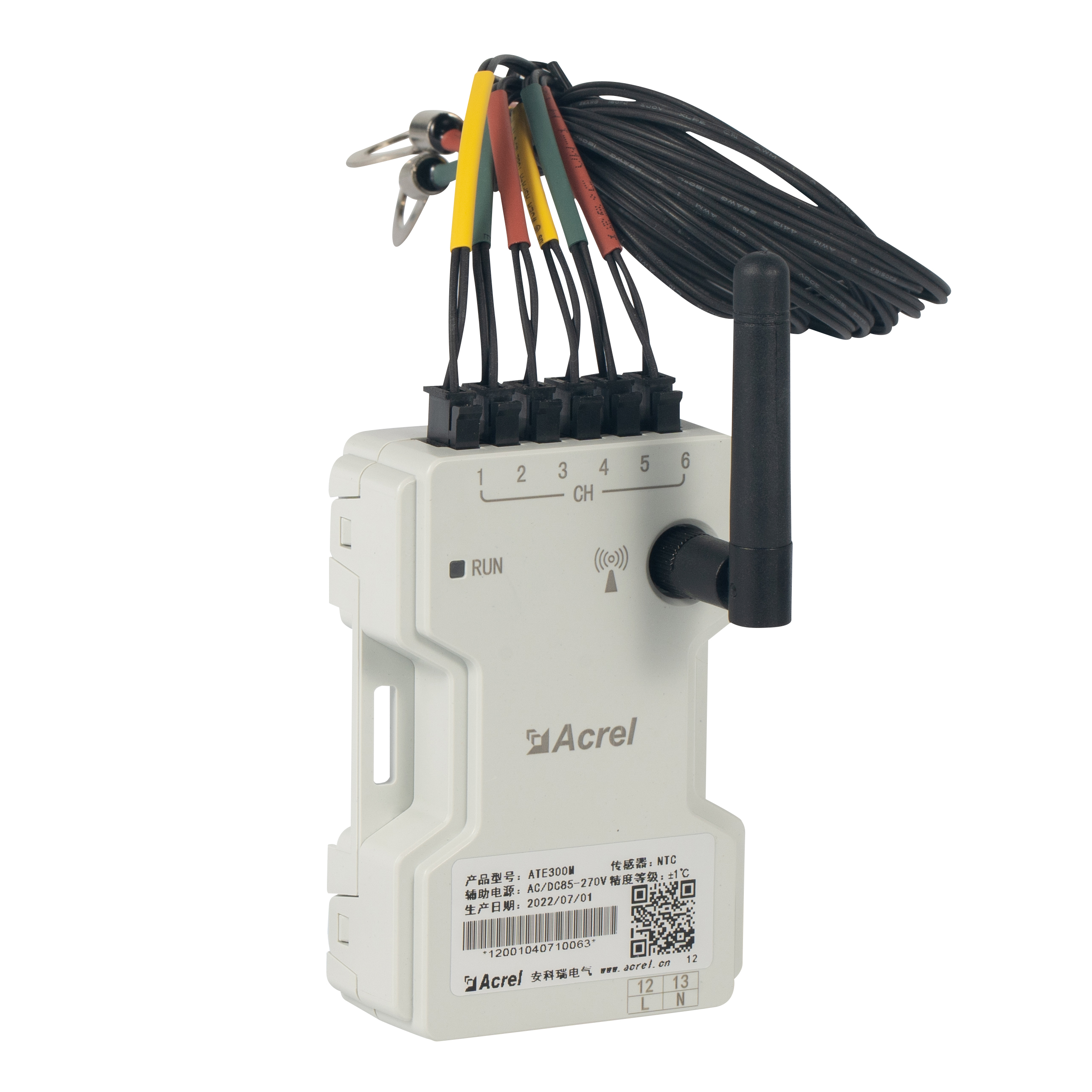

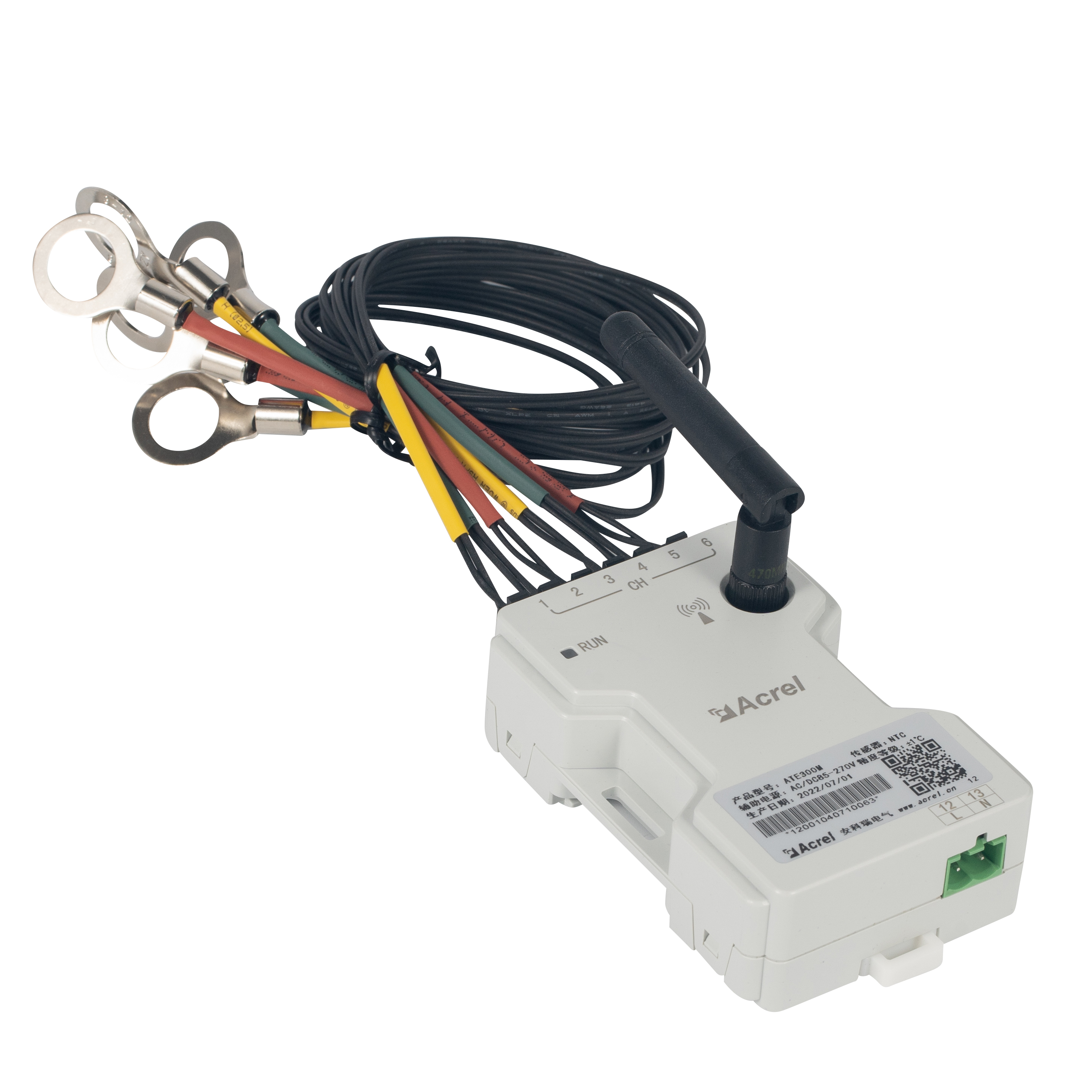

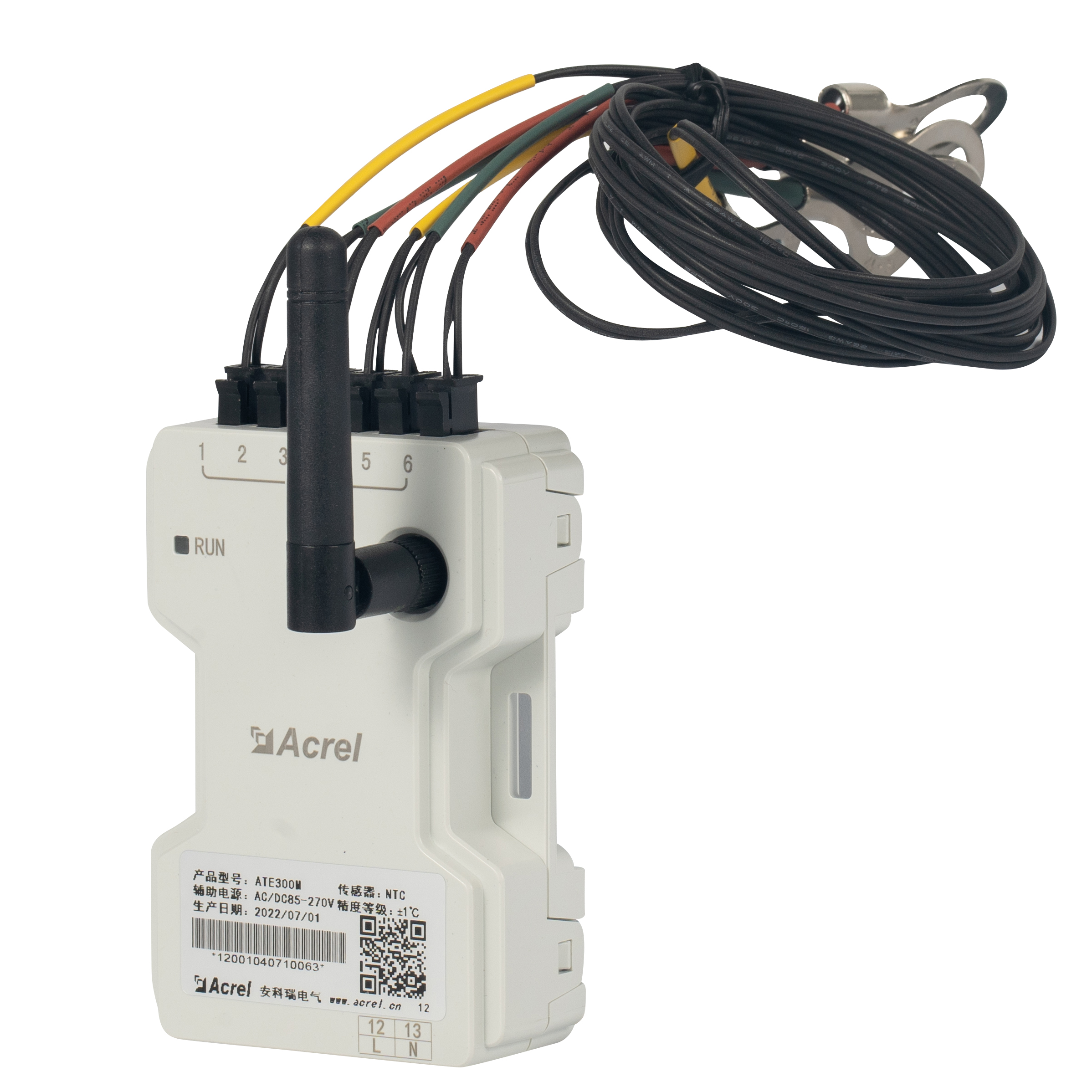

Appearance & Parameter

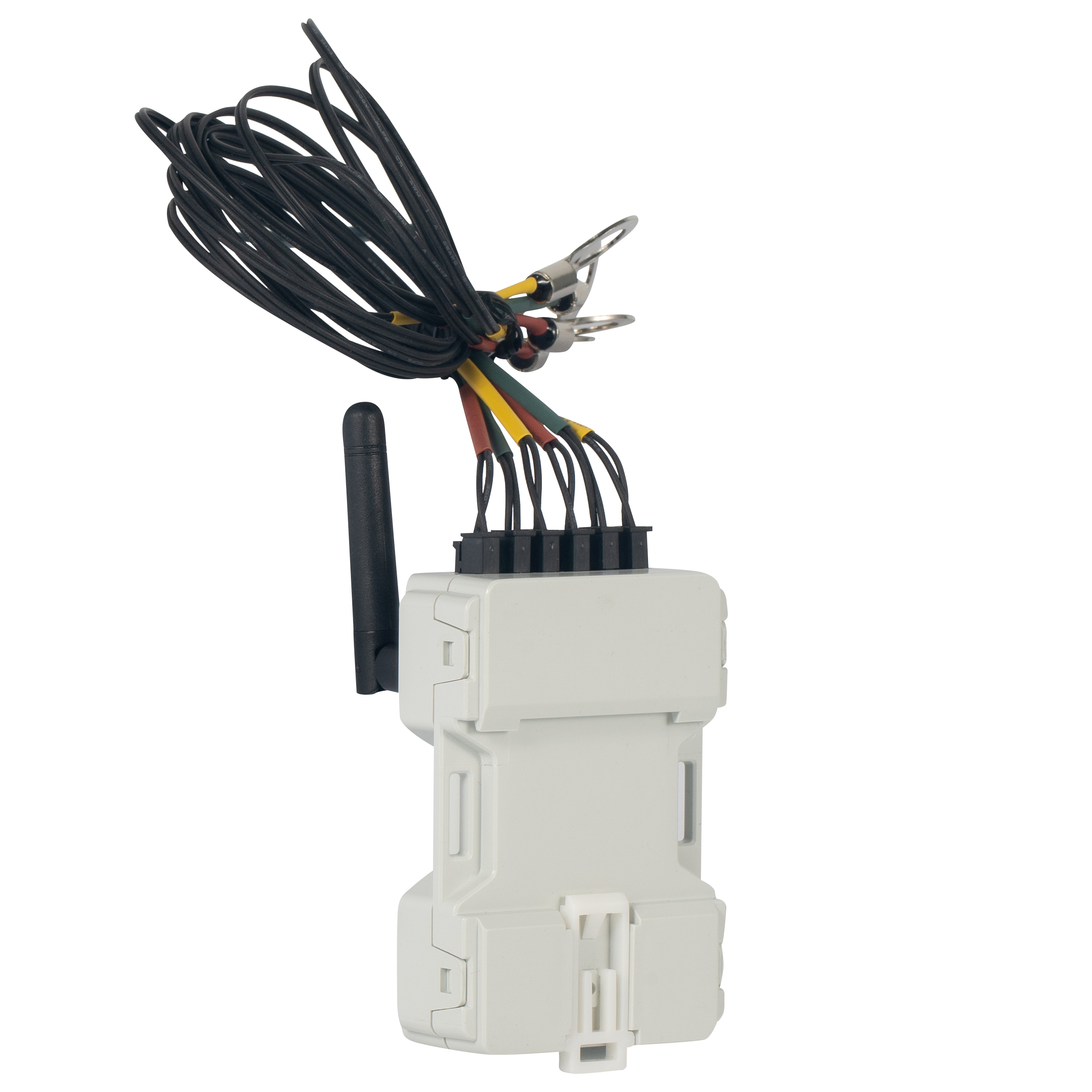

Installation: Rail type/Tie type

Power Supply: AC/DC 85~265V

Range of Temperature: -40℃~+140℃

Communication Distance: 500m in open area

Connection

Fix the sensor body in a suitable position inside the cabinet by binding it with guide rails or straps; The NTC probe is fixed by means of screws, bundling, or silicone bonding. Power the sensor with an AC/DC 85-265V power supply, and the power indicator light flashes red twice when powered on.

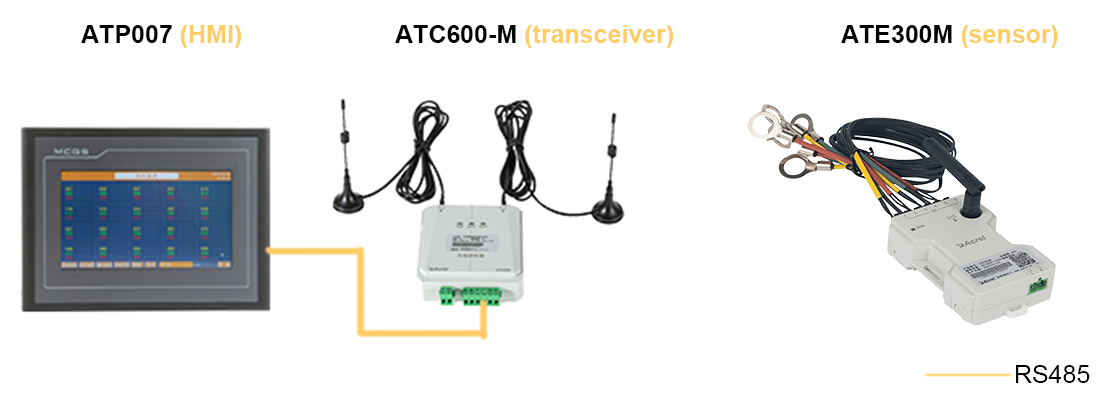

Typical Diagram

Previous: BM100 Signal Isolator

Next: Acrel-2000ES Energy Storage Management System

1.Technical parameter

1.1 Electrical performance

ATE300M multi Loop temperature senso	Wireless frequency	433-510MHz
	Communication distance	1000m 1000m in open area
	Sampling frequency	1-240s
	Power source	AC/DC 85~265V
	Installation	Rail type/Tie type
	Range of temperature	-40℃~+140℃
	Precision	±1℃
	Application	Joints in low voltage switchgears

1.2 Work environment

Environment	Temperature	-40℃~125℃
	Humidity	≤95%
	atmospheric pressure	86kPa~106kPa

Write your message here and send it to us
