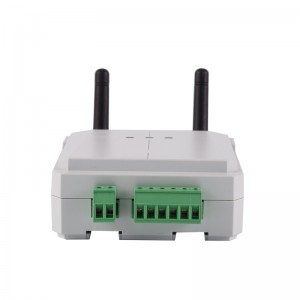

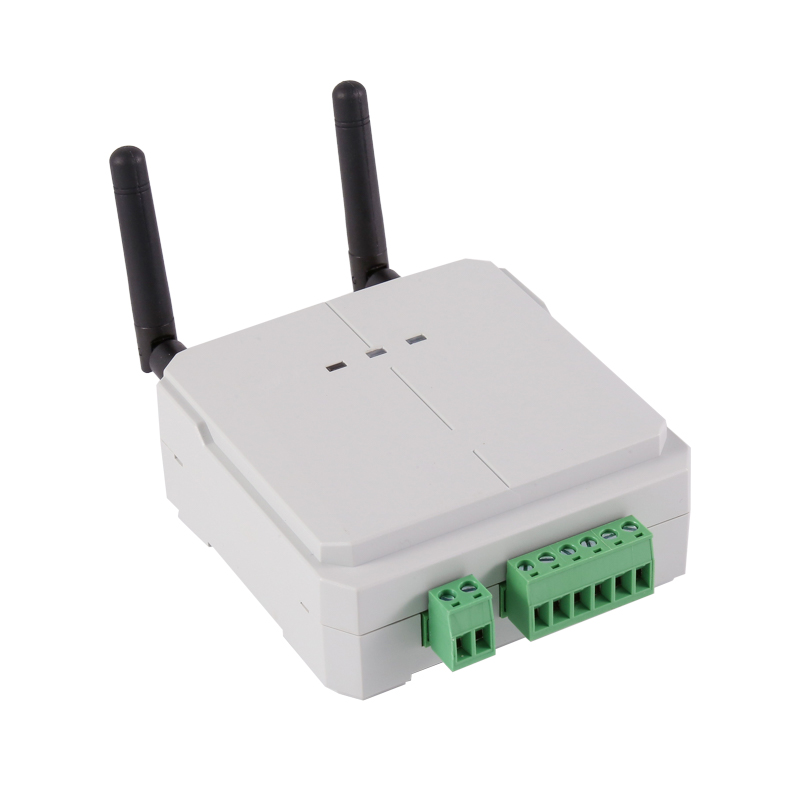

ATC600 Series Wireless Temperature Monitoring System(Transceiver)

● Wireless transmit,433MHz;

● Wireless distance, Receiver sensor 50m (in open area)，Relay distance 1Km (in open area);

● 240 points;

● Power supply, DC 12~48V;

● Relay output, 2 passive output，capacity 5A/AC250V，5A/DC30V;

● RS485(MODBUS-RTU)

Send email to us

Information

Parameter

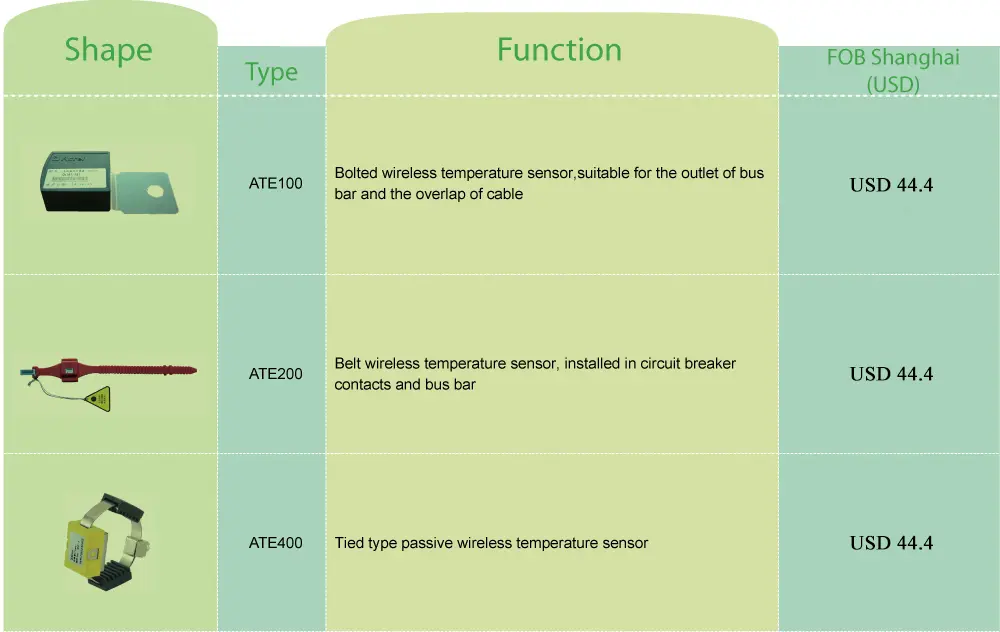

Quotation

Download

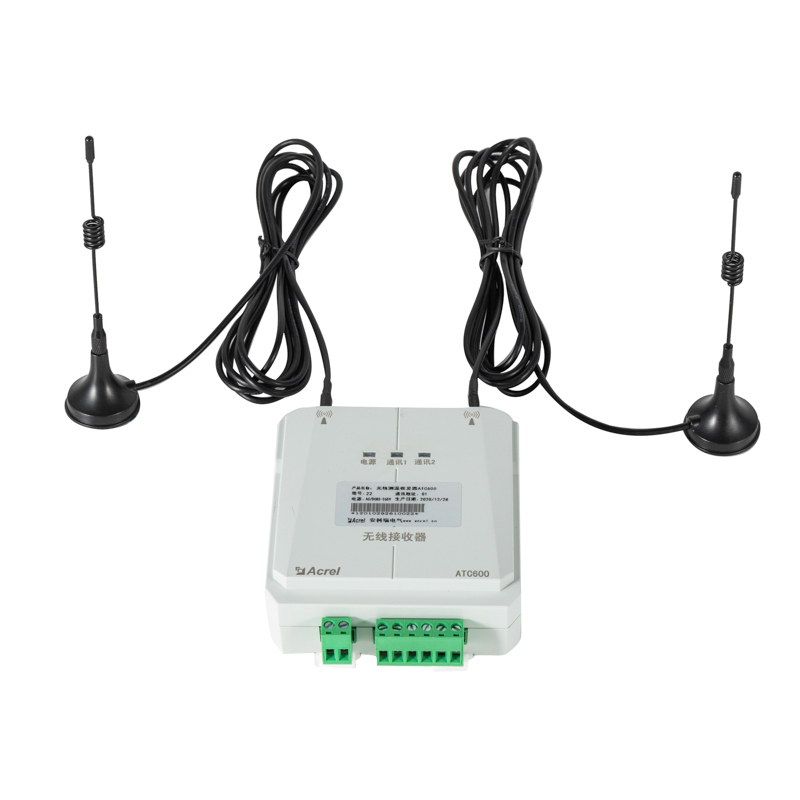

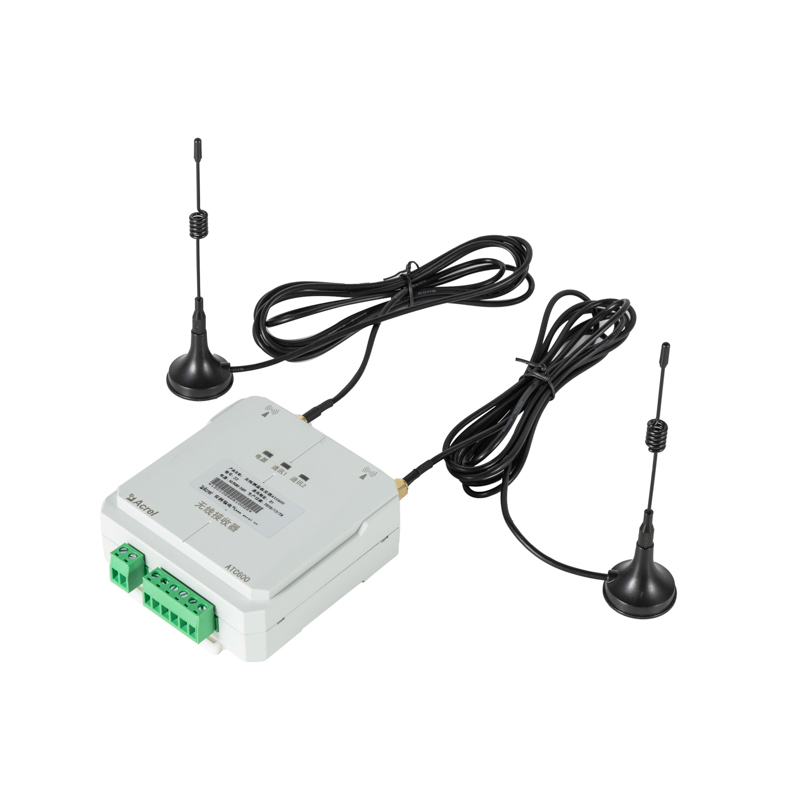

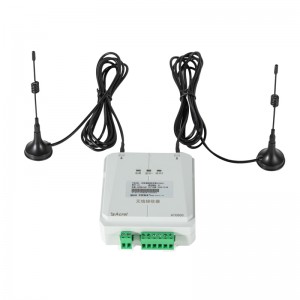

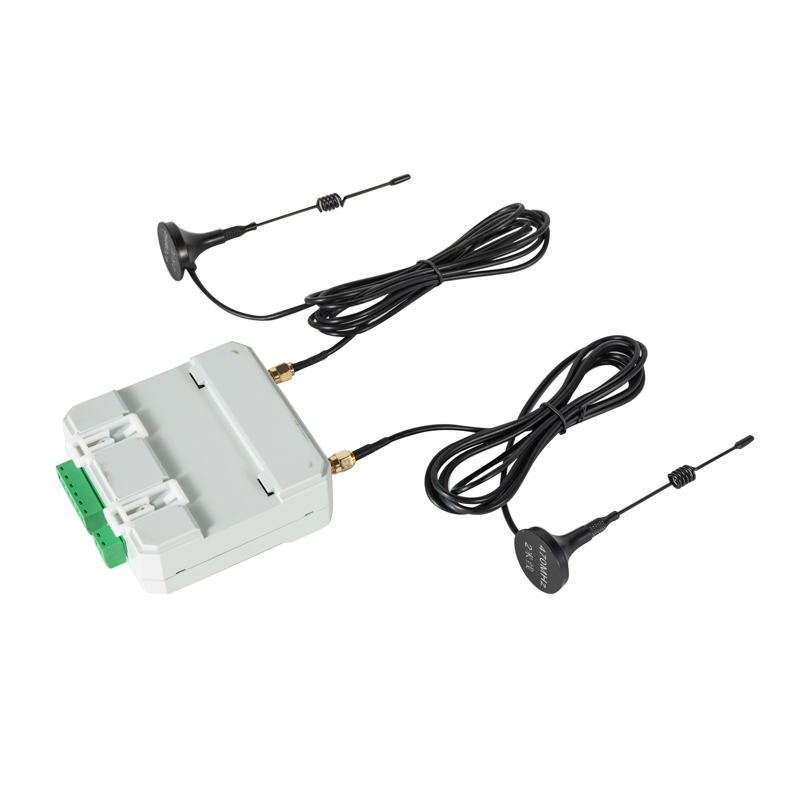

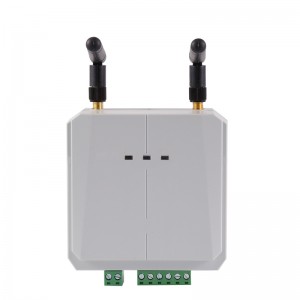

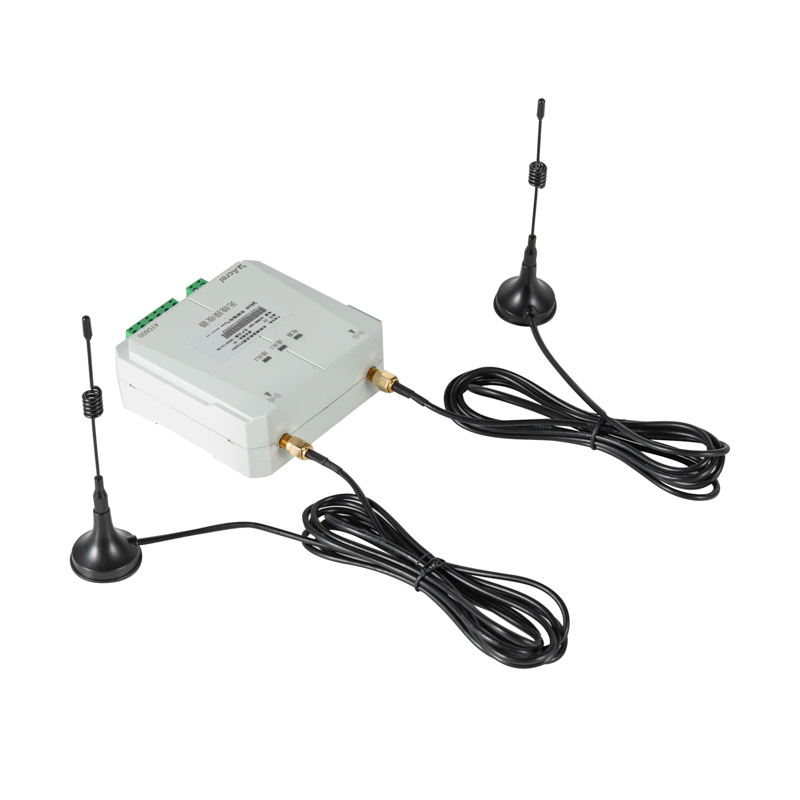

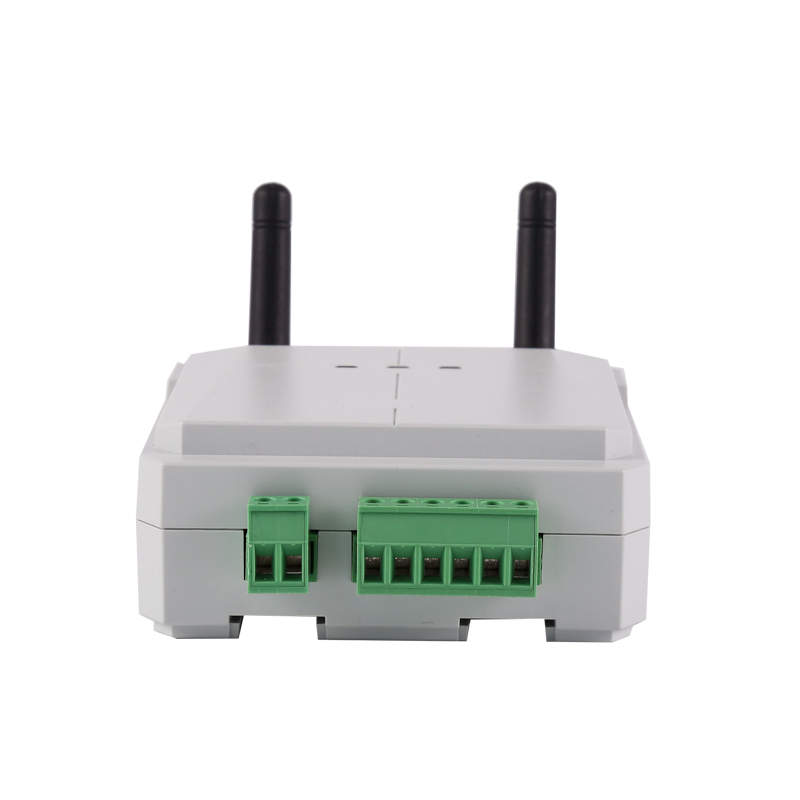

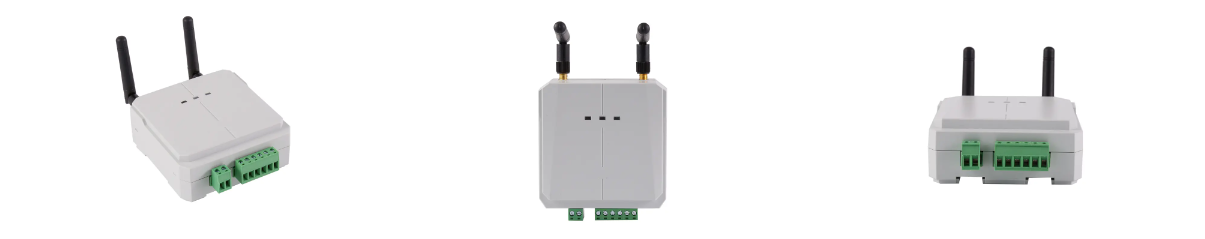

Appearance

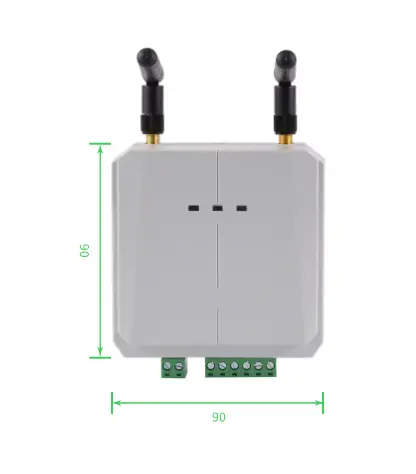

Dimension

Wiring

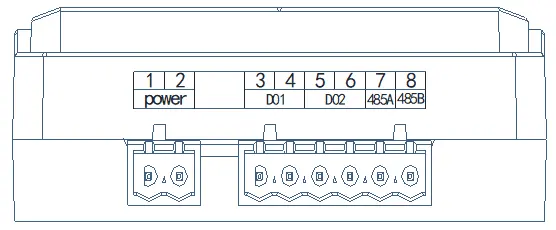

Wireless temperature measurement transceiver ATC600 terminal block. 1, 2 are power terminals; 3, 4 are DO1 output; 5, 6 are DO2 output; 7, 8 is A and B terminal of RS485 interface.

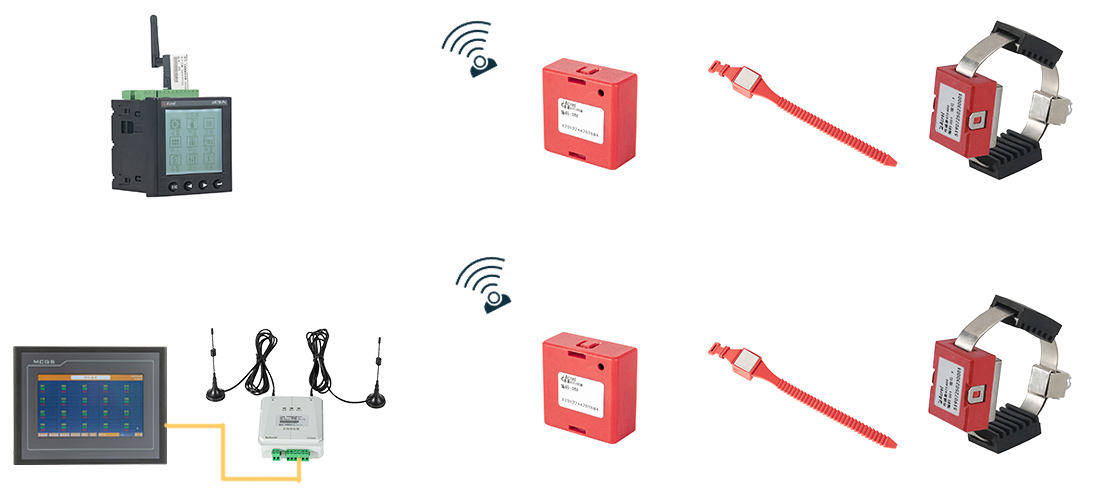

Typical connection

Previous: AMC16Z-ZA A+B 2 Channel AC energy meter for IDC

Next: ATE Series Wireless Temperature Monitoring System(Sensor)

Parameters	ATC600-C	ATC600-Z	ATC600-M
Function	Receiver	Repeater(Signal Booster)	Receiver
Matching sensors	ATE100/100P;ATE100M; ATE200/200P;ATE400; AHE100;ACE100;ATE300P	ATE100/100P;ATE100M; ATE200/200P;ATE400	ATE300M
Power source	AC/DC100~265V；DC12~48V
Power Consumption	≤2W
Temperature points	240 points	——	1440 points (240 Sensors)
Resolution	0.1℃	——	0.1℃
Range of temperature	-50℃~+125℃	——	-40℃~+140℃
Precision	±1℃	——	±1℃
Wireless frequency	470Mhz	470Mhz	433Mhz~510Mhz
Wireless distance (in open area)	Receiving sensor 150m Receiving repeater 1km	Receiving sensor 150m Realy distance 1km	Receiving sensor 1km
Communication	RS485
Baud rate (bps)	2400、4800、9600、19200
Protocol	MODBUS-RTU	——	MODBUS-RTU
Relay output	2 passive output，capacity 5A/AC250V，5A/DC30V
Environment	Temperature:-20 ℃～+55 ℃；Humidity:≤95%

ATC600
