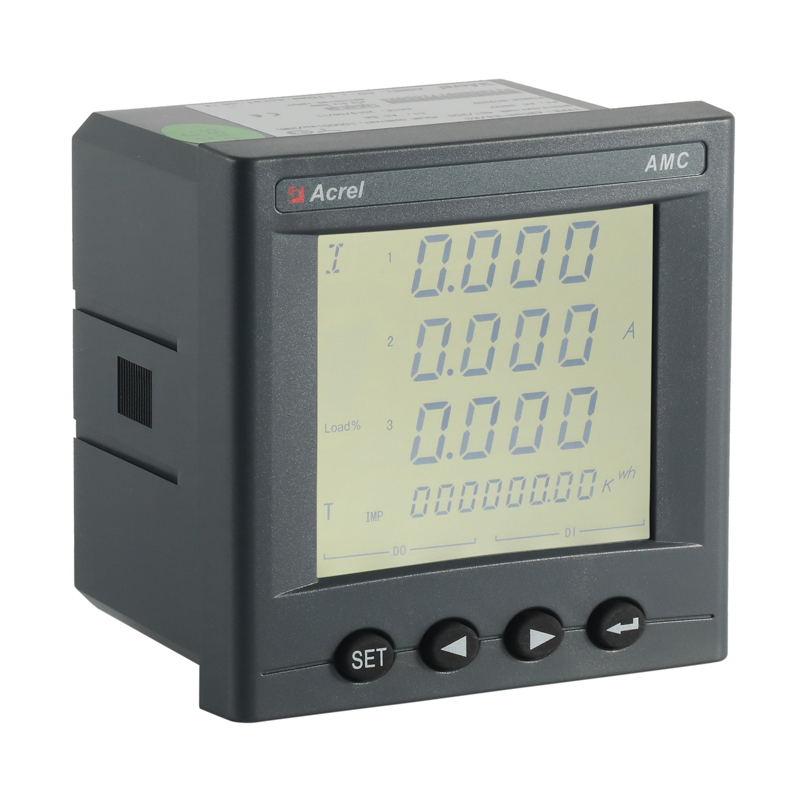

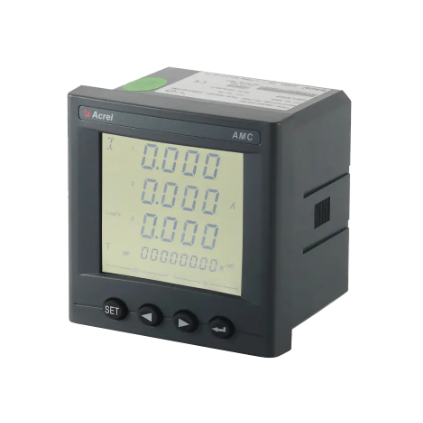

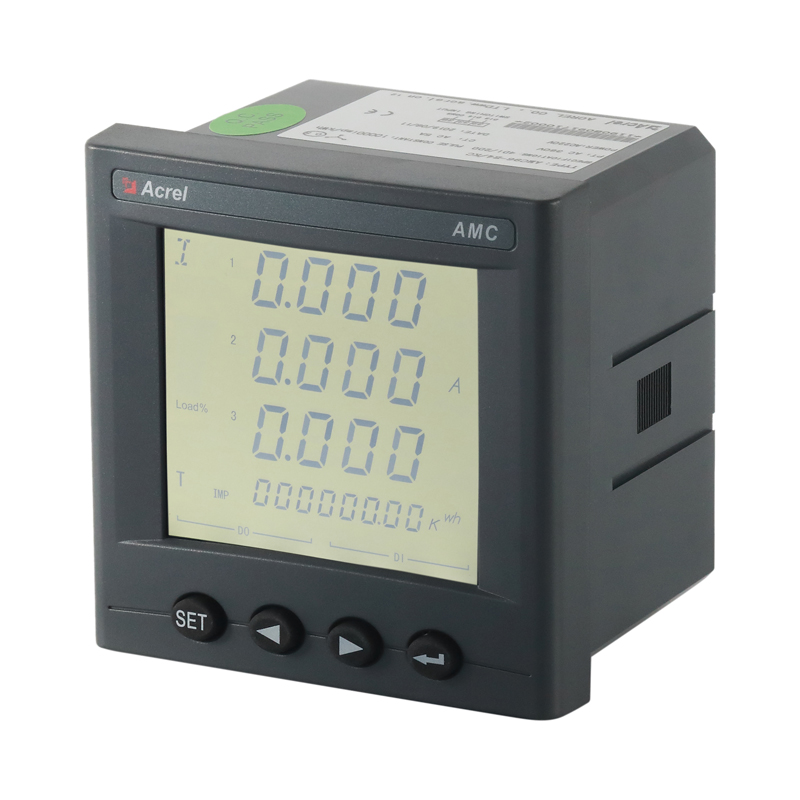

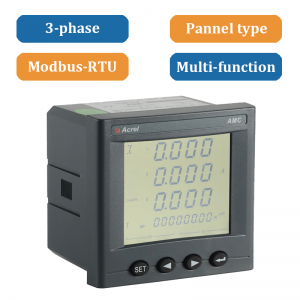

AMC96L-E4/KC pannel type 3P4W energy meter

● True RMS Measurements

● THD with 2-31st Harmonics

● Max/Min Log with Timestamp

● Internal Optional 4DI&2DO or 2DI&2DO&2AO

● Standard one Energy Pulse Output

Information

Parameter

Function

Download

Characteristic

1

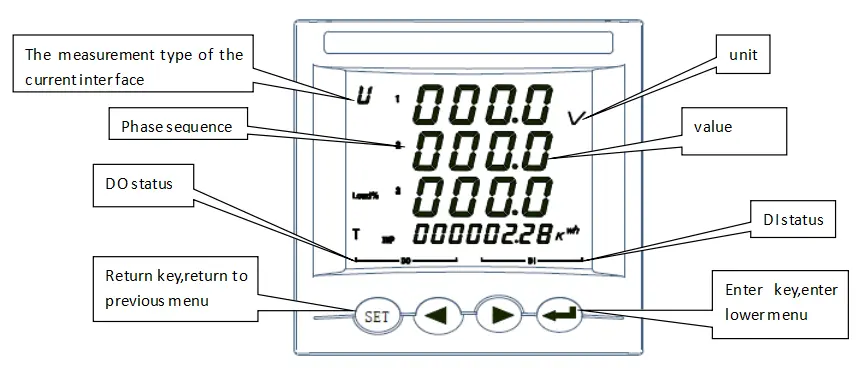

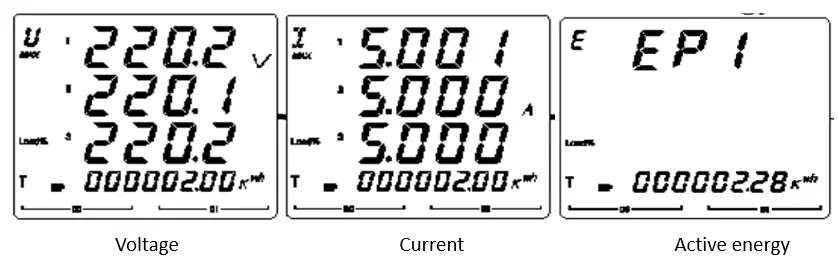

LCD Display

2

Function

Accuracy
Active energy: Class 0.5

Frequency
Range: 45-65Hz

Auxiliary power supply
AC/DC 85~265V

Pulse output
1600-160000imp/kWh

Consumption
Voltage: Power consumption <0.5VA;
Current: Power consumption< 0.5VA;
Auxiliary power supply:power consumption≤10VA
3
4

Installation
Panel mounted

Dimension(L*W*H)
Panel size (L×W): 96*96mm
Cutout (L×W): 92*92mm
Housing (L×W×H): 90*90*77.8mm

Relay
DC 30V/3A AC 220V/3A

Consumption
0.2%

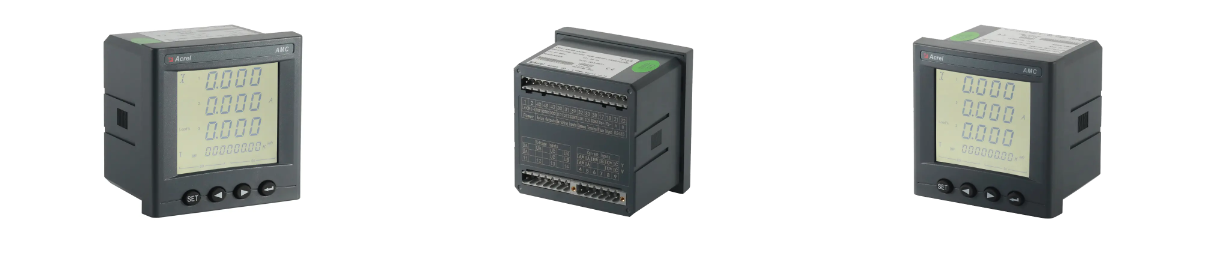

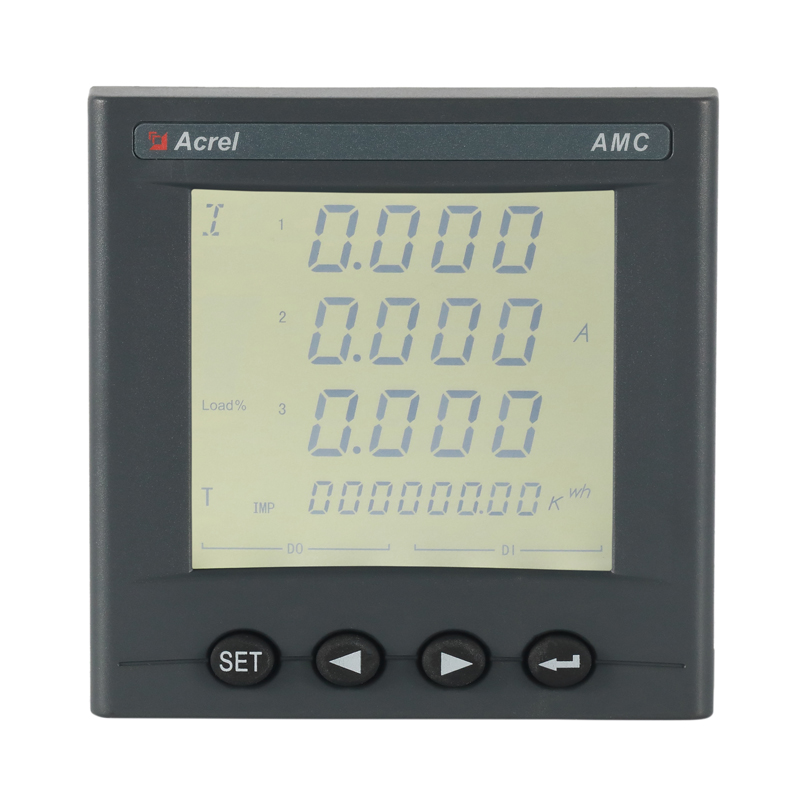

Appearance

5

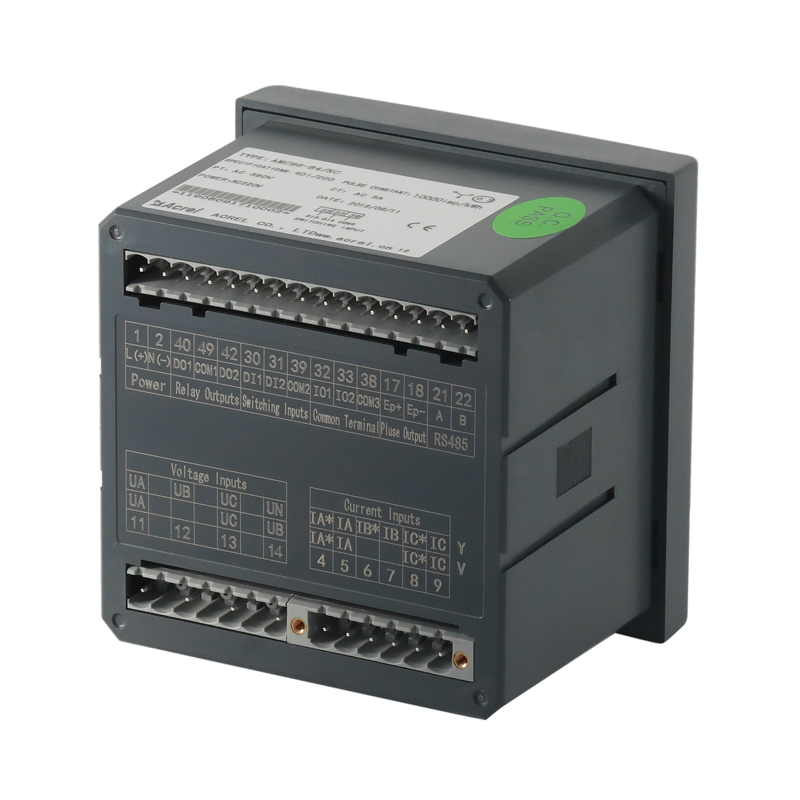

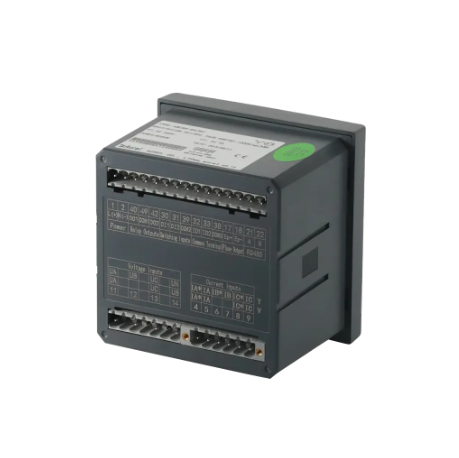

Wiring

6

Wiring

7
8

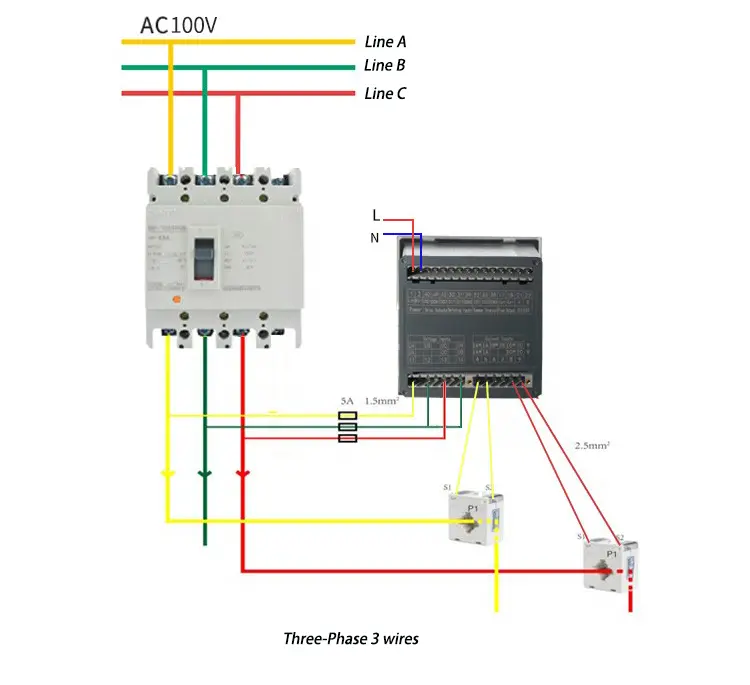

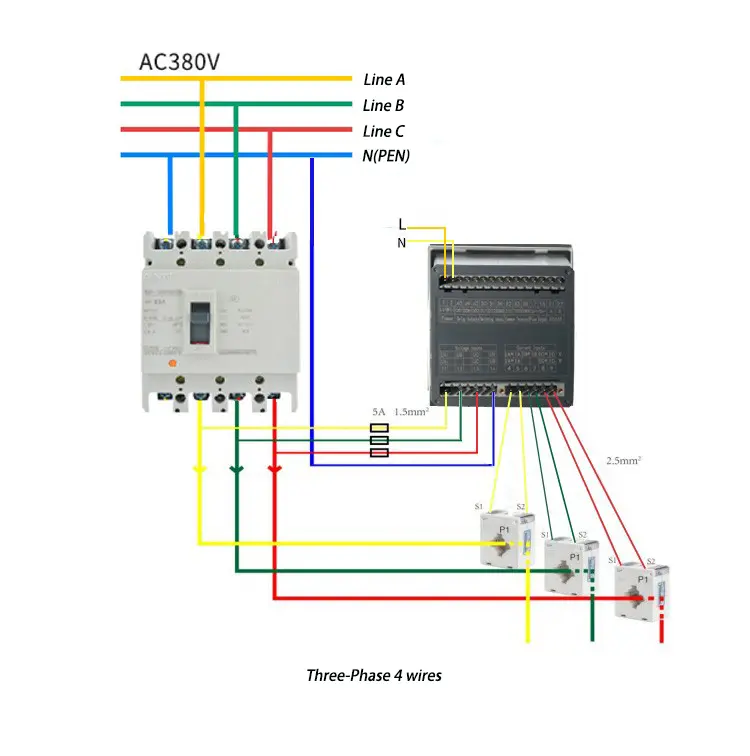

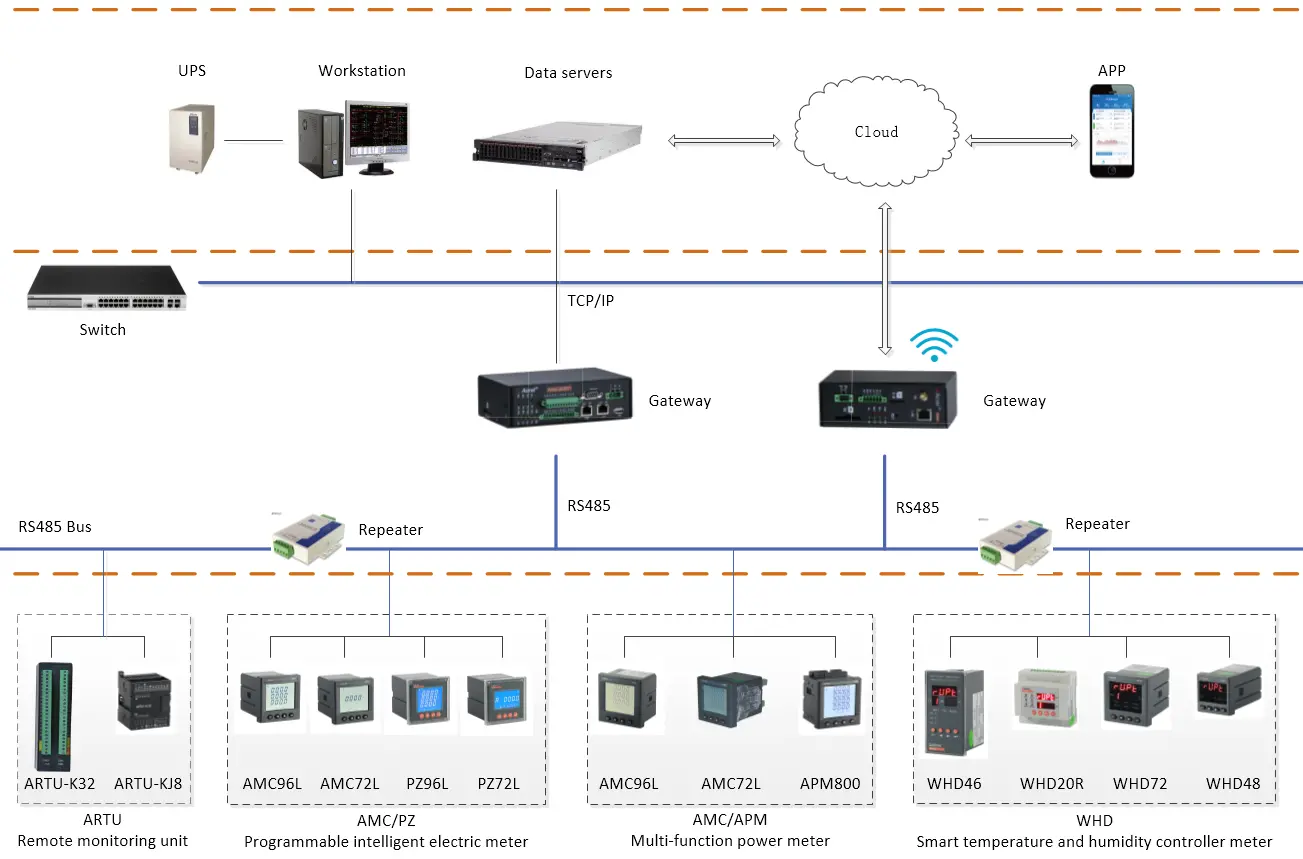

Typical connection

9

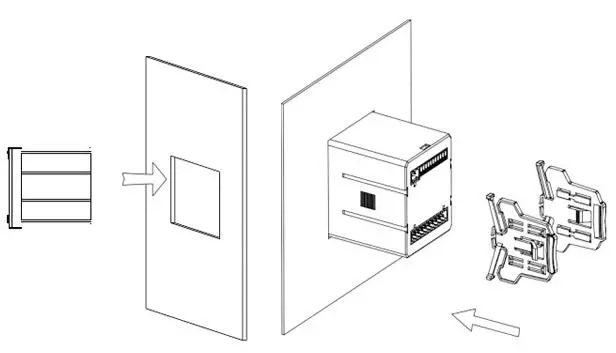

Installation

10
  • Previous:
  • Next:

    • 1.Technical parameter

    1.1 Electrical performance

    Technical parameter Value
    Input Rated value AC voltage:Single phaseAC 100V,400VThree phaseAC 100V,400V,660V(UL-L,Only 72/ 96)AC current:AC1A,5A;DC voltage:1000V,300V,75mV,10V;DC current: 0-20mA,4-20mA,5A;
    Overload Voltage: 1.2 times rated value(continuous); 2 times rated value /1 secondCurrent:1.2 times rated value(continuous); 10 times rated value /1 second
    Frequency 45Hz～65Hz
    Power consumption Power consumption of each voltage,current input circuit is less than 0.5VA
    Accuracy 0.5 class
    Auxiliary supply Voltage range AC/DC 85-265V
    Power consumption <5VA
    Insulation resistance ≥ 100MΩ
    Power frequency withstand voltage Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS)Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV

    1.2  Work Environment

    Environment  Temperature Operation: -10℃～+55℃Storage: -25°C ~+70°C
    Humidity ≤95%RH,no condensation,without corrosive gas
    Altitude ≤ 2500m

    2. Functional Characteristic

    Function

    Function Description

    Display

    LED or LCD

    Communication

    RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity)

    Baud Rate 2400/4800/9600/19200 bps etc.

    Alarm

    1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC,

    Used for high,low,unbalance alarm etc.

    Analog

    DC4~20mA,( load <500Ω)

    (note:Shielded wire is specially selected for the above signal input and output)

    Switching

    Input

    4 channel or 2 channel dry contact Input,built in power supply

    Output

    2 channel switching output,NO relay contact,capacity: 3A/30VDC,3A/250VAC
