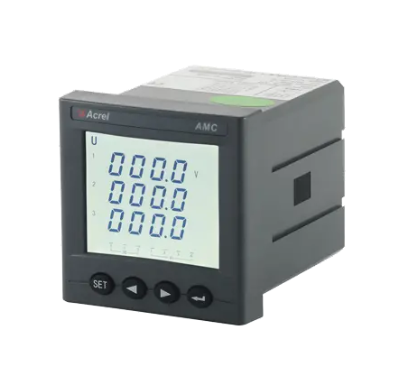

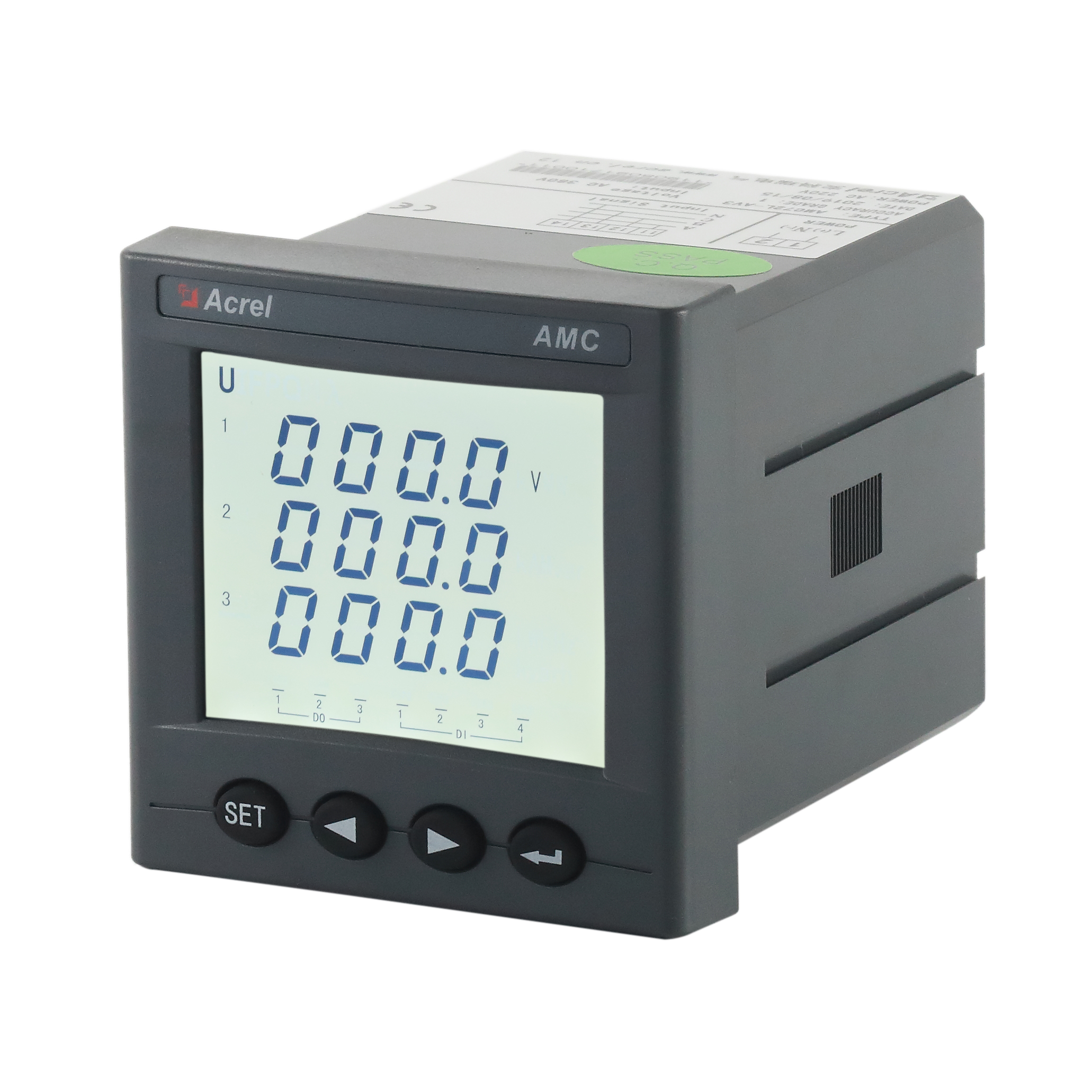

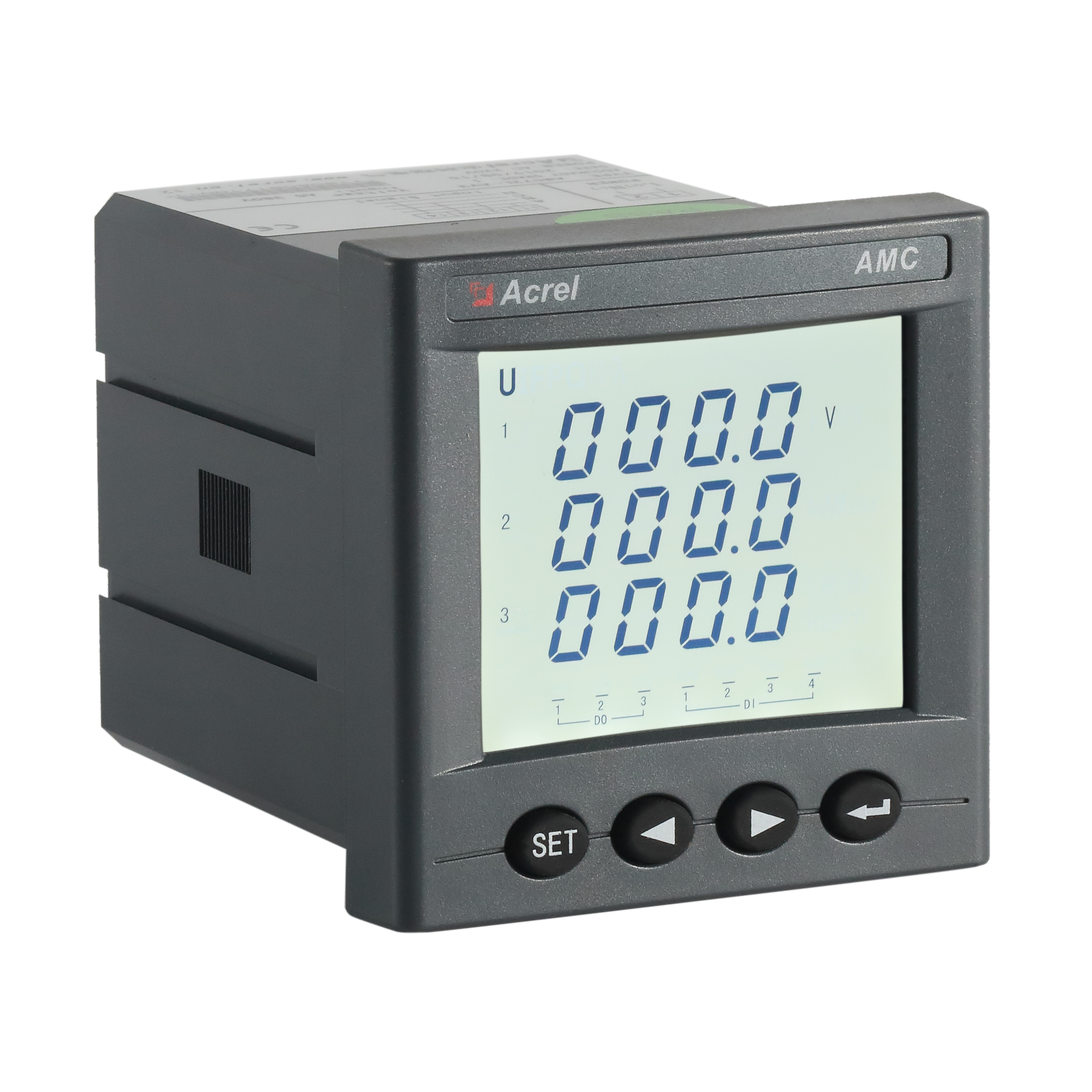

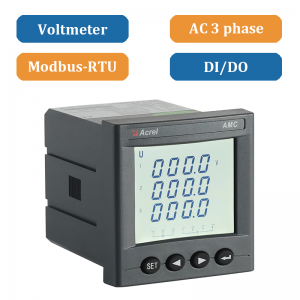

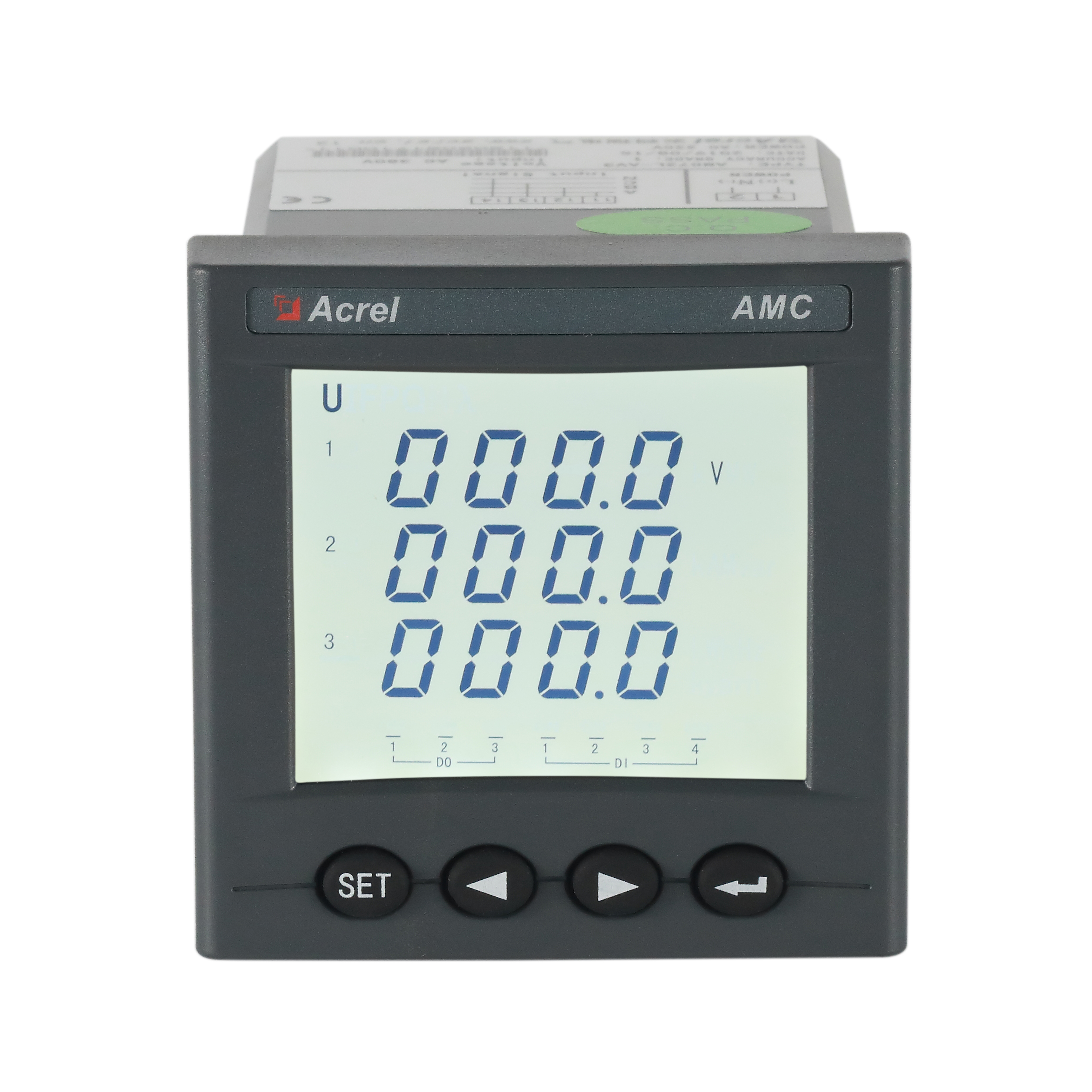

AMC72L-AV3 Pannel Type 3 Phase Volmeter

● LCD Display;

● 1 x RS485 with programmable Modbus RTU;

● Optional function: Alarm, Analog output, DI/DO and communication;

● Economic programmable meter;

● Accuracy: Class 0.5


Information

Parameter

Function

Download

Characteristic

1

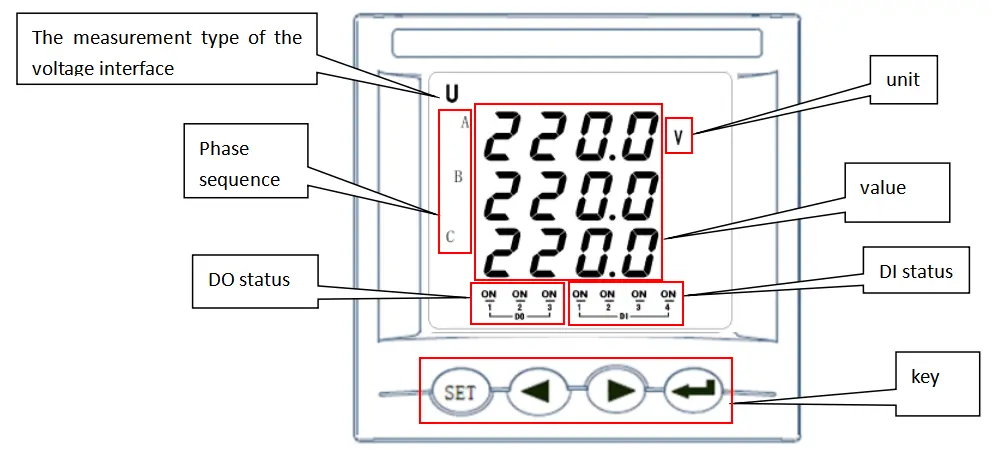

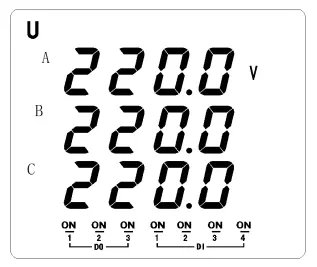

LCD Display

2

Function

Accuracy
Class 0.5

Frequency
Range: 45-65Hz

Auxiliary power supply
Voltage range: AC220V
Power consumption: <5VA

Consumption
Power consumption of each voltage, current input circuit is less than 0.5VA

3

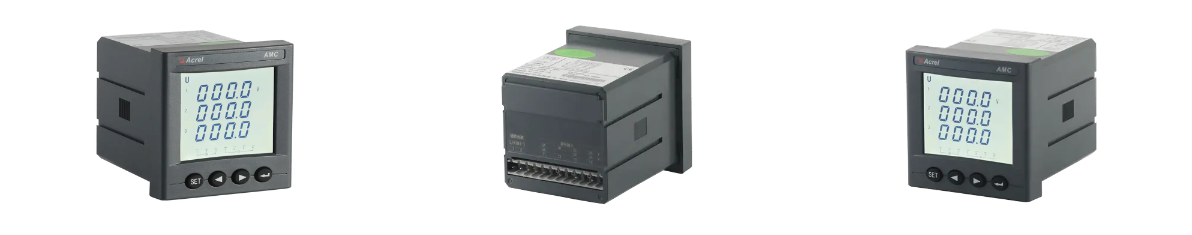

Appearance

4

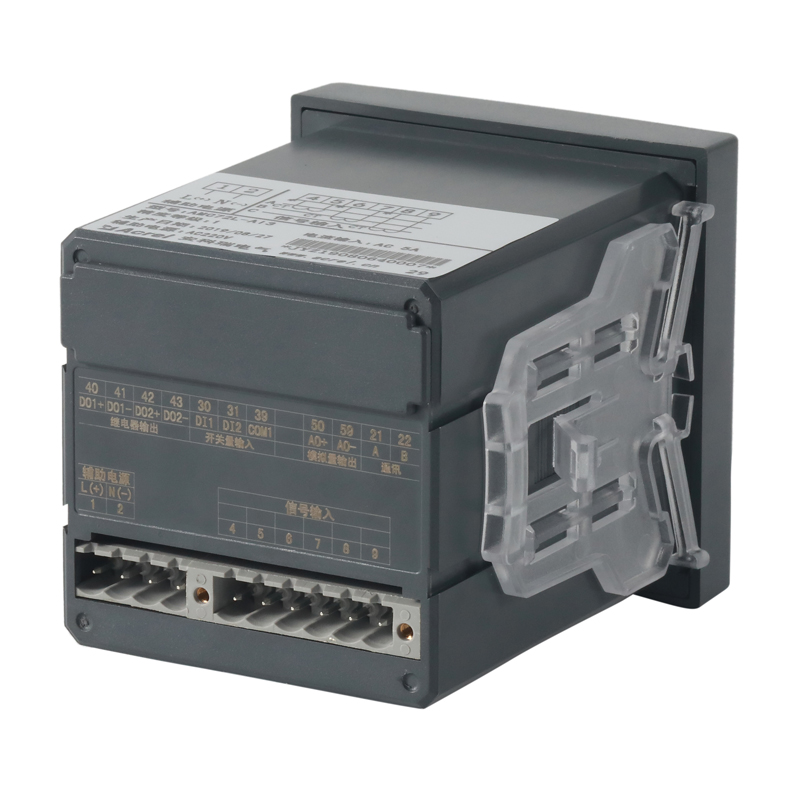

Wiring

5

Typical connection

6

Installation

7

  • Previous:
  • Next:

  • 1.Technical parameter

    1.1 Electrical performance

    Technical parameter

    Value

    Input

    Rated value

    AC voltage:Single phaseAC 100V,400V

    Three phaseAC 100V,400V,660V(UL-L,Only 72/ 96)

    AC current:AC1A,5A;

    DC voltage:1000V,300V,75mV,10V;

    DC current: 0-20mA,4-20mA,5A;

    Overload

    Voltage: 1.2 times rated value(continuous); 2 times rated value /1 second Current:1.2 times rated value(continuous); 10 times rated value /1 second

    Frequency

    45Hz~65Hz

    Power

    consumption

    Power consumption of each voltage,current input circuit is less than 0.5VA

    Accuracy

    0.5 class

    Function

    Display

    LED or LCD

     Communication

    RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) Baud Rate 2400/4800/9600/19200 bps etc.

     Alarm

    1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC,

    Used for high,low,unbalance alarm etc.

     Analog

    DC4~20mA,( load <500Ω)

    (note:Shielded wire is specially selected for the above signal input and output)

     Switching

    Input

    4 channel or 2 channel dry contact Input,built in power supply

    Output

    2 channel switching output,NO relay contact,capacity: 3A/30VDC,3A/250VAC

    Auxiliary

    supply

    Voltage range

    AC/DC 85-265V

    Power

    consumption

    <5VA

    Insulation resistance

    ≥ 100MΩ

    Power frequency withstand

    voltage

    Between power supply set of terminals and signal input,output set of terminals

    2kV/1min (RMS)

    Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV

    1.2 Work environment

    Environment

    Temperature

    Operation: -10℃~+55℃Storage: -25°C ~+70°C

    Humidity

    ≤95%RH,no condensation,without corrosive gas

    Altitude

    ≤ 2500m



    2. Functional Characteristic

    2.1 Basic & Optional Function

    Type

    Basic function

    Shape

    Optional function

    AMC48-AI

    AMC48-AV

    Current,voltage measurement;

    LED

    48 Square

    RS485 communication (/C )

    Analog output (/M )

    AMC48-AI3

    AMC48-AV3

    None

    AMC48L-AI

    AMC48L-AV

    Current,voltage measurement;

    LCD

    1. RS485 communication (C)

    2. Analog output (M)

    AMC48L-AI3

    AMC48L-AV3

    None

    AMC72-AI

    AMC72-AV

    AMC72-AI3

    AMC72-AV3

    Current,voltage measurement;

    LED

    72 Square

    1. RS485 communication (C)

    2. Analog output (M)

    3.Alarmoutput (J)

    4.Analog output + RS485 communication (MC)

    5. RS485 communication + switching output 2DI2DO (KC)

    6.Alarm output + analog output +RS485 communication (JMC)

    AMC72-DI

    AMC72-DV

    DC voltage,current measurement;

    LED

    AMC72L-AI

    AMC72L-AV

    AMC72L-AI3

    AMC72L-AV3

    Current,voltage measurement;

     LCD

    AMC72L-DI

    AMC72L-DV

    DC voltage,current measurement;

    LCD

    AMC96-AI

    AMC96-AV

    AMC96-AI3

    AMC96-AV3

    Current,voltage measurement;

    LED



    96 Square

    1. RS485 communication (C)

    2. Analog output (/M or 3M)

    3.Alarm output (J)

    4.Analog output + RS485 communication (MC or M3C)

    5. RS485 communication + switching 4DI2DO (KC)

    AMC96L-AI

    AMC96L-AV

    AMC96L-AI3

    AMC96L-AV3



    Current,voltagemeasurement;

    LCD

    Note:

    1. AI/AV means single-phase current/voltage, AI3/AV3 means three-phase current/voltage.

    2. /J means 1 channel relay output (multiplexing with second channel switching output).
