AMC16Z-ZA A+B 2 Channel AC energy meter for IDC
Characteristic

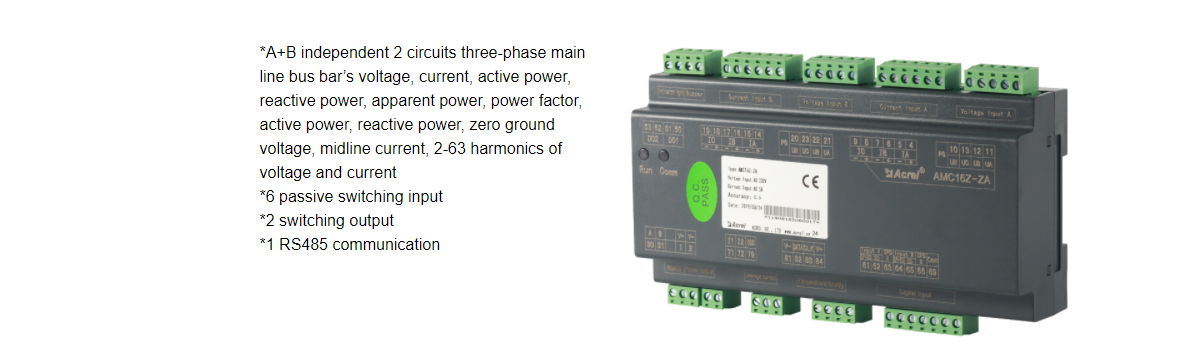

Function

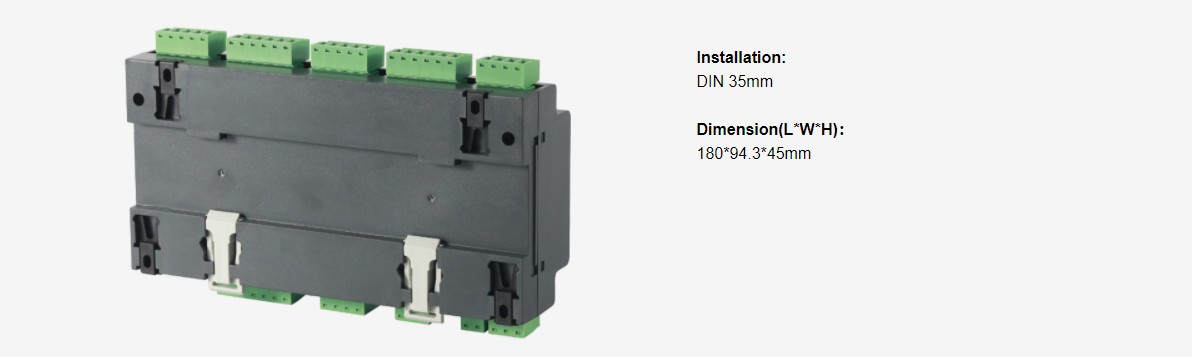

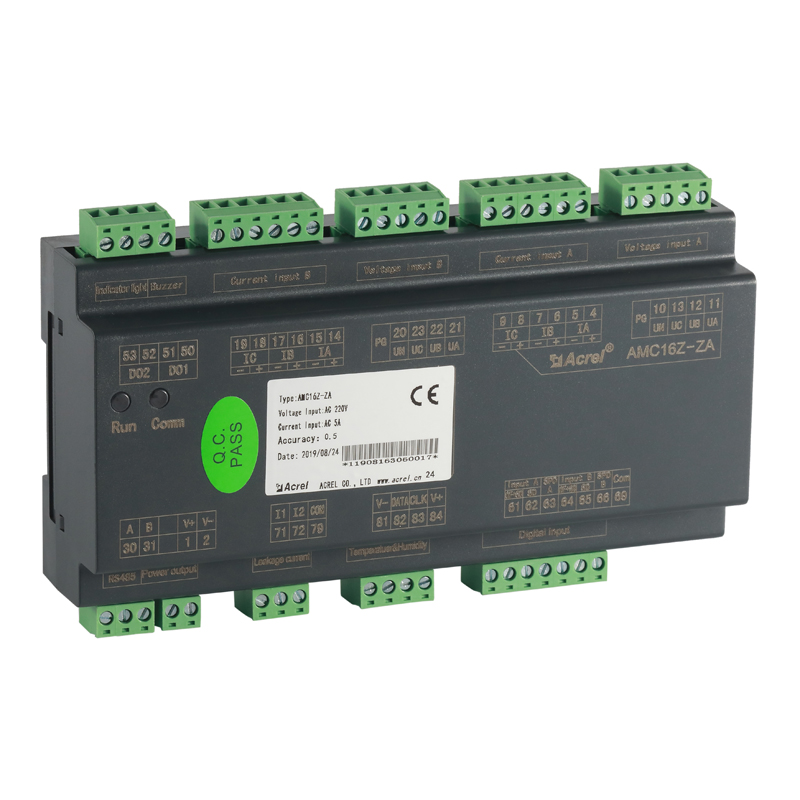

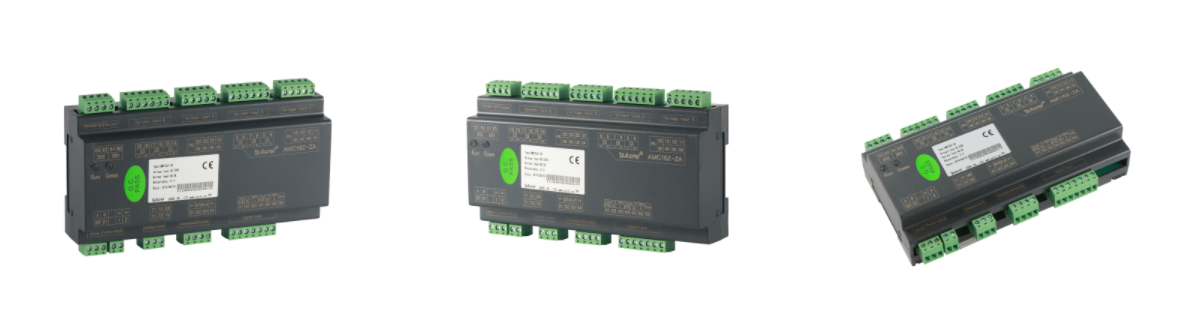

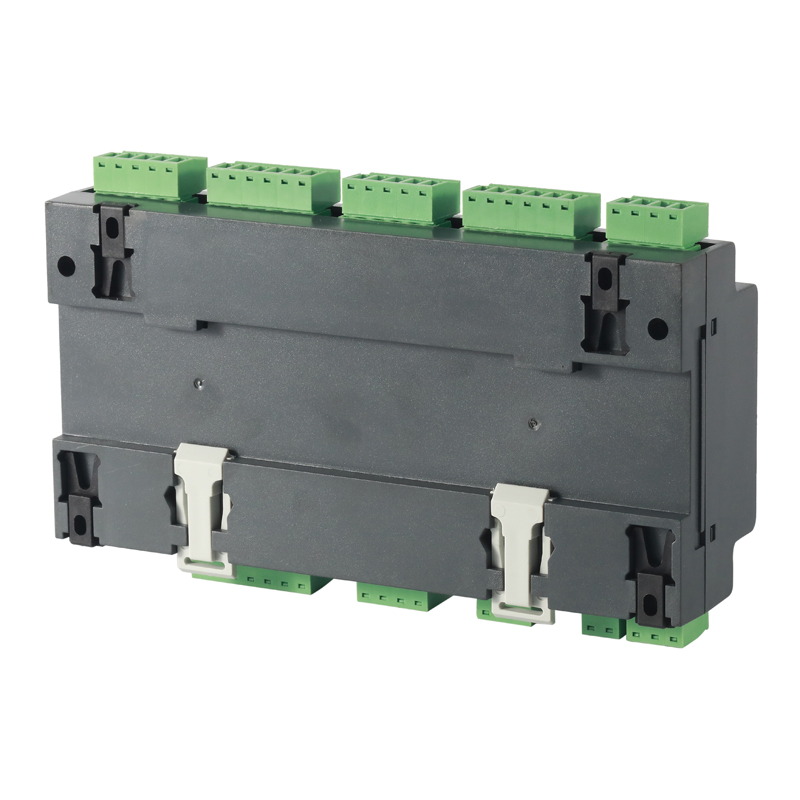

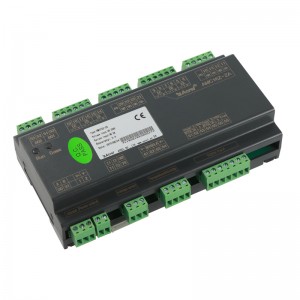

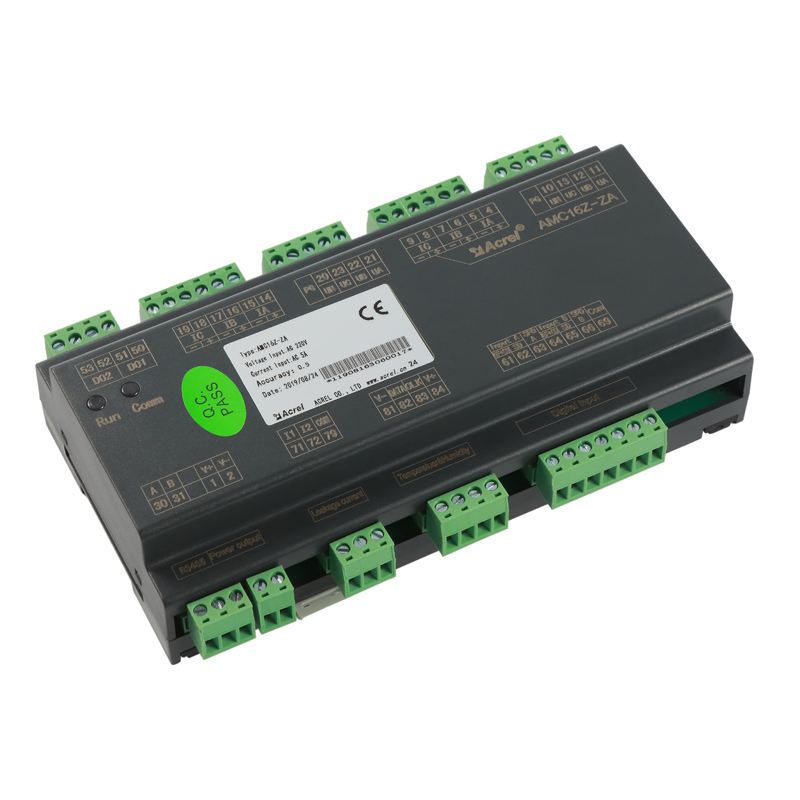

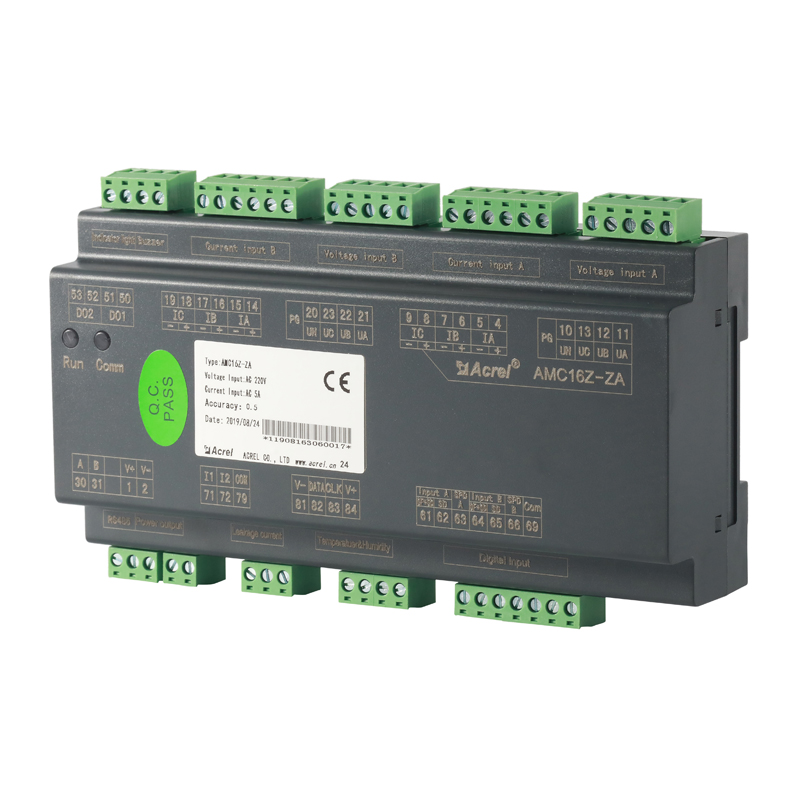

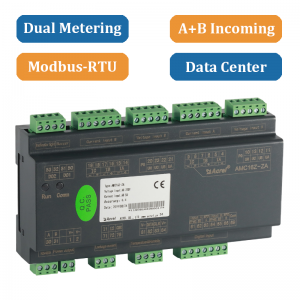

Appearance

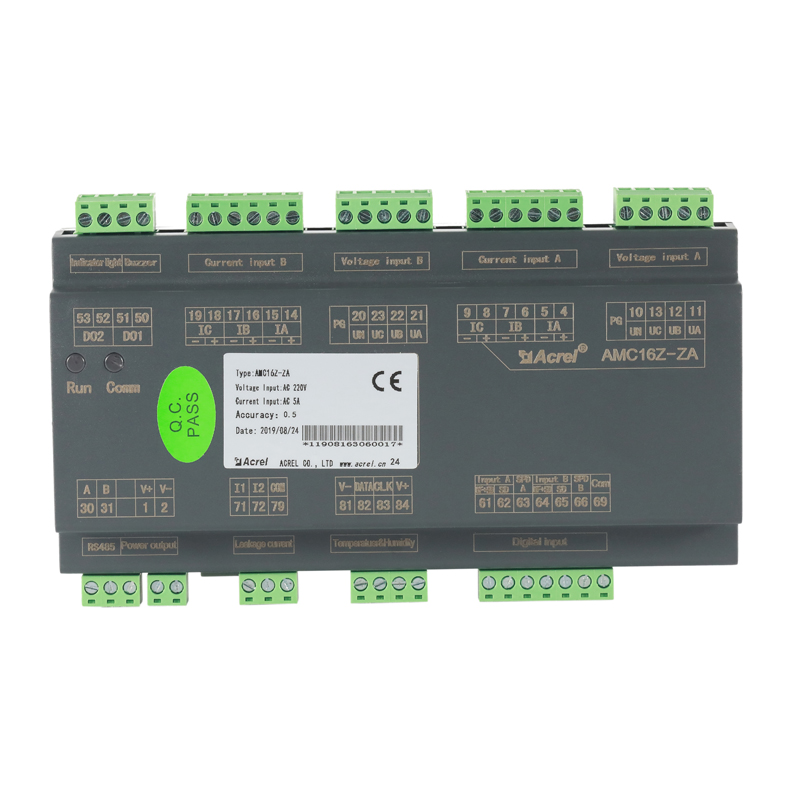

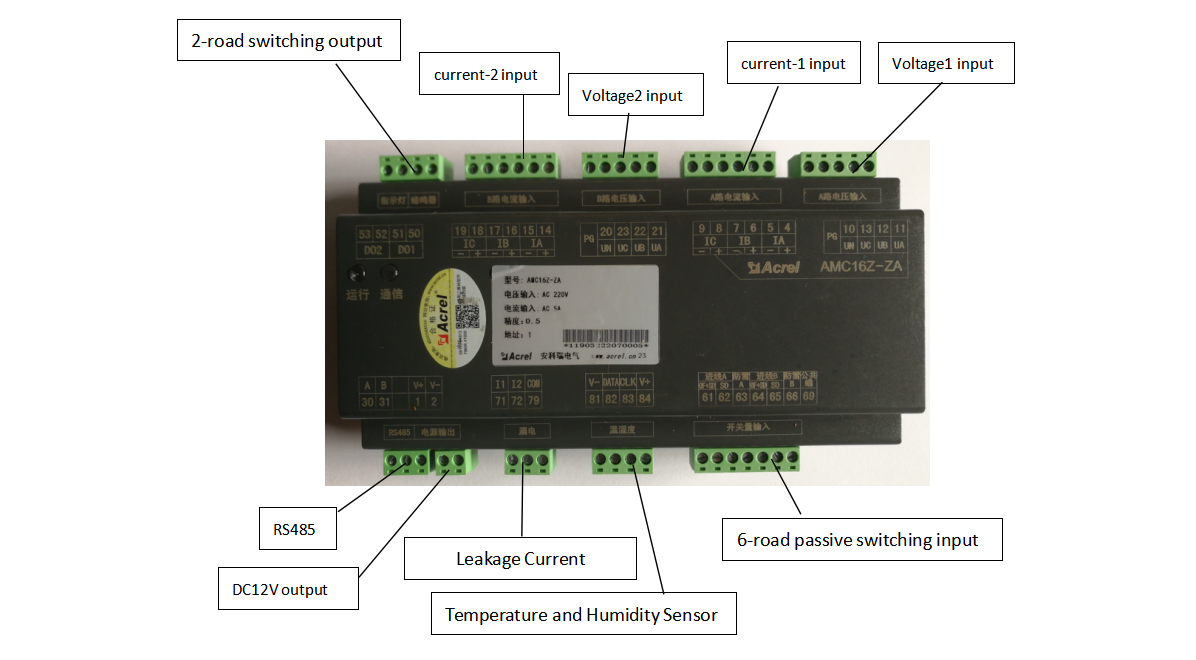

Wiring

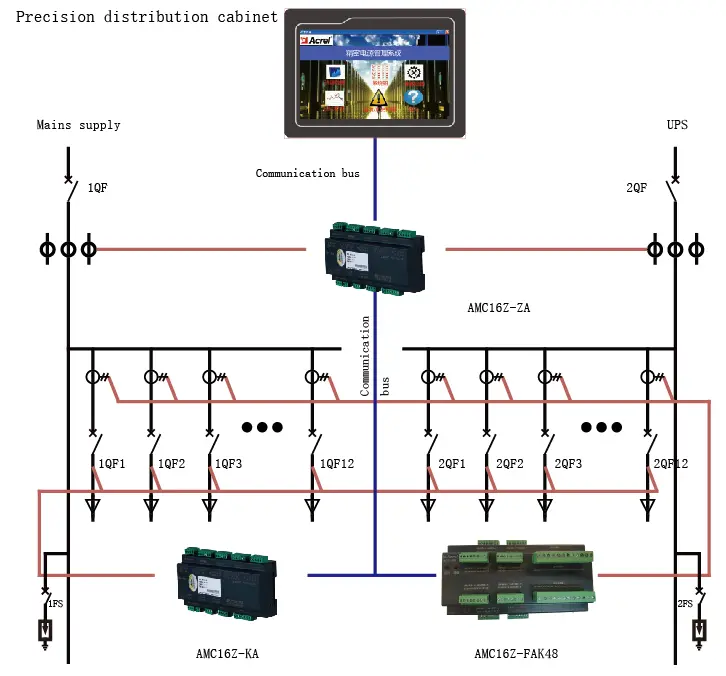

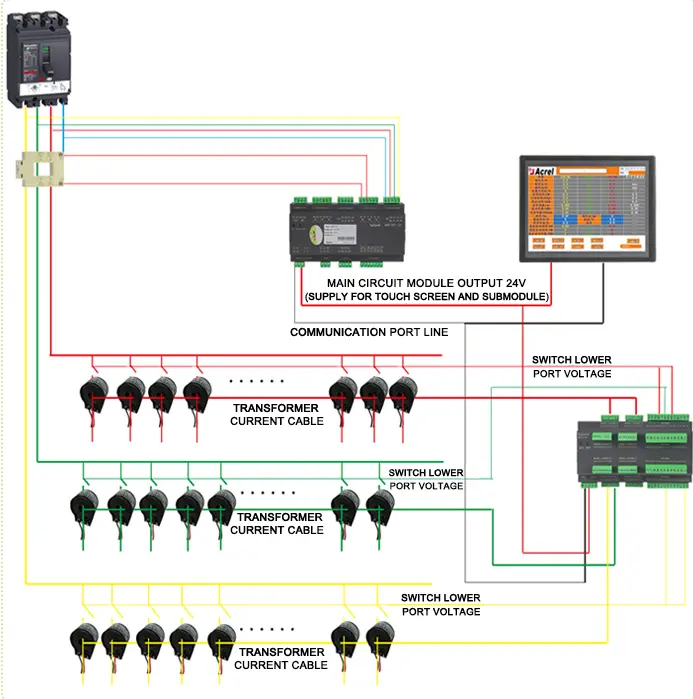

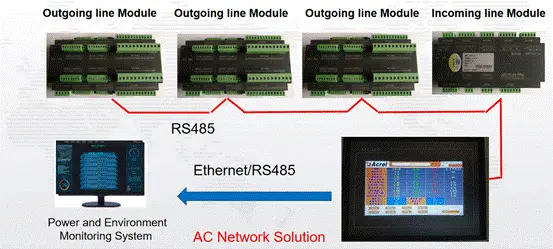

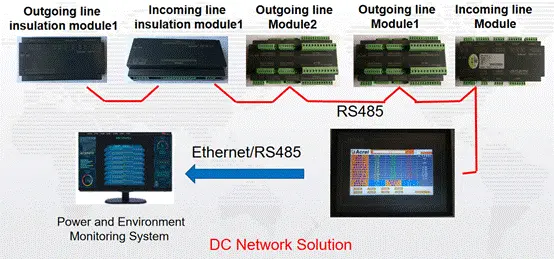

Typical connection
1.Technical parameter
1.1 Electrical performance
|
Instrument model |
AMC16Z-ZA |
|
|
Measured parameters |
Voltage, current, frequency, active power, reactive power, power factor,active power, reactive power |
|
|
Zero ground voltage, neutral line current, total harmonic content (THD), 2-63 harmonics, current and voltage unbalance degree, current K coefficient (KF), voltage crest coefficient (CF),telephone waveform factor (THFF), peak voltage, voltage and current sequence quantity,environmental temperature and humidity. |
||
|
Busbar voltage |
Rated |
220VAC |
|
Measurement |
±20% |
|
|
Overload |
Instant voltage 2times/second |
|
|
Current incoming circuit |
Rated |
Twice 5A |
|
Range |
0～6A |
|
|
Overload |
Duration 1.2 times, instantaneous 10 times/second |
|
|
Temp &humidity |
Temp range |
-40℃～+99℃ |
|
humidity range |
20%～90% |
|
|
Input frequency |
45～60Hz |
|
|
Measurement precision |
Inlet wire |
Voltage/current level 0.2, active power/electric energy level 0.5, reactive power/electric energy level 1 |
|
Temp |
±1℃ |
|
|
Humidity |
±5% |
|
|
Auxiliary power supply |
Take electric signal(≤15W) |
|
|
Switch output |
2-way 3A 250VAC/3A 30VDC |
|
|
Switch input |
6-way dry contact |
|
|
Communication |
RS485/Modbus-RTU |
|
|
Installation method |

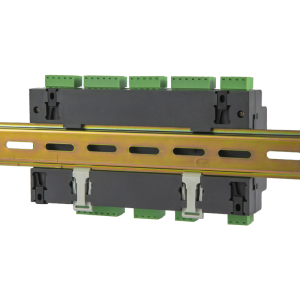

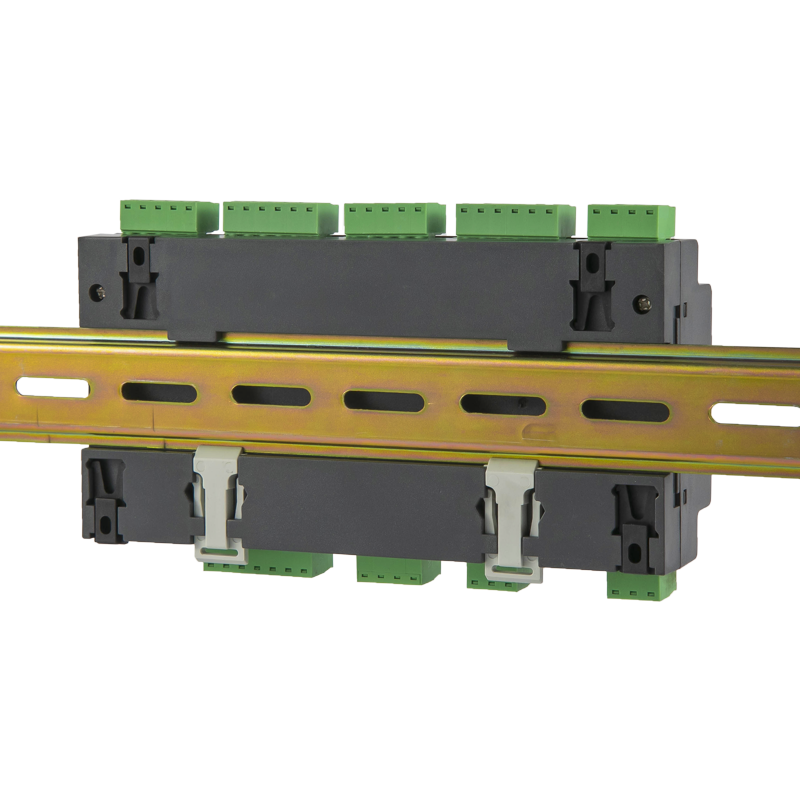

DIN35mm Guide rail or bottom plate mounting |
|
|
IP grade |
IP20 |
|
|
Class of pollution |
2 |
|
|
Safety |
Insulation |
All terminals and the insulation resistance between the conductive pieces not less than 100MΩ |
|
Withstand voltage |
A-way voltage and current signal, B-way voltage and current signal, switch output and other ports should meet AC2kV 1min in pairs, the switch input and other ports should meet ac0.5kv 1mim, leakage current should be less than 2mA, no breakdown or flashover |
|
|
Electromagnetic compatibility |
Anti static interference |
Level 4 |
|
Electrical fast transient pulse group |
Level 3 |
|
|
Anti-surge interference |
Level 4 |
|
|
Resistance to radiation of Radio frequency electromagnetic field |
Level 3 |
|
1.2 Work environment
|
EnvironmenT |
Temp |
Working:-15℃～55℃ Storage:-25℃～70℃ |
|
Humidity |
Relative humidity ≤93% |
|
|
Altitude |
≤2500m |
2. Functional Characteristic
2.1 Function of Different IDC Module
|
Type Model |
Function description |
|
AMC16Z-ZA |
Monitor the full power parameters of A+B double-way three-phase AC incoming circuit, 6-way switch state monitoring, 2-way alarm output, 2-way leakage monitoring, 1-way temperature and humidity detection, 1-way RS485 communication, and phase-sequence detection. |
|
AMC16Z-FA |
Monitor the full power parameters of 24 branches of A+B double-way AC outgoing line, 1-way RS485 communication and phase adjustment. |
|
AMC16Z-FAK24 |
Monitor the full power parameters and switch state of 24 branches of A+B double-way AC outgoing line, 1-way RS485 communication and phase adjustment. |
|
AMC16Z-FAK48 |
Monitor the full power parameters and switch state of 48 branches of A+B double-way AC outgoing line, 1-way RS485 communication and phase adjustment. |
|
AMC16Z-KA |
Wet contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication. |
|
AMC16Z-KD |
Dry contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication. |
