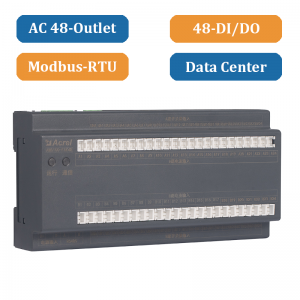

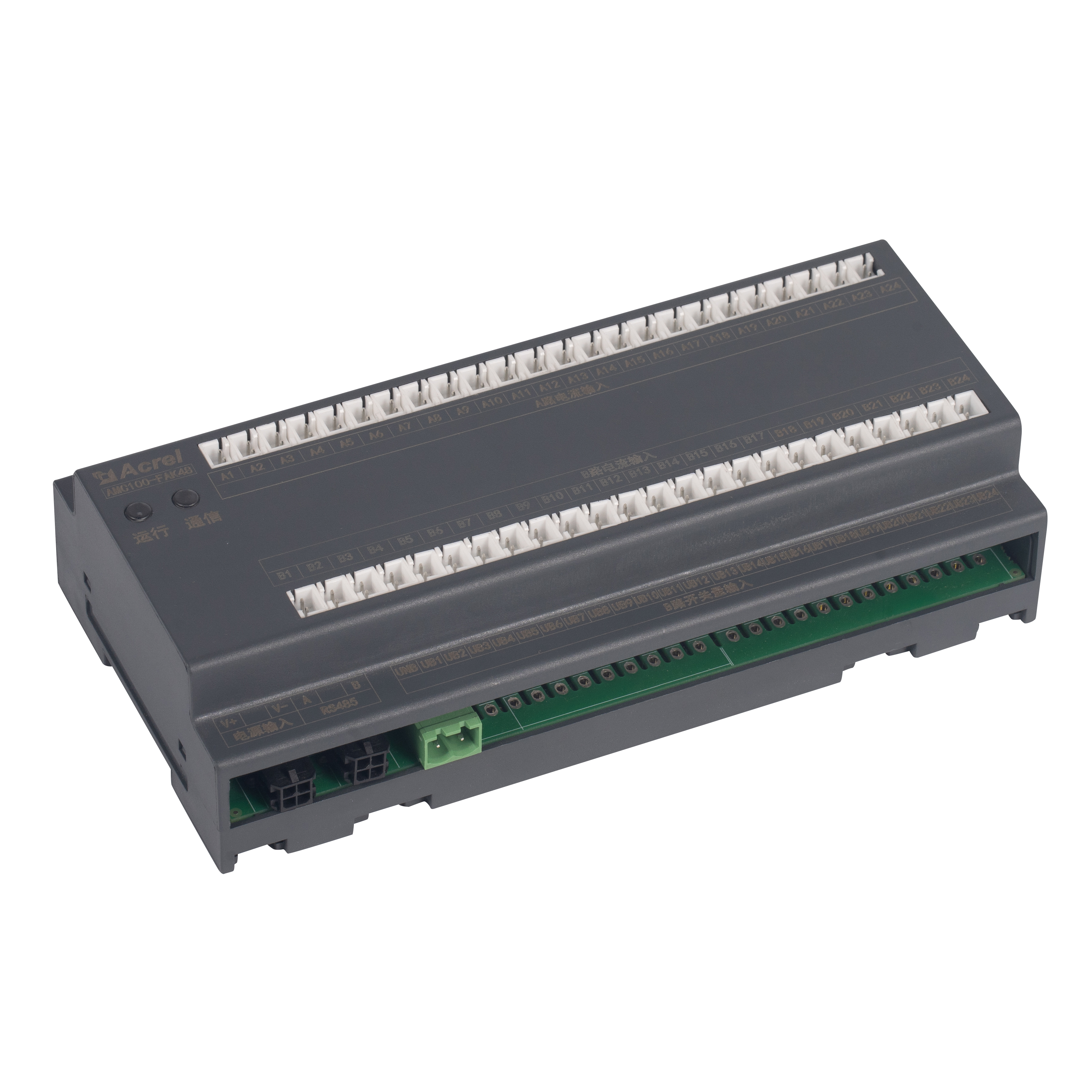

AMC100-FAK48 A+B 2 Channels Output & 48 Channels Output for IDC

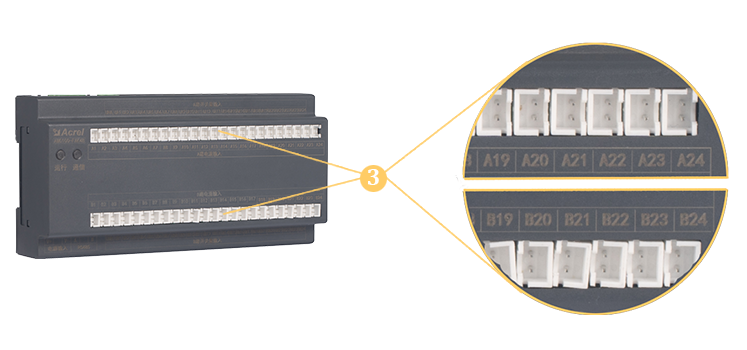

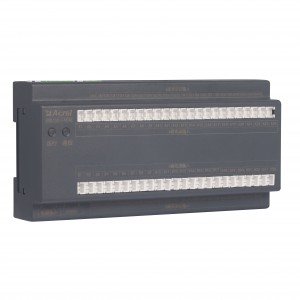

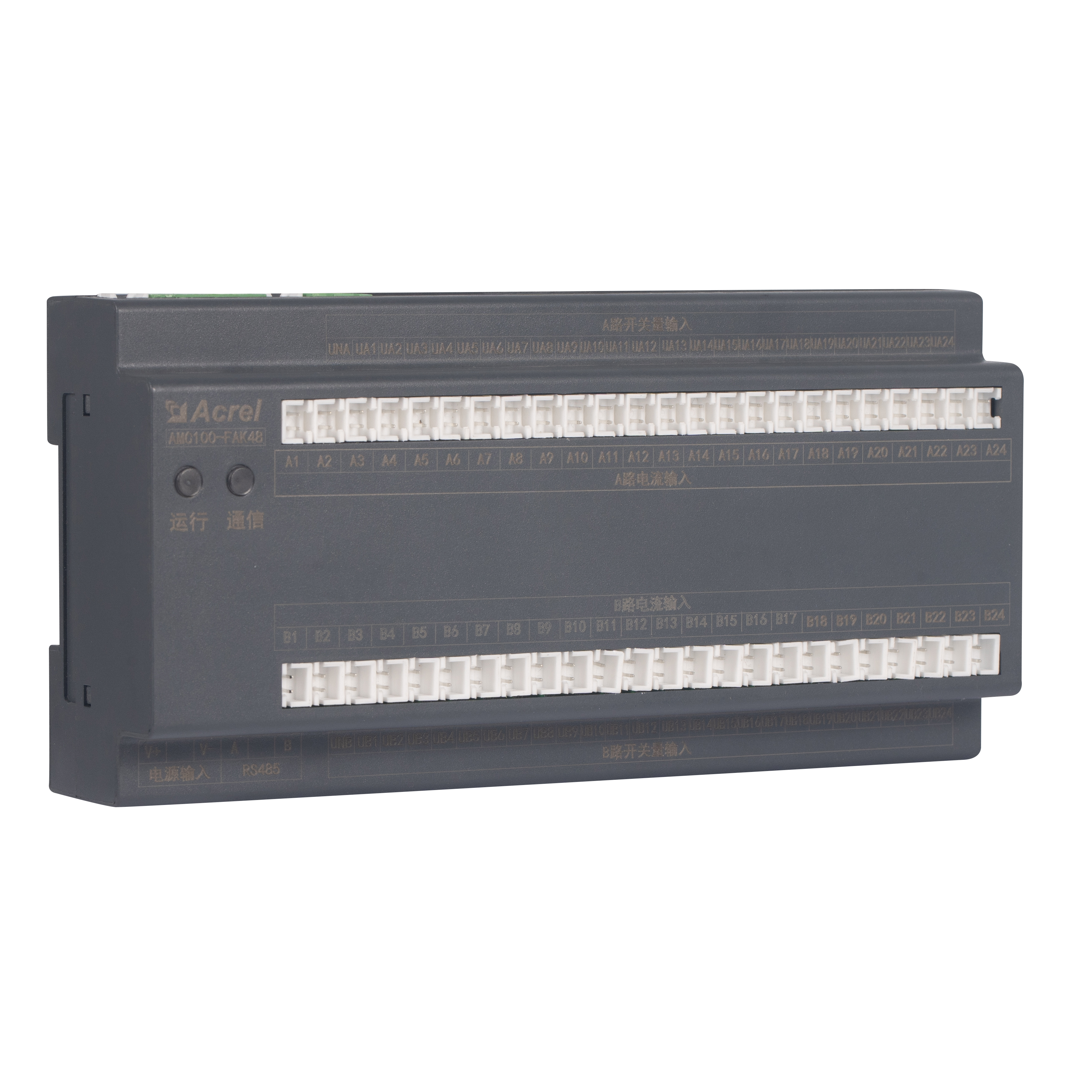

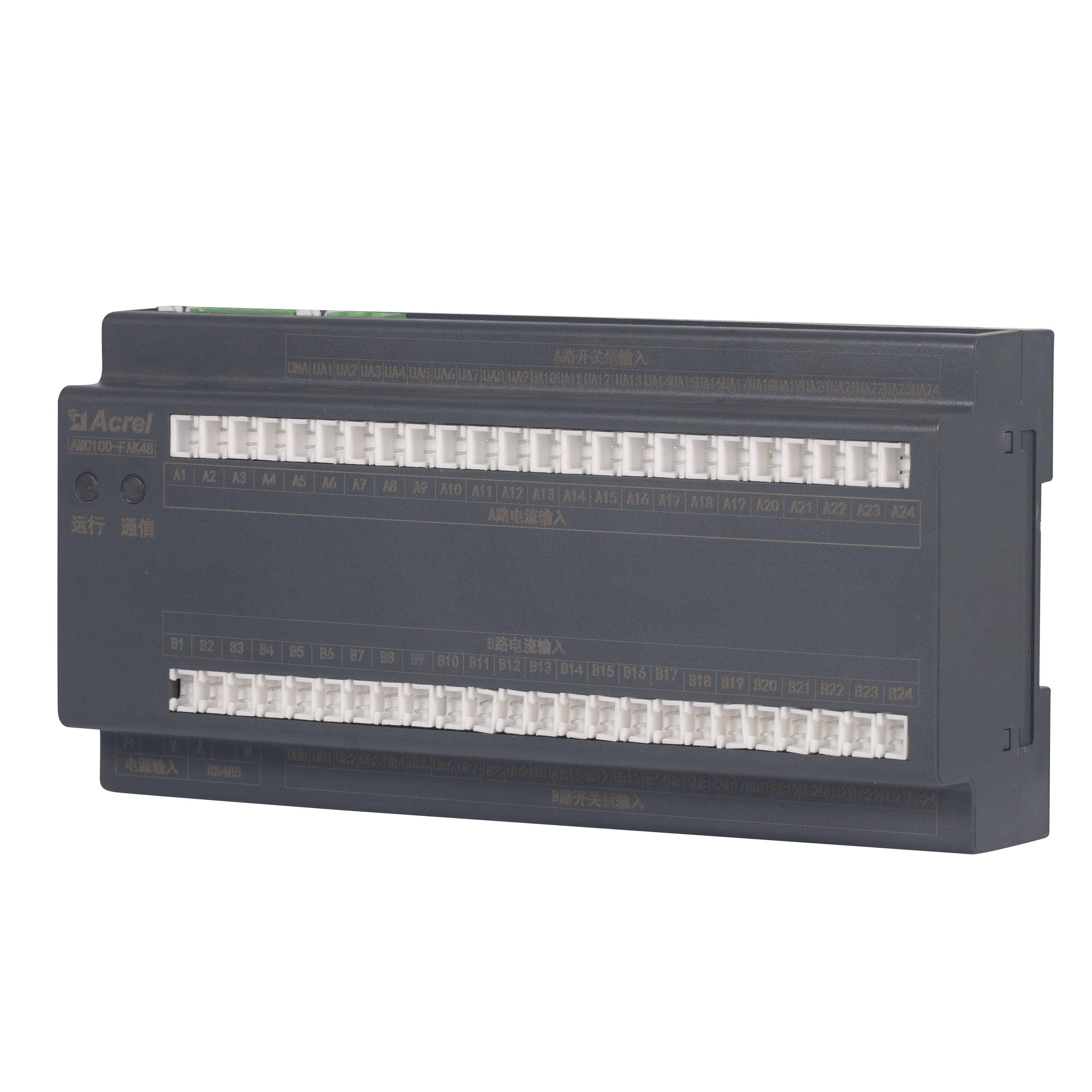

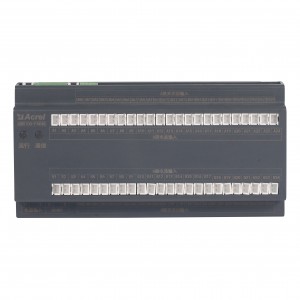

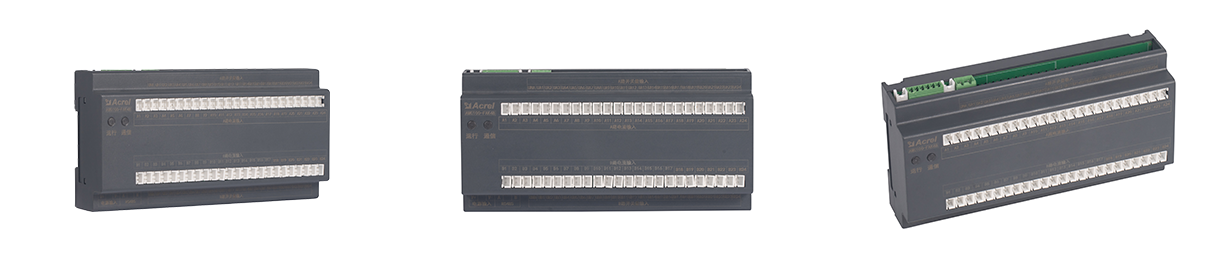

Appearance

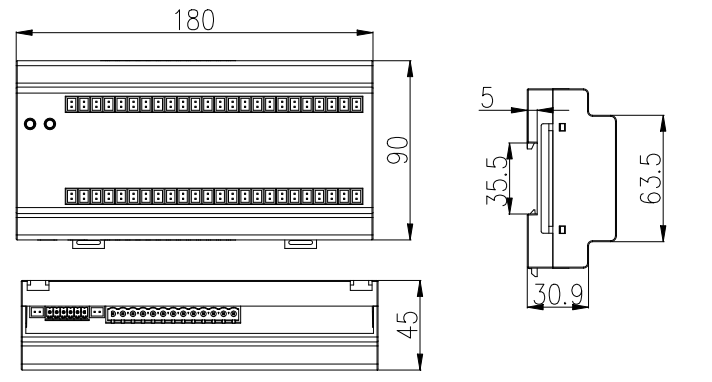

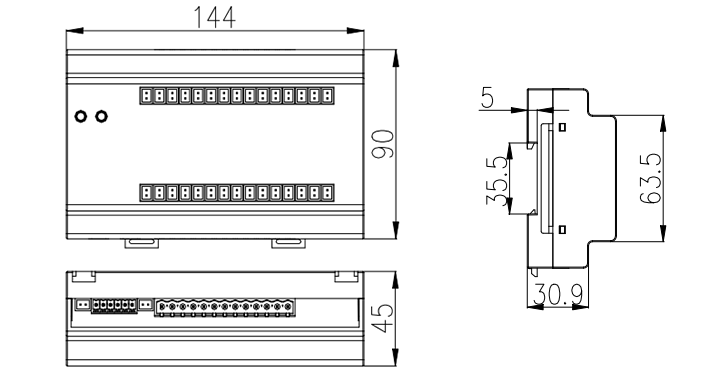

Size
Function

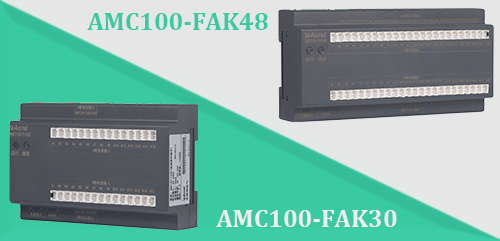

✔ 144mm & 180mm two versions
✔ Monitor the full power parameters of a total of 30/48 branches of A+B dual AC outlets
✔ Monitor the switch status of a total of 30/48 branches of A+B dual AC outlets
✔ 1 RS485 communication
Installation:

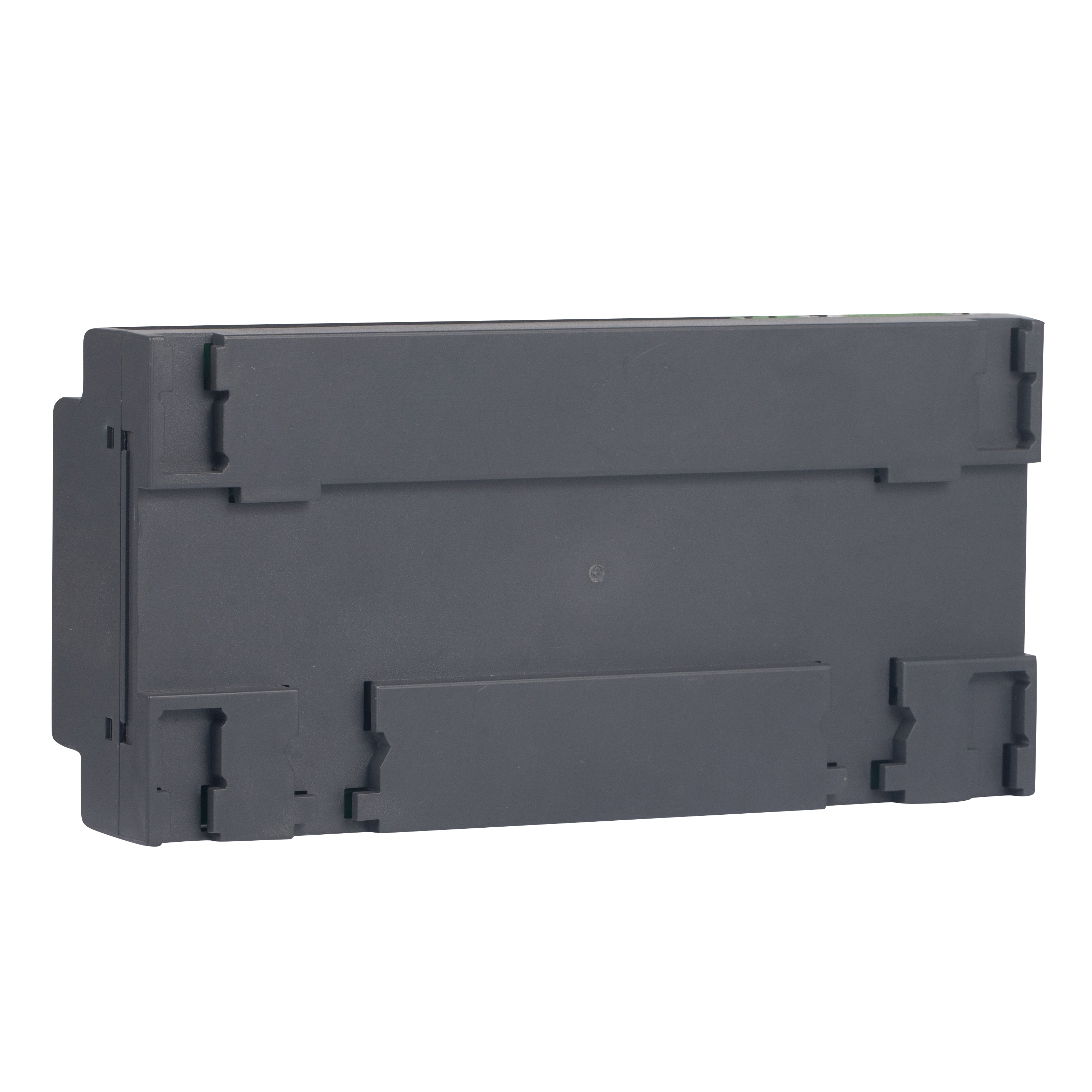

DIN-rail 35mm

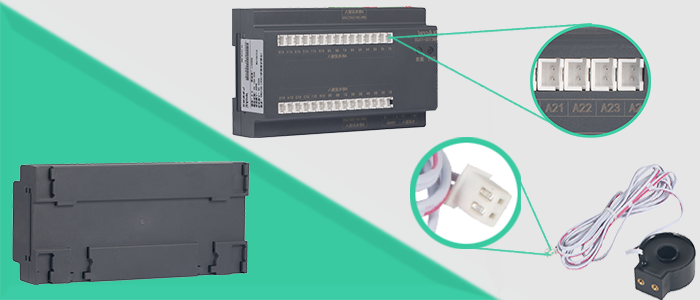

CT installation：
Pluggable CT connector

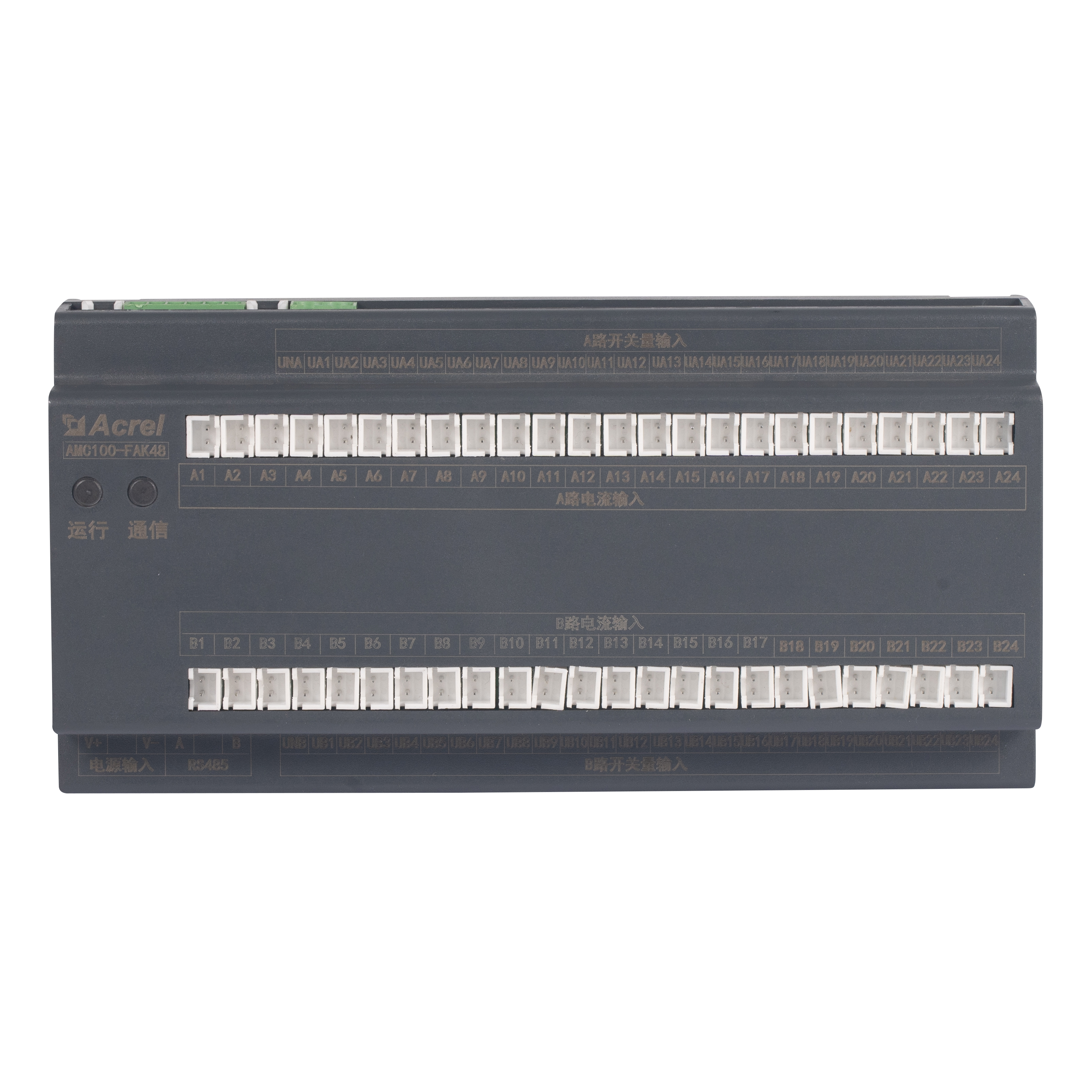

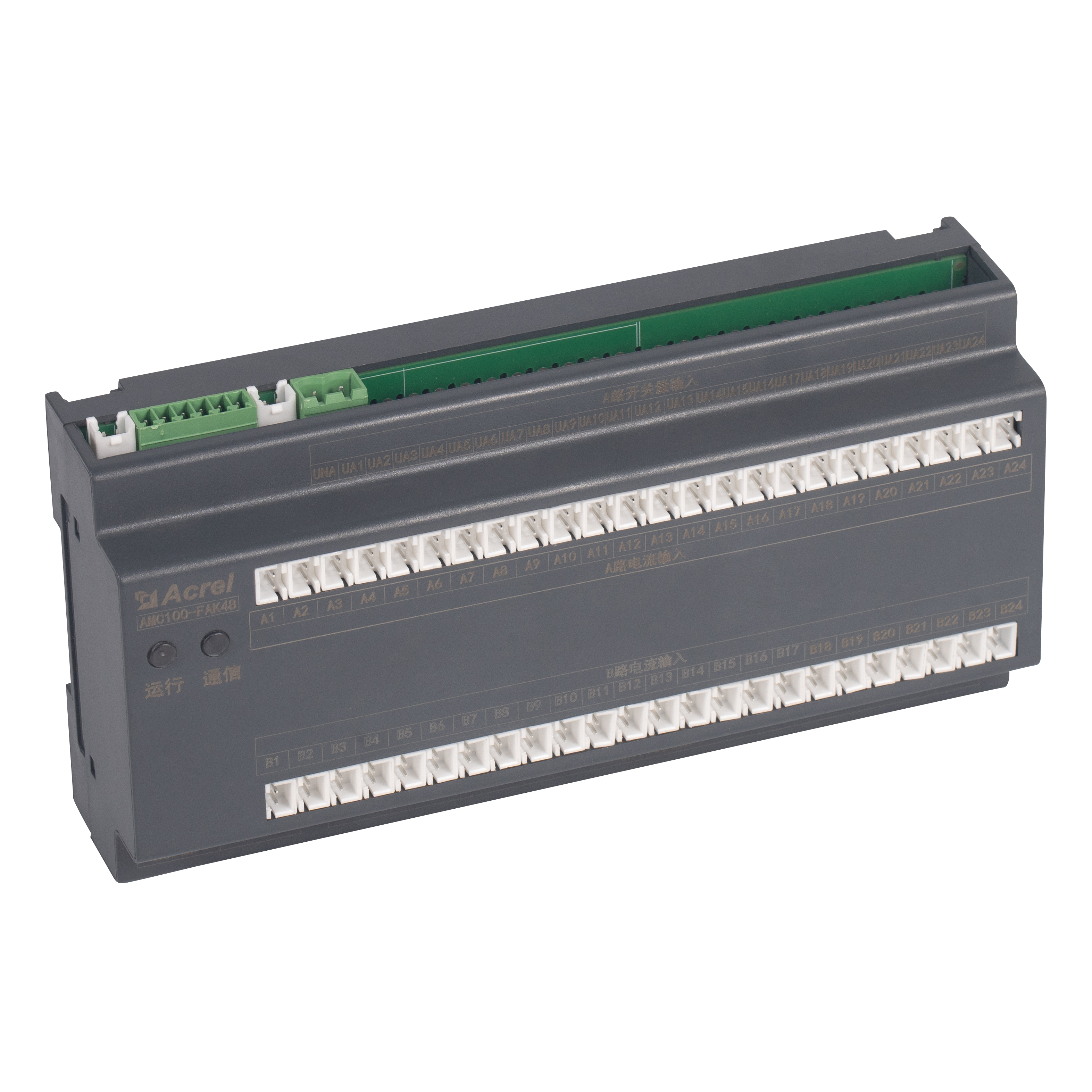

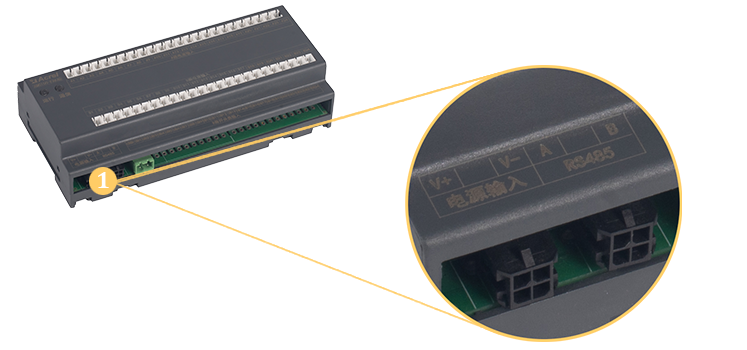

Wiring
|
Definition |
Illustrate |
Remark |
|
V+ |
Auxiliary power |
Powered by AMC100-ZA Or powered by DC12-24V power supply |
|
V- |
||
|
A |
RS485 |
Connect the pre-module
|
|
B |
|

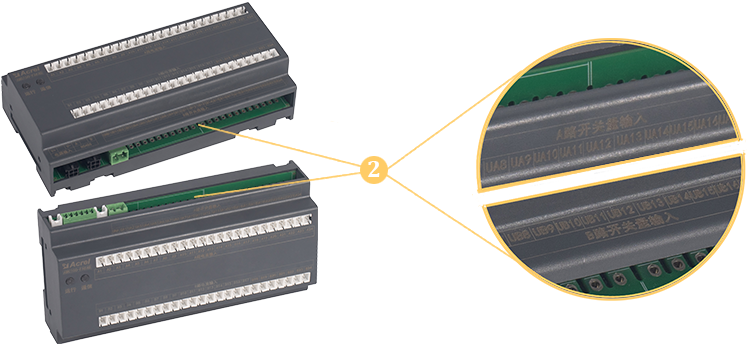

UA1-UA24 |
Route A voltage input |
Route A switch input (24 channels) |
|
UNA |
||
|
UB1-UB24 |
Route B voltage input |
Route B switch input (24 channels) |
|
UNB |
|
A1-A24 |
Route A current input |
circuit A outgoing line AC current input(24 channels) |
|
B1-B24 |
Route B current input |
circuit A outgoing line AC current input(24 channels) |

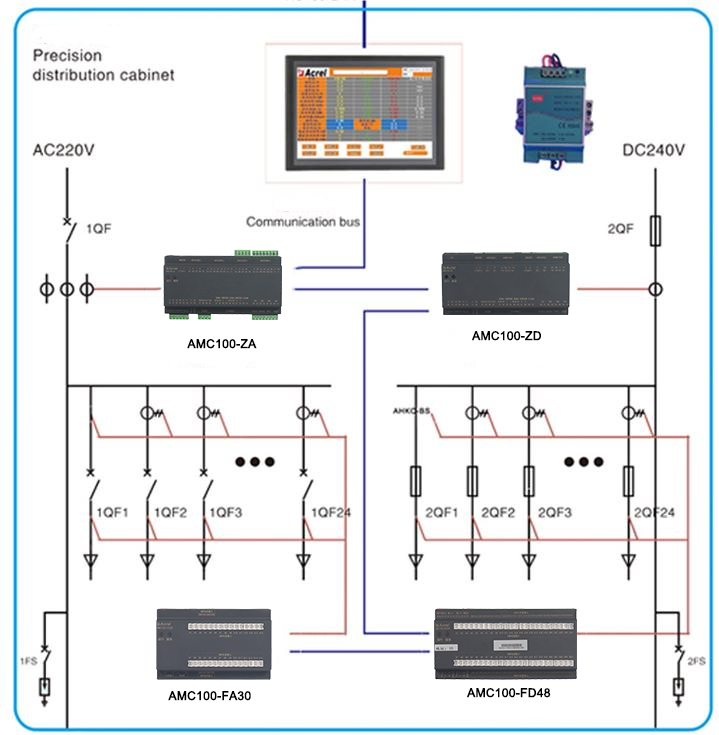

Typical connection

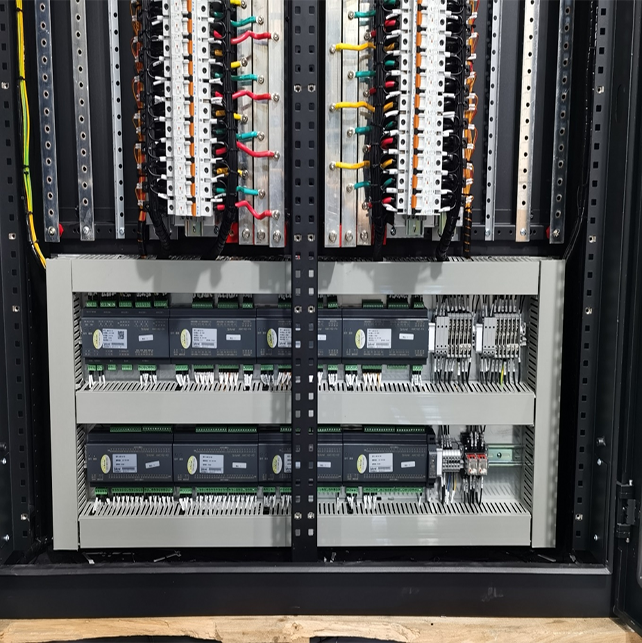

Site Installation
1.Technical parameter
1.1 Electrical performance
|
Instrument model |
AMC100-FAK30 |
AMC100-FAK48 |
|
|
Measurement parameters |
Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, 2-31 times total current harmonic content |
||
|
Bus voltage |
Rated |
220VAC |
|
|
Measuring range |
±20% |
||
|
Overload |
Instantaneous voltage 2 times/sec |
||
|
Current outlet loop |
Rated |
50mA |
|
|
Range |
0.125～60mA |
||
|
Overload |
Continuous 1.2 times, instantaneous 10 times/sec |
||
|
Input frequency |
AC45～65Hz |
||
|
Measure |
Outlet |
Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1 |
|
|
Auxiliary power |
Powered by AMC100-ZA; DC 12-24V power supply when used alone |
||
|
Communication |
RS485/Modbus-RTU |
||
|
Installation Method |
DIN35mm rail or bottom plate installation |
||
|
Protection level |
IP20 |
||
|
Pollution level |
2 |
||
|
Security
|
Insulation |
The insulation resistance between all terminals and the conductive parts of the shell is not less than 100MΩ |
|
|
Withstand voltage |
The voltage and current signals of circuit A//the voltage and current signals of circuit B//other ports meet AC2kV for 1min, the leakage current should be less than 2mA, and there is no breakdown or flashover. |
||
|
Electromagnetic compatibility |
Anti-static interference |
Level 4 |
|
|
Resistance to radio frequency electromagnetic field radiation |
Level 3 |
||
1.2 Work environment
|
Environment |
Temperature |
Work: -15℃～55℃ Storage: -25℃～70℃ |
|
Humidity |
Relative humidity≤93% | |
|
elevation |
≤2500m |
2. Functional Characteristic
2.1 Function of Different IDC Module
|
Model |
Function Description |
|
AMC100-ZA |
Monitoring the full power parameters of the A+B dual three-phase AC incoming circuit, 8 switching status inputs, 4 switching status outputs, 2 leakage monitoring, 1 temperature and humidity detection, 3 RS485 communications |
|
AMC100-FAK30 |
Monitor the full power parameters and switch status of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication |
|
AMC100-FAK48 |
Monitor the full power parameters and switch status of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication |
|
AMC100-FA30 |
Monitor the full power parameters of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication |
|
AMC100-FA48 |
Monitor the full power parameters of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication |
|
AMC100-KA30 |
Wet contact, monitor the switching status of 30 branches A+B, 1 RS485 communication |
|
AMC100-KA48 |
Wet contact, monitor the switching status of 48 branches A+B, 1 RS485 communication |
|
AMC100-KD30 |
Dry contact, monitor the switching status of 30 branches A+B, 1 RS485 communication |
|
AMC100-KD48 |
Dry contact, monitor the switching status of 48 branches A+B, 1 RS485 communication |
|
AMC100-FT30 |
1 way RS485 communication, 30 way temperature measurement |
|
AMC100-FT48 |
1 way RS485 communication, 48 way temperature measurement |
