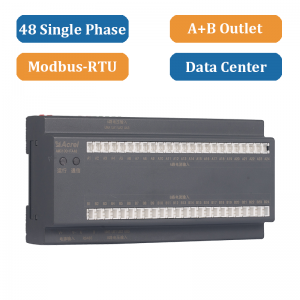

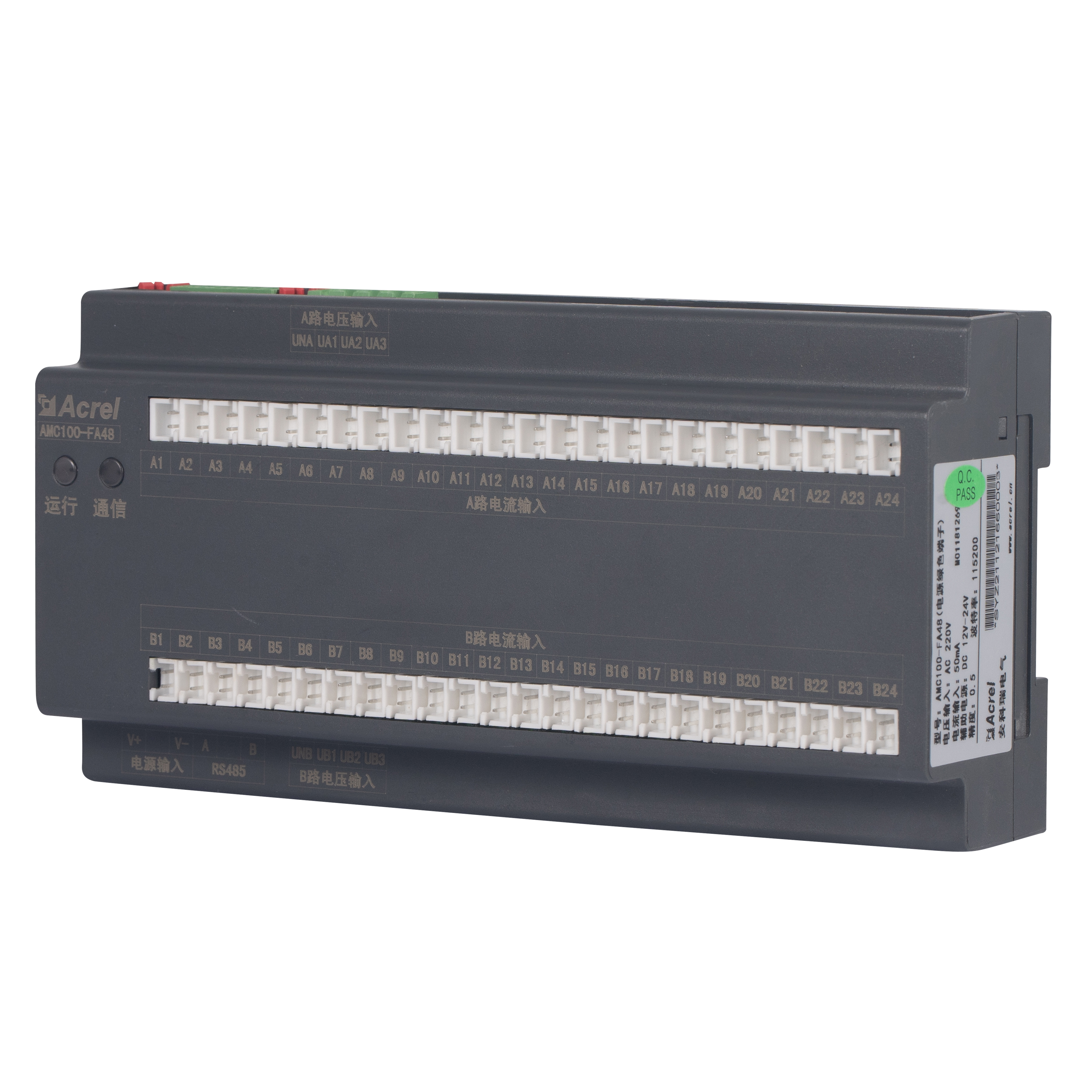

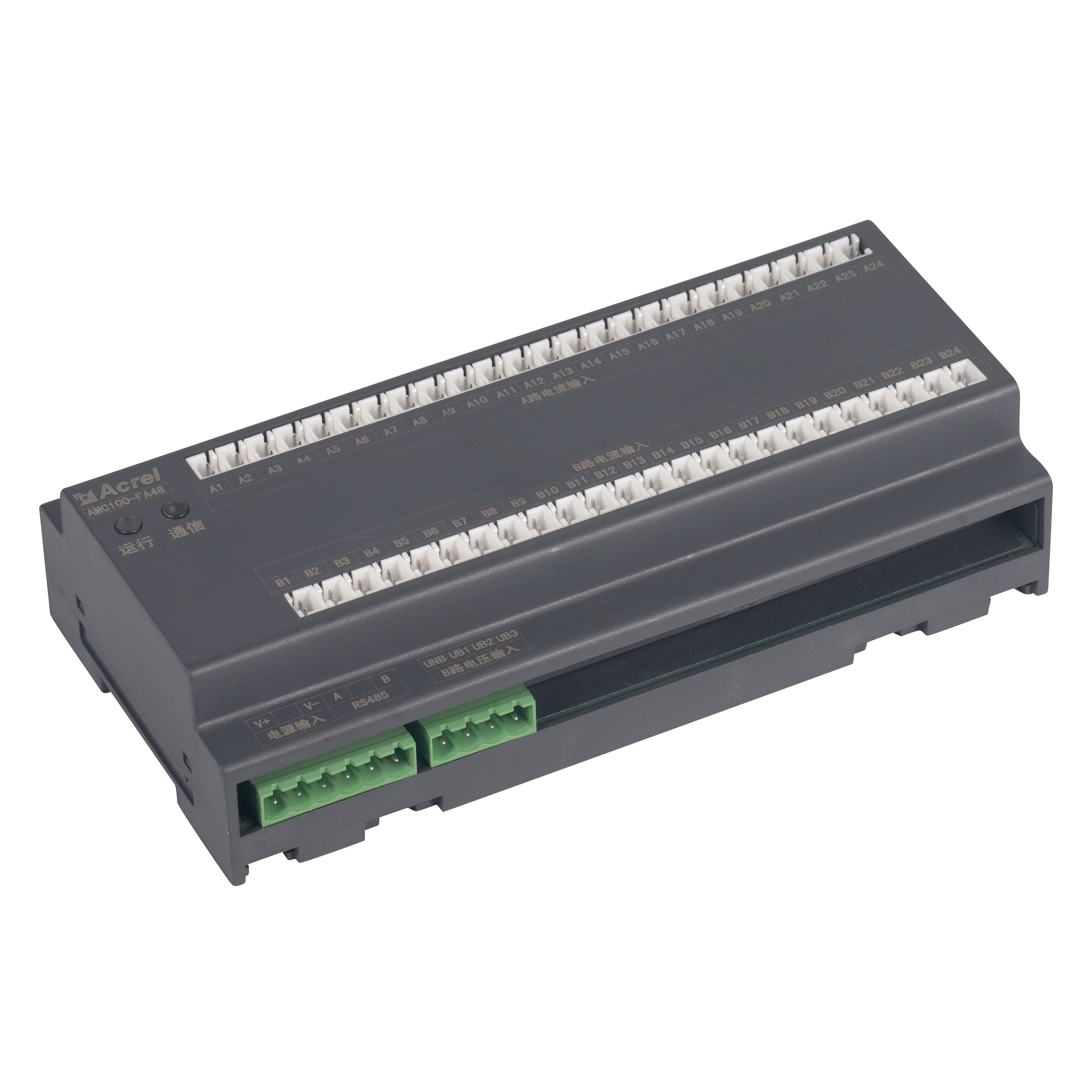

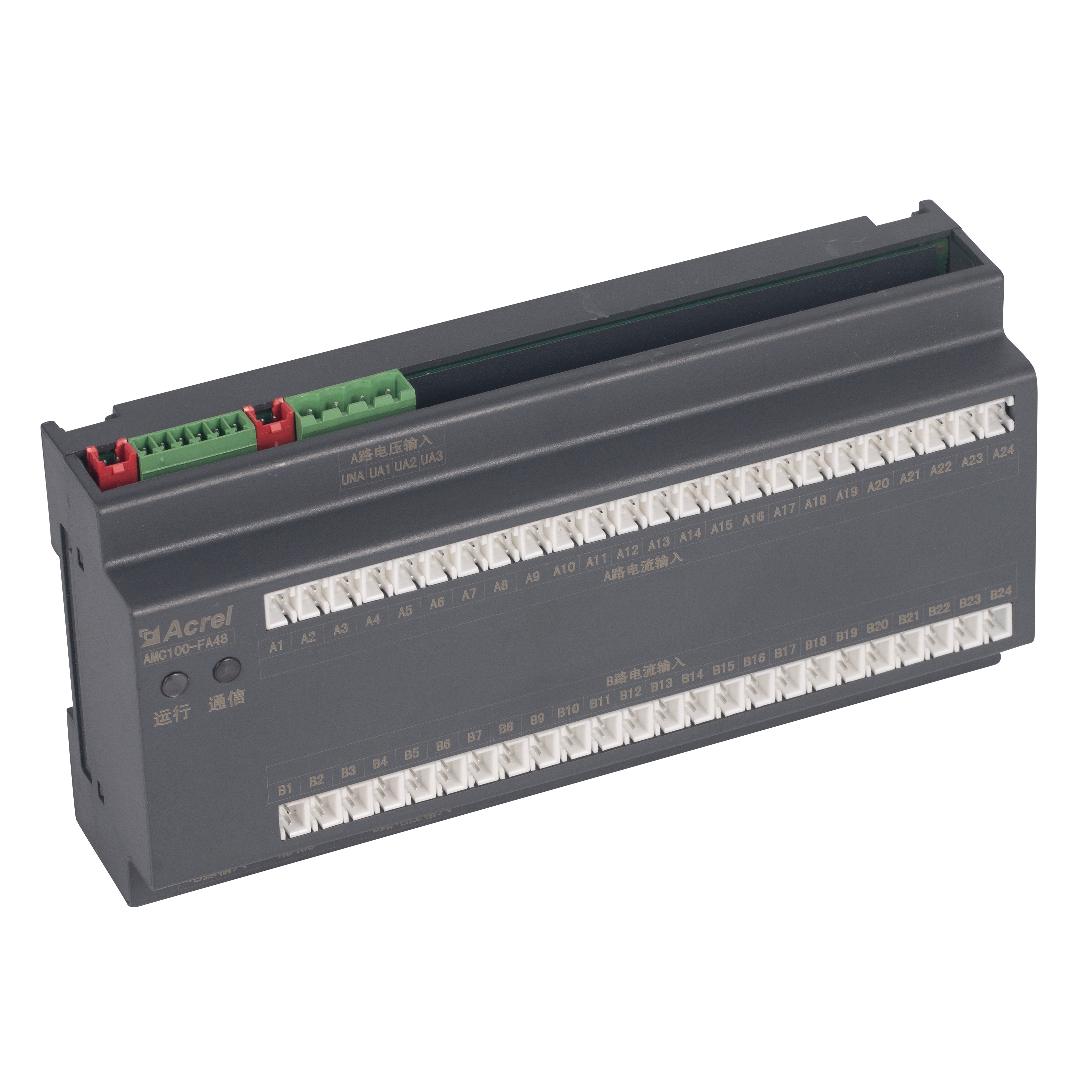

AMC100-FA48 A+B 2 channels Output & 48 channels Output for IDC

● Designed specifically for the power supply management of server in the data center

● Including 2 A+B outlet line and 48 outgoing line circuit

● U, I, P, Q, S, PF, kWh, kvarh

● Optional 2nd ~ 15th harmonic


Information

Parameter

Function

Download

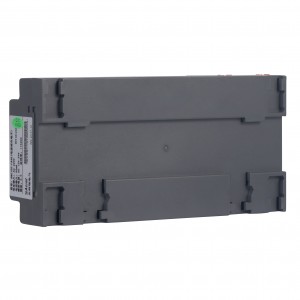

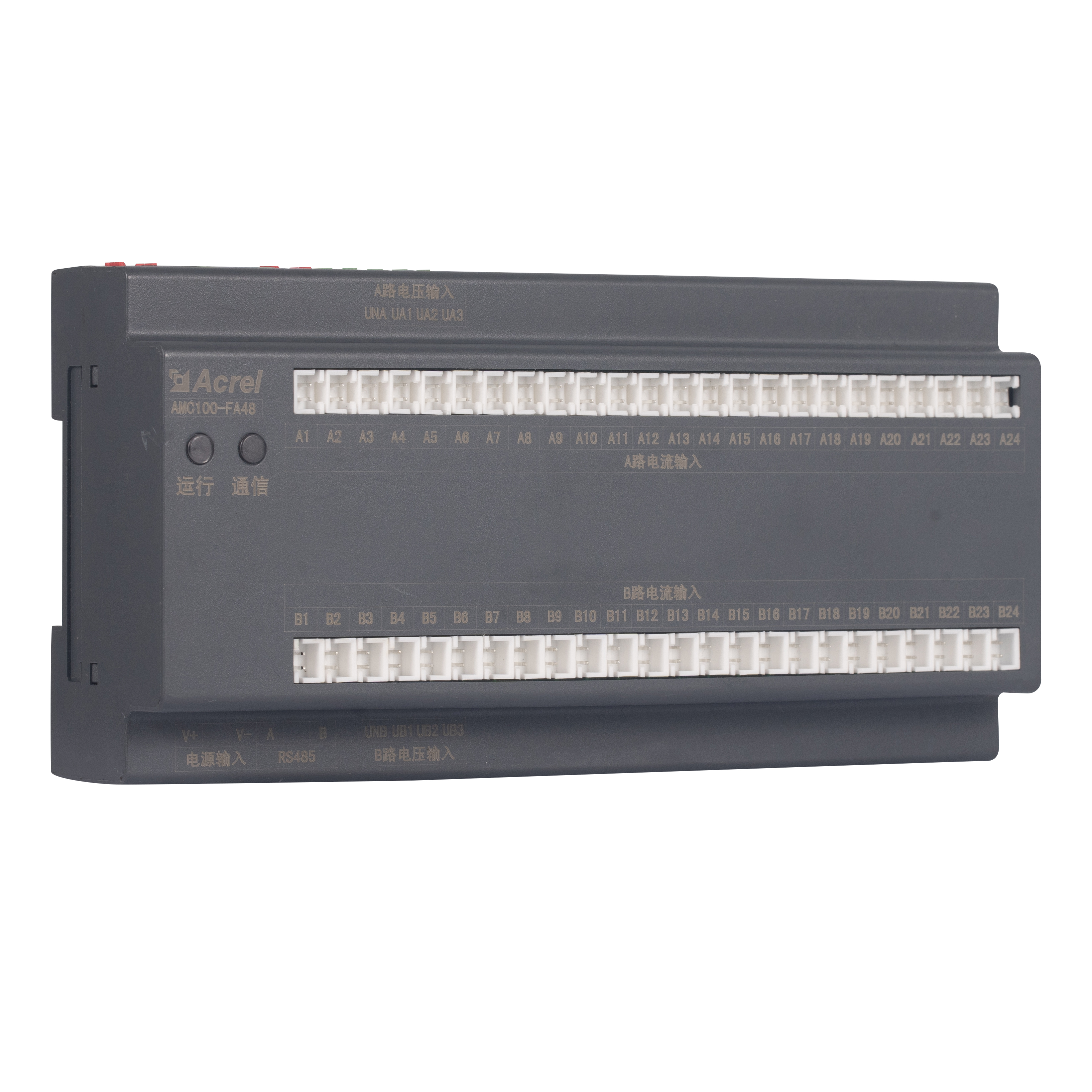

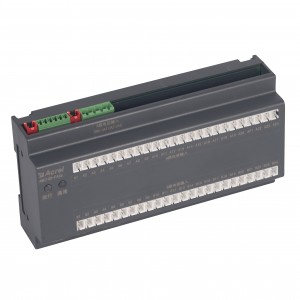

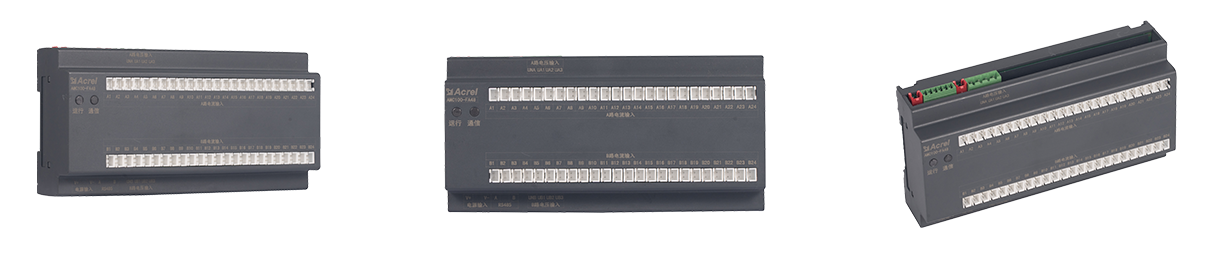

Appearance

未标题-15

Size

AMC100-FA48
48

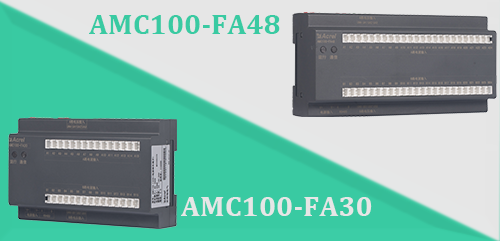

AMC100-FA30
30

Function

 144mm & 180mm two versions

Monitor the full power parameters of a total of 30/48 branches of A+B dual AC outlets

1 RS485 communication

未标题-16
未标题-4

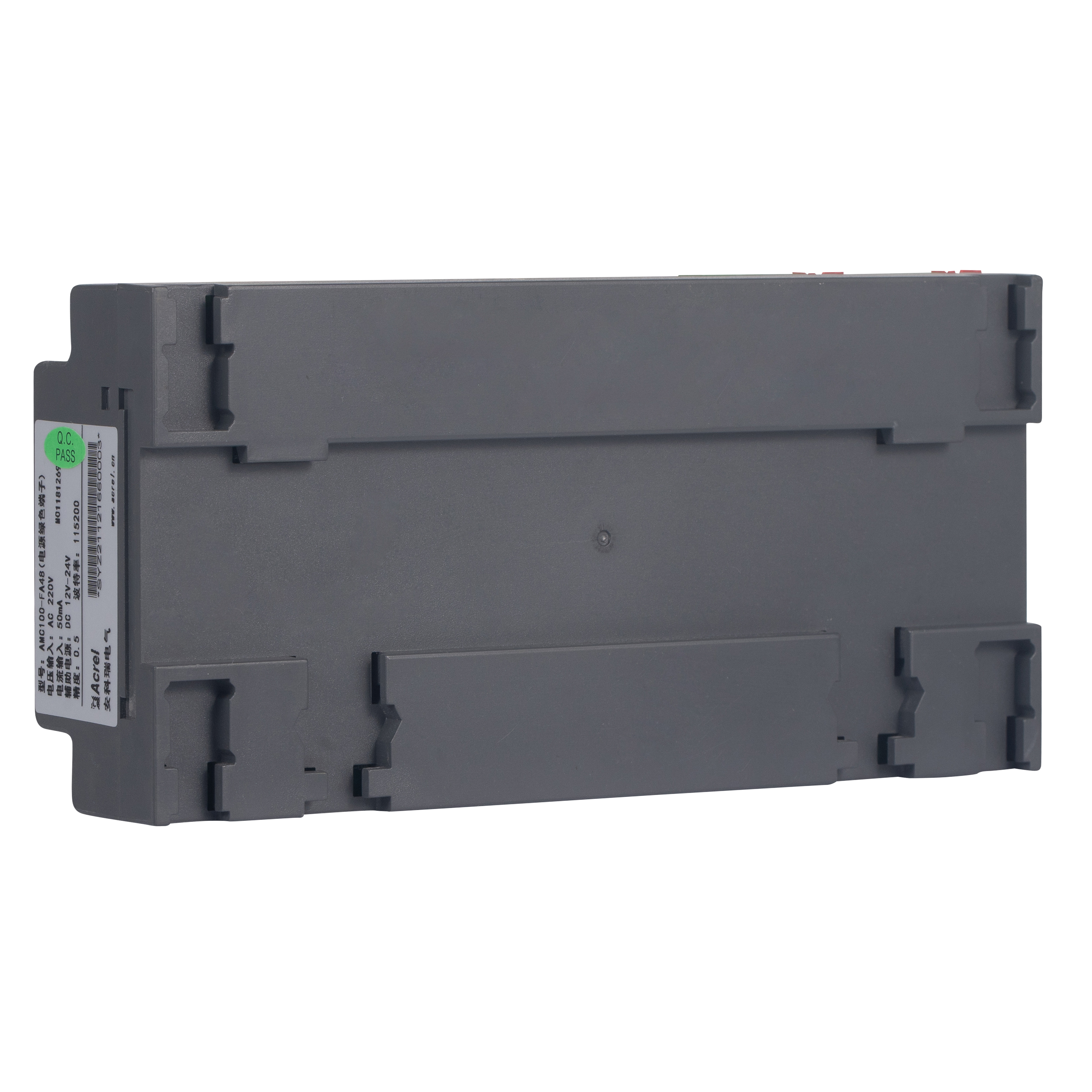

       Installation:

        DIN-rail 35mm

       CT installation:

        Pluggable CT connector

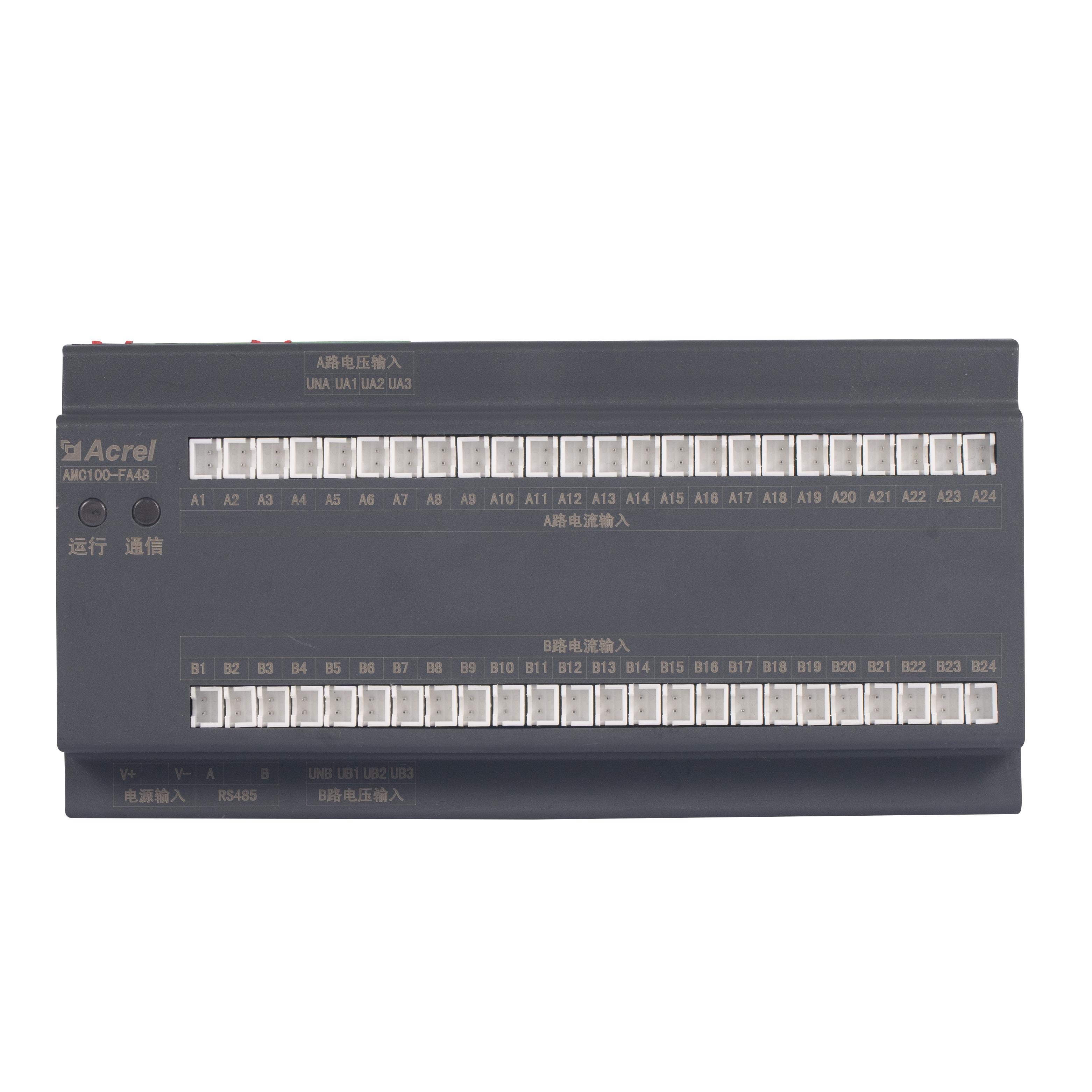

Wiring

未标题-3

Definition

Illustrate

Remark



V+

 Auxiliary power

Powered by AMC100-ZA

Or powered by DC12-24V power supply

V-

A

RS485



Connect the pre-module



B



未标题-8







A1-A24

Route A current input

 circuit A outgoing line AC current input(24 channels)

B1-B24

Route B current input

 circuit A outgoing line AC current input(24 channels)

Typical connection

AMC数据中心(2)

Site Installation

图片a
图片c

  • Previous:
  • Next:

  • 1.Technical parameter

    1.1 Electrical performance

    Instrument model

    AMC100-FA30

    AMC100-FA48

    Measurement parameters

    Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, 2-31 times total current harmonic content

    Bus voltage

    Rated

    220VAC

    Measuring range

    ±20%

    Overload

    Instantaneous voltage 2 times/sec

    Current outlet loop

    Rated

    50mA

    Range

    0.125~60mA

    Overload

    Continuous 1.2 times, instantaneous 10 times/sec

    Input frequency

    AC45~65Hz

    Measure

    Outlet

    Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1

    Auxiliary power

    Powered by AMC100-ZA; DC 12-24V power supply when used alone

    Communication

    RS485/Modbus-RTU

    Installation Method

    DIN35mm rail or bottom plate installation

    Protection level

    IP20

    Pollution level

    2



    Security



    Insulation

    The insulation resistance between all terminals and the conductive parts of the shell is not less than 100MΩ

    Withstand voltage

    The voltage and current signals of circuit A//the voltage and current signals of circuit B//other ports meet AC2kV for 1min, the leakage current should be less than 2mA, and there is no breakdown or flashover.

    Electromagnetic compatibility

    Anti-static interference

    Level 4

    Resistance to radio frequency electromagnetic field radiation

    Level 3

    1.2 Work environment

    Environment

     Temperature

    Work: -15℃~55℃ Storage: -25℃~70℃

    Humidity

    Relative humidity≤93%

     elevation

    ≤2500m

    2. Functional Characteristic

    2.1 Function of Different IDC Module

    Model

    Function Description

    AMC100-ZA

    Monitoring the full power parameters of the A+B dual three-phase AC incoming circuit, 8 switching status inputs, 4 switching status outputs, 2 leakage monitoring, 1 temperature and humidity detection, 3 RS485 communications

    AMC100-FAK30

    Monitor the full power parameters and switch status of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication

    AMC100-FAK48

    Monitor the full power parameters and switch status of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication

    AMC100-FA30

    Monitor the full power parameters of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication

    AMC100-FA48

    Monitor the full power parameters of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication

    AMC100-KA30

    Wet contact, monitor the  switching status of  30 branches A+B, 1 RS485 communication

    AMC100-KA48

    Wet contact, monitor the  switching status of  48 branches A+B, 1 RS485 communication

    AMC100-KD30

    Dry contact, monitor the  switching status of  30 branches A+B, 1 RS485 communication

    AMC100-KD48

    Dry contact, monitor the  switching status of  48 branches A+B, 1 RS485 communication

    AMC100-FT30

    1 way RS485 communication, 30 way temperature measurement

    AMC100-FT48

    1 way RS485 communication, 48 way temperature measurement
