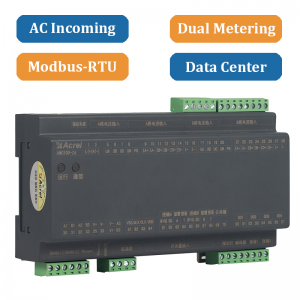

AMC100-DA A+B 2 Channel DC energy meter for IDC

● Designed specifically for the power supply management of server in the data center

● A+B independent 2 channels three-phase inlet

● U, I, P, Q, S, PF, kWh, kvarh

● 2nd-63rd Harmonic


Information

Parameter

Function

Download

Characteristic

1

Function

Rated Voltage: 220V AC

 Rated Current: 5A

 A+B dual three-phase AC incoming circuit

 8 switching status inputs, 4 switching status outputs

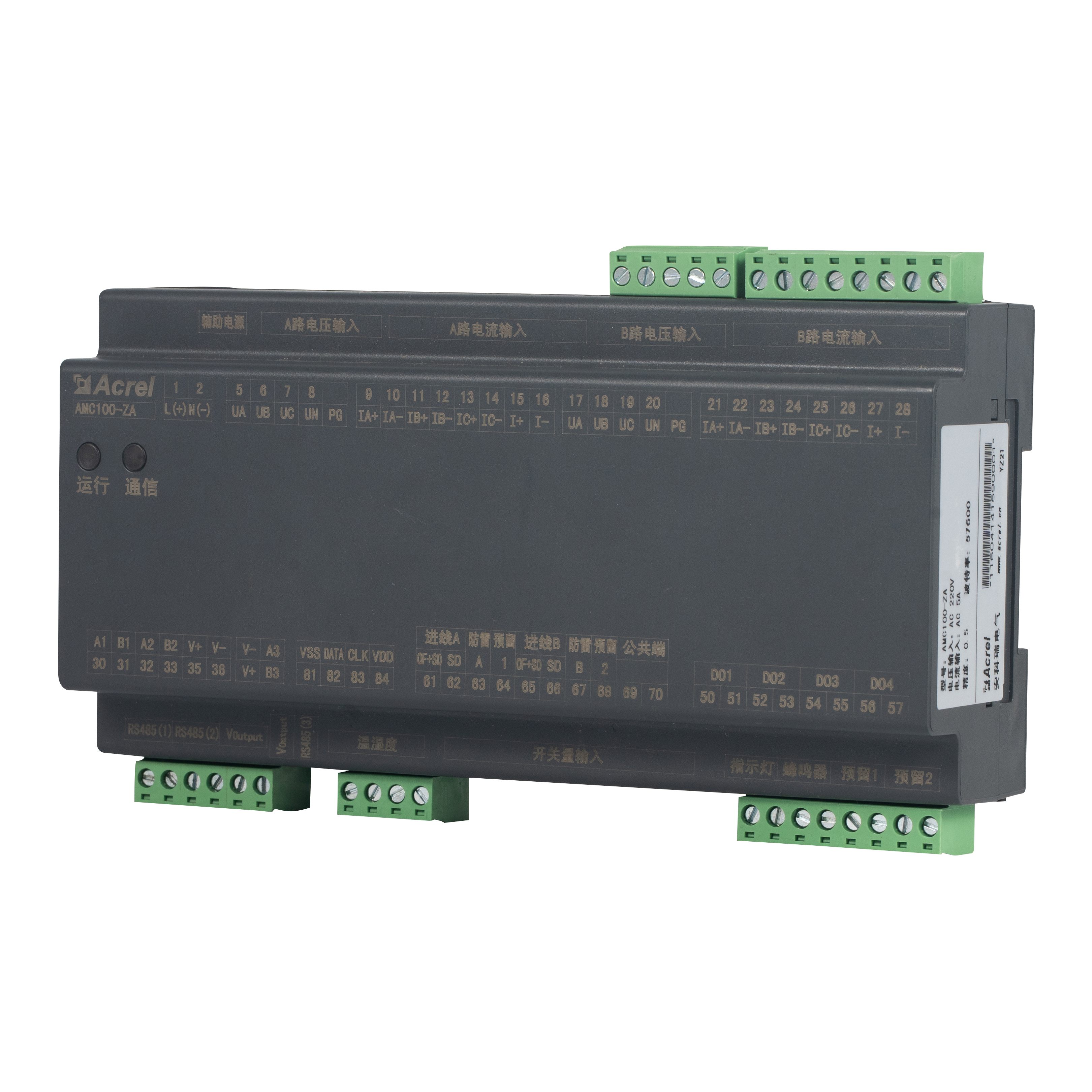

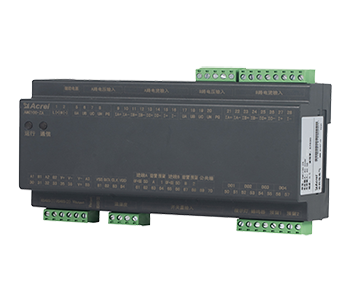

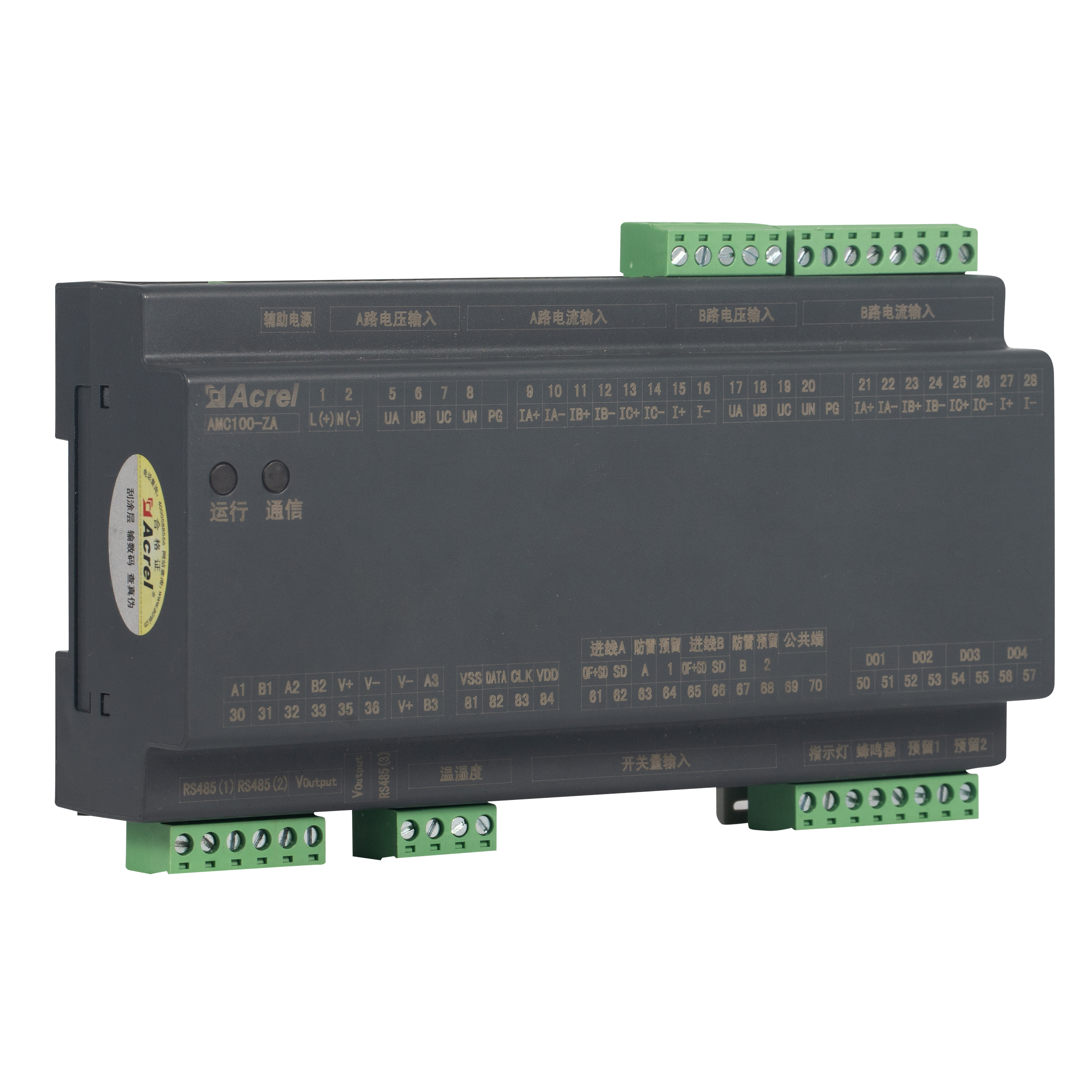

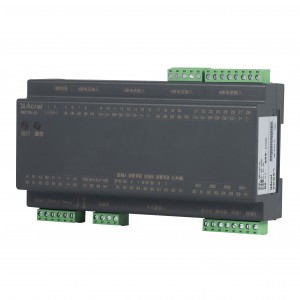

XSX09702

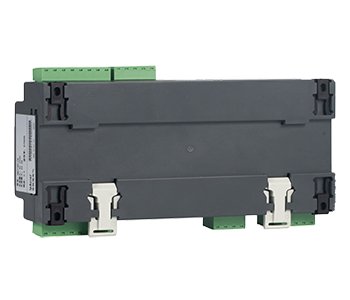

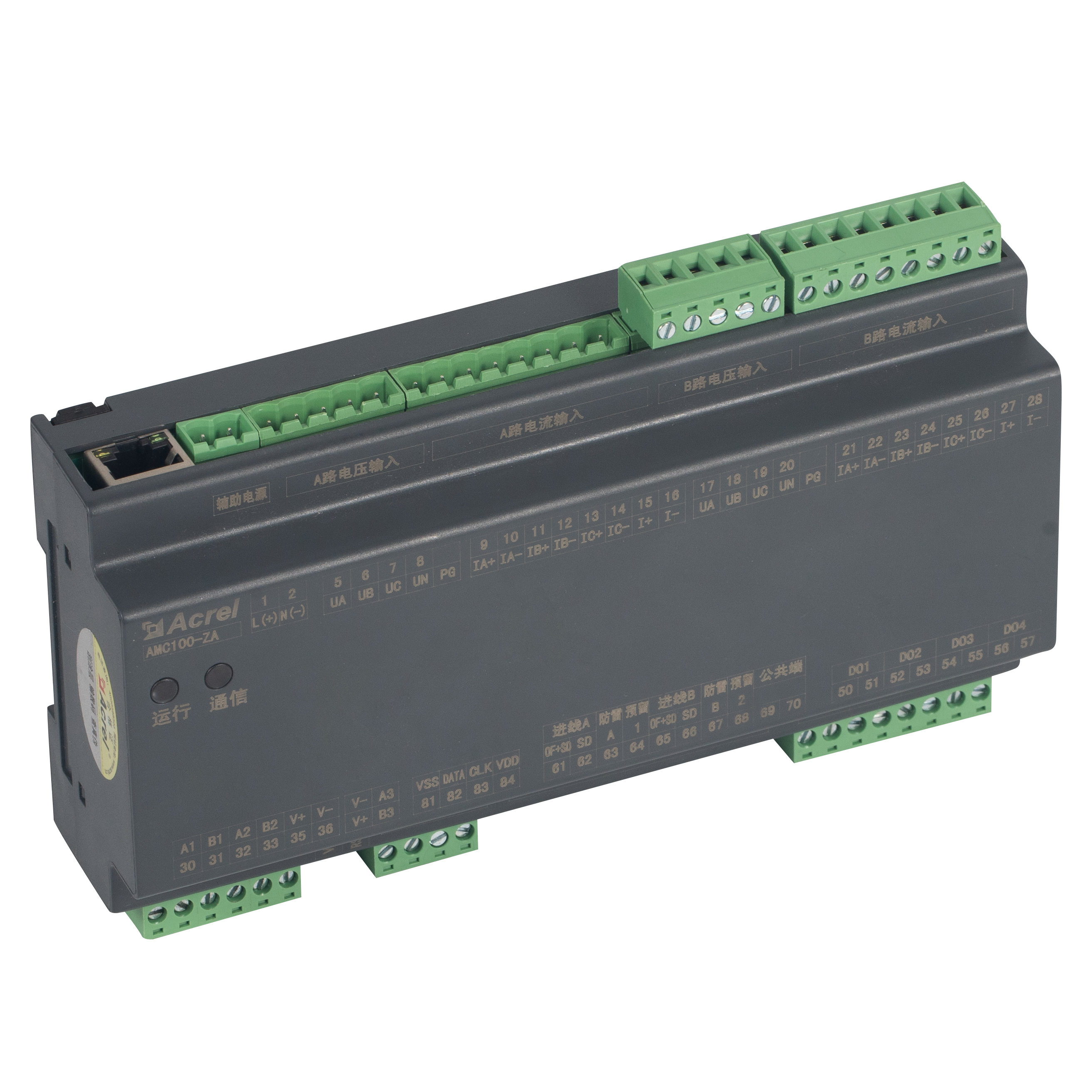

XSX097031

Installation: 35mm Din-rail

Dimension: 180*90*45m

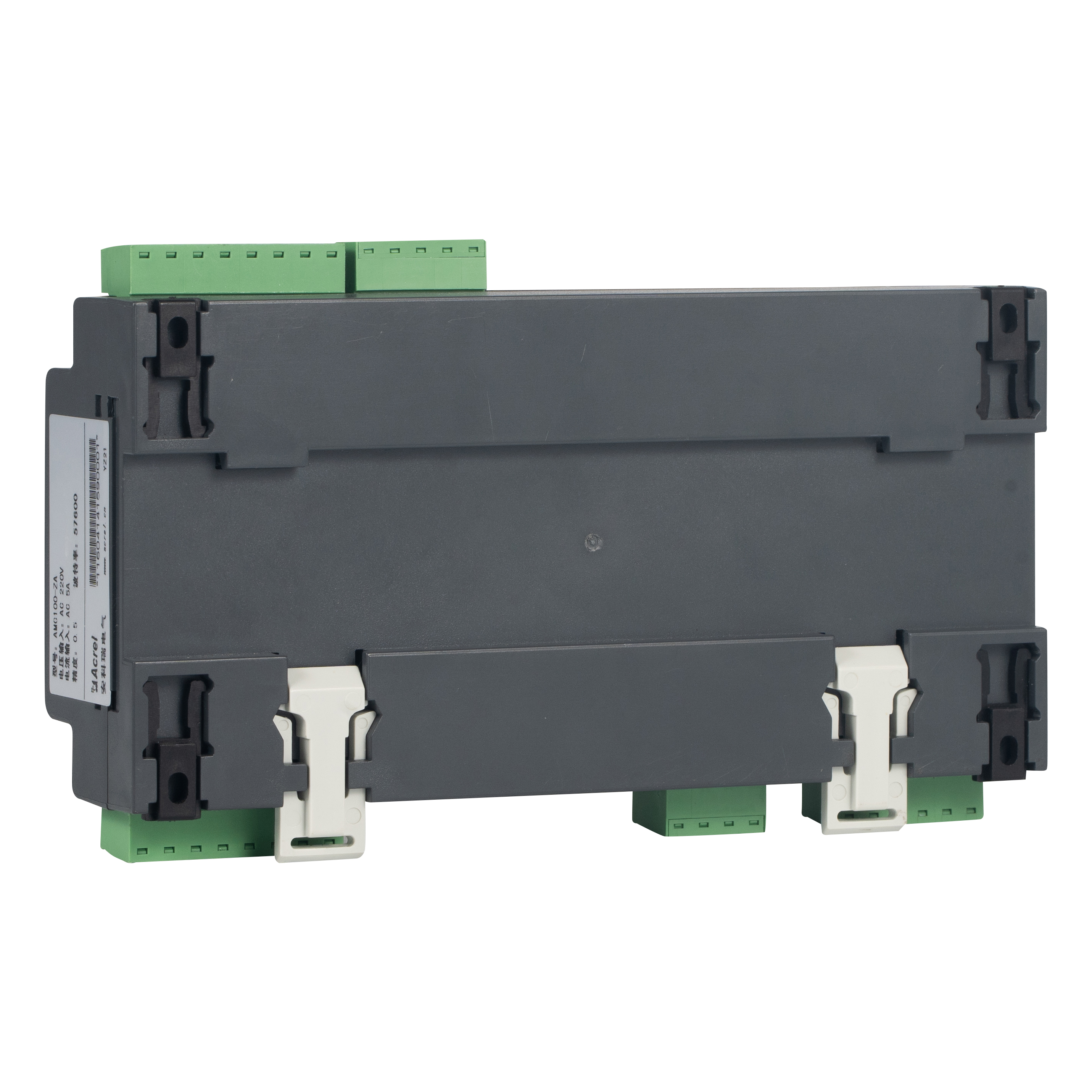

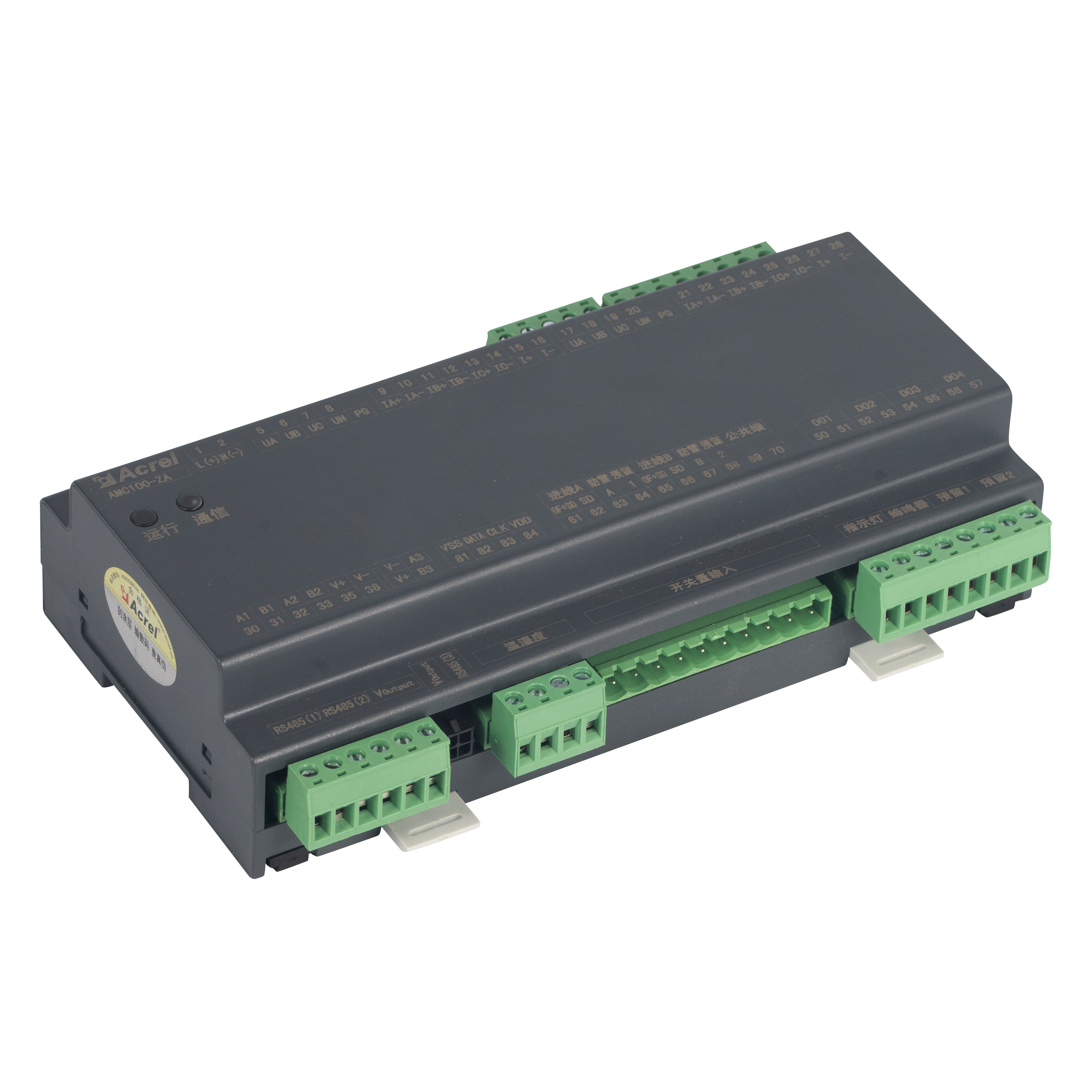

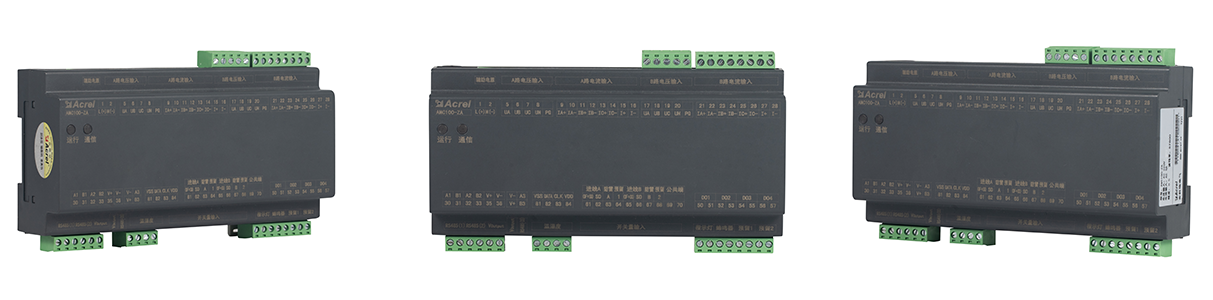

Appearance

未标题-9

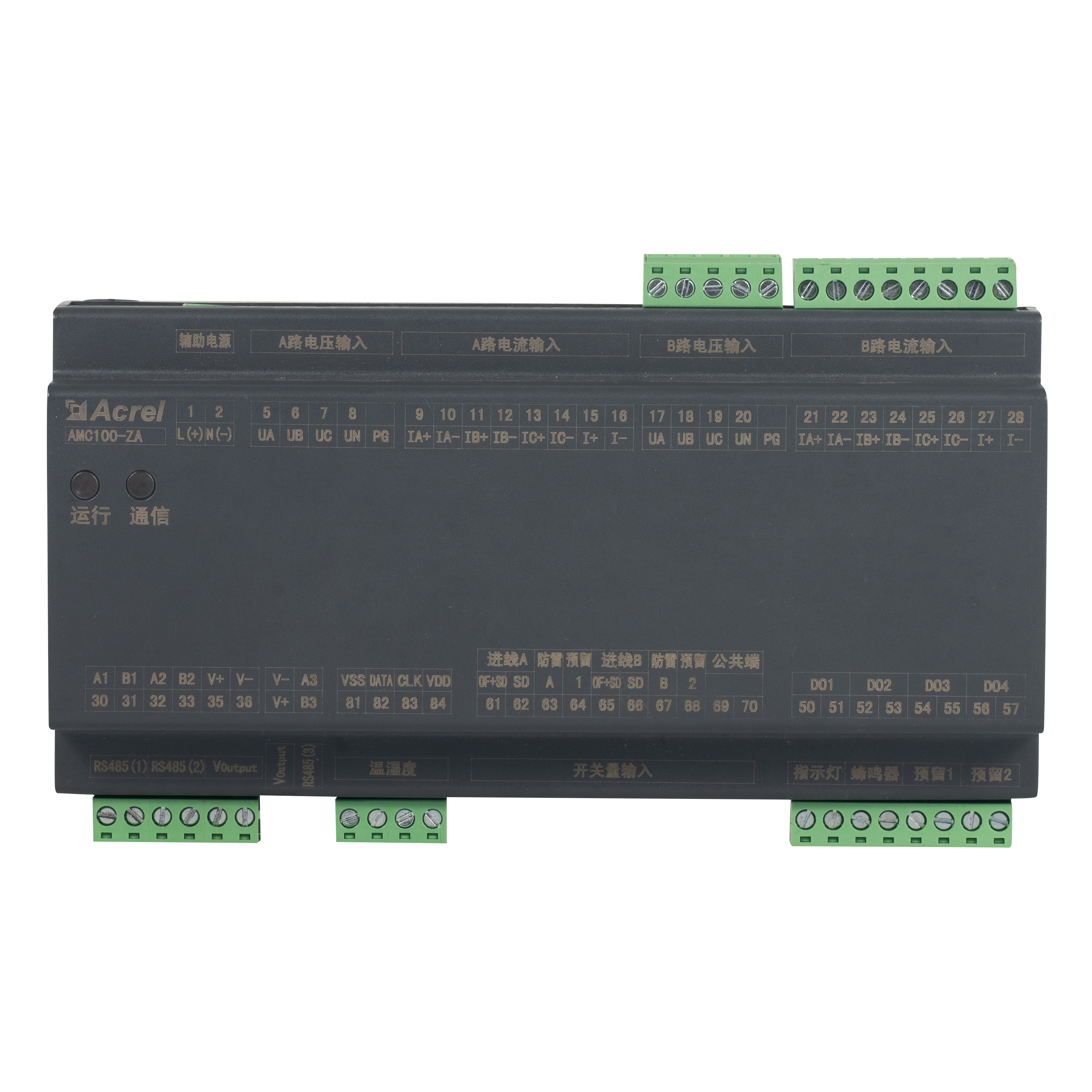

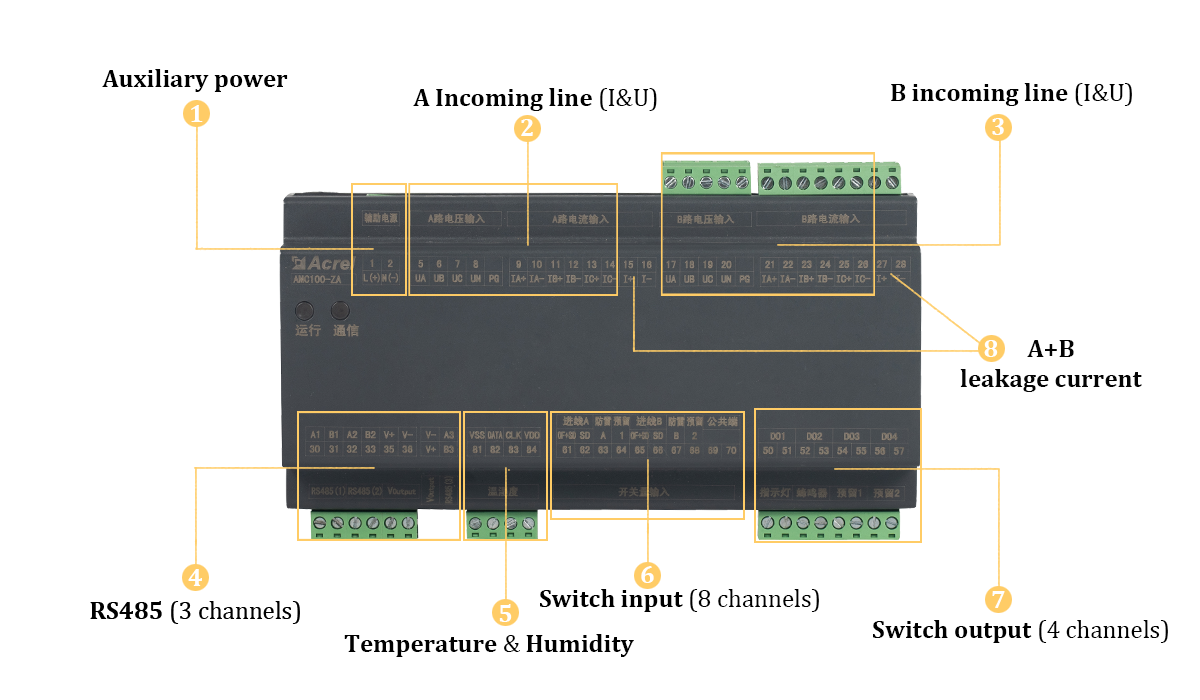

Wiring

未标题-10
31

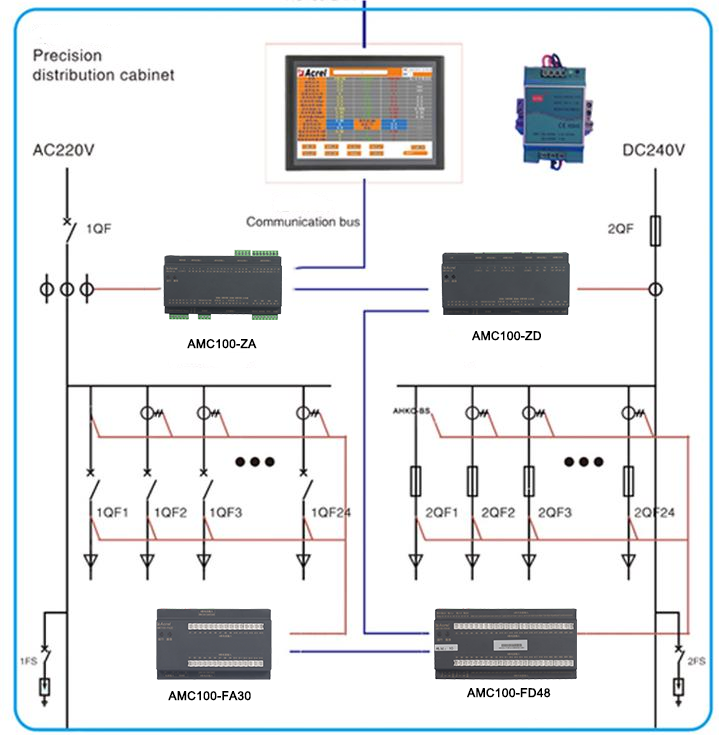

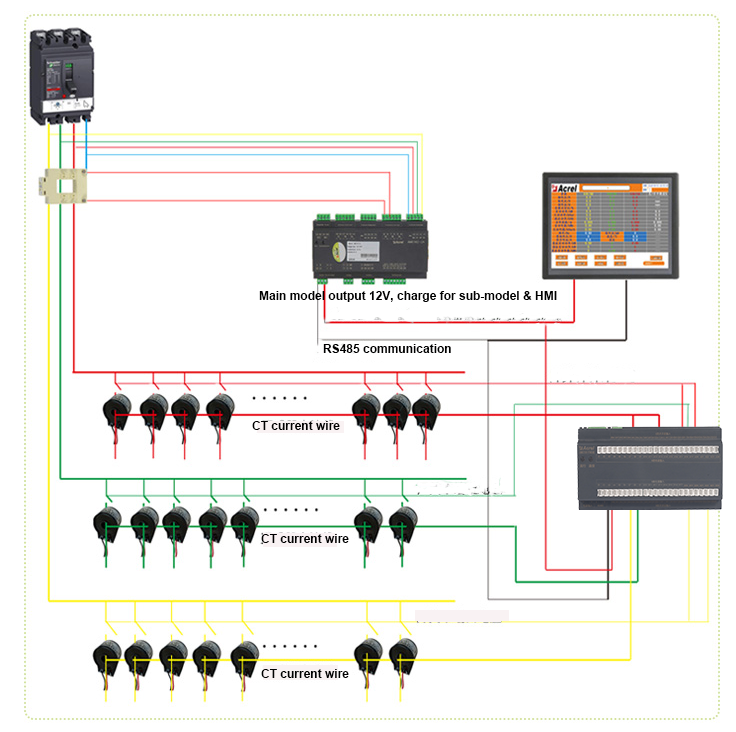

Typical connection

AMC数据中心(2)

  • Previous:
  • Next:

  • 1.Technical parameter

    1.1 Electrical performance

    Instrument model

    AMC100-ZA

    Measurement parameters

    Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, Zero-to-ground voltage, leakage current and zero sequence current, total harmonic content (THD), 2-63 harmonics, current and voltage unbalance, ambient temperature and humidity

    Bus voltage

    Rated

    220VAC

    Measuring range

    ±20%

    Overload

    Instantaneous voltage 2 times/sec

    Current incoming circuit

    Rated

    Secondary 5A

    Range

    0~6A

    Overload

    Continuous 1.2 times, instantaneous 10 times/sec

    Temperature and humidity

    Temperature Range

    -40℃~+99℃

    Humidity Range

    20%~90%

    Input frequency

    AC45~65Hz



    Measurement accuracy



    Incoming line

    Voltage/current level 0.2, active power/energy level 0.5, reactive power/energy level 1

    Temperature

    ±1℃

    Humidity

    ±5%

    Auxiliary power

    AMC100-ZA: signal to take power (≤15W)

    AMC100-ZA-P220: 220V independent power supply

    AMC100-ZA-P24: DC 12-24V independent power supply

    Switch output

    4 channels 3A 250VAC/3A 30VDC

    Switch input

    8 dry nodes

    Communication

    1 isolated RS485/Modbus-RTU to the background system

    1 RS485/Modbus-RTU to touch screen

    1 RS485/Modbus-RTU connection downstream module

    Optional 1-channel Ethernet communication function

    Installation Method

    DIN35mm rail or bottom plate installation

    Protection level

    IP20

    Pollution level

    2



     Security



    Insulation

    The insulation resistance between all terminals and the conductive parts of the shell is not less than 100MΩ

    Withstand voltage

    A voltage and current signal//B voltage and current signal//switch output//isolated communication port//between other ports meet AC2kV 1min, switch input and other ports should meet AC0.5kV 1min, leakage current Should be less than 2mA, no breakdown or flashover phenomenon.



     Electromagnetic compatibility



    Anti-static interference

    Level 4

    Anti-electric fast transient burst

    Level 3

    Anti-surge interference

    Level 4

    Resistance to radio frequency electromagnetic field radiation

    Level 3

    1.2 Work environment



    Environment



    Temperature

    Work: -20℃~150℃

    Storage: -25℃~70℃

     Humidity

    Relative humidity≤93%

    Elevation

    ≤2500m

    2. Functional Characteristic

    2.1 Function of Different IDC Module

    Module

    Function Description

    AMC100-ZA

    Monitoring the full power parameters of the A+B dual three-phase AC incoming circuit, 8 switching status inputs, 4 switching status outputs, 2 leakage monitoring, 1 temperature and humidity detection, 3 RS485 communications

    AMC100-FAK30

    Monitor the full power parameters and switch status of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication

    AMC100-FAK48

    Monitor the full power parameters and switch status of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication

    AMC100-FA30

    Monitor the full power parameters of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication

    AMC100-FA48

    Monitor the full power parameters of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication

    AMC100-KA30

    Wet contact, monitor the  switching status of  30 branches A+B, 1 RS485 communication

    AMC100-KA48

    Wet contact, monitor the  switching status of  48 branches A+B, 1 RS485 communication

    AMC100-KD30

    Dry contact, monitor the  switching status of  30 branches A+B, 1 RS485 communication

    AMC100-KD48

    Dry contact, monitor the  switching status of  48 branches A+B, 1 RS485 communication

    AMC100-FT30

    1 way RS485 communication, 30 way temperature measurement

    AMC100-FT48

    1 way RS485 communication, 48 way temperature measurement
