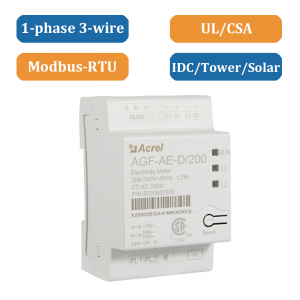

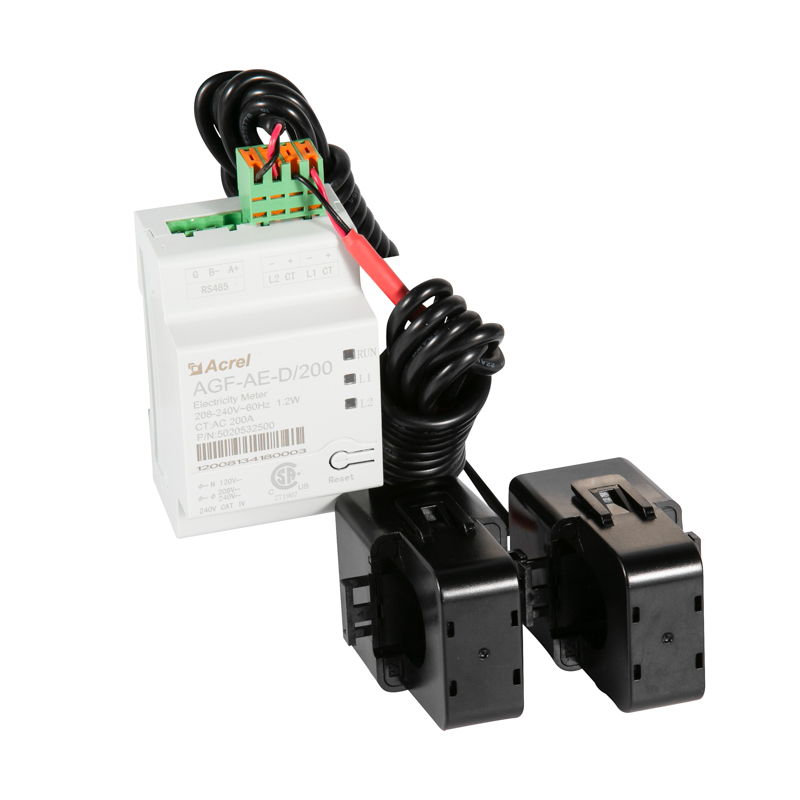

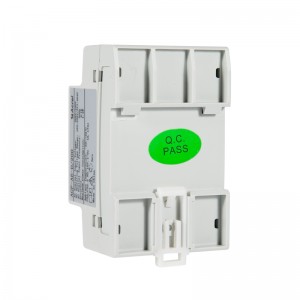

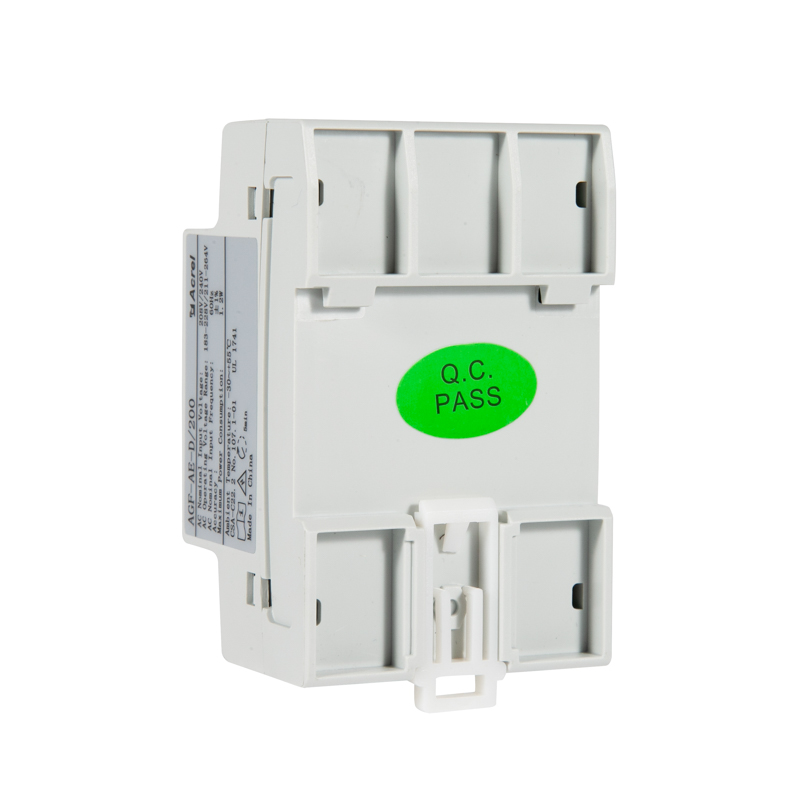

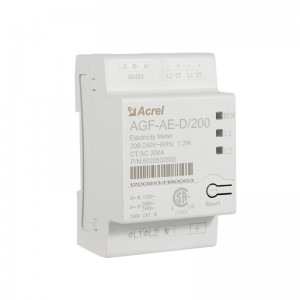

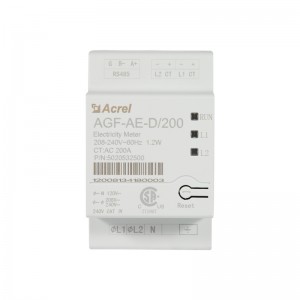

AGF-AE-D/200 Single Phase 3 Wires Bidireactional Energy meter

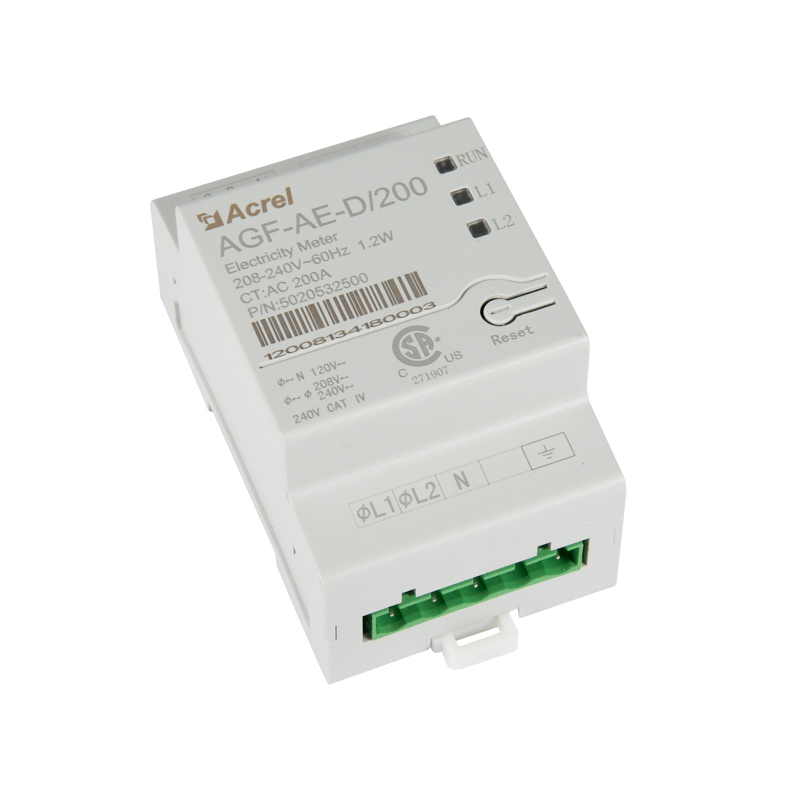

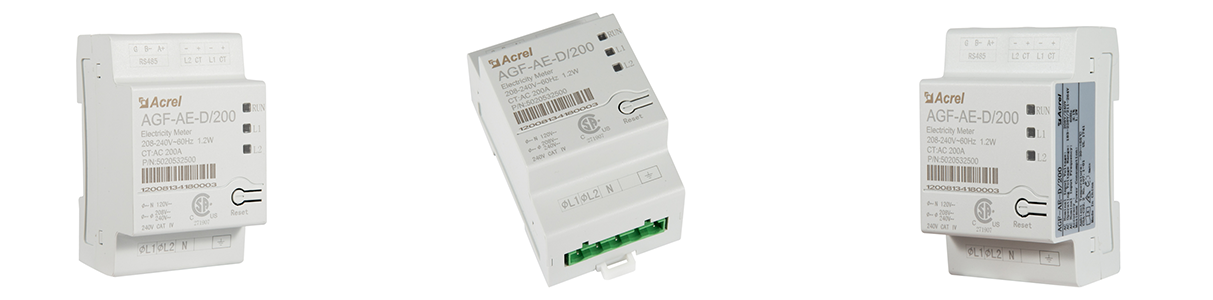

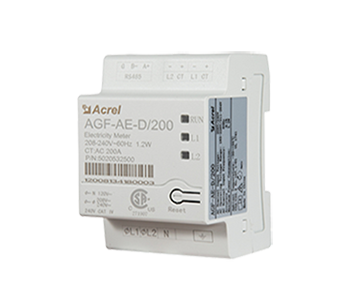

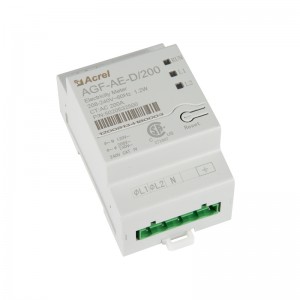

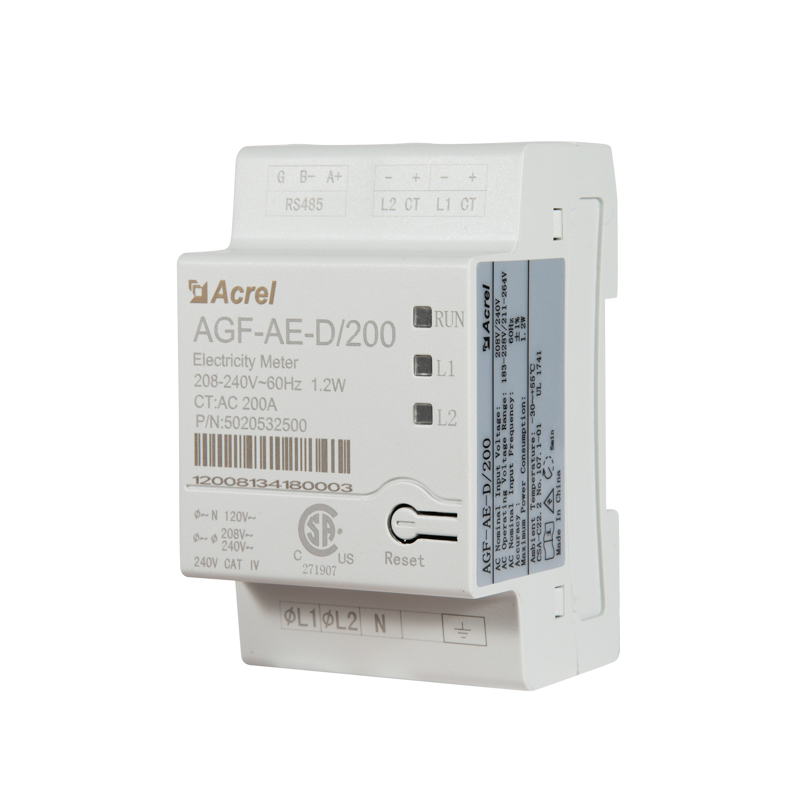

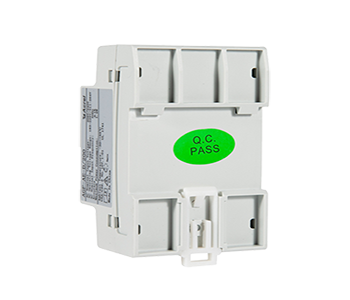

Appearance
Function
✔ Rated Voltage-Line to N : 120V
✔ Rated Voltage-Line to Line : 208/240V
✔ Frequency : 60Hz
✔ Consumption : 1.2VA
✔ Installation : DIN-rail 35mm
✔ Dimensions(H×W×D) : 54.1×87.8×52mm
✔ Response time : ≤1s

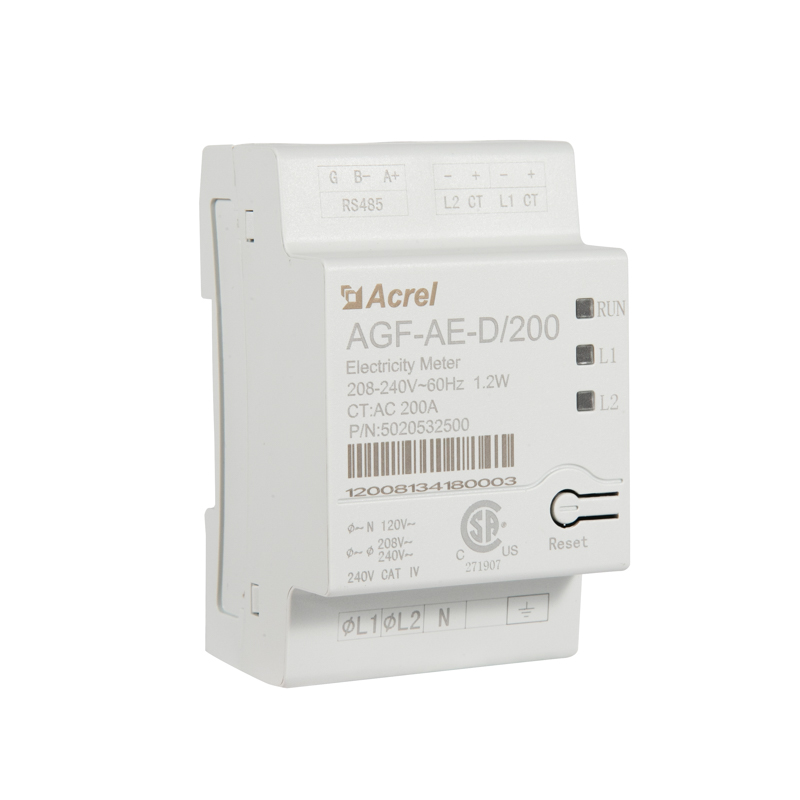

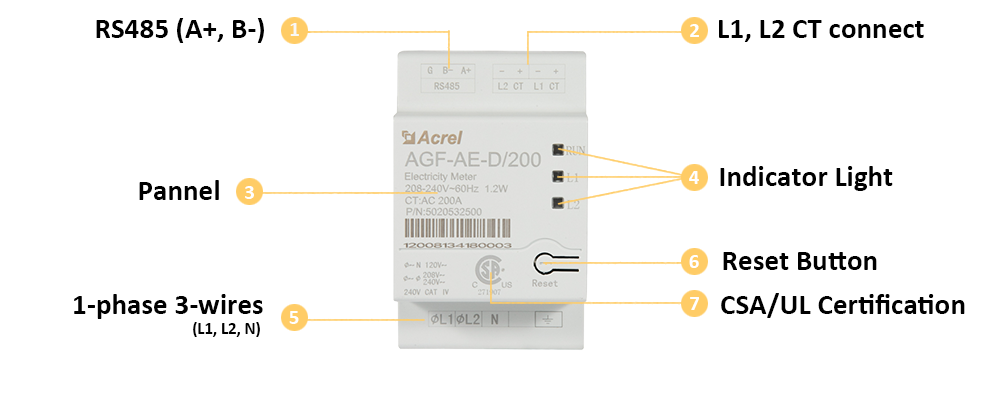

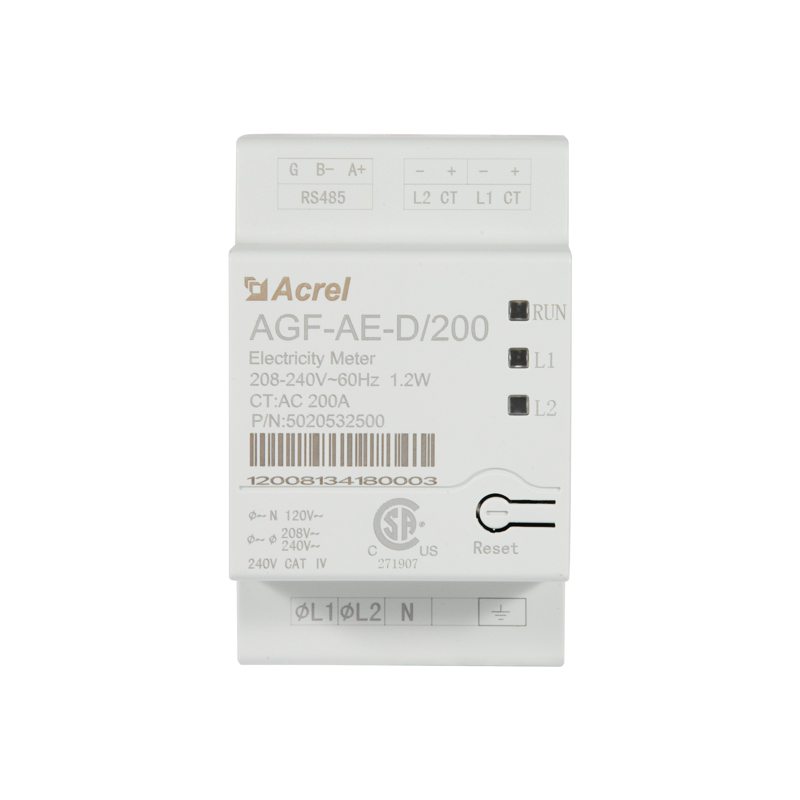

PIN Overview

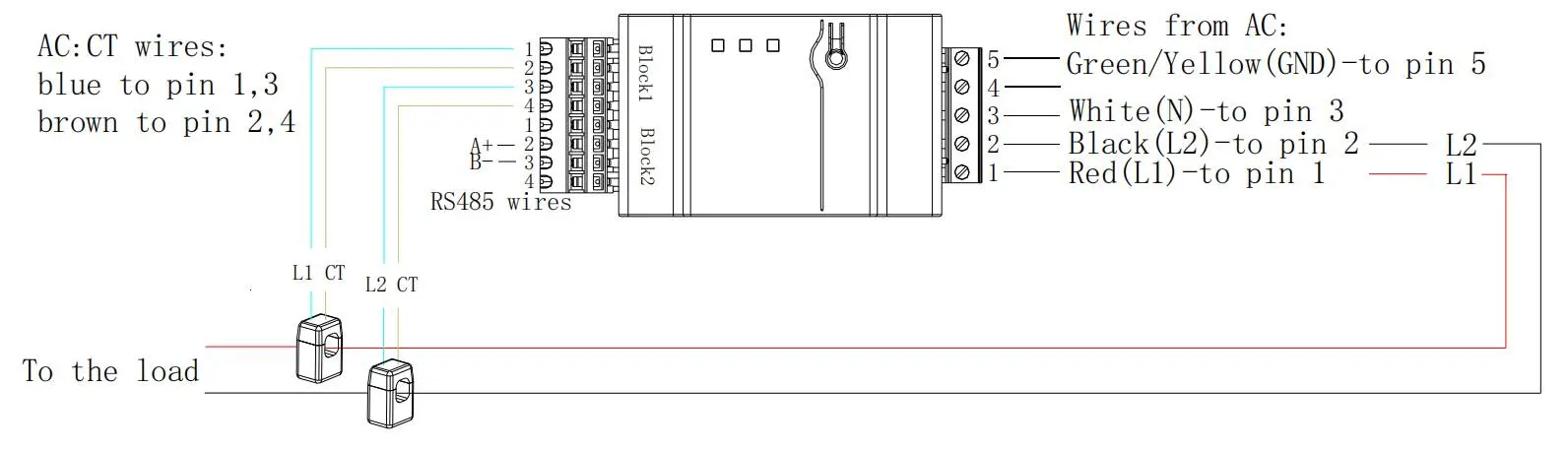

Wiring

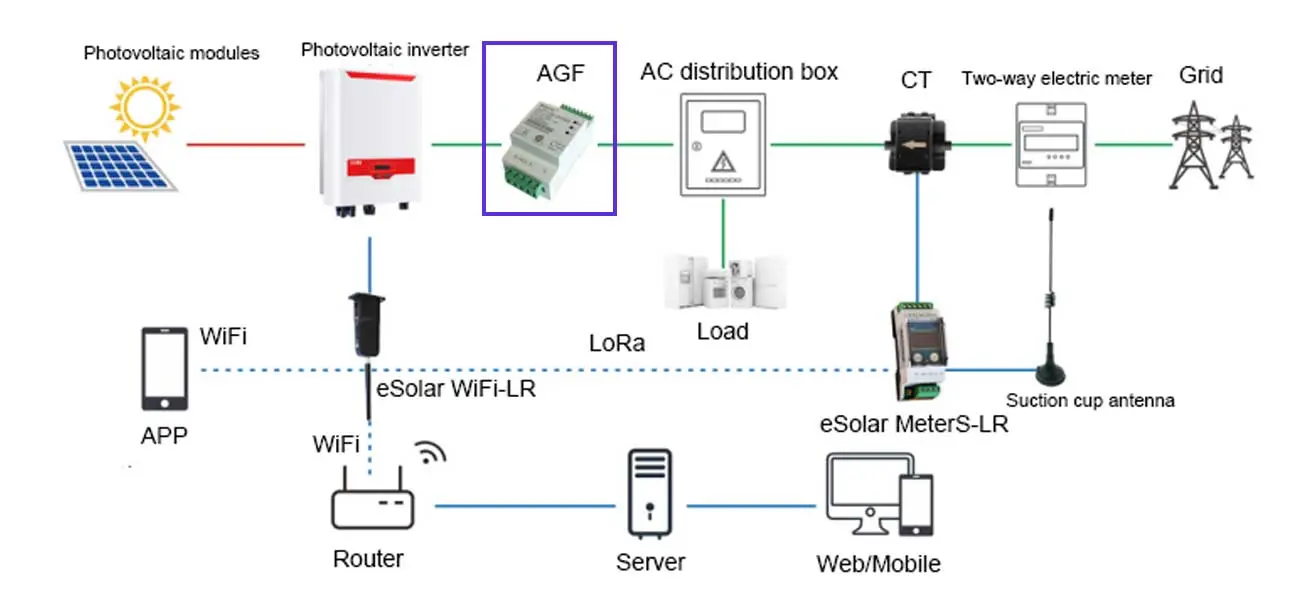

Solution Structure

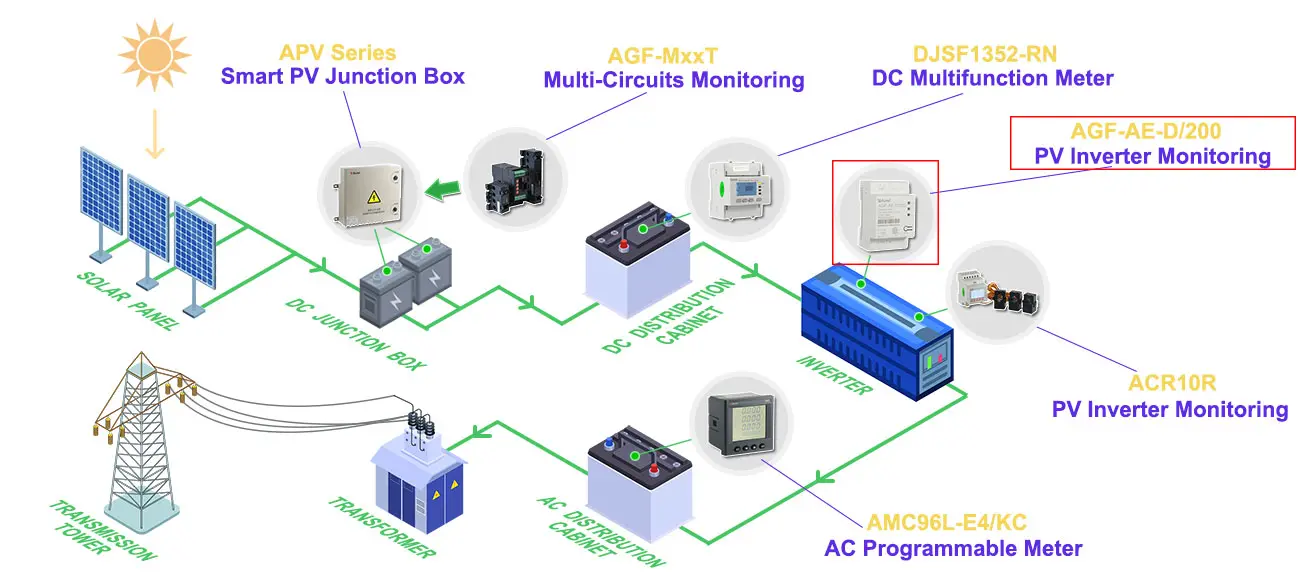

Typical Diagram
1.Technical parameter
1.1 Electrical performance
|
Model |
AGF-AE-D/100 |
AGF-AE-D/200 |
|
|
Rated Voltage |
Line to N |
120V |
|
|
Line to Line |
208/240V |
||
|
Extended Voltage Range |
88%~110% |
||
|
AC Frequency |
60Hz |
||
|
Grids Supported |
L1/L2/N/PE |
||
|
Power Consumption |
1.2W |
||
|
Communication |
Interface |
RS 485 |
|
|
Response Time |
≤1S |
||
|
Rated RMS current |
100A |
200A |
|
|
1%-100% of CT Current |
±0.5% |
±1% |
|
|
Number of Supplied CT |
2 |
||
|
Dimensions(H×W×D) |
I.D:15 O.D:35 |
70.5×54.5×39mm |
|
|
Safety |
UL1741 |
||
|
Dimensions(H×W×D) |
54.1×87.8×52mm |
||
|
Weight |
0.2kg |
||
|
Enclosure type |
Type 1,PC plastic UL94V-0 |
||
|
Mounting Type |
DIN-Rail，35mm |
||
1.2 Work environment
|
Operating Temperature Range |
-30 ~ 70℃ |
|
Relative Humidity |
5 ~ 90% (non-condensing) |
