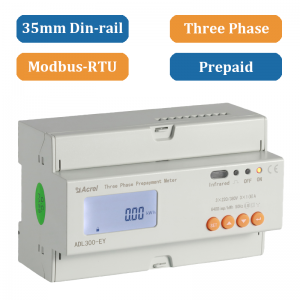

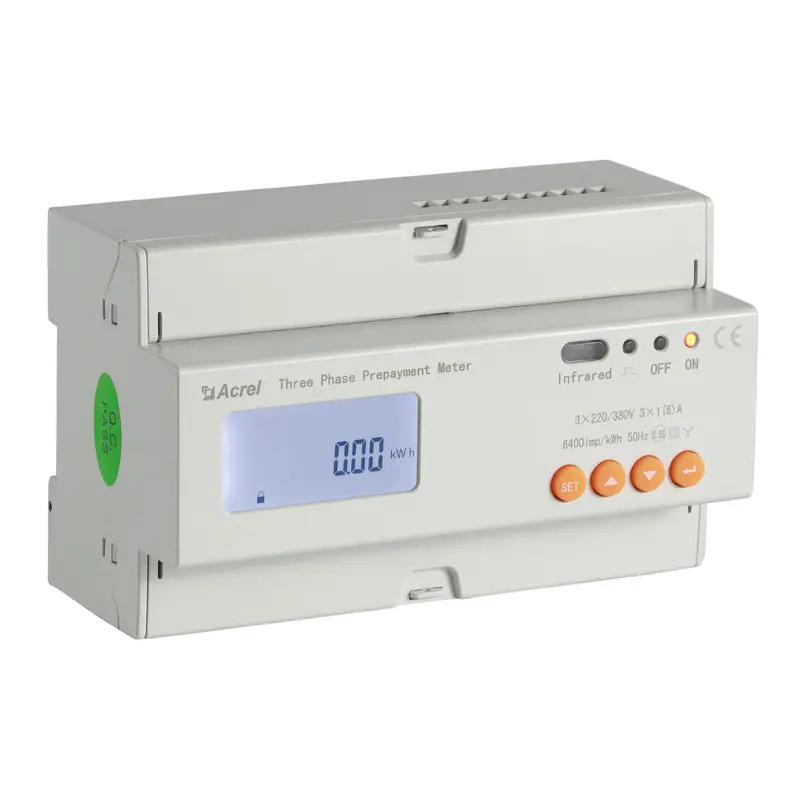

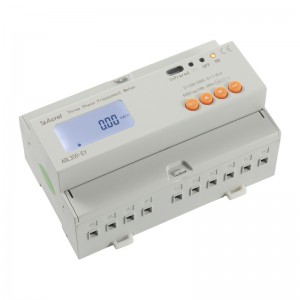

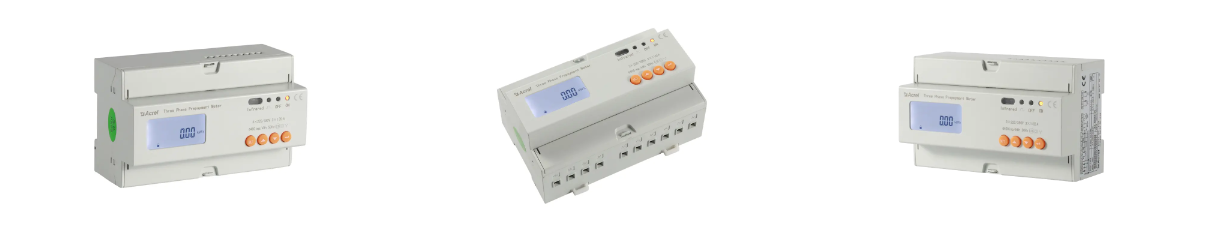

ADL300-EY Din-rail 3-Phase Prepaid Energy Meter
Characteristic
LCD Display
Function
Accuracy
kWh Class 0.5s
Frequency
50/60HZ（Optional）, Range：45~65HZ
Auxiliary power supply(self supply)
220Vac（L-N）,range:154~264Vac
Pulse output
Pulse output kWh
Consumption
<4VA(Each phase)
Installation:
DIN 35mm
Dimension(L*W*H)：
144*88*70mm
Active pulse:
Constant: 6400imp/kWh,400imp/kWh
Clock:
≤0.5s/d
Starting current:
Connect directly:0.04A,connect via CT:0.002A

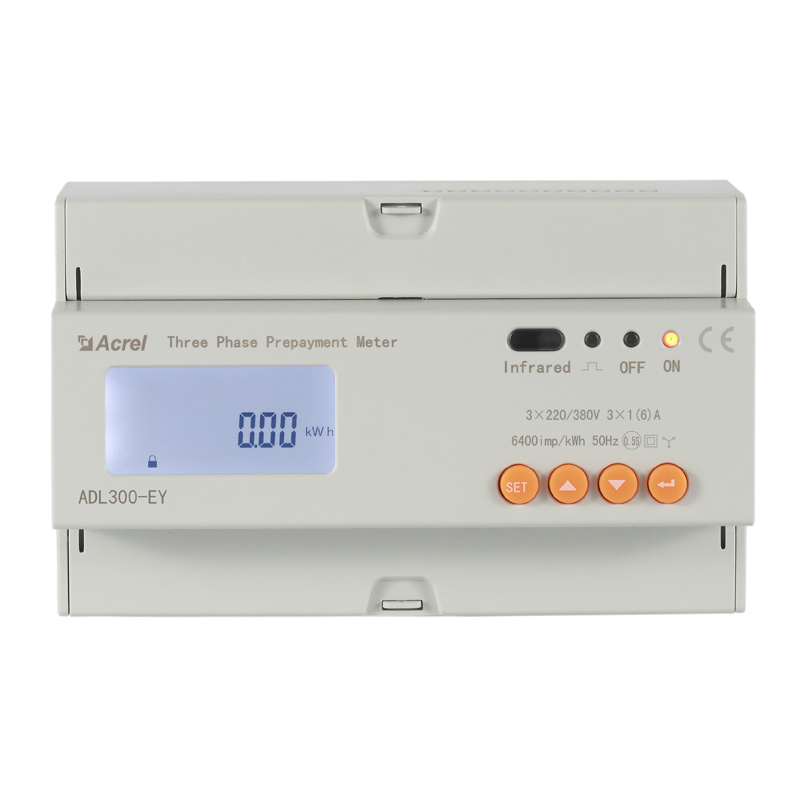

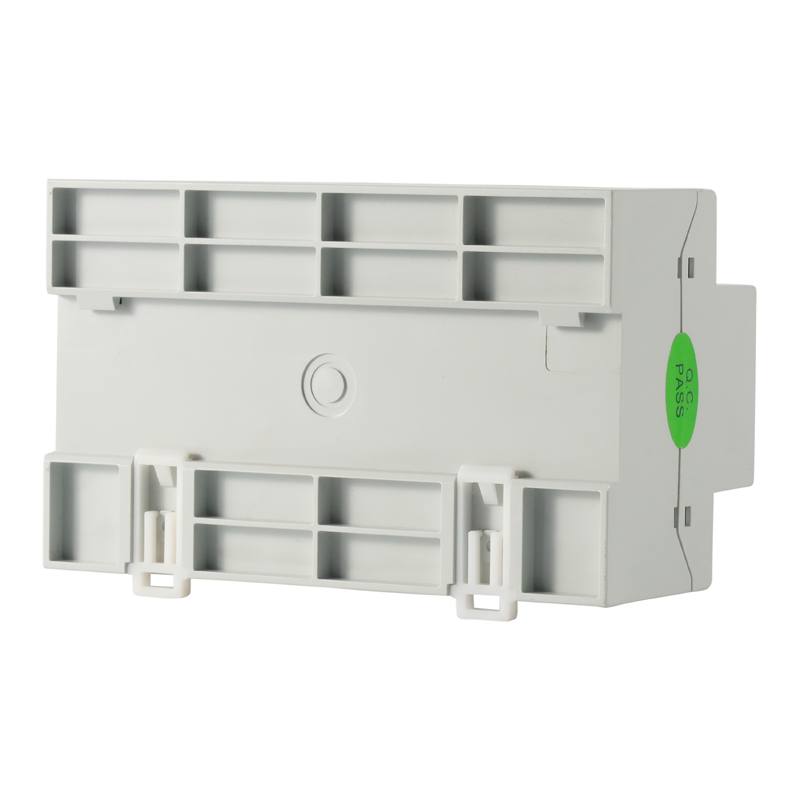

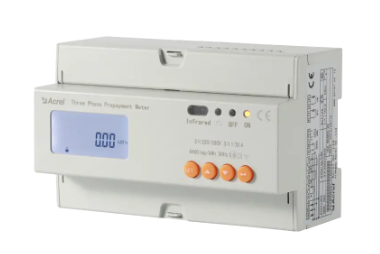

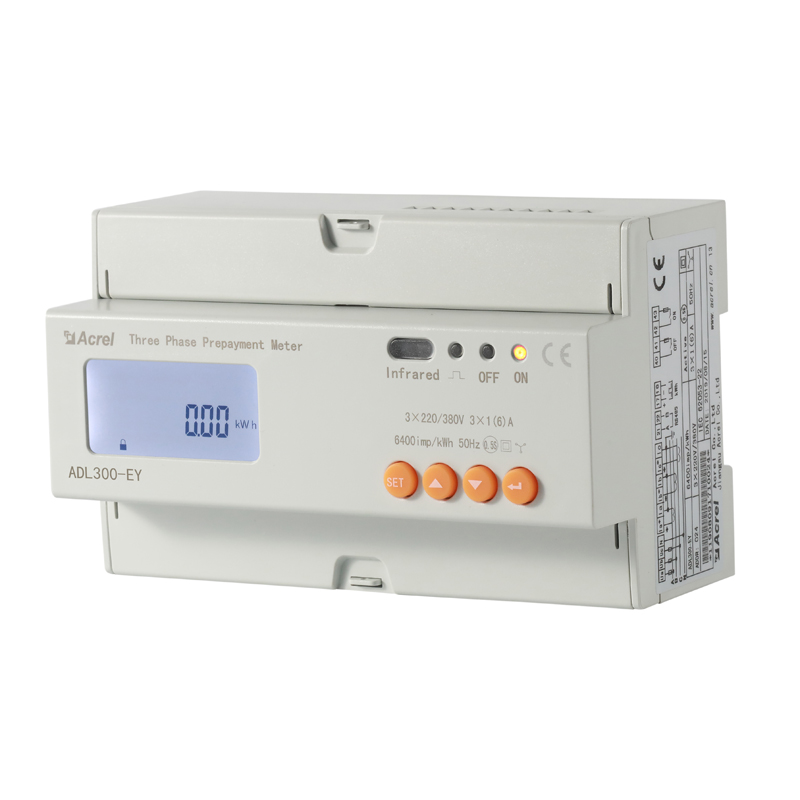

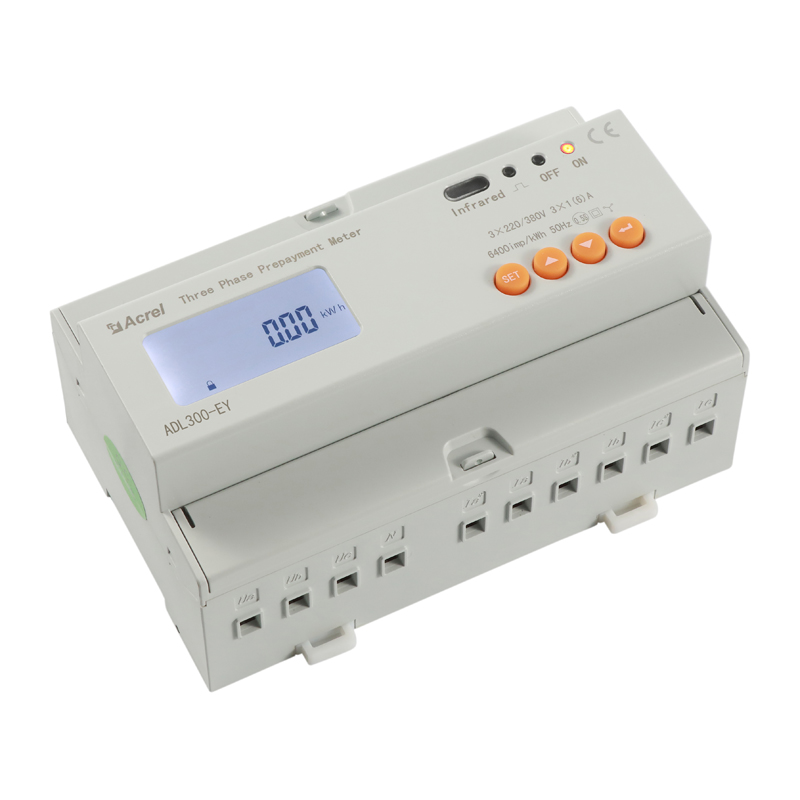

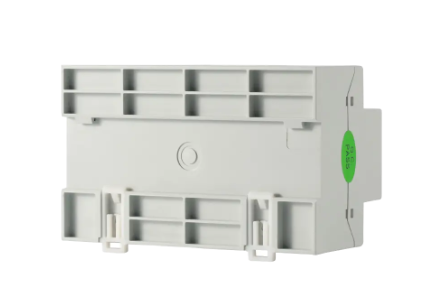

Appearance

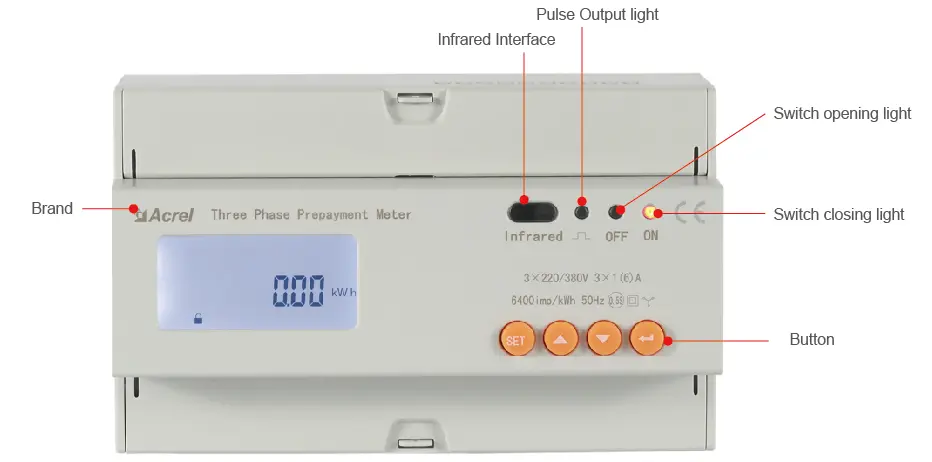

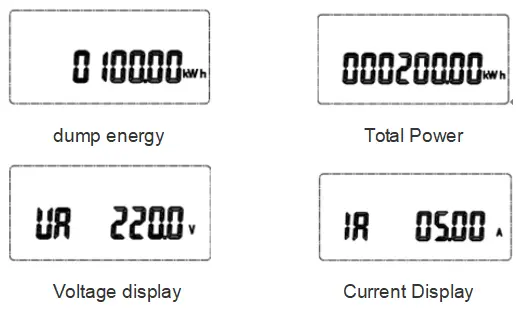

Operation Instruction

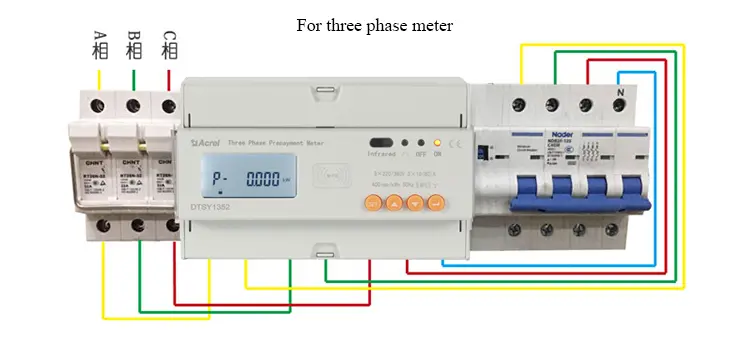

Wiring

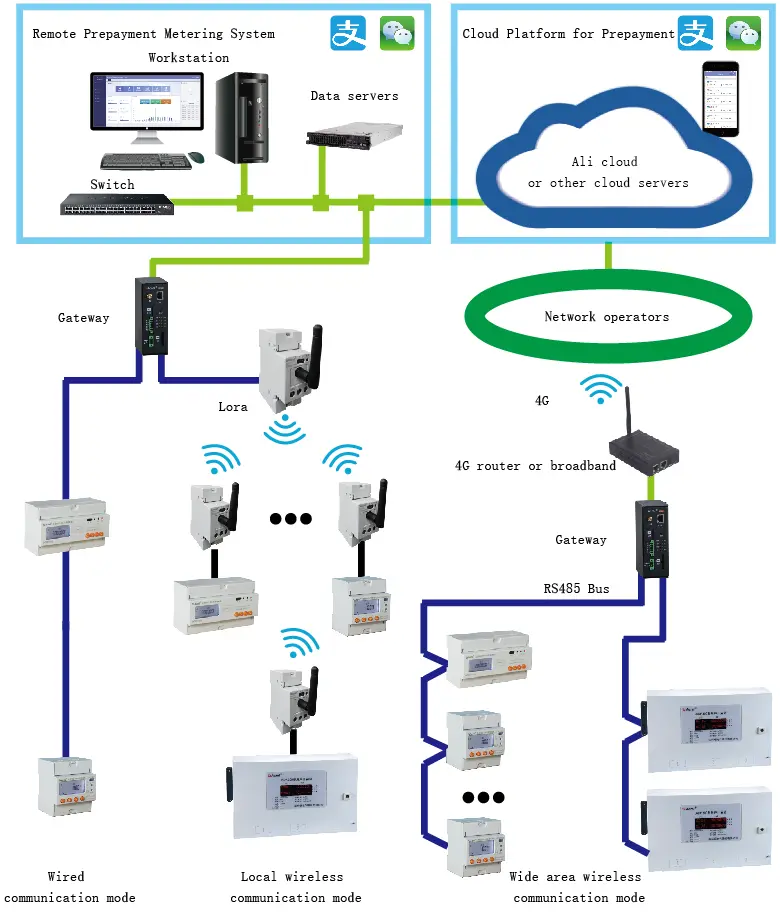

Typical diagram
1.Technical parameter
1.1 Electrical performance
|
Technical parameter |
ADL100-EY |
ADL300-EY |
|||
|
Voltage |
Reference voltage |
220V |
3×220/380V |
||
|
Reference frequency |
50Hz |
||||
|
Consumption |
<4VA(Each phase) |
||||
|
Current |
Input current |
10(60)A |
1(6)A ,10(80)A |
||
|
Starting current |
Connect directly: 0.004 Ib, connect via CT: 0.002In |
||||
|
Consumption |
<4VA (Maximum current) |
||||
|
Measurement performance |
Accuracy of measuring |
1 Class |
0.5s Class |
||
|
Clock accuracy |
Error ≤0.5s/d |
||||
|
Active pulse |
Pulse width |
80ms±20ms |
|||
|
Pulse constant |
1600imp/kWh |
6400imp/kWh,400 imp/kWh |
|||
|
Communication |
Interface |
RS485(A+、B-) |
|||
|
Connection mode |
Shielded twisted pair conductors |
||||
|
Protocol |
MODBUS-RTU |
||||
1.2 Work environment
|
Temperature range |
Work temperature |
-25℃~55℃ |
|
Storage Temperature |
-40℃~70℃ |
|
|
Relative humidity |
≤95%(No condensation) |
|
|
Altitude |
<2000m |
|
2. Functional Characteristic
2.1 Basic & Optional Function
|
Function name |
Function Description |
Function provide |
||
|
ADL100-EY |
ADL300-EY |
|||
|
Measurement of kWh |
Total active energy kWh (positive and negative in total) |
■ |
||
|
Measurement of electrical parameters |
U、I 、P、Q、S、PF、F |
■ |
||
|
Pre-paid mode |
Through RS485 communication prepaid recharge, data encryption |
■ |
||
|
Control |
Built-in high-capacity sub-holding relay to achieve load on-off control |
■ |
||
|
LCD display |
8 bits section LCD display |
■ |
||
|
Communication |
Communication interface: RS485, Communication protocol: MODBUS-RTU |
■ |
||
|
Multi-tariff |
4 tariff rates, 14 time interval by day |
4 tariff rates, 14 time interval by day |
□F |
|
■： means standard; □： means optional
