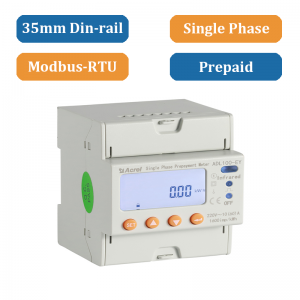

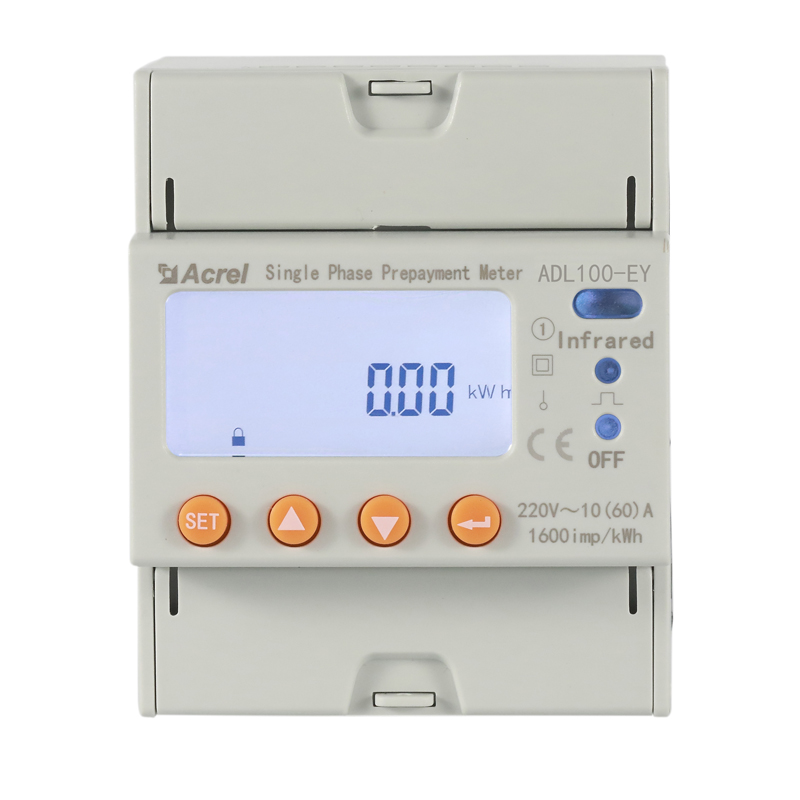

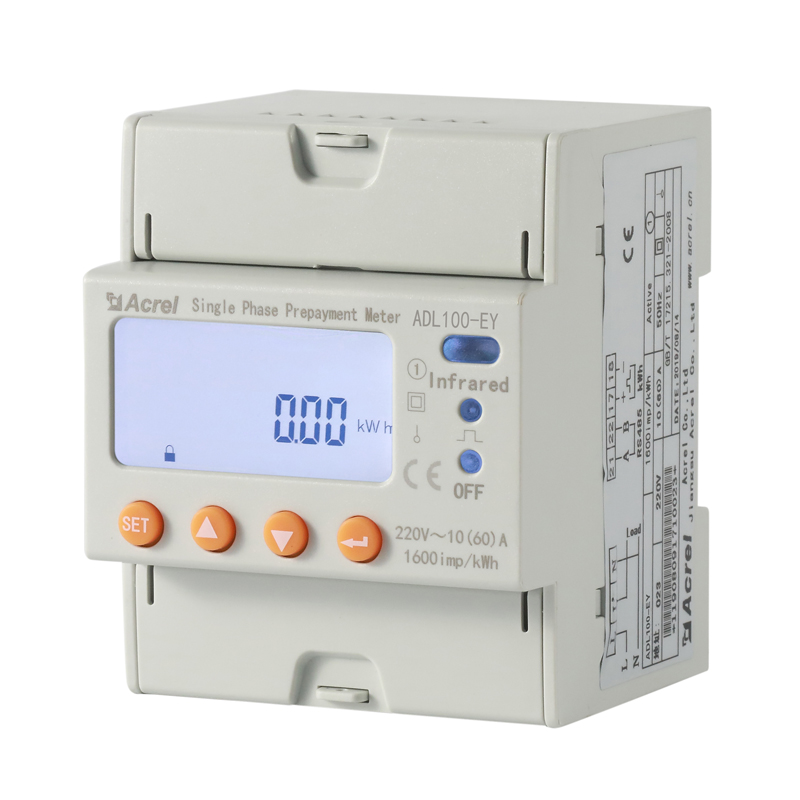

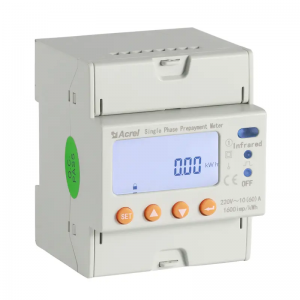

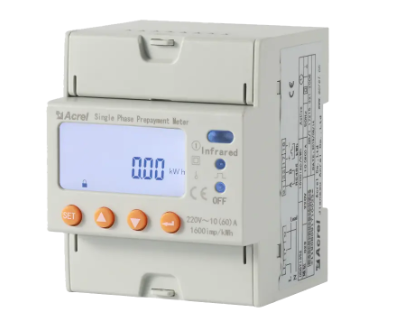

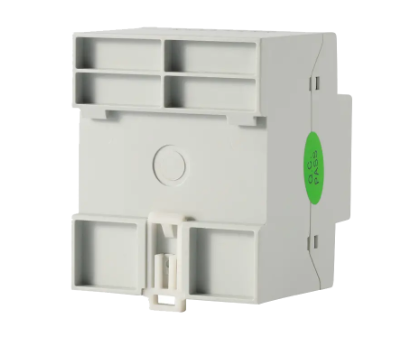

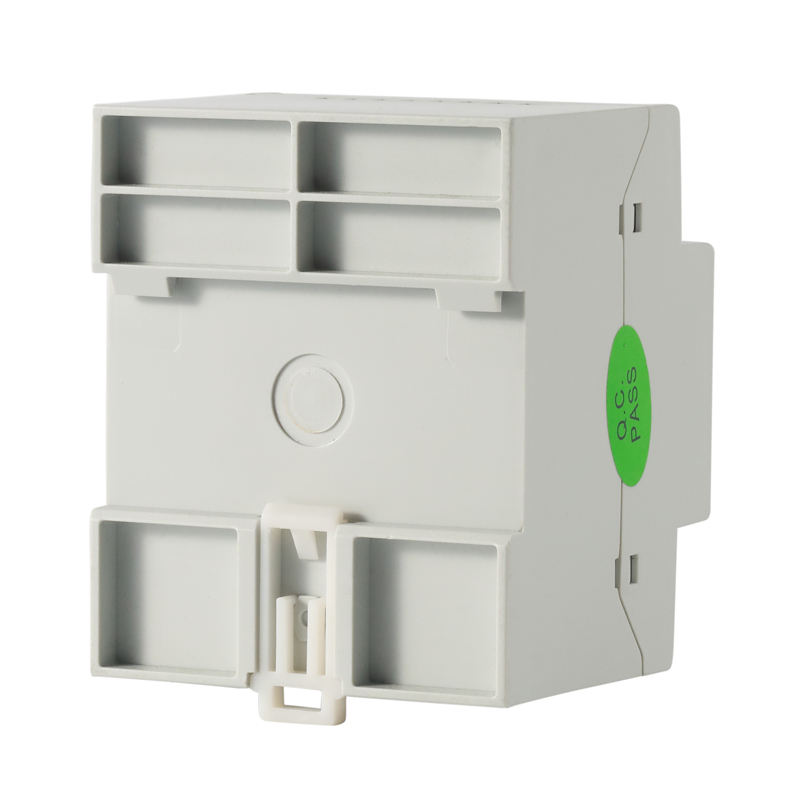

ADL100-EY Din-rail Single-phase Prepaid Energy Meter

● AC 220V

● 10(60)A

● Prepaid mode

● LCD display

● Historical records

● kWh Class 1

● DIN 35 mm


Information

Parameter

Function

Download

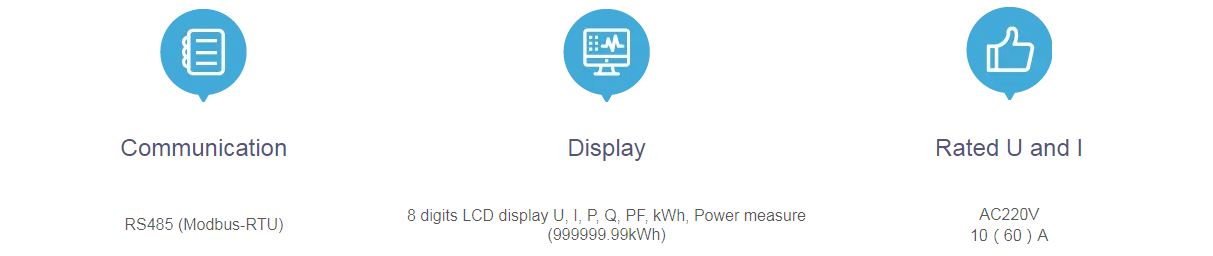

Characteristic

1

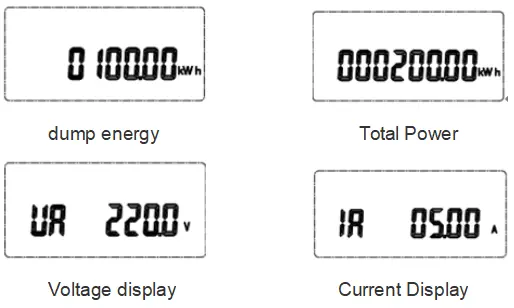

LCD Display

2

Function

Accuracy

kWh Class 1

Frequency

50/60HZ(Optional), Range:45~65HZ

Auxiliary power supply(self supply)

220Vac(L-N),range:154~264Vac

Pulse output

Pulse output kWh

Consumption

<4VA(Each phase)

1
2

Installation

DIN 35mm

Dimension(L*W*H)

72*88*70mm

Active pulse

Constant: 6400imp/kWh,400imp/kWh

Clock

≤0.5s/d

Starting current

0.04A

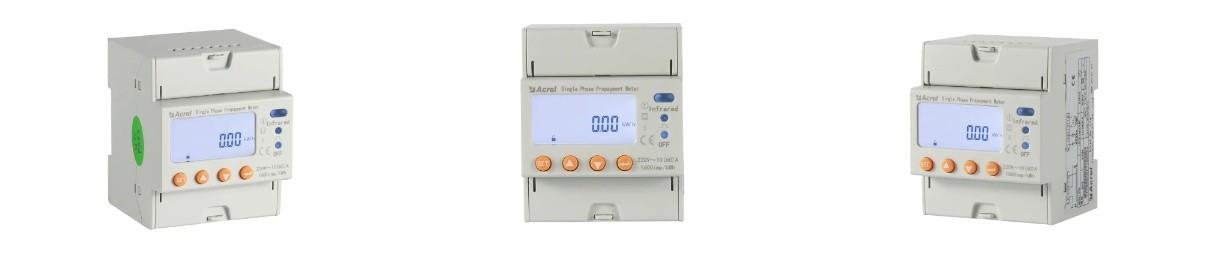

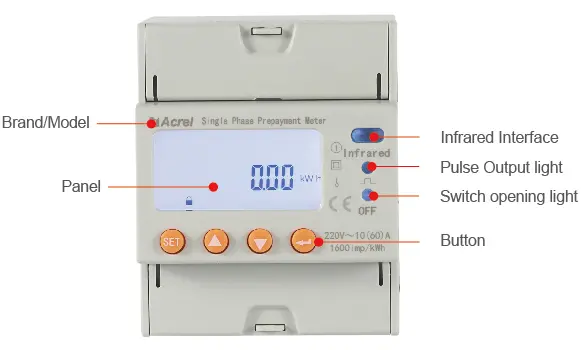

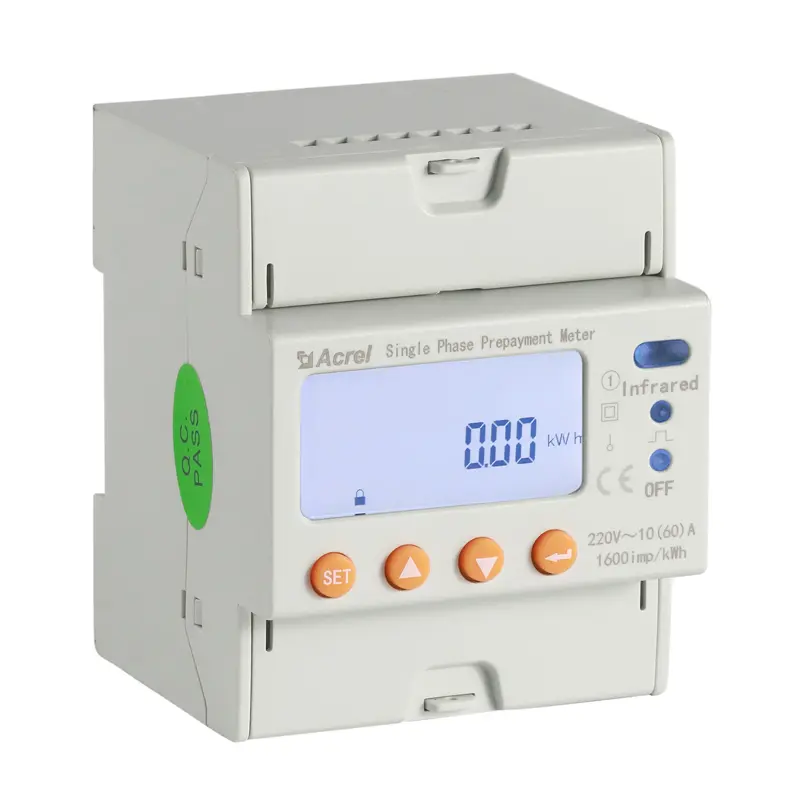

Appearance

1

Operation Instruction

1

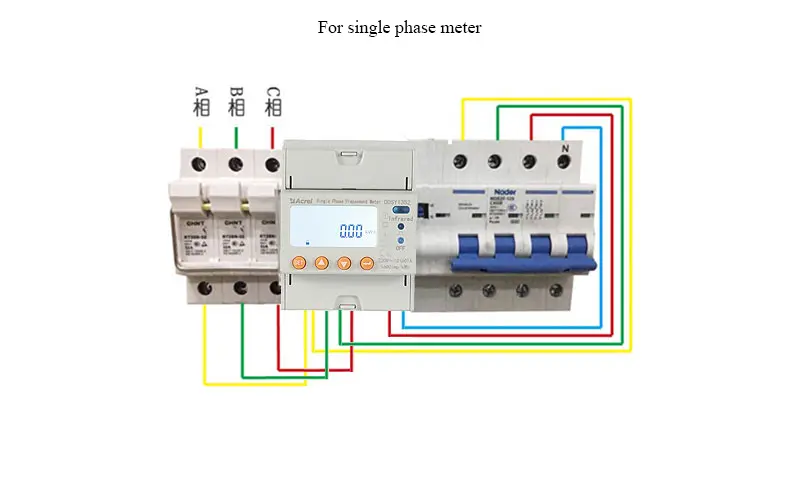

Wiring

2

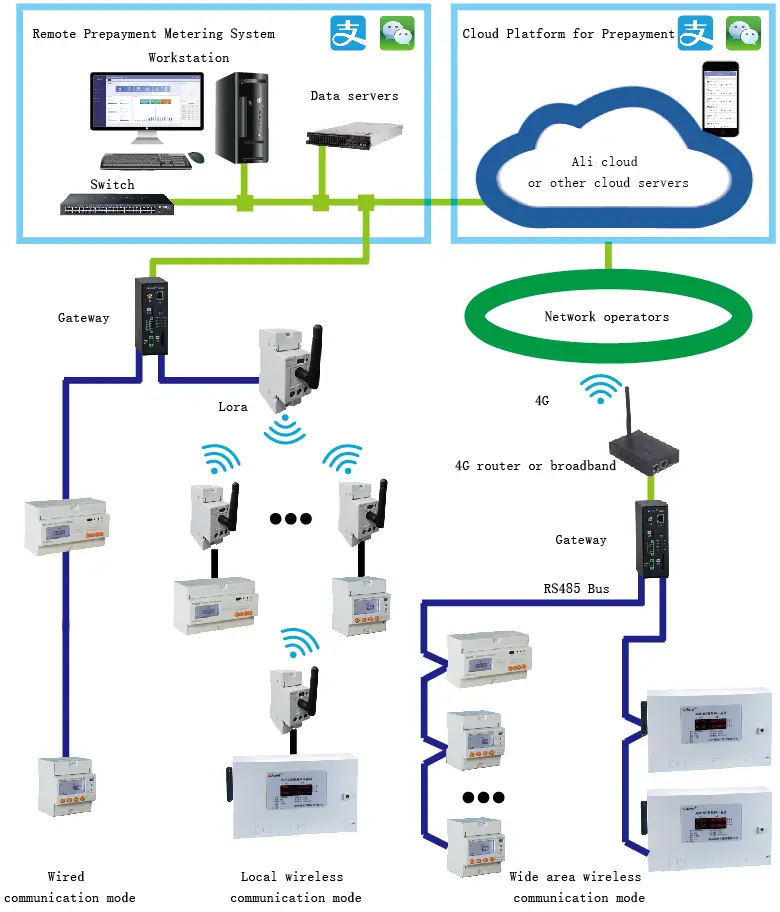

Typical connection

3

  • Previous:
  • Next:

  • 1.Technical parameter

    1.1 Electrical performance

    Technical parameter

    ADL100-EY

    ADL300-EY

    Voltage

    Reference voltage

    220V

    3×220/380V

    Reference frequency

    50Hz

    Consumption

    <4VA(Each phase)

    Current

    Input current

    10(60)A

    1(6)A ,10(80)A

    Starting current

    Connect directly: 0.004 Ib, connect via CT: 0.002In

    Consumption

    <4VA (Maximum current)

    Measurement performance

    Accuracy of measuring

    1 Class

    0.5s Class

    Clock accuracy

    Error ≤0.5s/d

    Active pulse

    Pulse width

    80ms±20ms

    Pulse constant

    1600imp/kWh

    6400imp/kWh,400 imp/kWh

    Communication

    Interface

    RS485(A+、B-)

    Connection mode

    Shielded twisted pair conductors

    Protocol

    MODBUS-RTU

    1.2 Work environment

    Temperature range

    Work temperature

    -25℃~55℃

    Storage Temperature

    -40℃~70℃

    Relative humidity

    ≤95%(No condensation)

    Altitude

    <2000m

    2. Functional Characteristic

    2.1 Basic & Optional Function

    Function name

    Function Description

    Function provide

    ADL100-EY

    ADL300-EY

    Measurement of kWh

    Total active energy kWh (positive and negative in total)

    Measurement of electrical parameters

    U、I 、P、Q、S、PF、F

    Pre-paid mode

    Through RS485 communication prepaid recharge, data encryption

    Control

    Built-in high-capacity sub-holding relay to achieve load on-off control

    LCD display

    8 bits section LCD display

    Communication

    Communication interface: RS485, Communication protocol: MODBUS-RTU

    Multi-tariff

    4 tariff rates, 14 time interval by day

    4 tariff rates, 14 time interval by day

    □F

    ■: means standard; □: means optional

    Function name Function Description Function provide
    ADL100-EY ADL300-EY
    Measurement of kWh Total active energy kWh (positive and negative in total)
    Measurement of electrical parameters U、I 、P、Q、S、PF、F
    Pre-paid mode Through RS485 communication prepaid recharge, data encryption
    Control Built-in high-capacity sub-holding relay to achieve load on-off control
    LCD display 8 bits section LCD display
    Communication Communication interface: RS485, Communication protocol: MODBUS-RTU
    Multi-tariff 4 tariff rates, 14 time interval by day 4 tariff rates, 14 time interval by day □F
